Overview

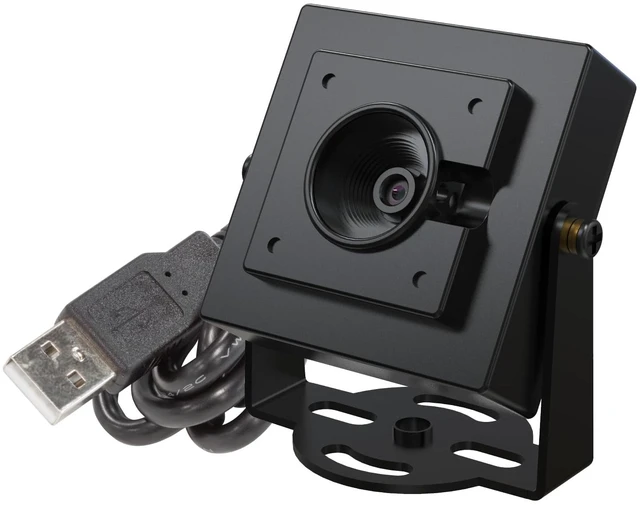

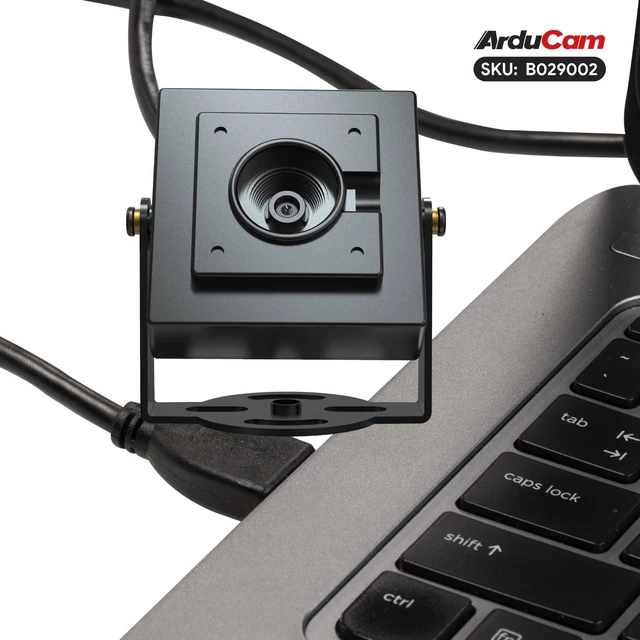

Arducam 8MP USB camera module: This camera module designed for high-quality imaging up to 3280×2464 resolution. With plug-and-play compatibility on Windows, Linux, Android, and macOS—no driver required—It is a reliable UVC solution for applications demanding clarity, durability, and wide dynamic range. The upgraded version with additional HDR support and more preset AI resolution for quick training and development of AI models, while the sturdy metal housing provides effective heat dissipation and protection.
Applications
- Webcam
- Home Surveillance System
- Wildlife Photography
- DSLR Camera Control
- Instant (Polaroid-Style) Camera, etc.
Image Sensor & Lens
| Still Resolution | 8MP |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/4" |
| Output Format | MJPG/YUY2 |
| Pixel Size | 1.12µm x 1.12µm |
| Sensor Active Area | 3280(H)×2464(V) |

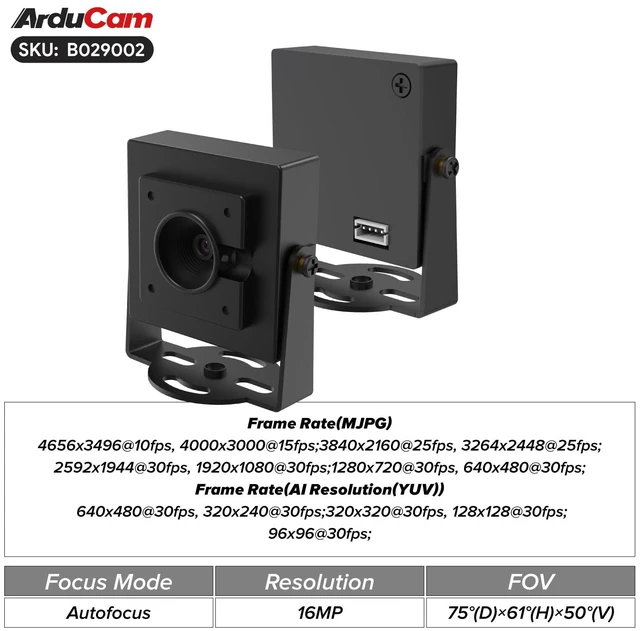

| Frame Rate(MJPG) | 3264x2448@25fps, 2592x1944@30fps; 1920x1080@30fps, 1280x720@30fps; 640x480@30fps; |
| AI Resolution(YUV) | 640x480@30fps, 320x240@30fps; 320x320@30fps, 128x128@30fps; 96x96@30fps; |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |

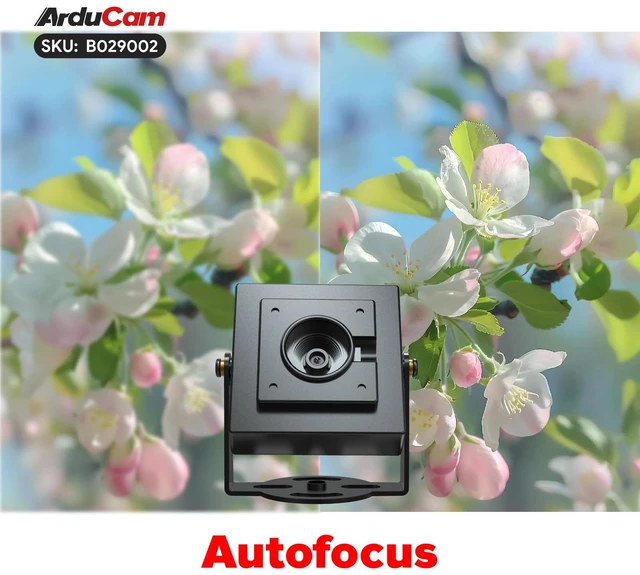

| Focus Type | Autofocus |

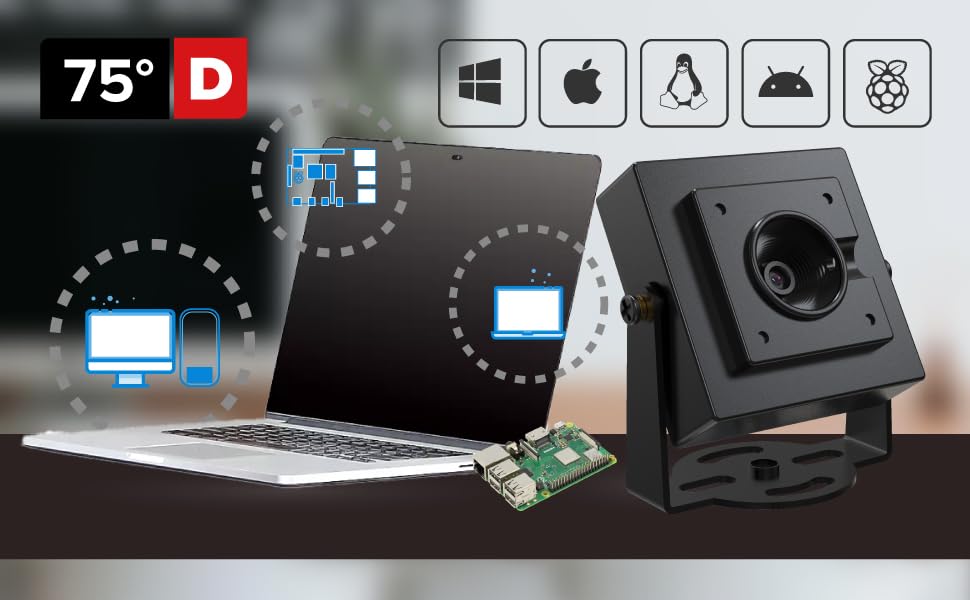

| FOV | 75°(D)×61°(H)×50°(V) |
| Lens Mount | Stock Lens |
| F.NO | F1.8 |
| E.F.L | 3.95mm |
| Default Focus Range | 10cm-8 |
Functionality and Compatibility

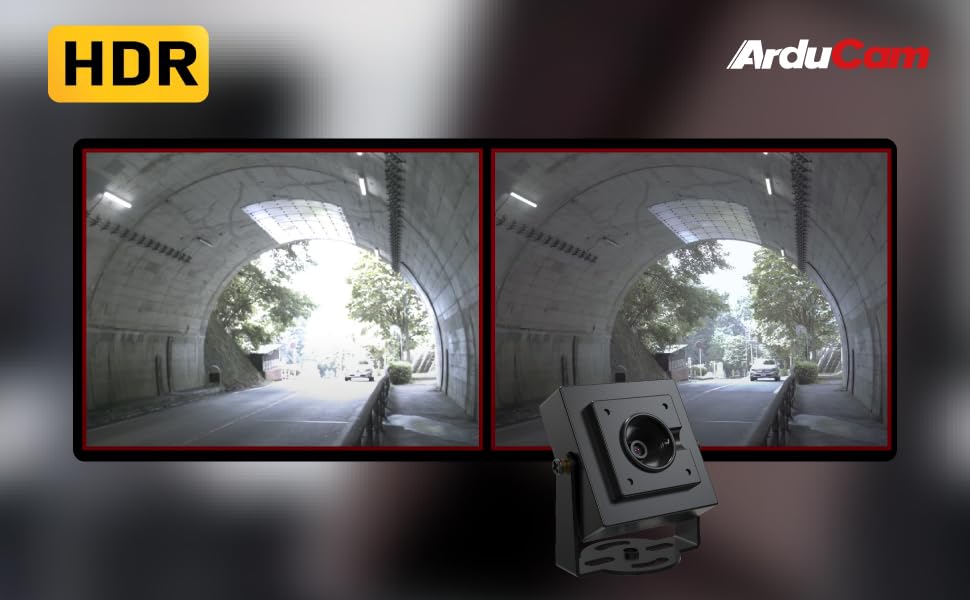

| HDR Support | YES |
| Enclosure | with Metal Enclosure |

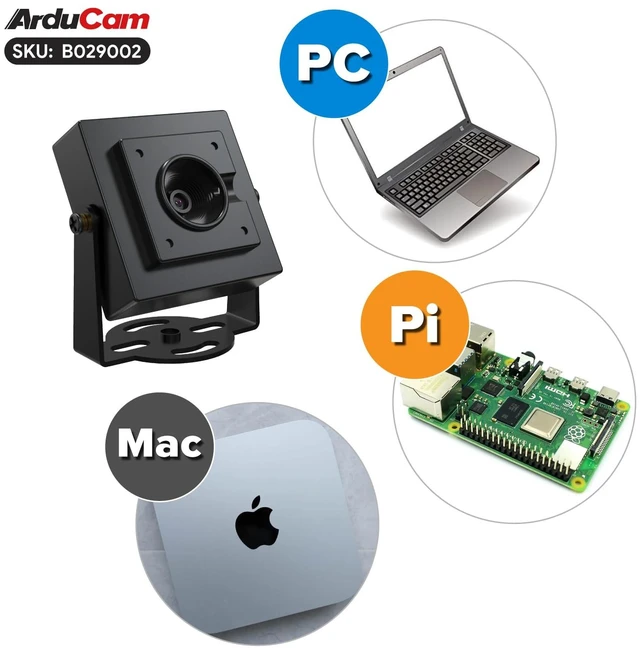

| Supported OS | Windows, Linux, MacOS |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Lowlight Compensation, Gain, Focus (Auto/Manual), Exposure (Manual/Auto) |
