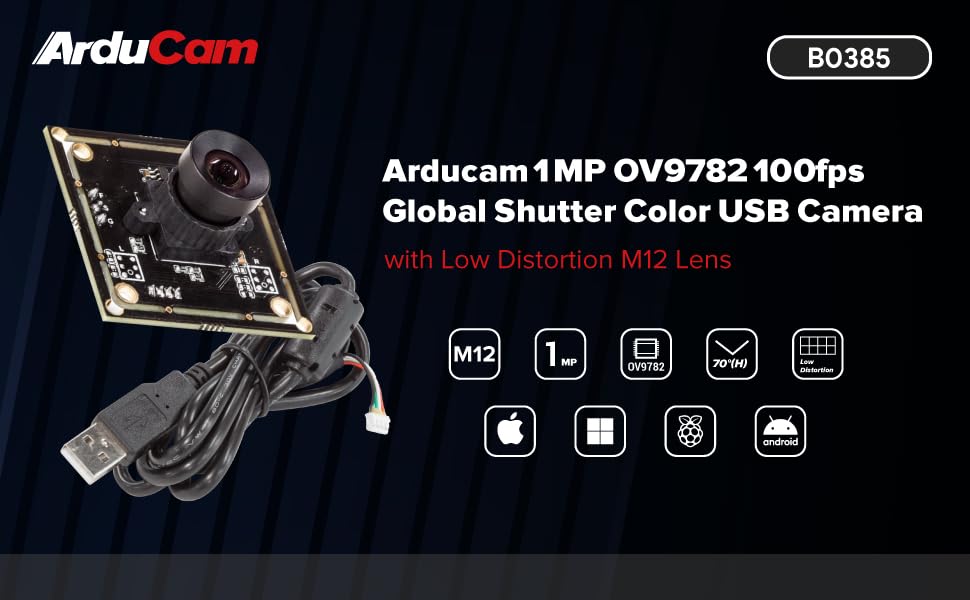

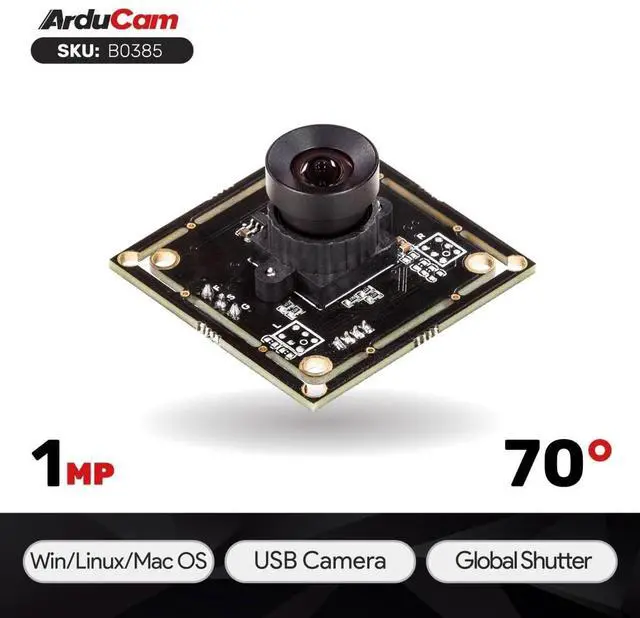

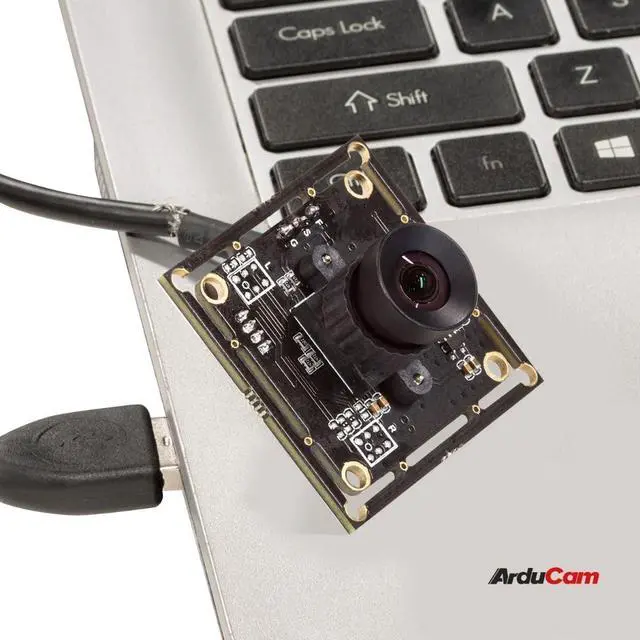

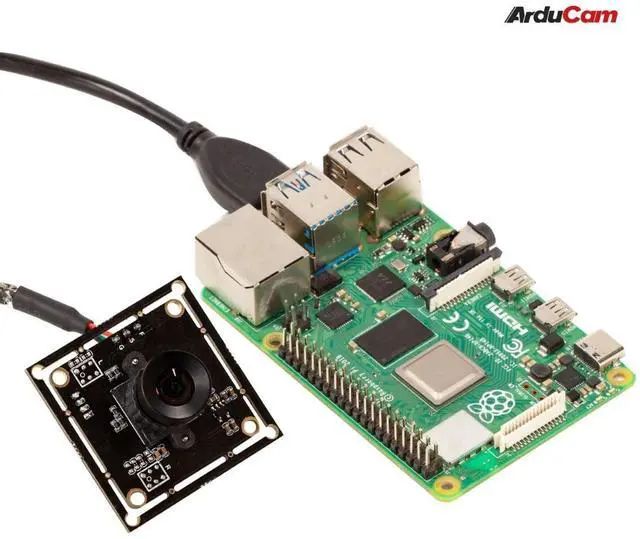

Arducam B0385 is a new member of Arducam's USB camera family. It's a 1MP, based on the 1/4" color global shutter OV9782 image sensor, UVC compliant, low distortion USB 2.0 camera. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed. The global shutter sensor's excellent low-light sensitivity makes it shoot crisp sharp and accurate complete color images even for high-speed moving objects.
- Frame Rate:
MJPG 100fps@1280 x 800/720p/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720.

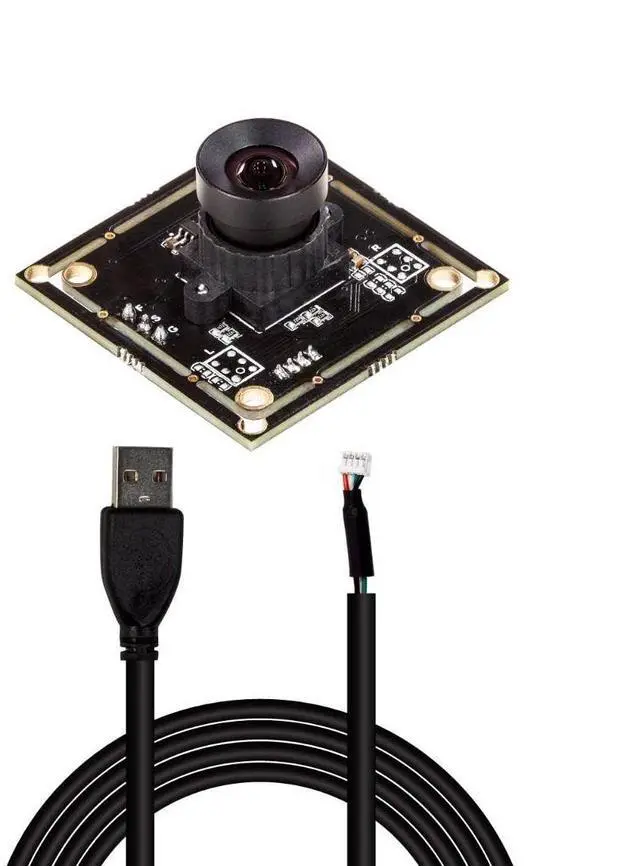

- 1 x Arducam 100fps Global Shutter Color USB Camera
- 1 x 3.3ft (1M) USB cable
Highlights
- Sensor: 1/4” OV9782
- Resolution: 1MP 1280 x 800

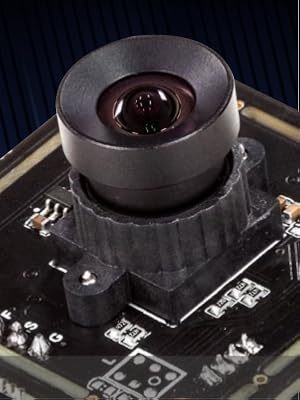

- Lens Mount: 70°(H) Low Distortion M12 Lens

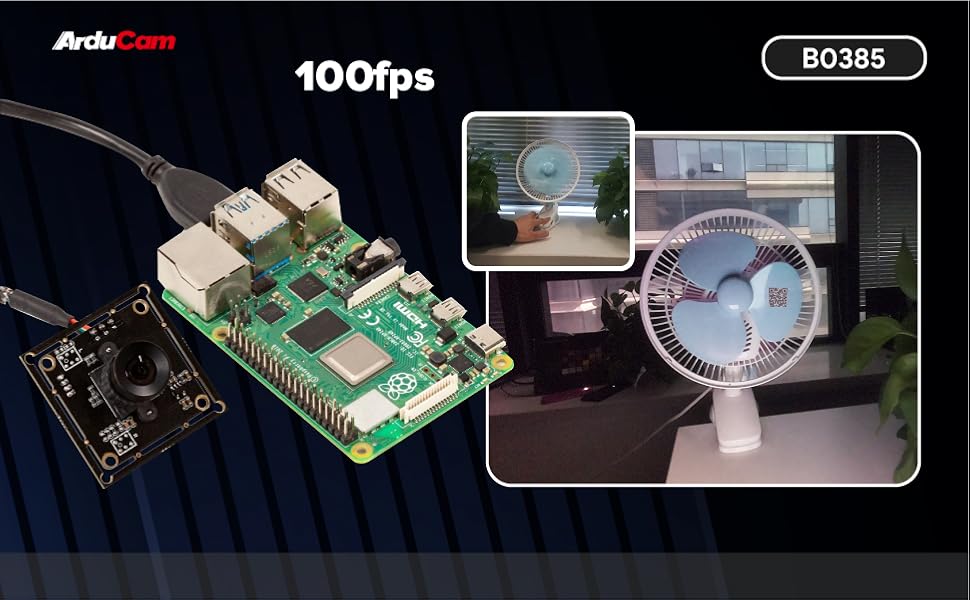

- Max Frame Rate: MJPG 100fps@1280 x 800
NOTE:

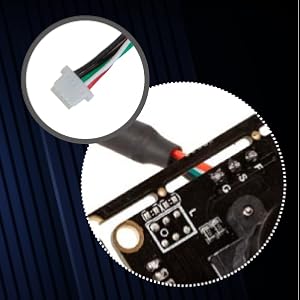

This camera module support trigger via an external signal, please refer to the Arducam Doc page to get the instruction.
Specs
Connector Type
S4B-ZR(LF)(SN)
Rolling Shutter

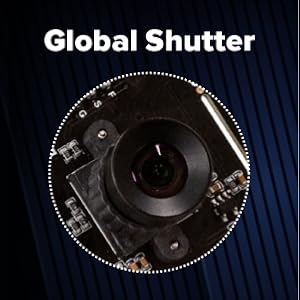

Global Shutter
FOV

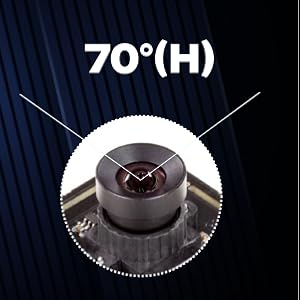

70°( H) Low Distortion
Applications
Astrophotography
Gesture and eye-tracking
Depth and motion detection
Home video surveillance system
......

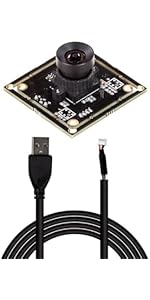

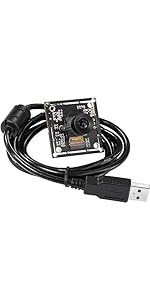

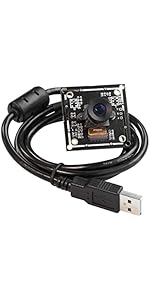

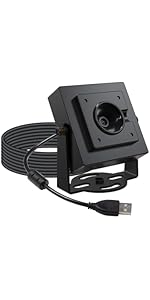

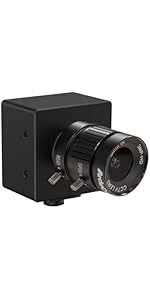

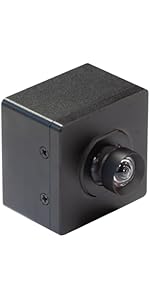

 Arducam USB 3.0 Camera, IMX296 Global Shutter USB Camera Module, 1.58MP 44FPS... |  Arducam USB 3.0 Camera, 960 * 600@80fps High-Speed Global Shutter UVC Camera ... |  Arducam 100fps Global Shutter Color USB Camera Board, 1MP OV9782 UVC Webcam M... |  Arducam 2MP Global Shutter USB Camera, 50fps OV2311 Monochrome UVC Webcam Mod... |  Arducam 100fps Mono Global Shutter USB Camera, 720P OV9281 UVC Webcam Module ... |  Arducam ezBOX-Swift, High Speed USB Camera Module, 1080P/100fps, 720P/180fps,... | |
|---|---|---|---|---|---|---|
| Price | — | — | — | — | — | — |
| Interface | USB 3.0 | USB 3.0 | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 |
| Color Filter Type | Color | Color | Color | Mono | Mono | Color |
| Resolution | 1.58MP | 2.3MP | 1MP | 2MP | 1MP | 2MP |
| Sensor | IMX296 | AR0234 | OV9782 | OV2311 | OV9281 | 1080P Color Sensor |
| Frame Rate | 1456×1088@44fps | 960*600@80fps | 100fps@1280 x 800 | 50fps@1600 x 1200 | 100fps@1280 x 800 | 1080P@100fps, 480@360fps, 720P@180fps, |
Arducam B0385 is a new member of Arducam's USB camera family. It's a 1MP, based on the 1/4" color global shutter OV9782 image sensor, UVC compliant, low distortion USB 2.0 camera. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed. The global shutter sensor's excellent low-light sensitivity makes it shoot crisp sharp and accurate complete color images even for high-speed moving objects.
Highlights
- Frame Rate:
MJPG 100fps@1280 x 800/720p/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720.
- 1 x Arducam 100fps Global Shutter Color USB Camera
- 1 x 3.3ft (1M) USB cable
- Sensor: 1/4” OV9782
- Resolution: 1MP 1280 x 800
- Lens Mount: 70°(H) Low Distortion M12 Lens
- Max Frame Rate: MJPG 100fps@1280 x 800
NOTE:
This camera module support trigger via an external signal, please refer to the Arducam Doc page to get the instruction.
Specs
| Data Format | MJPG/YUY2 |
| IR Sensitivity | IR filter, sensitive to Visible Light |
| Focusing Range | 3.3ft (1M) to infinity |
| Adjustable parameter | Exposure/ White balance |
| System Compatibility | Wins, Linux, Mac, and OS with UVC driver |
| Power Supply | USB powered 5V |
| Working Current | MAX 200mA |
| Operating Temp | -4°F~158°F (-20°C~+70°C) |

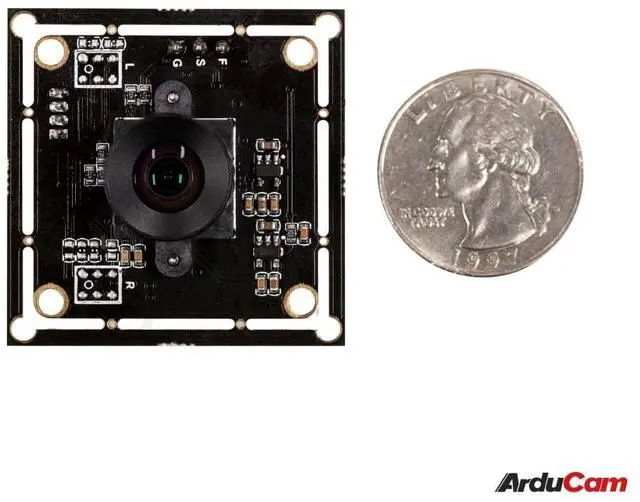

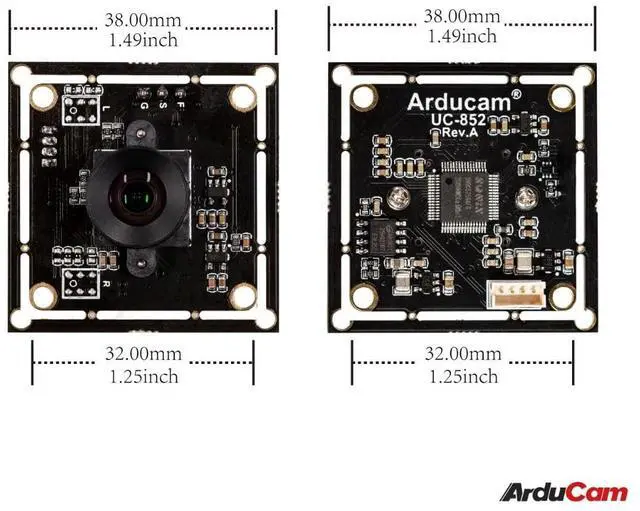

| Dimension | 38mmx38mm (Hole pitch compatible with 34mmx34mm, 28x28mm) |
Connector Type
S4B-ZR(LF)(SN)
Rolling Shutter
Global Shutter
FOV
70°( H) Low Distortion
Applications
Astrophotography
Gesture and eye-tracking
Depth and motion detection
Home video surveillance system
......
