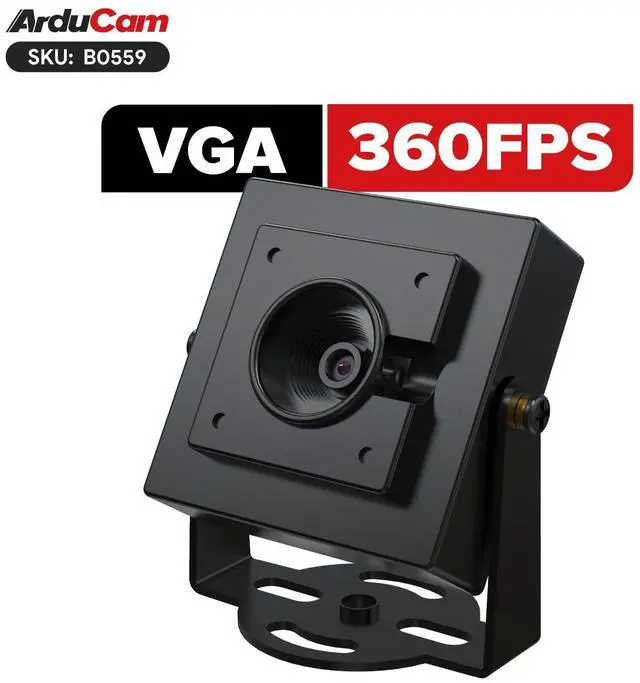

640x480@360fps*: Due to the limitation of USB2.0 device descriptor, the software can only report a maximum frame rate of 240fps, but the camera can actually reach 360fps(the actual frame rate can be seen during preview).
Exceptional Frame Rates Across Resolutions: The USB camera delivers high-speed performance, offering 9 versatile FPS-Res combinations, from 1920x1080/100fps to 640x480/360fps. This flexibility ensures smooth and precise capture of fast-moving objects, making it ideal for applications like motion analysis, sports tracking, and high-speed imaging
1080P Color Sensor with Advanced Imaging: This UVC camera is equipped with a 1080P color sensor, the Swift ensures high-quality imaging even in fast-paced scenarios. The USB 2.0 camera's advanced sensor technology minimizes noise and maximizes clarity, delivering sharp and detailed visuals for dynamic applications
Proprietary ISP for Full Control: The USB webcam features a proprietary Image Signal Processor (ISP) that provides complete control over key imaging parameters, including brightness, contrast, saturation, white balance, gain, focus, and exposure. This level of customization ensures optimal image quality tailored to specific needs, enhancing its versatility across diverse use cases

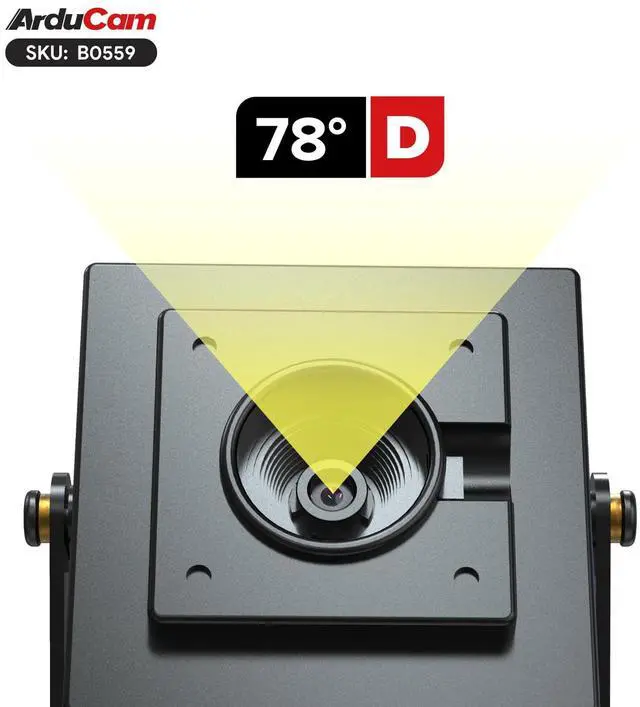

Autofocus Lens: This 1080p webcam is equipped with 78°(D) autofocus lens, which ensures sharp focus for every shot

High Framerate AutoFocus USB2.0 UVC Camera

Overview

ezBOX-Swift combines speed and precision, delivering up to 360 FPS at VGA resolution for capturing fast-moving objects with exceptional clarity. Powered by a 1080P Color Sensor, it supports a wide range of FPS-Res combinations, from 1920x1080@100fps to 640x480@360fps, ensuring versatility and high-quality imaging for dynamic applications.

Specifications-Image Sensor

Sensor	1080P Color Sensor
Still Resolution	1080P
Color Filter Type	Color
Shutter Type	Rolling Shutter
Optical Size	1/2.8?

Pixel Size	2.24 µm x 2.24 µm
Sensor Active Area	1920(H) x 1080(V)
IR Sensitivity	Integral 650nm IR Filter, visible light only
Frame Rate	1920x1080@100fps, 1280x720@180fps, 640x480@360fps*

Specifications-Lens

Focus Type	Autofocus
FOV	78°(D)×65°(H)×52°(V)
Lens Mount	Stock Lens

F.NO	F1.8
E.F.L	3.95mm
Programmable Focus Range	10cm-8

Other Specifications

USB Interface

Interface: USB 2.0 Device

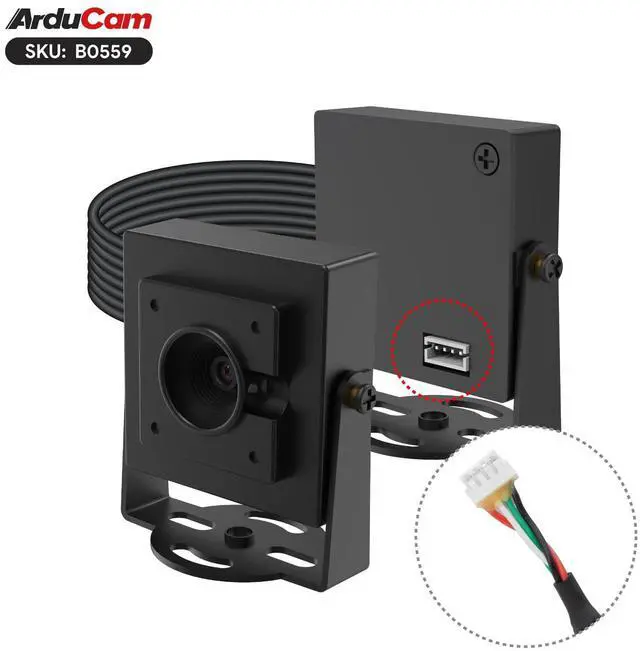

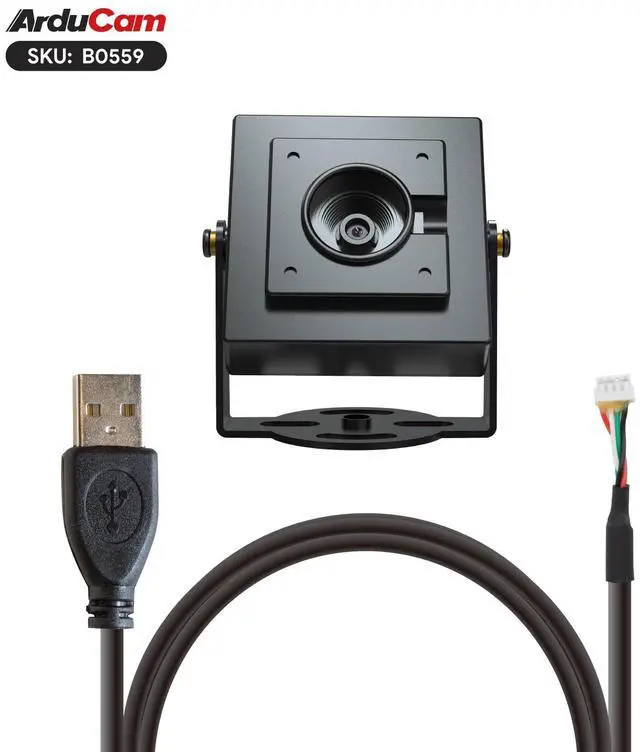

Connector: B4B-ZR JST

UVC Compliant: No additional drivers required

Electrical and Mechanical

Operating Voltage: 5V

Operating Temp.: 32°F-158°F (0°C to 70°C)

Power Consumption: 1.75W

Camera Board Size: 32mmX32mmX1.6mm

Functionality and Compatibility

Supported OS: Windows, Linux

Recommend Sample Application: Amcap for Windows, qv4l2 for Linux

UVC Controls: Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)

640x480@360fps*: Due to the limitation of USB2.0 device descriptor, the software can only report a maximum frame rate of 240fps, but the camera can actually reach 360fps(the actual frame rate can be seen during preview).
