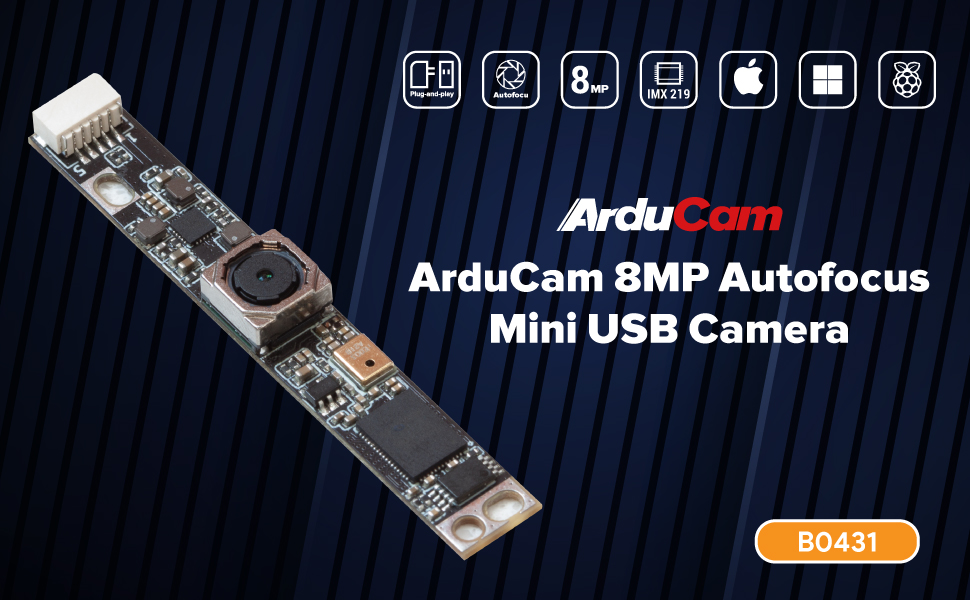

This camera is based on 8MP IMX219 USB Camera Module. The max resolution&frame rate of this camera is 3280(H)×2464(V)@30fps. Besides, we have equipped the camera with Auto Focus Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects.

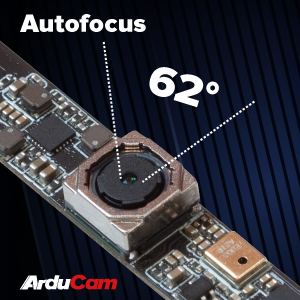

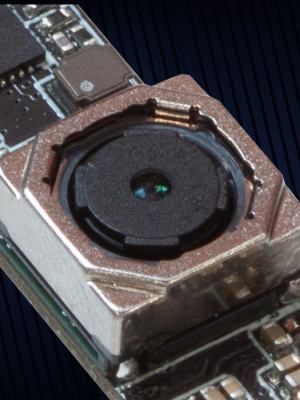

The camera is equipped with a 62°(H) autofocus lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android and MAC and no additional drivers is required.

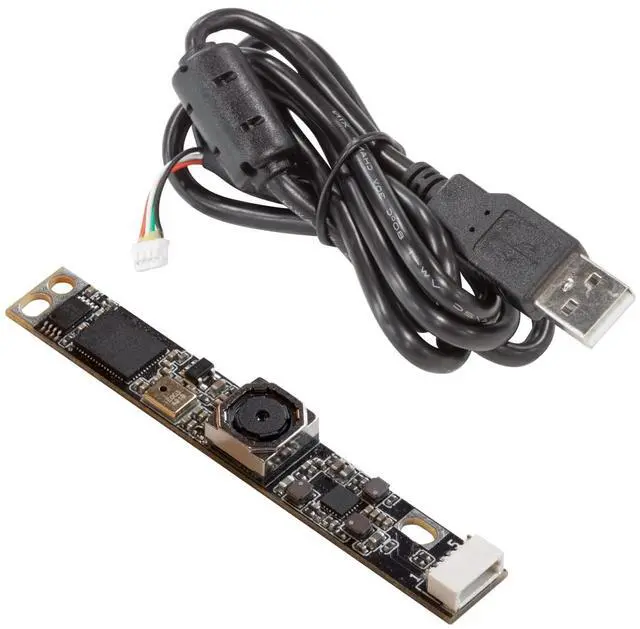

PACKAGE INCLUDE:
1 x Arducam IMX219 8MP Camera Module

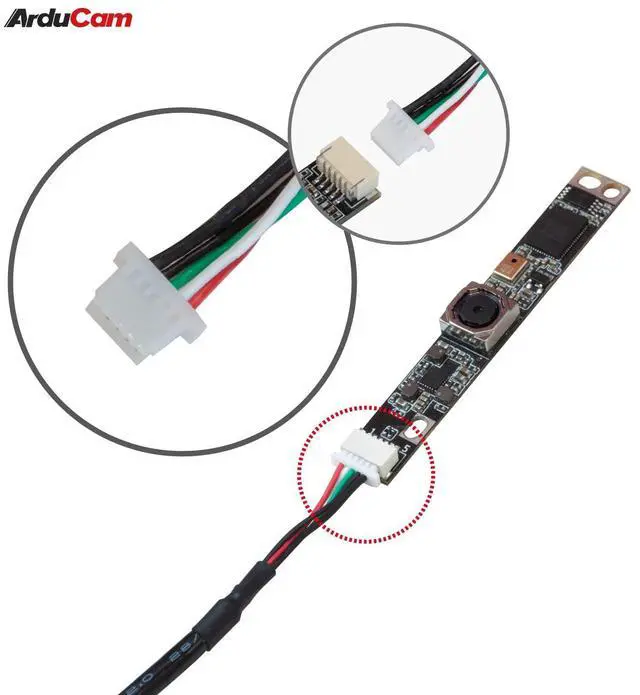

1 x USB Cable (1m)
Frame Rate:
MJPG: 30fps@800*600/3264*2448/2592*1944/1600*1200/1280*960/1280*720/2048*1536/1920*1080/640*480/1024*768
YUY2: 640*480@30fps 800*600@20fps 1280*720/1280*960/@10fps 1600*1200@5fps 2592*1944@2fps 3264*2448@1fps
- Please note that the Preview frame rate of the USB camera is closely related to the performance of your platform.
Specifications
Sensor: IMX219
Resolution: 8MP
Color Filter Type: Color
Shutter Type: Rolling shutter
Optical Size: 1/4"
Output Format: YUYV/MJPG
Pixel Size: 1.12µm*1.12µm
Sensor Active Area: 3280(H)×2464(V)
UVC Controls: Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Gain, Exposure, Focus
Plug & Play
FoV: 62°(H)

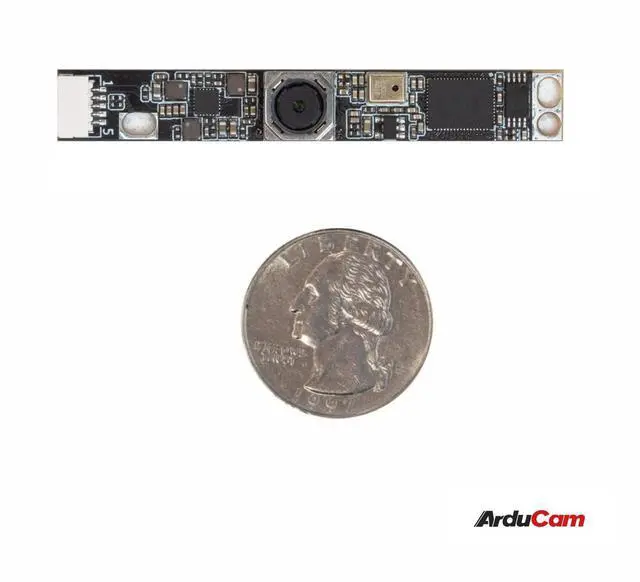

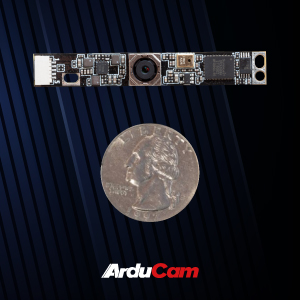

Mini Size
Applications
- 3D Scanner
- VR Camera
- Lightburn Laser Engraver Machine
- Surveillance
- Video System
This camera is based on 8MP IMX219 USB Camera Module. The max resolution&frame rate of this camera is 3280(H)×2464(V)@30fps. Besides, we have equipped the camera with Auto Focus Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects.
The camera is equipped with a 62°(H) autofocus lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android and MAC and no additional drivers is required.
PACKAGE INCLUDE:
1 x Arducam IMX219 8MP Camera Module
1 x USB Cable (1m)
Specifications
Frame Rate:
MJPG: 30fps@800*600/3264*2448/2592*1944/1600*1200/1280*960/1280*720/2048*1536/1920*1080/640*480/1024*768
YUY2: 640*480@30fps 800*600@20fps 1280*720/1280*960/@10fps 1600*1200@5fps 2592*1944@2fps 3264*2448@1fps
- Please note that the Preview frame rate of the USB camera is closely related to the performance of your platform.
Sensor: IMX219
Resolution: 8MP
Color Filter Type: Color
Shutter Type: Rolling shutter
Optical Size: 1/4"
Output Format: YUYV/MJPG
Pixel Size: 1.12µm*1.12µm
Sensor Active Area: 3280(H)×2464(V)
UVC Controls: Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Gain, Exposure, Focus
| Focus Type | Auto Focus |
| FOV | 62°(H) |
| Lens Mount | M6.5*P0.25mm |
| F.NO | 2.0±5% |
| E.F.L | / |
| Focal Length | 2.46mm±5% |
| TV Distortion | <1% |
| Interface | USB 2.0 |

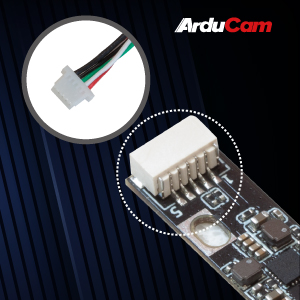

| Device Connector | SM05B-SRSS-TB |
| UVC Compliant | no additional drivers is required |
| Operating Voltage | DC 5V +/- 5% |
| Working Current | Max 300mA |
| Operating Temp. | -4?-158?(-20°C to 70°C) |

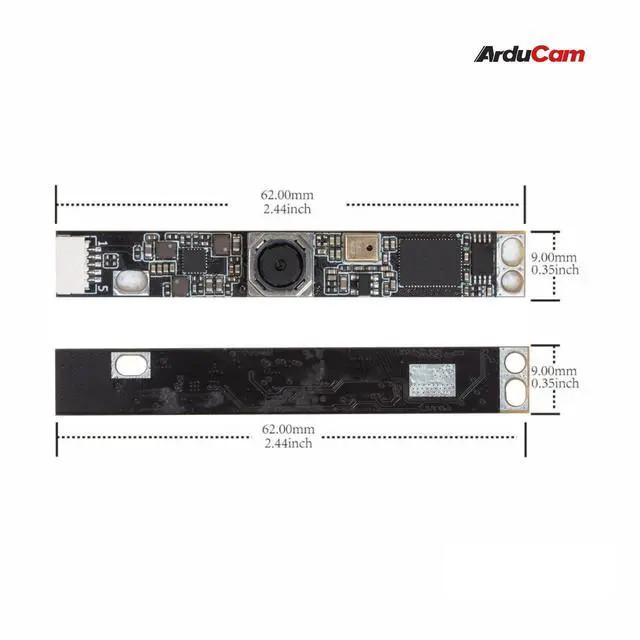

| Camera Board Size | 62mm x 9mm x 6mm |
| Audio | Single Microphone |
| Supported OS | Windows, Linux, Android and MAC |
Plug & Play
FoV: 62°(H)
Mini Size
Applications
- 3D Scanner
- VR Camera
- Lightburn Laser Engraver Machine
- Surveillance
- Video System
