APPLICATIONS:
- Video conference
- Home video surveillance system
- Day&night low light vision security camera system
- Dash cam
- Monitoring 3D printer
- Robot and machine vision
- ...

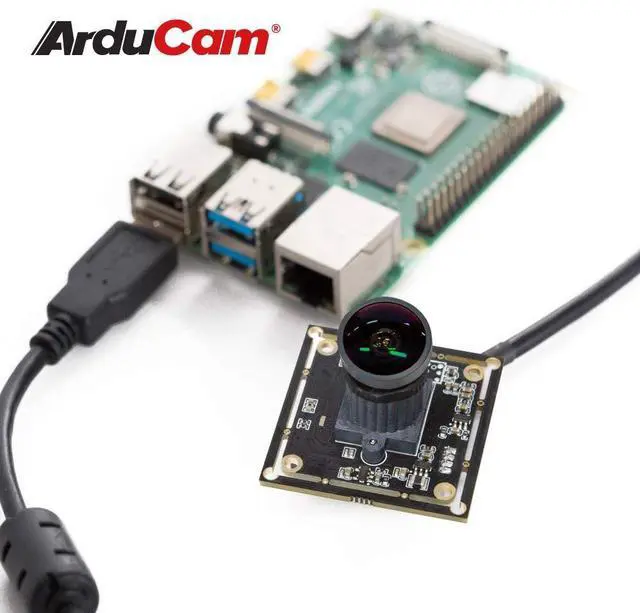

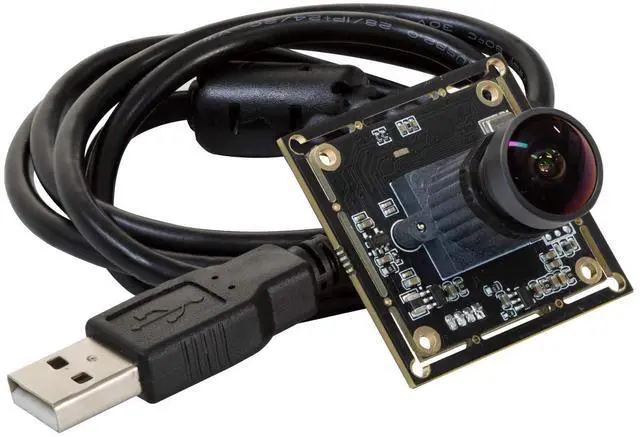

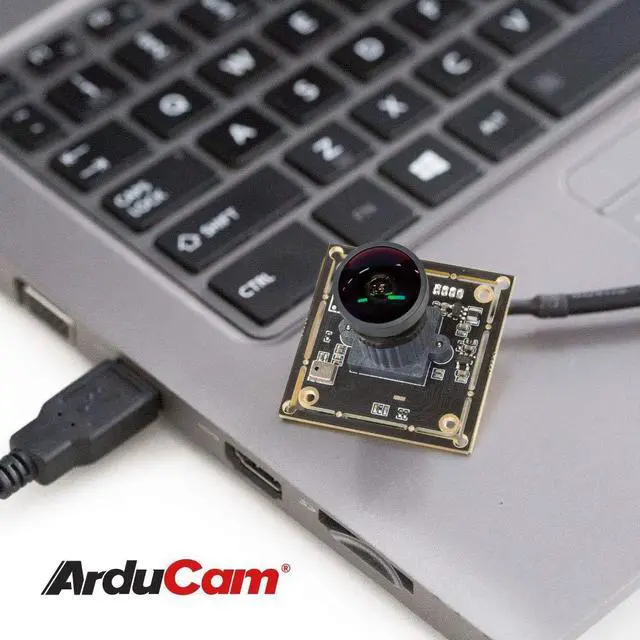

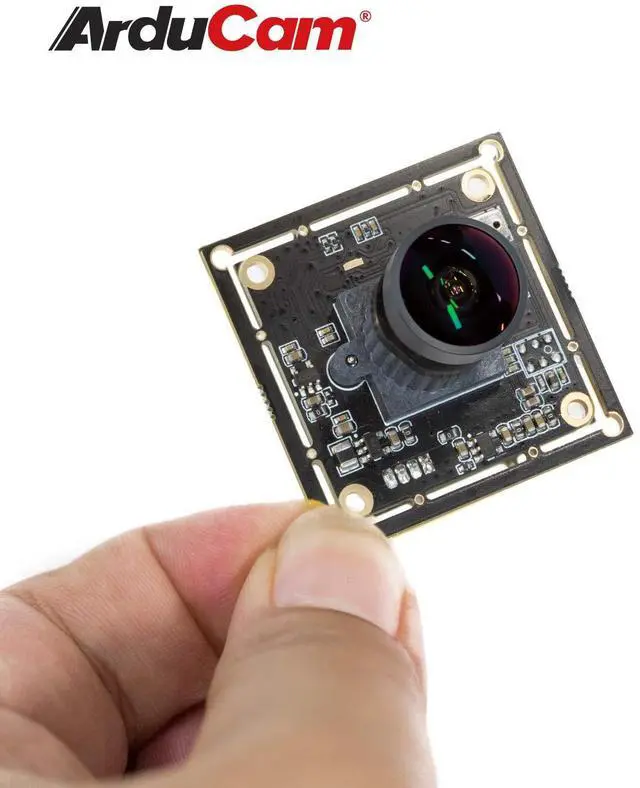

Arducam 2MP Low Light USB2.0 Camera

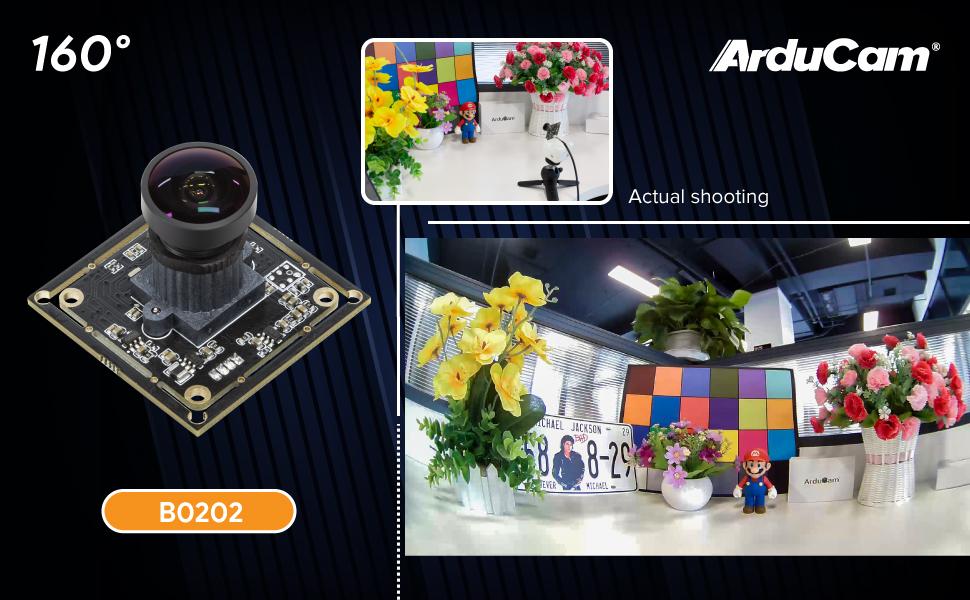

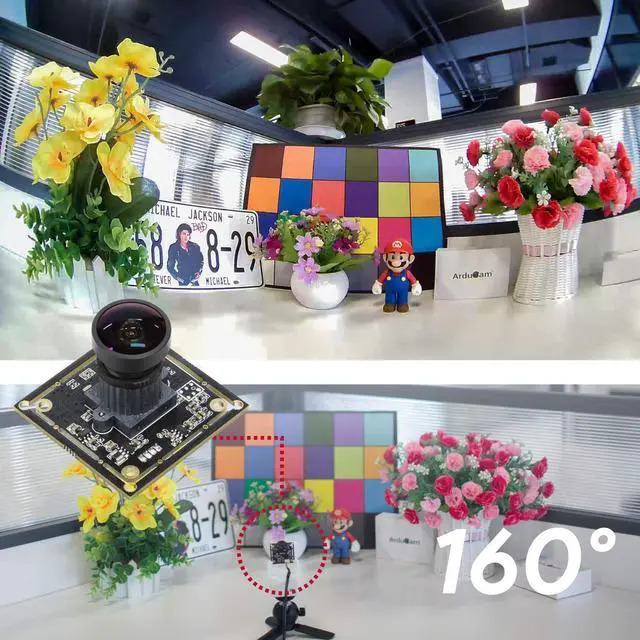

160 degree (diagonal)
Based on 1/2.8” 2MP IMX291 image sensor, ultra wide angle, UVC compliant USB 2.0 cameras.
No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera.
Superior low light feature, shot sharp images even at night.
Built with a single microphone, capture video with audio.
NOTE
- This camera supports MJPG YUV and h264 encoder format. It will expose two video nodes.
- You can run commands shown as below to check each node :
- v4l2-ctl -d 0 –list-formats-ext
- v4l2-ctl -d 1 –list-formats-ext
SPECIFICATIONS
- Camera
- Sensor: 1/2.8” IMX291
- Resolution: 2MP 1945H x 1109V
- Data Format: MJPG/YUY2/H.264
- Frame Rate: MJPG: 30fps@1920×1080/1280×720/800×600/640×480/320×240 YUV: 5fps@1920×1080; 10fps@1280×720/800×600; 30fps@640×480/320×240
H.264: 30fps@1920×1080/1280×720@30fps/800×600/640×480/320×240
- Dynamic Range: 80DB
- Minimum Illumination: 0.001Lux
- Lens
- Field of View (FOV):D= 160°
- Lens Mount: M12
- Focusing Range: 6.56ft (2M) to infinity
- IR Sensitivity: Integral IR filter, visible light only
- Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: single microphone
- System Compatibility: Windows, Linux, Android, and Mac with UVC
- Power
- Power Supply: DC 5V
- Working Current: MAX 300mA
- Physical
- Operating Temp.: -4°F~158°F (-20°C~+70°C)

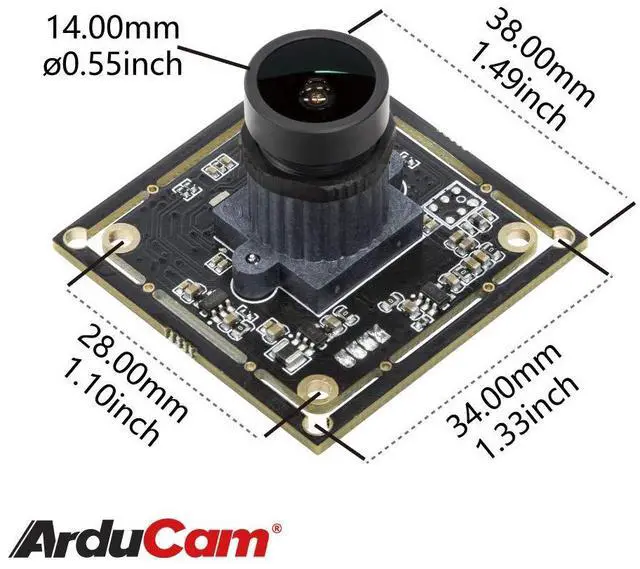

- Dimension: 38mmx38mm
- Cable Length: 3.3ft (1M)
NOTE
This camera supports MJPG YUV and h264 encoder format. It will expose two video nodes.
You can run commands shown as below to check each node :
v4l2-ctl -d 0 –list-formats-ext
v4l2-ctl -d 1 –list-formats-ext
