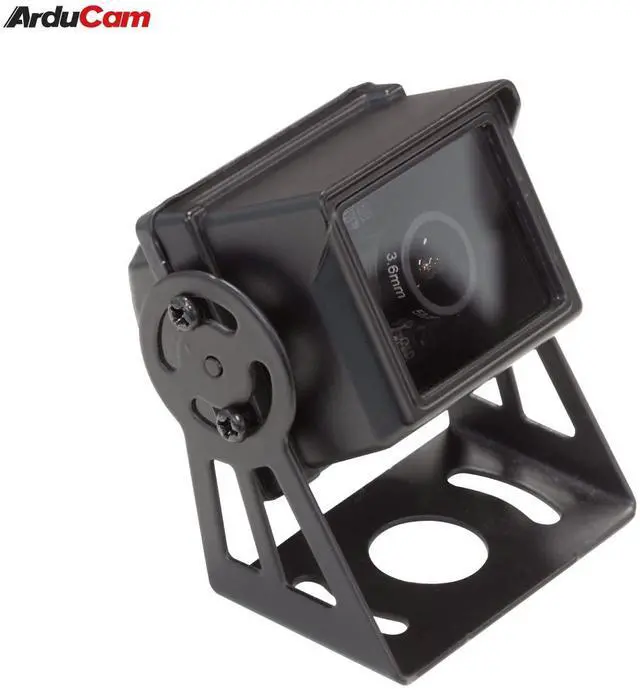

This camera is based on 2MP IMX291 USB Camera Module. The max resolution&frame rate is 30fps@1945H x 1109V. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 120°(D) Fixed focus M12 lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android, and Mac OS and No additional drivers are required.
Frame Rate
H.264 30fps@1920x1080; MJPG 30fps@1920x1080; YUY2 30fps@640x480

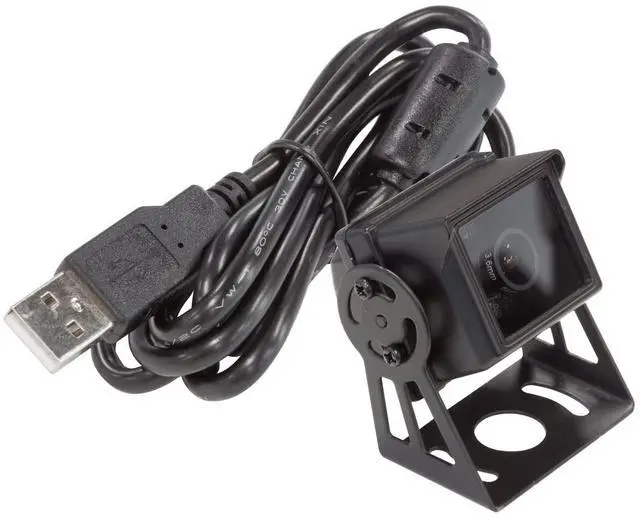

- 1 x Arducam 2MP USB Camera Module with Waterproof Mental Case
- 1 x USB Cable (1m)
- 1 x Quick start guide
Specifications
Resolution: 2MP
Shutter Type: Rolling shutter
Output Format: MJPG/YUY2/H.264
Sensor Active Area: 1947(H)x1109(V)
Focus Type: Fixed focus
Lens Mount: M12
E.F.L: 3.6mm
Connector: B4B-ZR
Operating Voltage: DC 5V +/- 5%
Operating Temp.: -4°F-158°F(-20°C to 70°C)

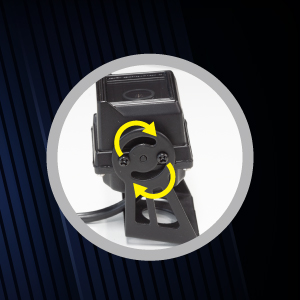

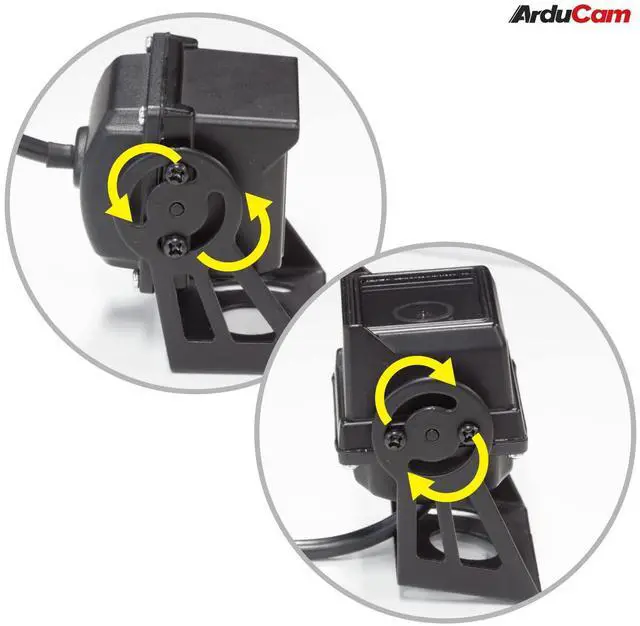

Rotatable Stand

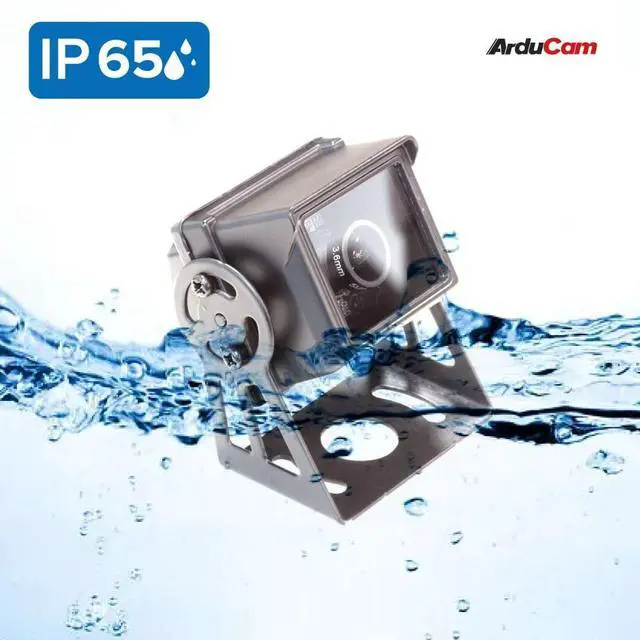

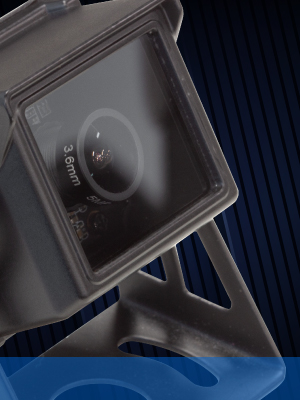

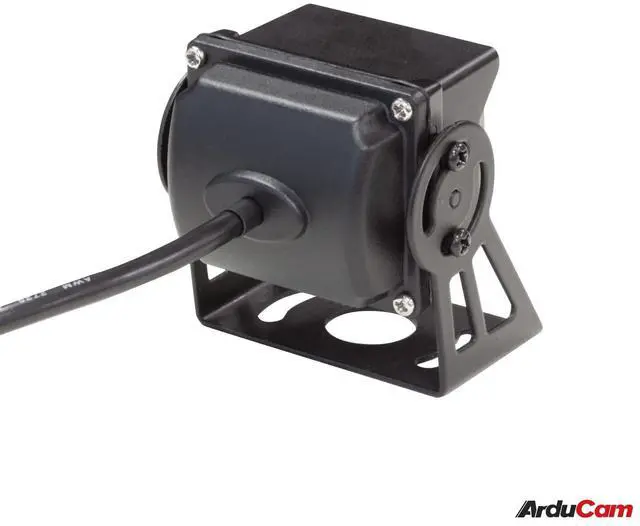

Waterproof Case

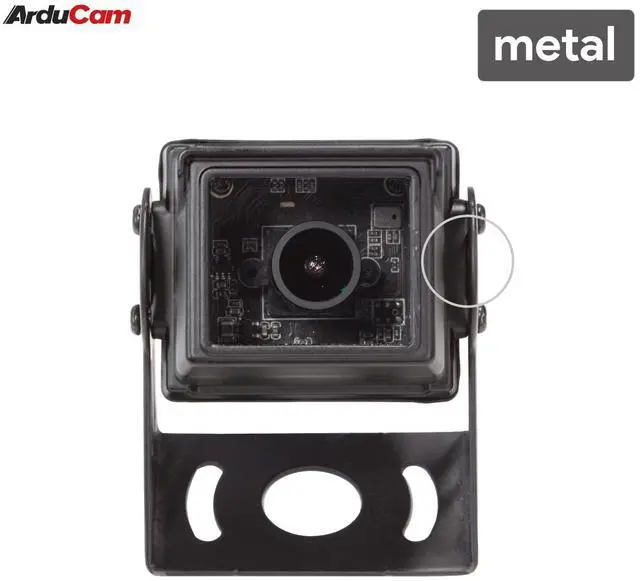

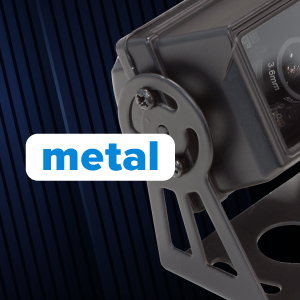

Metal Material
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
- The strong seal of the waterproof case may prevent the microphone from working.
 Arducam for 5MP IMX335 Low Light Raspberry Pi Camera with M12 Lens |  Arducam for 4K IMX415 Low Light Raspberry Pi Camera with M12 Lens |  Arducam 2.4MP IMX662 Ultra Low Light USB2.0 Camera Module |  Arducam IMX678 4K Low Light USB2.0 Camera Module |  Arducam 2MP Low Light Mini Webcam |  Arducam IMX585 4K 90FPS Low Light USB 3.0 Camera | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — | — no data | — | — |
| Image Sensor | IMX335 | IMX415 | IMX662 | IMX678 | IMX291 | IMX585 |
| Resolution | 5MP | 4K | 2.4MP | 8.3MP | 2MP | 8.3MP |
| Focus Type | Fixed Focus | Fixed Focus | Fixed Focus | Fixed Focus | Manual Focus | Manual Focus |
| Features | Low Light | Low Light | Low Light | Low Light | Low Light | Low Light |
| Field of View(FOV) | 104.9°(D) | 104°(D) | 102°(D) | 100°(D) | 95°(D) | 50°(D) |
| Board Size | 24mm x 25mm | 24mm x 25mm | 38mmX38mm | 34mm x 34mm | 19.5mm×15mm | 34×34 mm |
| SKU | B0568 | B0569 | B0576 | B0587 | B052001 | B0498 |
This camera is based on 2MP IMX291 USB Camera Module. The max resolution&frame rate is 30fps@1945H x 1109V. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 120°(D) Fixed focus M12 lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android, and Mac OS and No additional drivers are required.
| SENSOR | IMX291 |
| Color Filter Type | Color |
| Optical Size | 1/2.8" |
| Pixel Size | 2.9 µm x 2.9 µm |
| FOV | 120°(D) |
| F.NO | 2 |
| Interface | USB 2.0 device |
| UVC Compliant | No additional drivers required |
| Working Current | Max 300mA |
| Camera Board Size | 38mm x 38mm |
| Audio | Single Microphone |
| Supported OS | Windows, Linux, Android, and Mac OS |
| Sample Application | AMCap-Windows Camera application for Video and Still Capture |
| UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Backlight Comp, Gain |
Specifications
Frame Rate
H.264 30fps@1920x1080; MJPG 30fps@1920x1080; YUY2 30fps@640x480
- 1 x Arducam 2MP USB Camera Module with Waterproof Mental Case
- 1 x USB Cable (1m)
- 1 x Quick start guide
Resolution: 2MP
Shutter Type: Rolling shutter
Output Format: MJPG/YUY2/H.264
Sensor Active Area: 1947(H)x1109(V)
Focus Type: Fixed focus
Lens Mount: M12
E.F.L: 3.6mm
Connector: B4B-ZR
Operating Voltage: DC 5V +/- 5%
Operating Temp.: -4°F-158°F(-20°C to 70°C)
Rotatable Stand
Waterproof Case
Metal Material
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
- The strong seal of the waterproof case may prevent the microphone from working.
