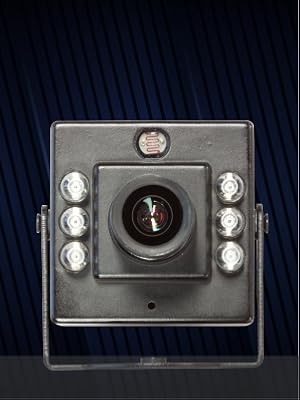

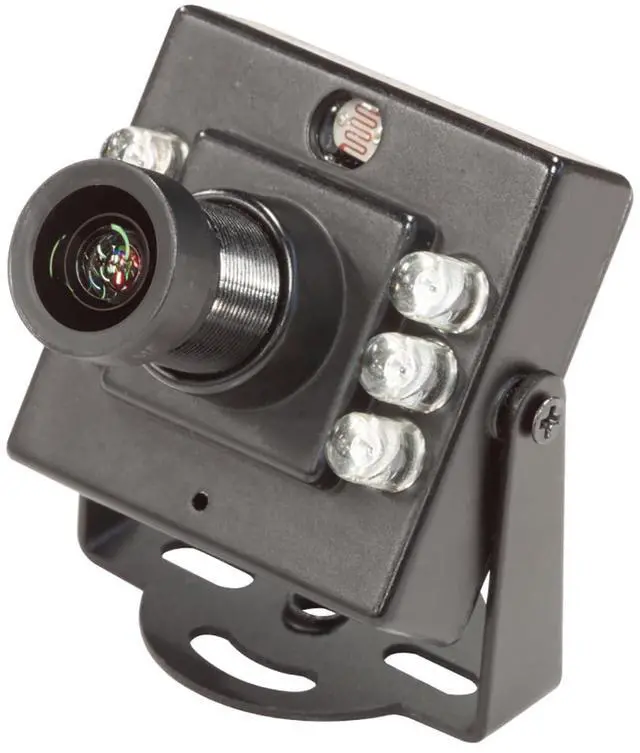

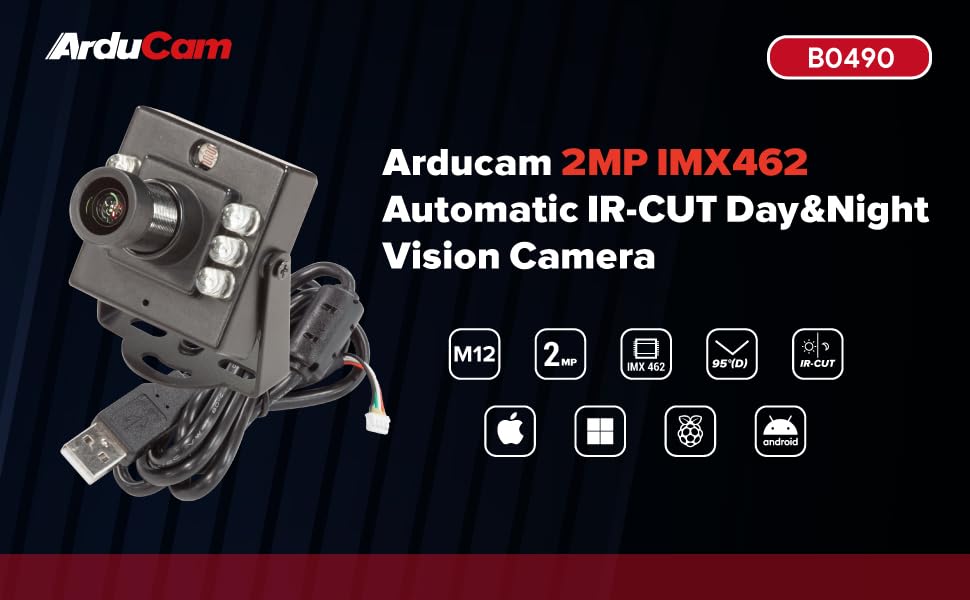

The IMX462 Day&Night USB Cam is the latest addition to Arducam's USB 2.0 camera series. This cutting-edge USB camera features a Starvis CMOS, the IMX462, paired with a lager aperture M12 lens, ensuring optimal light intake for flawless night vision capabilities. With six 940nm infrared LEDs and a 940@650nm double-pass filter on the lens, this camera effortlessly transitions between day and night modes, adapting to changing light conditions with the help of a photosensitive resistor.
Under low-light scenarios, the camera activates its infrared LEDs, offering black-and-white night vision at an impressive range of 3 meters. During daylight, it seamlessly captures vibrant color images using visible light around 650 nm.
The Arducam USB 2.0 camera is designed for user convenience, featuring a plug-and-play functionality that requires no intricate installations or driver downloads. Whether you're a technology enthusiast or a seasoned professional, this USB camera ensures a hassle-free experience for capturing moments and engaging in seamless video conferences. Upgrade your imaging capabilities with the versatility and user-friendly design of the Arducam USB 2.0 camera.
Frame Rate
YUY2:
30fps320×240, 640×480 MJPG: 30fps@320×240,640×480,1280×720,1920×1080 H264:
30fps@1920×1080,1280×720, 640×480, 640×360
- 1 x IMX462 IR Night Vision USB Camera with Case
- 1 x 1m USB 2.0 Cable
- 1 x Quick Guide Start
Highlights
SENSOR - IMX462
Output Format - MJPG/YUY2/H.264
Focus Type - Manual Focus
FOV - 95°(D)×83°(H)×67°(V)
Lens Mount - M12 Mount
Default Focus Distance - 2m-8
Applications
- Machine Vision
- Automated Optical Inspection
- 3D Scanning and Metrology
- Video Conferencing
- Home Surveillance
Image Sensor & Lens
Others
Plug & Play
No intricate installations or driver downloads.
Intelligent IR Mode
Automatic color-to-B&W transition in dark light.
Wide-angle
95° Diagonal Field of View thanks to the HD lens
 Arducam USB 3.0 Camera, 2MP IMX462 Low Light USB Camera Module, 80fps@720p Hi... |  Arducam 1080P Day & Night Vision USB Camera for Computer, 2MP Automatic IR-Cu... |  Arducam USB 3.0 Camera, 8.3MP 90fps@720p High-Speed USB Camera Module, 4K IMX... |  Arducam 2MP Webcam, Low Light USB Camera with Holder, USB Webcam for PC, Lapt... |  Arducam USB 3.0 Camera, 90FPS High-Speed 4K USB Camera Module, 8.3MP Manual F... | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Resolution | 2MP | 2MP | 8.3MP | 2MP | 8.3MP |
| Interface | USB 3.0 | USB 2.0 | USB 3.0 | USB 2.0 | USB 3.0 |
| FOV | 98°(D) | 95°(D) | 100°(D) | 95°(D) | 50°(D) |
| Frame Rate | 80fps@1280*720 | 30fps@1920×1080 | 90fps@1280x720 | 30fps@1920×1080 | 90fps@1280x720 |
| Sensor | IMX462 | IMX462 | IMX678 | / | IMX585 |

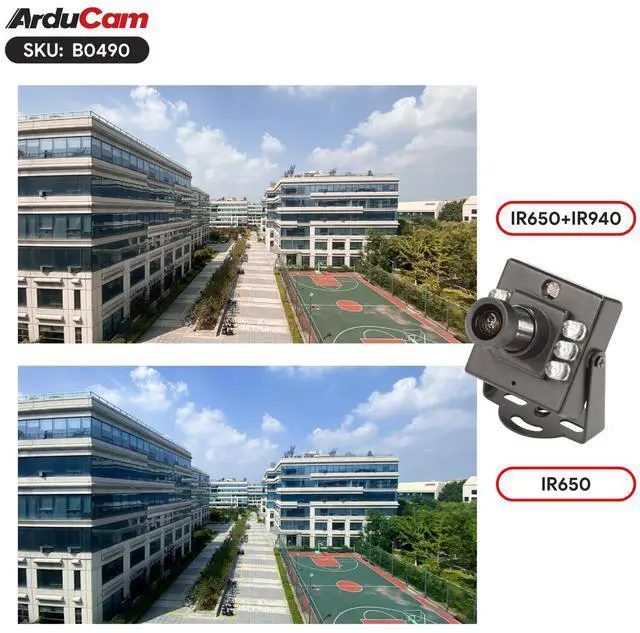

The IMX462 Day&Night USB Cam is the latest addition to Arducam's USB 2.0 camera series. This cutting-edge USB camera features a Starvis CMOS, the IMX462, paired with a lager aperture M12 lens, ensuring optimal light intake for flawless night vision capabilities. With six 940nm infrared LEDs and a 940@650nm double-pass filter on the lens, this camera effortlessly transitions between day and night modes, adapting to changing light conditions with the help of a photosensitive resistor.

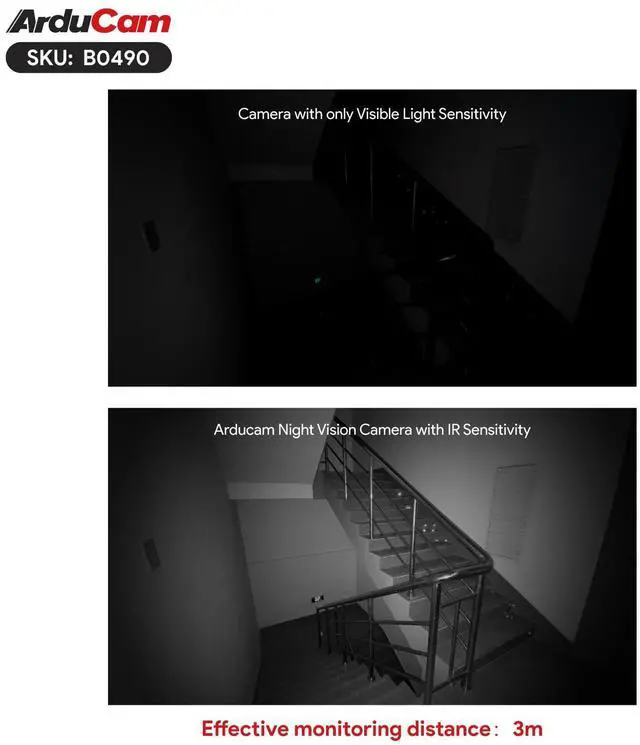

Under low-light scenarios, the camera activates its infrared LEDs, offering black-and-white night vision at an impressive range of 3 meters. During daylight, it seamlessly captures vibrant color images using visible light around 650 nm.
The Arducam USB 2.0 camera is designed for user convenience, featuring a plug-and-play functionality that requires no intricate installations or driver downloads. Whether you're a technology enthusiast or a seasoned professional, this USB camera ensures a hassle-free experience for capturing moments and engaging in seamless video conferences. Upgrade your imaging capabilities with the versatility and user-friendly design of the Arducam USB 2.0 camera.
Highlights
Frame Rate
YUY2:
30fps320×240, 640×480 MJPG: 30fps@320×240,640×480,1280×720,1920×1080 H264:
30fps@1920×1080,1280×720, 640×480, 640×360
- 1 x IMX462 IR Night Vision USB Camera with Case
- 1 x 1m USB 2.0 Cable
- 1 x Quick Guide Start
SENSOR - IMX462
Output Format - MJPG/YUY2/H.264
Focus Type - Manual Focus
FOV - 95°(D)×83°(H)×67°(V)
Lens Mount - M12 Mount
Default Focus Distance - 2m-8
Applications
- Machine Vision
- Automated Optical Inspection
- 3D Scanning and Metrology
- Video Conferencing
- Home Surveillance
Image Sensor & Lens
| Still Resolution | 2 Megapixels |
| Color Filter Type | Color/Mono |
| Shutter Type | Rolling |
| Optical Size | 1/2.8" |
| Pixel Size | 2.9 µm x 2.9 µm |
| Sensor Active Area | 1920(H)×1080(V) |
| F.NO | F1.0 |
| E.F.L | 3.9mm |
| IR Sensitivity | Dual Bandpass Filter Visible + 940nm NIR |
Others
| Interface | USB 2.0 Device |

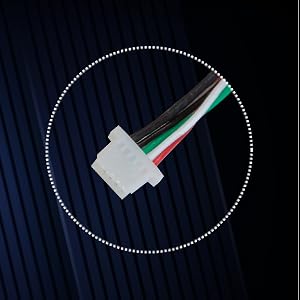

| Connector | B4B-ZR |
| UVC Compliant | No additional drivers required |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 1.2W |

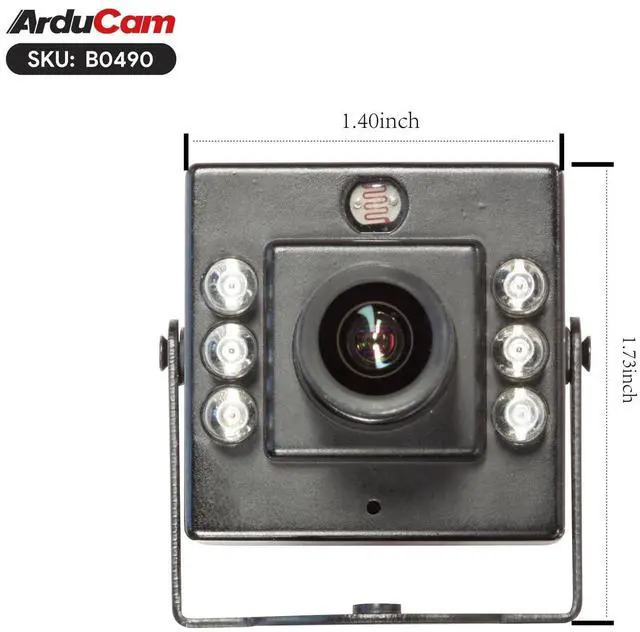

| Camera Board Size | 32×32mm(Hole Pitch: 28×28mm) |
| Audio | Single Microphone |
| Supported OS | Windows, Linux |
| Recommend Sample Application | Amcap for Windows |
| UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance(Auto/Manual), Backlight Contrast, Gain, Exposure(Auto/Manual). |
Plug & Play
No intricate installations or driver downloads.

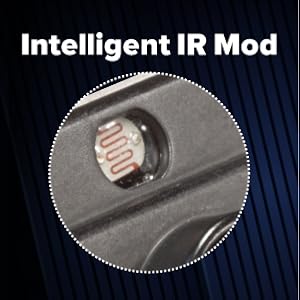

Intelligent IR Mode
Automatic color-to-B&W transition in dark light.

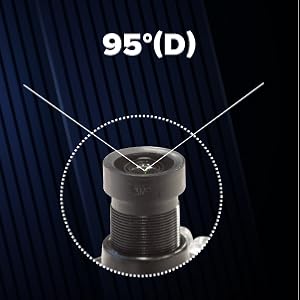

Wide-angle
95° Diagonal Field of View thanks to the HD lens

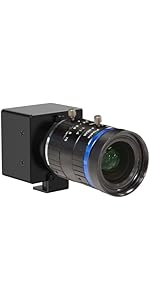

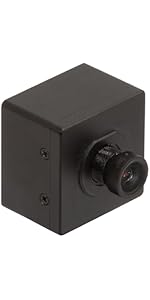

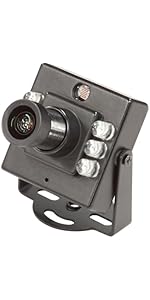

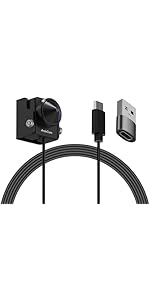

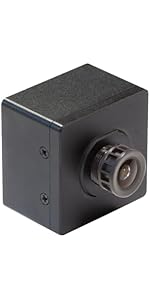

Arducam USB 3.0 Camera, 2MP IMX462 Low Light USB Camera Module, 80fps@720p Hi... | Arducam 1080P Day & Night Vision USB Camera for Computer, 2MP Automatic IR-Cu... | Arducam USB 3.0 Camera, 8.3MP 90fps@720p High-Speed USB Camera Module, 4K IMX... | Arducam 2MP Webcam, Low Light USB Camera with Holder, USB Webcam for PC, Lapt... | Arducam USB 3.0 Camera, 90FPS High-Speed 4K USB Camera Module, 8.3MP Manual F... | |
|---|---|---|---|---|---|
