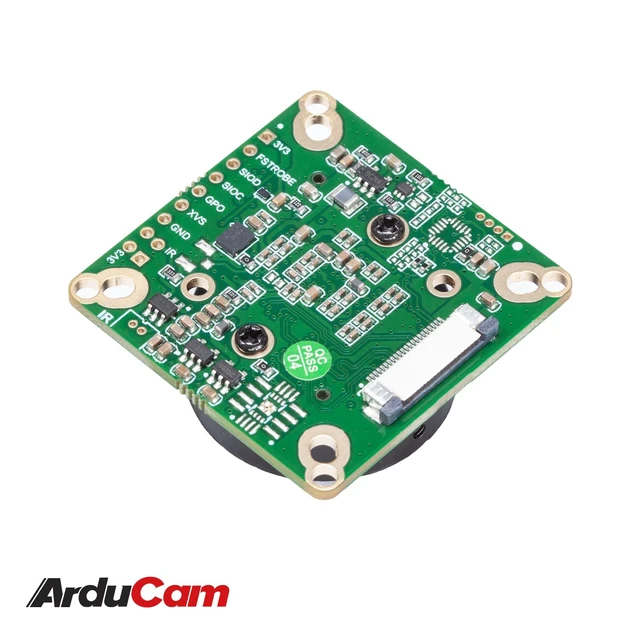

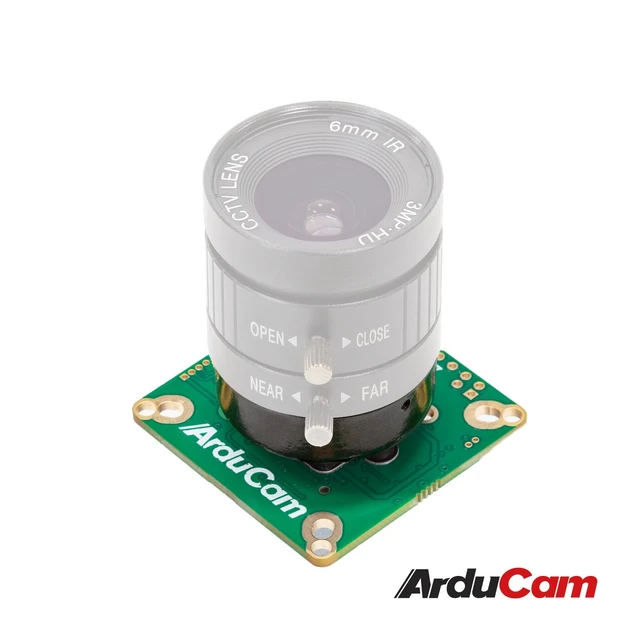

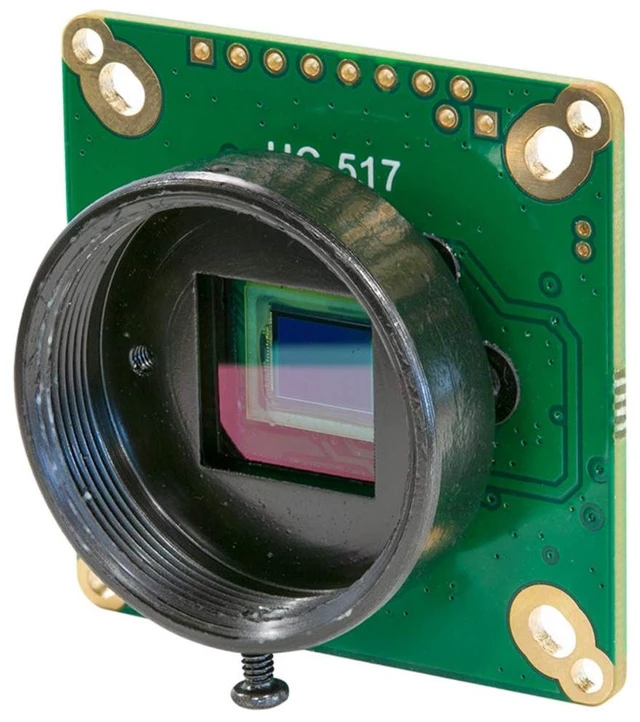

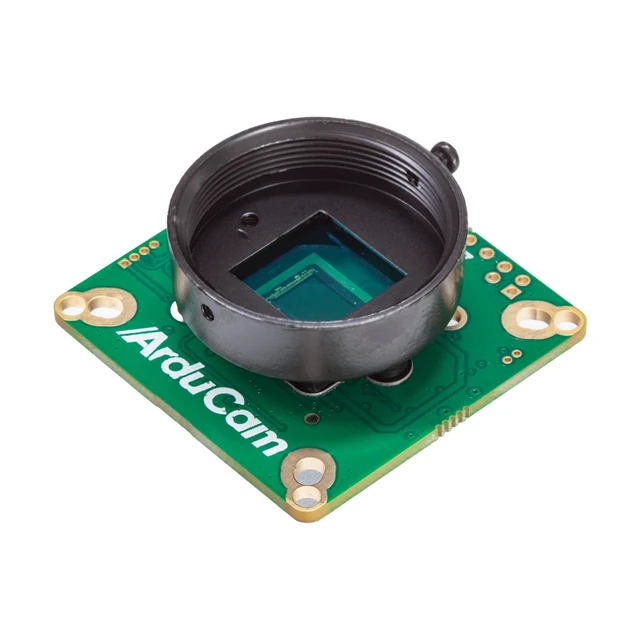

Arducam IMX477 HQ Camera Board for Jetson, 12.3MP Camera Board Compatible with Nvidia Jetson Board, Raspberry Pi CM 3/3+ and CM 4
- A Can't-Miss Update to IMX219 - Much better picture quality and lens flexibility, thanks to 53% more pixels, 92% larger pixel size, 192% larger imaging area, and a CS-Mount. Maximum still resolution at 4056 × 3040.
- Accelerated by Jetson Hardware ISP Engine - Support NVIDIA Argus Camera plugin for H264 encoding, JPEG snapshots, as well as gain, exposure, framerate, and group, hold control.
- Plug-and-Play - You dont need any hardware modification to work with jetson platform. Just a driver needed. More convenient than RPI official HQ cameras.
- 4-Lane Camera for the Future - Route out all 4 data lanes to the camera connector for customized carrier boards with 4-lane CSI connector and future 4-lane camera driver updates.
- Note1. It can't work on the standard Raspberry Pi models (like Raspberry Pi 3/3B+/4) 2. This camera is compatible with Jetson Developer Kit, and it does not guarantee to support other third-party boards.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

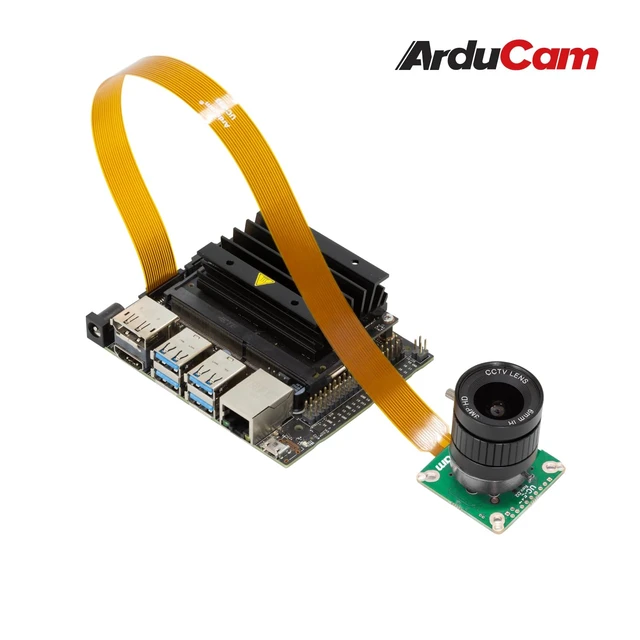

Arducam just released this High-quality camera module for Jetson Board. You can use this camera module on Jetson Board natively with ISP features. No hardware modifications required, just install the driver and you are good to go.
SPECIFICATIONS
Sensor: IMX477
Optical Format: 1/2.3 (diagonal 7.857mm)
Resolution: 4056(H) x 3040(V) 12.3MP
Pixel Size: 1.55um x 1.55um
IR Sensitivity: Visible light
Interface: 4-lane MIPI CSI-2

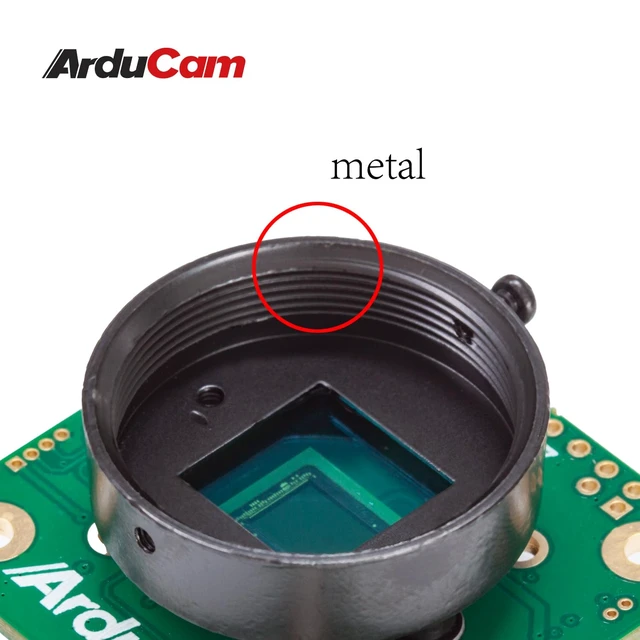

Default Lens Mount: CS-Mount
Frame Rate: (depends on the target platform, maximum fps limit might apply)
1920×1080 @ 60fps
4032×3040 @ 30fps
Board Size: 38mm×38mm
Hole Pitch: Compatible with 29mm, 30mm, 34mm
PACKING CONTENTS

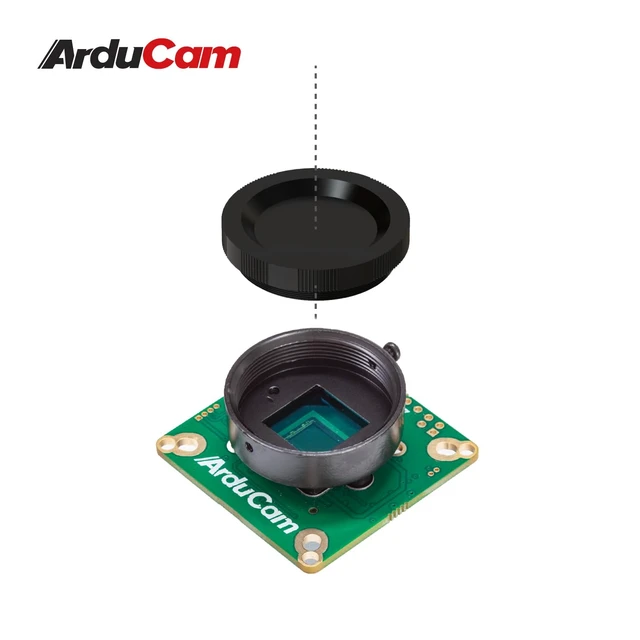

1pcs 12.3MP IMX477 camera board with dust cap for Jetsons
1pcs 11.8"(30cm) camera cable
