Name: KEHIPI 8MP IMX179 Lightburn Camera, Autofocus Webcam with Microphone, Ultra HD Embedded USB Cam for Raspberry Pi, Windows, Linux, Android, Mac OS
Brand: KEHIPI
SKU: 1EF-022M-00052
Price: 55.99 USD
Availability: InStock

KEHIPI 8MP IMX179 Lightburn Camera, Autofocus Webcam with Microphone, Ultra HD Embedded USB Cam for Raspberry Pi, Windows, Linux, Android, Mac OS

More than HD: This camera adopts 8MP IMX179 HD image sensor for sharp image and accurate color reproduction.

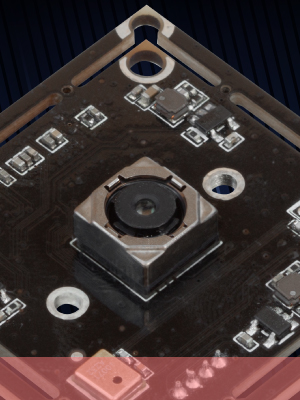

Autofocus: Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.
Capture Video with Audio: High frame rates: MJPG 30fps@3264 x 2448, 30fps@1080P; YUY2 30fps@640x 480; Support audio fuction, built in single microphone.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
More Applications: This 38mmx38mm camera board can be installed in the most hidden and narrow position for a home surveillance system, monitoring 3D Printers, object recognition, tracking, and other machine vision application.

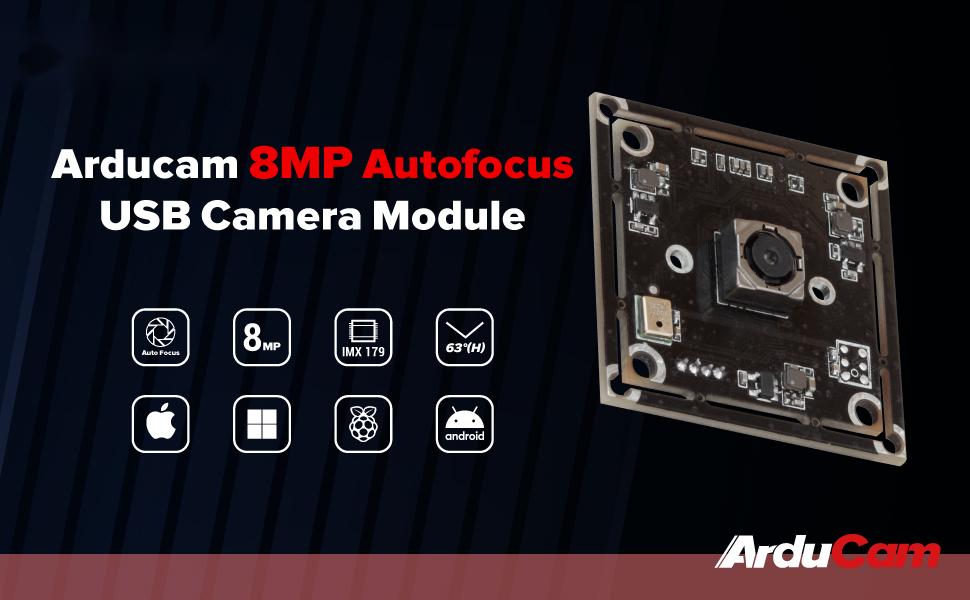

Arducam 8MP 1080P Auto focus USB Camera Module

This camera is based on 8MP IMX179 image sensor. Output format: MJPG/YUY2. The max resolution&frame rate is 3264(H)x2448(V)@30fps. Besides, we have equipped the camera with Autofocus Lens. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 63°(H) autofocus lens, allowing you to use it for some specific applications. It is compatible with Windows, Linux, Android, and Mac OS and No additional drivers are required.

SENSOR	IMX179
Color Filter Type	Color
Optical Size	1/3.2"
Pixel Size	1.4um x 1.4um
FOV	63°(H)x75°(D)x50°(V)
F.NO	2.0±5%
Interface	USB 2.0 device

UVC Compliant	No additional drivers are required
Working Current	Max 300mA
Camera Board Size	38mm x 38mm

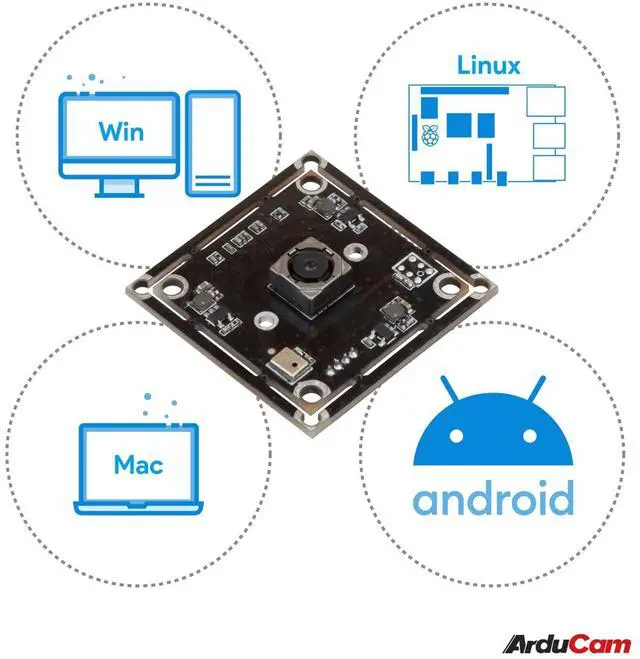

Supported OS	Windows, Linux, Android, and Mac OS
UVC Controls	Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Backlight Comp, Gain
Audio	Single Microphone
Sample Application	AMCap-Windows Camera application for Video and Still Capture

Frame Rate

MJPG: 30fps@3264×2448/2592×1944/1920×1080/1600×1200/1280×720/640×480 YUY2: 1fps@3264×2448 2fps@2592×1944 5fps@1920×1080/1600×1200 10fps@1280×720 30fps@640×480

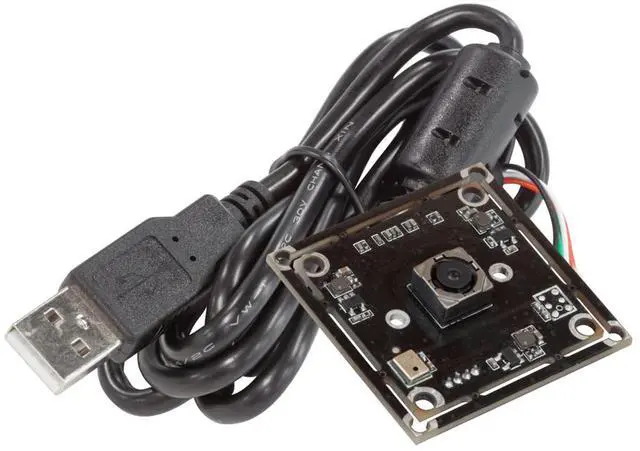

1 x Arducam 8MP AF Camera Module
1 x USB Cable (1m)
1 x Quick start guide

Specifications

Resolution: 8MP

Shutter Type: Rolling shutter

Output Format: YUYV/MJPG

Sensor Active Area: 3264(H)x2448(V)

Focus Type: Autofocus

Lens Mount: M8.5±0.25

E.F.L: 3.543

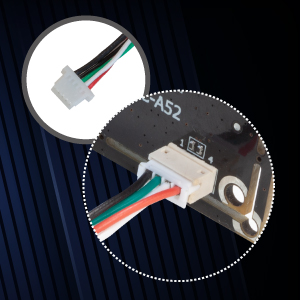

Connector: B4B-ZR

Operating Voltage: DC 5V +/- 5%

Operating Temp.: -4°F-158°F(-20°C to 70°C)

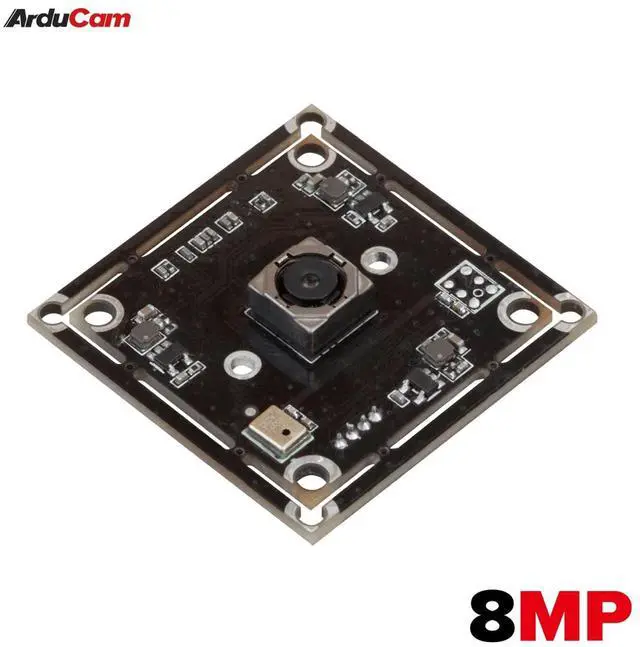

8MP IMX179 Autofocus USB Camera Module

Plug & Play

8MP IMX179 Autofocus USB Camera Module

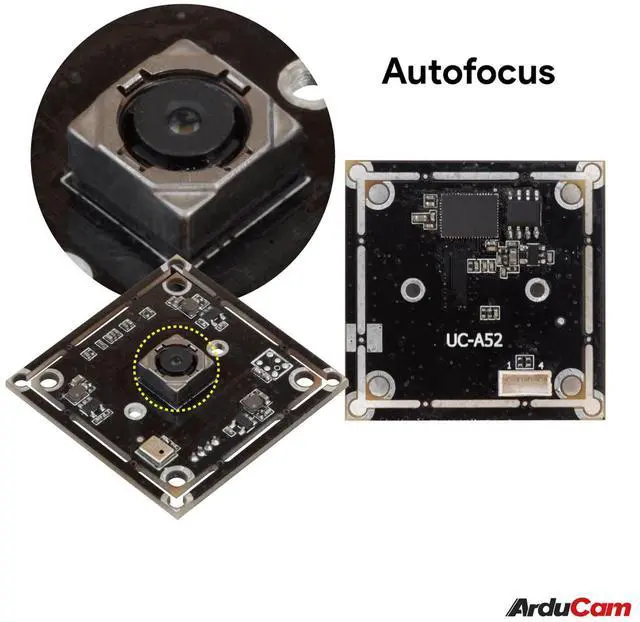

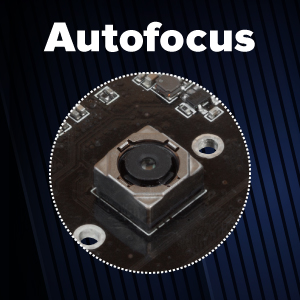

Autofocus

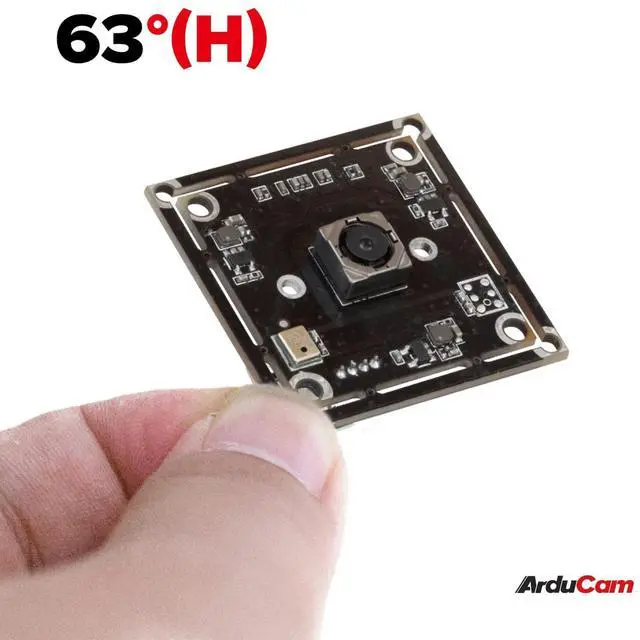

8MP IMX179 Autofocus USB Camera Module

FOV 63°(H)

Note

After receiving the package, please confirm whether the contents of the package are consistent with the description.
The package contains small contents, please keep it away from children to avoid accidental ingestion

SENSOR	IMX179
Color Filter Type	Color
Optical Size	1/3.2"
Pixel Size	1.4um x 1.4um
FOV	63°(H)x75°(D)x50°(V)
F.NO	2.0±5%
Interface	USB 2.0 device
UVC Compliant	No additional drivers are required
Working Current	Max 300mA
Camera Board Size	38mm x 38mm
Supported OS	Windows, Linux, Android, and Mac OS
UVC Controls	Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Backlight Comp, Gain
Audio	Single Microphone
Sample Application	AMCap-Windows Camera application for Video and Still Capture
