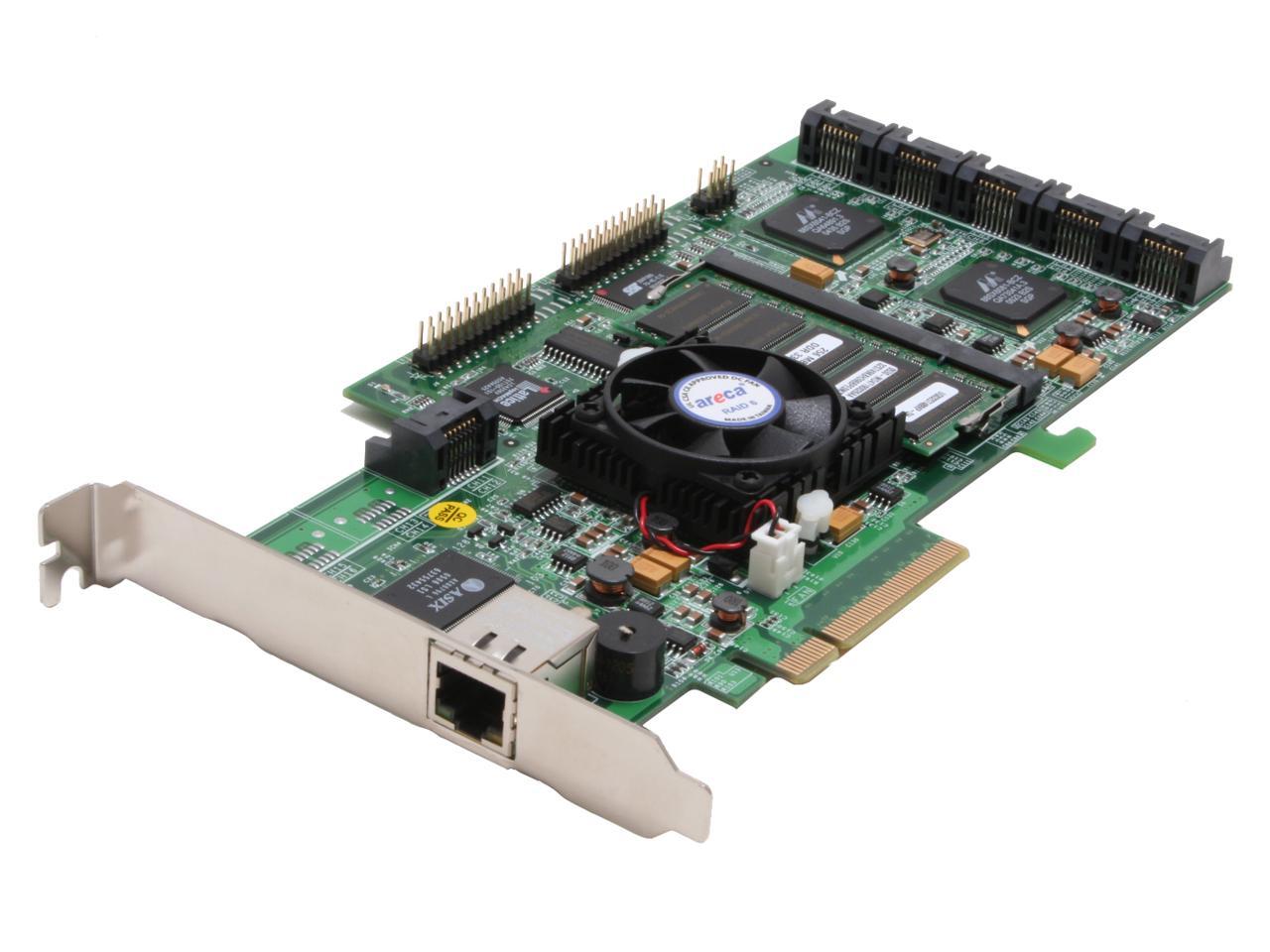

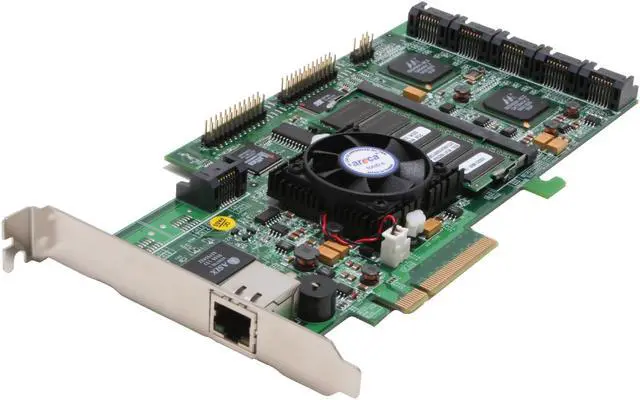

Areca ARC-1230 PCI-Express x8 SATA II Controller Card RAID level 0, 1 (10), 3, 5, 6 (if RAID 6 engine supported) and JBOD
Check more best sellers of "Controllers / RAID Cards"
Check more lowest price of "Controllers / RAID Cards"
Check more deals of "Controllers / RAID Cards"
OUT OF STOCK.
- RAID level 0, 1, 1E, 3, 5, 6 (if RAID 6 engine supported) and JBOD
- Multi-layer SATA connector Internal Connectors
Specs
Reviews
Learn more about the Areca ARC-1230
| Brand | areca |
|---|---|
| Model | ARC-1230 |
| Type | SATA II (3.0Gb/s) |
|---|---|

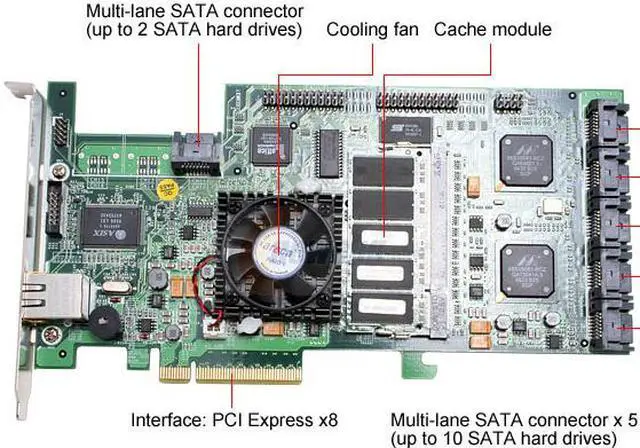

| Internal Connectors | Multi-layer SATA connector |
| Interface | PCI-Express x8 |
| Cache Memory | One SODIMM socket with default 256MB of DDR333 SDRAM with ECC protection, Upgrade to 1GB. An ECC or non-ECC SDRAM module using X8 or X16 chip organization |
| RAID | RAID level 0, 1, 1E, 3, 5, 6 (if RAID 6 engine supported) and JBOD |
| Features | Intel IOP333 I/O processor Write-through or write-back cache support Support up to 12 SATA II drives Multi-adapter support for large storage requirements BIOS boot support for greater fault tolerance BIOS PnP (plug and play) and BBS (BIOS boot specification) support Intel RAID 6 Engine to support extreme performance RAID 6 NVRAM for RAID event & transaction log Redundant flash image for adapter availability |
|---|
| Date First Available | September 27, 2005 |
|---|
