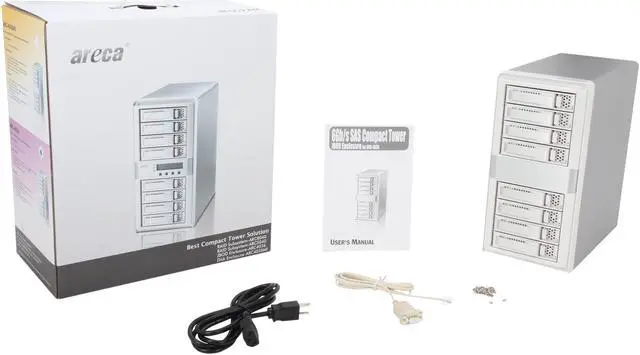

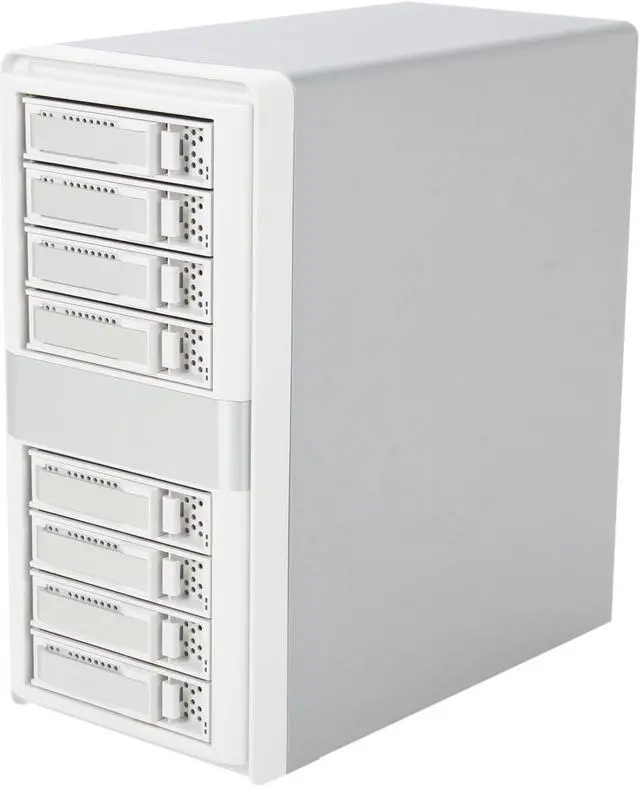

areca ARC-4036 8 x hot-plug 3.5" Drive Bays 2 SAS "Host In" connector 2 SAS "Expansion Out" connector 1 6-pin UART RJ-11 connector 8-Bays 6Gb/s SAS Tower JBOD Enclosure

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Areca ARC-4036

Model
Brand	areca
Model	ARC-4036

Details
Drive	SAS & SATA

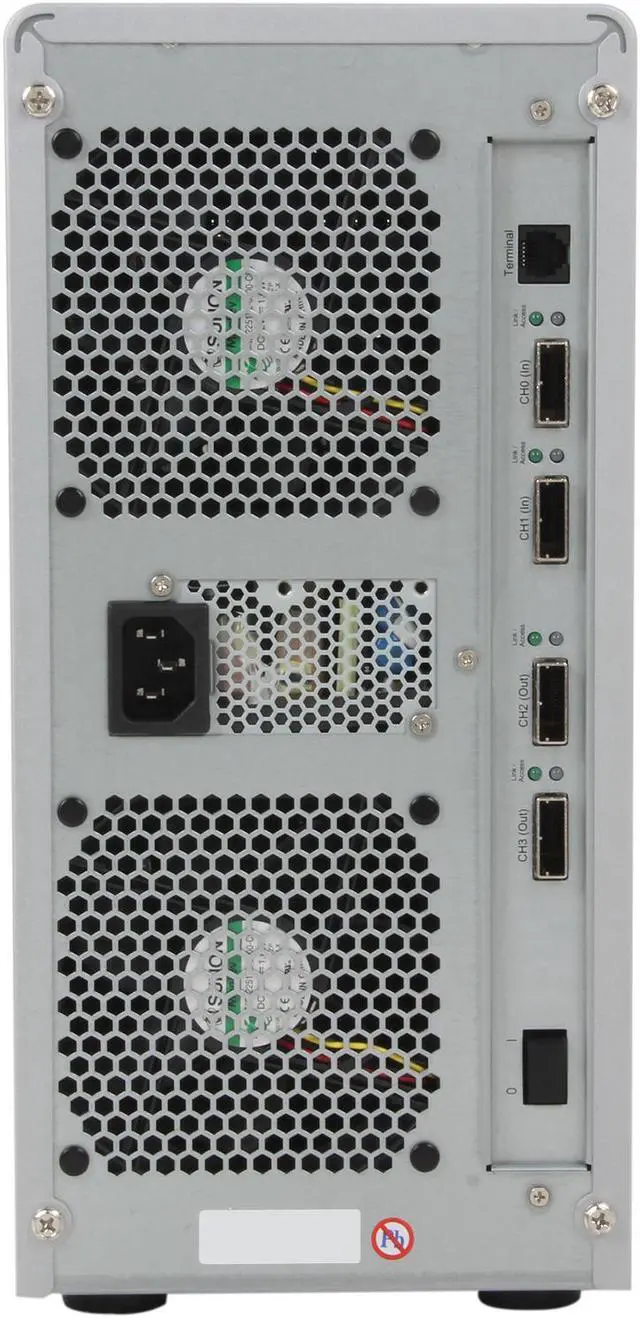

External I/O	2 SAS "Host In" connector 2 SAS "Expansion Out" connector 1 6-pin UART RJ-11 connector

Expansion

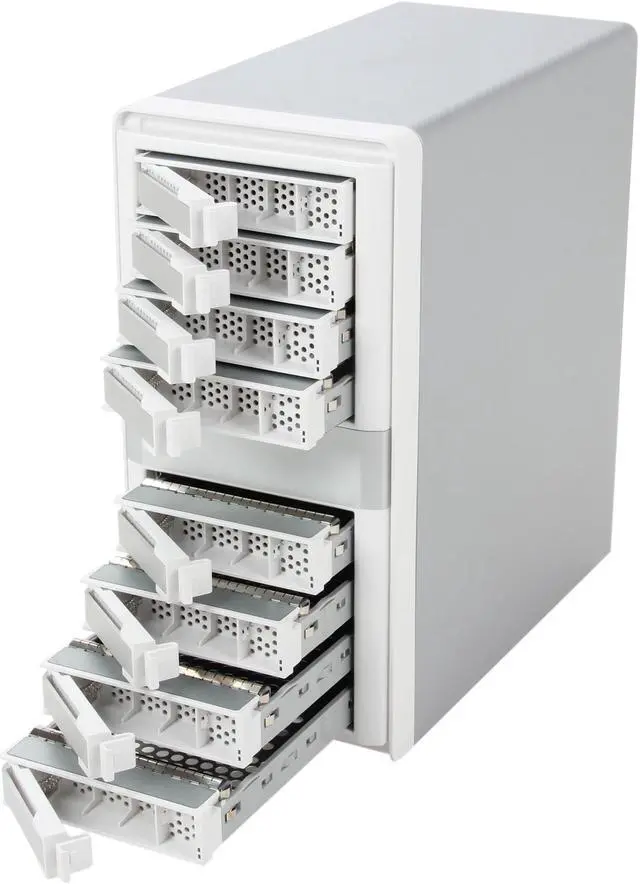

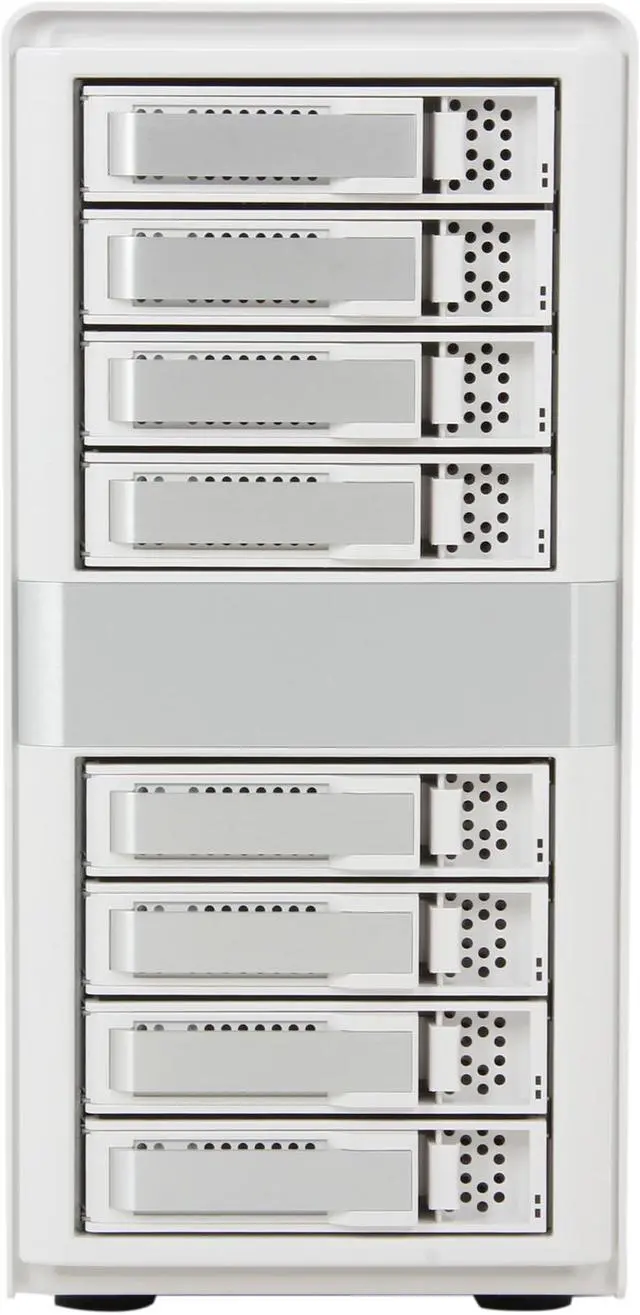

3.5" Drive Bays	8 x hot-plug

Mechanical Spec
Power Supply	Wattage 220 W maximum continuous Voltage 90-256 V rated Frequency 50-60 Hz Amperage +12V/16A, +5V/16A, +3.3V/14A

Features
Features	Drives: Up to 8 2.5-inch or 3.5-inch SAS hot-plug hard drives (6.0 Gb/s) at speeds of 7.2K, 10K or 15K rpm Up to 8 2.5-inch or 3.5-inch SATA hot-plug hard drives (6.0 Gb/s) at speeds of 7.2K or 10K rpm JBOD Controller Modules: Expander board: 1 module Sensors: 1 sensor on the expander board Backplane Board Connectors: 8 SAS hard-drive connectors 1 Power supply connector 2 Cooling fan module connectors 1 Sets of expander board connector LED Indicators: 1 Blue single-color activity LED 1 Two-color LED status indicator per drive 2 One-color LED status indicators for each SAS host port, one for SAS host port link and one for the activity status 2 One-color LED status indicators for each SAS expansion port, one for SAS expansion port link and one for the activity status

Dimensions & Weight
Dimensions	302 x 290 x 146mm
Weight	14.9 lbs.

Additional Information
First Listed on Newegg	August 10, 2012
