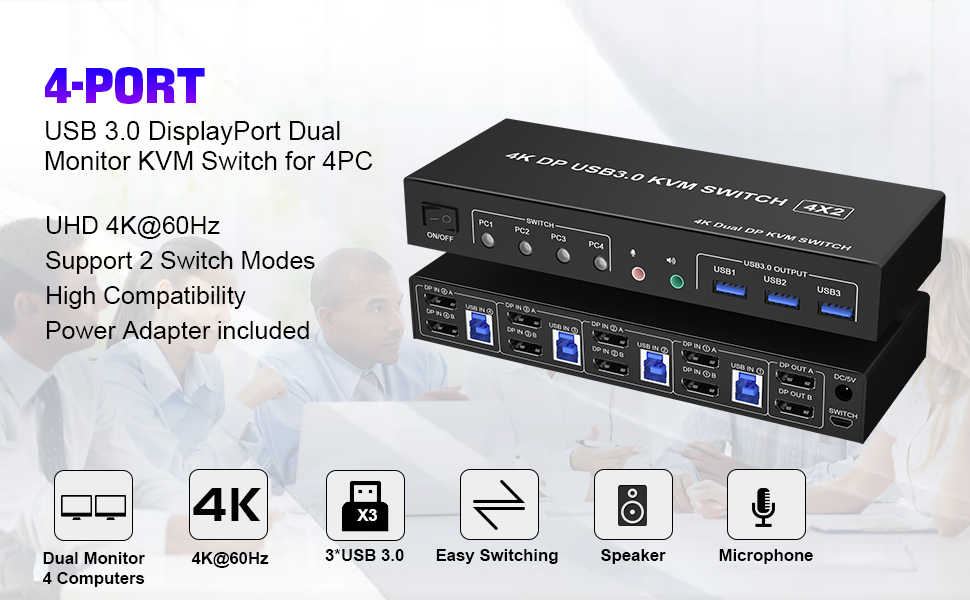

4 Port USB 3.0 DP Dual Monitor KVM Switch 4K@60Hz-4 computers share 2 monitors and 3 USB3.0 devices
- With this 4 port USB 3.0 dual-monitor DisplayPort KVM Switch, you can easily control 4 signal sources at the same time, share the same keyboard and mouse, and share 2 monitors.
- Note: Each input source device must be connected to two dual monitors.
Product Features
- 4 computers share one set of keyboard, mouse, 2 monitors, and more USB 3.0 peripherals.

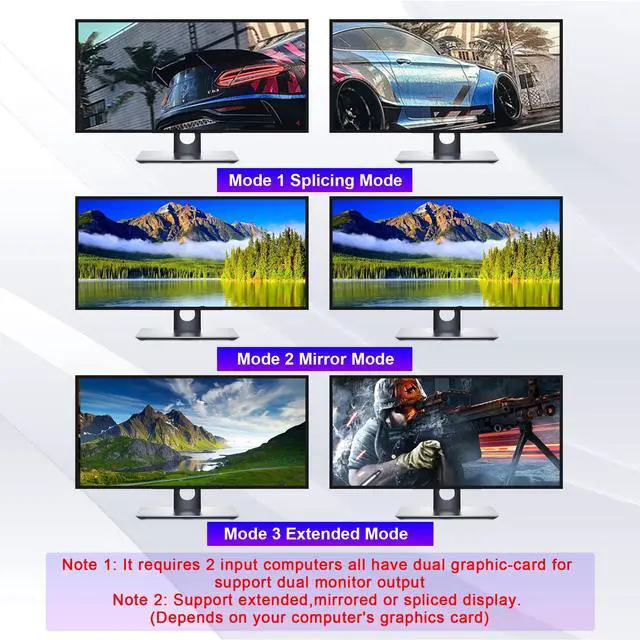

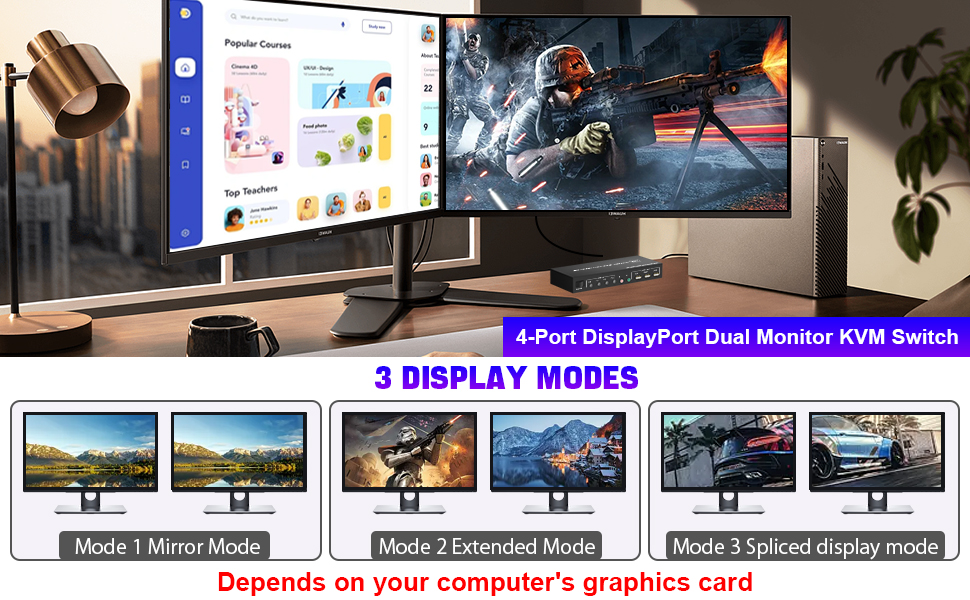

- This dual monitor DisplayPort KVM switch Supports maximum resolution up to 4K 60Hz YUV 4:4:4, HDCP 1.4, HDR 2.2; Dual monitors output support up to 4K@60Hz for extended, mirrored or spliced display(Depends on your computer's graphics card.);
- Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;
- 2 Switching modes: Button switch and wired remote.
- The ports that need to plug in DisplayPort/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;
- No complicated installation is required, and non-professionals can easily operate it.
- Independent Audio Microphone output.
Connection steps:
1. Insert the DC/5V adapter into the KVM ;
2. Plug the DP cable into the KVM and monitor;(Output)
3. Plug the DP cable and USB cable into the KVM and your computer/laptop (DP cables are not included)(Input)
DP IN1 A + DP IN1 B + USB IN1=PC1
DP IN2 A + DPIN2 B + USB IN2=PC2
DP IN3 A + DPIN3 B + USB IN2=PC3
DP IN4 A + DPIN4 B + USB IN2=PC4
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note:
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(2 DP cables+1 USB cable) connect to the KVM.
2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
3.Before purchasing this DP dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally,Otherwise, the KVM will not be available.
4. Note: DP cables are not included

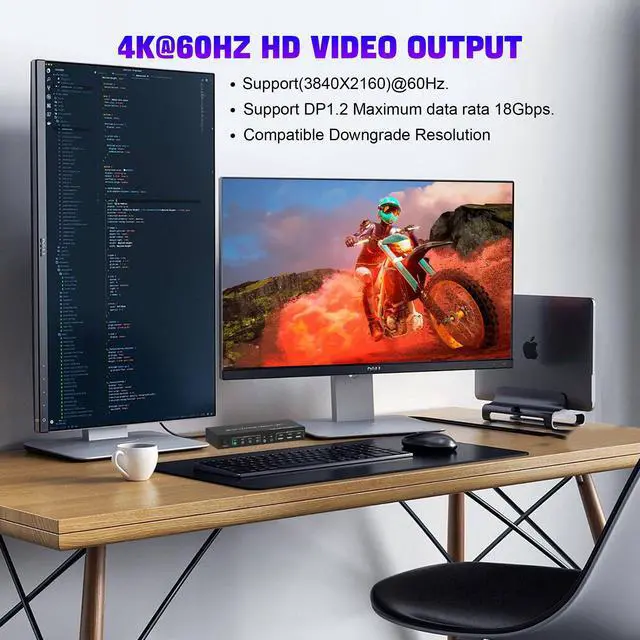

USB 3.0 Dual Monitor KVM Support 4K@60HZ
- Supports high resolution up to 3840*2160@60Hz and downwards.
- Note: Only when both your computer Graphics card and monitor support 4K@60Hz you can get the 4K@60Hz effect, so if you want the maximum resolution you have to check your devices first.

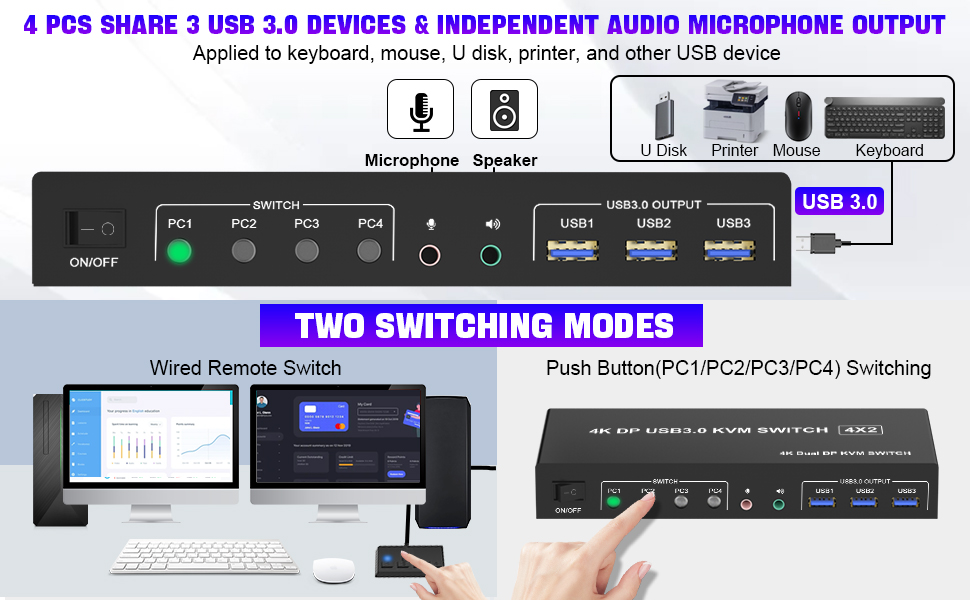

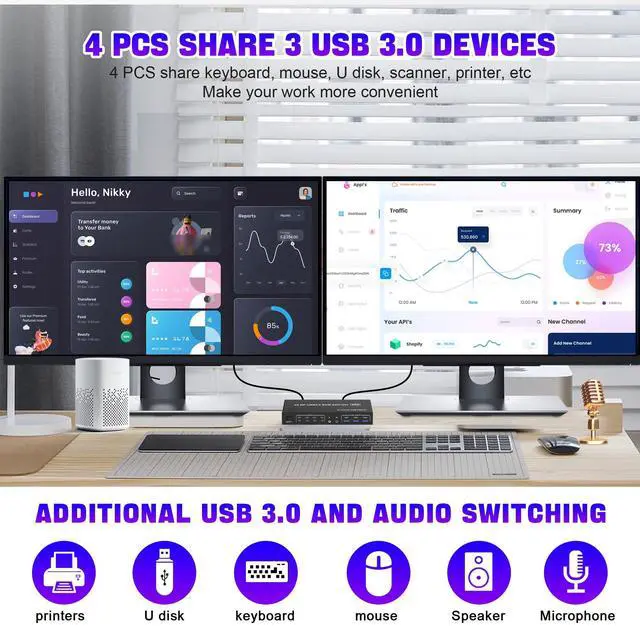

4 PCS Share 3 USB 3.0 Devices
- This KVM switch 2 monitors 4 computers with 3 USB 3.0 Ports for keyboard, mouse, printers, USB headsets, or webcams.
Supports Separate Audio and Microphone Output
- This 2 monitor 4 computer kvm comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.
Dual Monitor KVM Support 2 Switching Modes
- Quickly switch between the 2 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).
- Please note: This dual monitor KVM switch DisplayPort does not support hotkey switching.
