BUCIER Dual Monitor KVM Switch HDMI + DisplayPort 2 Port, Supports EDID,4K@60Hz Extended Display KVM Switch 2 Monitors 2 Computers with Audio Microphone Output and 3 USB Ports, PC Monitor KVM Switcher

Dual Monitor HDMI & DisplayPort KVM Switch for 2 Computers

* With this HDMI & DisplayPort 2 port dual monitor KVM switch, you can easily control 2 signal sources at the same time, share the same keyboard and mouse, and share 2 monitors.

Product Features:

1. 2 computers/laptops share one set of keyboard, mouse, dual monitors, and 3 USB 2.0 peripherals.

2. With EDID emulators in the extended display mode, keep PCs always have the correct information, prevent display setting change while switching inputs;

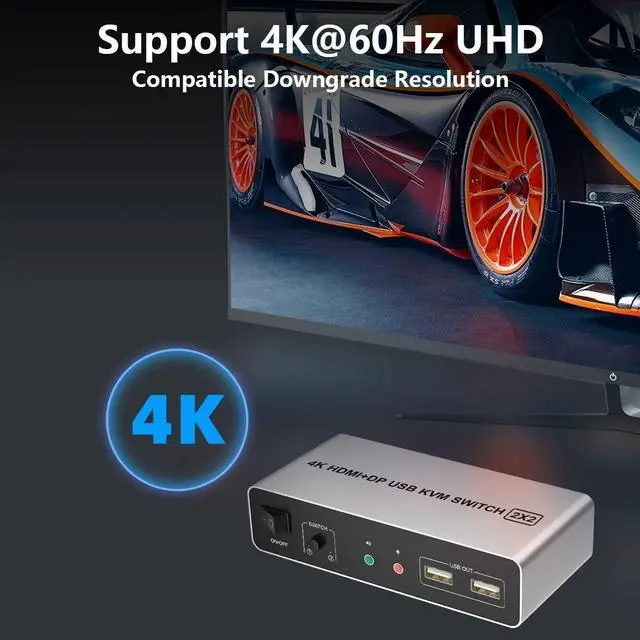

3. Dual monitors output support up to 4K@60Hz; for extended or mirrored display;

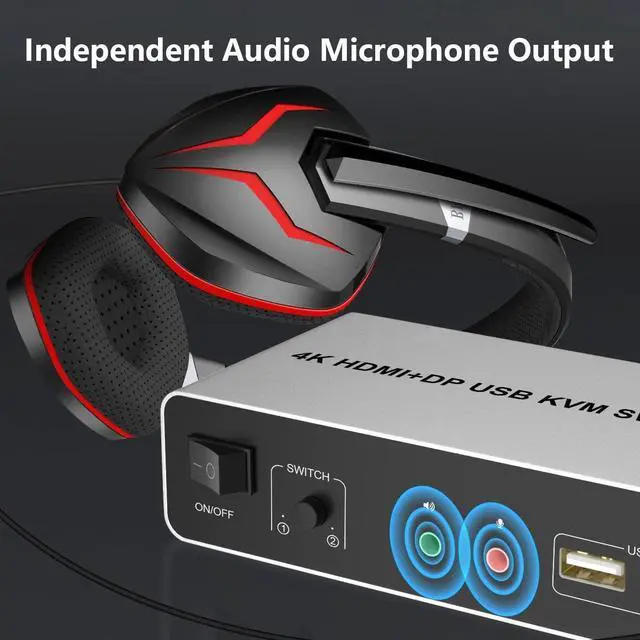

4. With extra 3 USB 2.0 Ports and Audio Microphone output.

5. Compatibility with all computers and other devices with HDMI & DisplayPort ports.

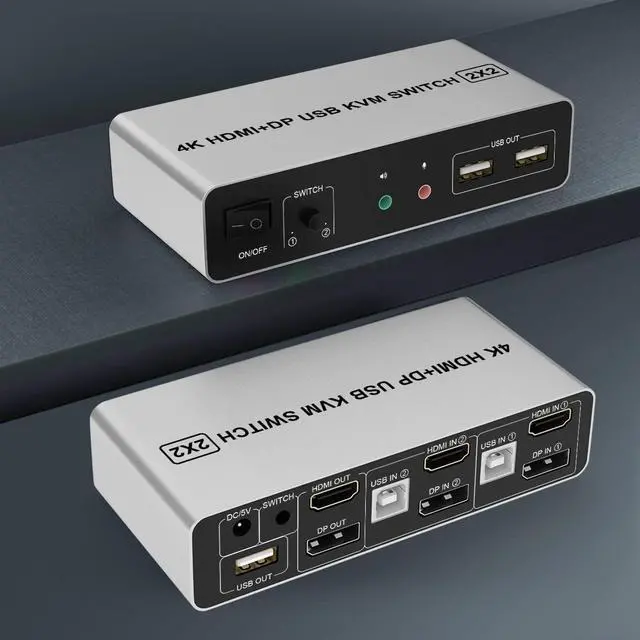

6. The ports that need to plug in HDMI/DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;

7. Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems.

8. Switching modes: Buttons on the front panel and wired remote;

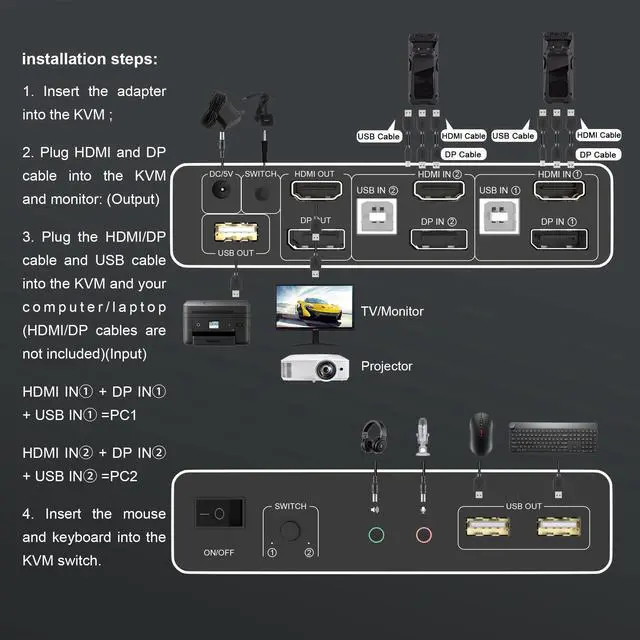

Installation steps:

1. Insert the adapter into the KVM ;

2. Plug the DP cable and HDMI cable into the KVM switch and monitor;(Output)

3. Plug the DP cable, HDMI cable, and USB cable into the KVM switch and your computer/laptop (HDMI and DP cables are not included)(Input)

Please check whether HDMI IN1, DP IN1, and USB IN1 are corresponding and whether HDMI IN2, DP IN2, and USB IN2 are corresponding. Mixed insertion is not supported.

HDMI IN1 + DP IN1 + USB IN1=PC1

HDMI IN2 + DP IN2 + USB IN2=PC2

4. Insert the mouse and keyboard into the KVM switch;

5. If necessary, plug the headset or microphone into the KVM switch;
