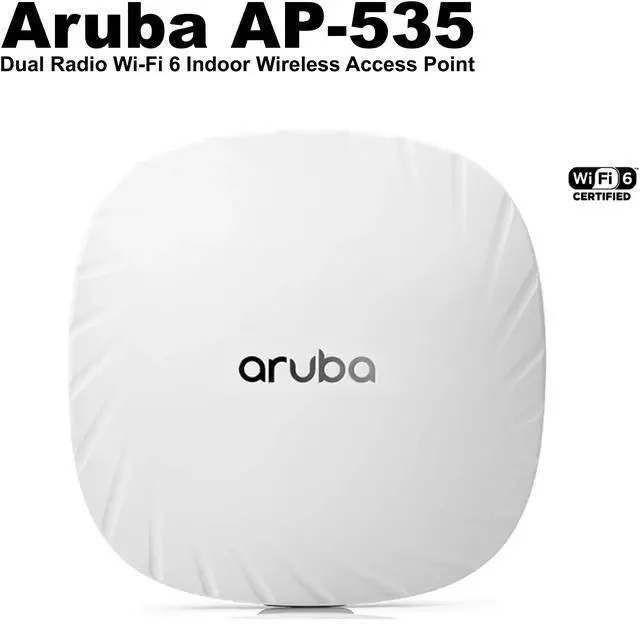

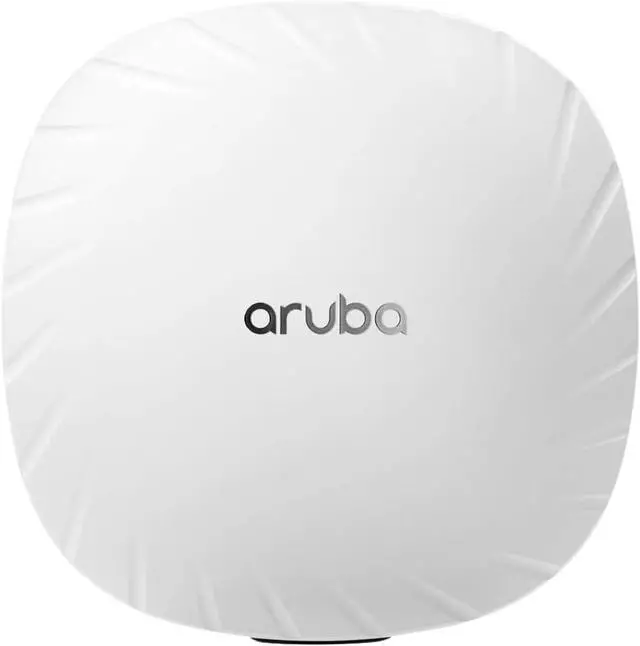

HPE-Aruba AP-535 (US) Dual Radio 4x4:4 Wi-Fi 6 Access Point JZ337A - 2.4Gbps, 2x 5G Ethernet, Ceiling/Wall Mount
- Brand: Hewlett-Packard (Aruba)
- Part Number: JZ337A
- Product Model: Aruba AP-535 (US)
- Product Type: Dual Radio Wireless Access Point
- WiFi Generation: WiFi 6 (802.11ax)
- Wireless Standard: 802.11a/b/g/n/ac/ax
- Network Protocols: IPv4, IPv6, ARP, TCP, UDP, ICMP, HTTP, HTTPS, FTP, TFTP, SNMPv3, Syslog
- Device Management: Aruba Central, Web GUI, CLI, SNMP, REST API
- Security: WPA3, WPA2, Enhanced Open (OWE), 802.1X, WIDS/WIPS, IPsec, AES-CCMP, Role-based Access Control (RBAC), Captive Portal, DHCP Snooping
- Max Data Rate: Up to 2.4Gbps (combined)
- MIMO: 4x4:4 MU-MIMO
- Ports: 2x 1/2.5/5GbE Ethernet Ports, 1x USB 2.0
- Antenna Type: Internal Omni-directional Antennas
- Power Options: PoE (802.3at/bt), DC power input (optional adapter)

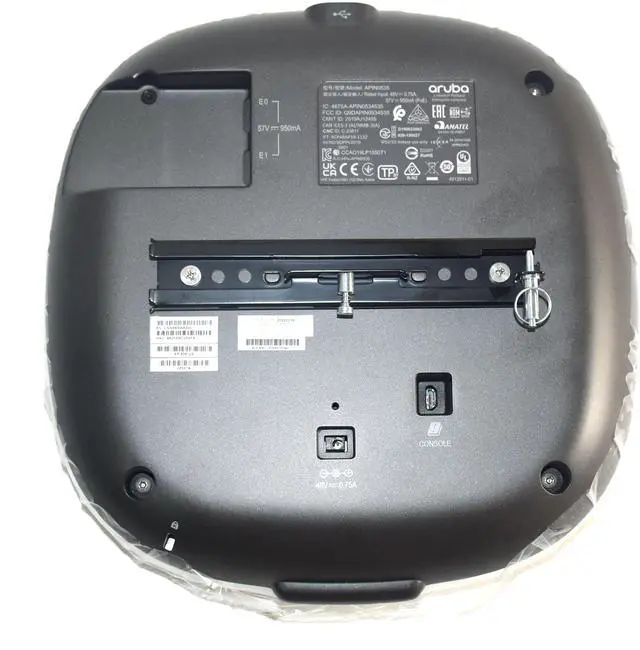

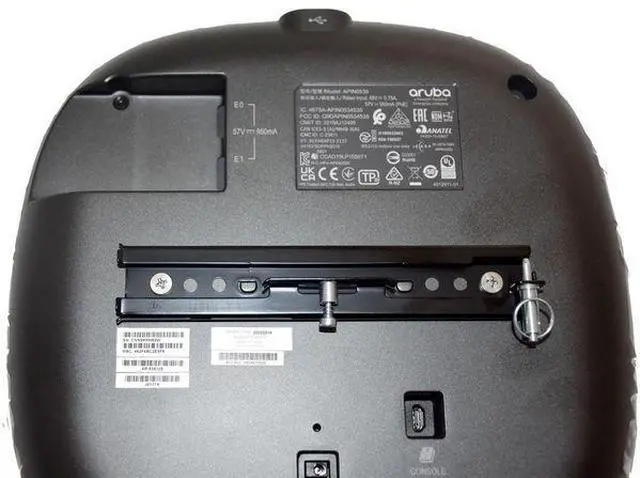

- Mounting: Ceiling or Wall mountable
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Dimensions: 9.06 x 9.06 x 2.11 inches
- Weight: 2.9 lbs (1.32 kg)
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Aruba Networking AP-535 (US) is a next-generation Wi-Fi 6 ( 802.11 ax) dual-radio access point designed to deliver maximum performance and efficiency in high-density environments. Engineered with 4x 4:4 MU-MIMO technology, the AP-535 offers blazing wireless speeds up to 2.4G bps and supports both 2.4GH z and 5GHz frequency bands for optimal bandwidth distribution. Integrated omni-directional antennas provide wide coverage, making it ideal for enterprise offices, educational campuses, and public venues. With dual 5GBASE-T Ethernet ports, robust security with WPA3, and flexible mounting options, this access point empowers modern networks with superior speed, security, and scalability.
Package Dimensions & Weight
Dimensions: 10.2 x 10.2 x 2.6 inches
Weight: 3.5 lbs
Key Features
Supports Wi-Fi 6 ( 802.11 ax) for improved speed and efficiency
Dual Radio 4x 4:4 MU-MIMO ideal for high-density user environments
Delivers up to 2.4G bps combined wireless throughput
Dual 5GBASE-T Ethernet uplink ports for high-speed connections
Integrated omni-directional antennas ensure wide, even coverage
Supports advanced WPA3 security and Enhanced Open protocols
Powered via 802.3 at PoE or optional DC input (adapter sold separately)

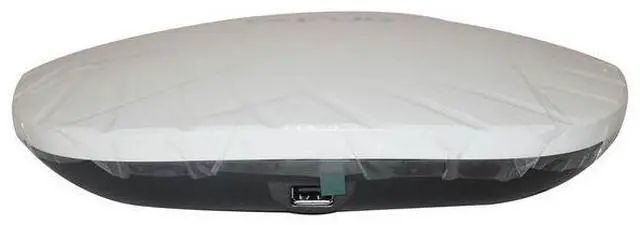

USB 2.0 port for future expansions and IoT support
Ceiling or wall mountable for versatile deployment
Perfect for businesses, schools, and large venues needing reliable, scalable Wi-Fi
Package Dimensions & Weight
Dimensions: 10.2 x 10.2 x 2.6 inches
Weight: 3.5 lbs
Key Features
Supports Wi-Fi 6 ( 802.11 ax) for improved speed and efficiency
Dual Radio 4x 4:4 MU-MIMO ideal for high-density user environments
Delivers up to 2.4G bps combined wireless throughput
Dual 5GBASE-T Ethernet uplink ports for high-speed connections
Integrated omni-directional antennas ensure wide, even coverage
Supports advanced WPA3 security and Enhanced Open protocols
Powered via 802.3 at PoE or optional DC input (adapter sold separately)
USB 2.0 port for future expansions and IoT support
Ceiling or wall mountable for versatile deployment
Perfect for businesses, schools, and large venues needing reliable, scalable Wi-Fi
