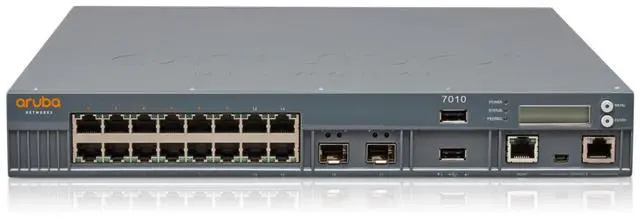

International Version HPE Aruba 7010 (RW) JW678A Controller - 16 x 1000Base-T (PoE+) - RJ-45 network management device

Product

Specifications

General
Device Type Network management device
Height (Rack Units) 1U
Built-in Devices Status LCD
Width 12.5 in
Depth 13.3 in
Height 1.7 in
Weight 7.5 lbs
Networking
Form Factor Rack-mountable
Ports Qty 16
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Performance AES throughput: 3.6 Gbps |
Firewall throughput: 4 Gbps | 3DES throughput: 2.4 Gbps
Capacity Maximum number of access points: 32 |
Concurrent devices: 2048 | Virtual interfaces (VLA
Ns): 4094 |
Concurrent GRE tunnels: 1024 | Maximum number of access points (remote): 32 |
Concurrent tunneled ports: 1024 |
Concurrent IPSec sessions: 1024 |
Concurrent SSL fallback sessions: 1024 | Active firewall sessions: 32768
Status Indicators Power, status
Features VPN support, IPv6 support, IPv4 support, Adaptive Radio Management (ARM), ClientMatch
Expansion / Connectivity
Interfaces 16 x 1000Base-T (PoE+) - RJ-45 | 2 x 1000Base-X - SFP (mini-GBIC) | 2 x USB 2.0 | 1 x management - RJ-45 | 1 x micro-USB
Miscellaneous
MTBF 232, 843 hours
Compliant Standards C-Tick, CISPR 22 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, CB, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, MIC, ICES-003 Class A, AS/NZS 3548, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1 Second Edition, KCC, ANATEL, cTUVus, CSA C 22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KCC KN22 Class B, AS/NZS CISPR 22 Class B, FCC Part 15 Class B, CNS 13438 Class B, EN 60950:2005
Power
Power Over Ethernet (PoE) Supported PoE+
Power Device Internal power supply
Power Consumption Operational 190 Watt
