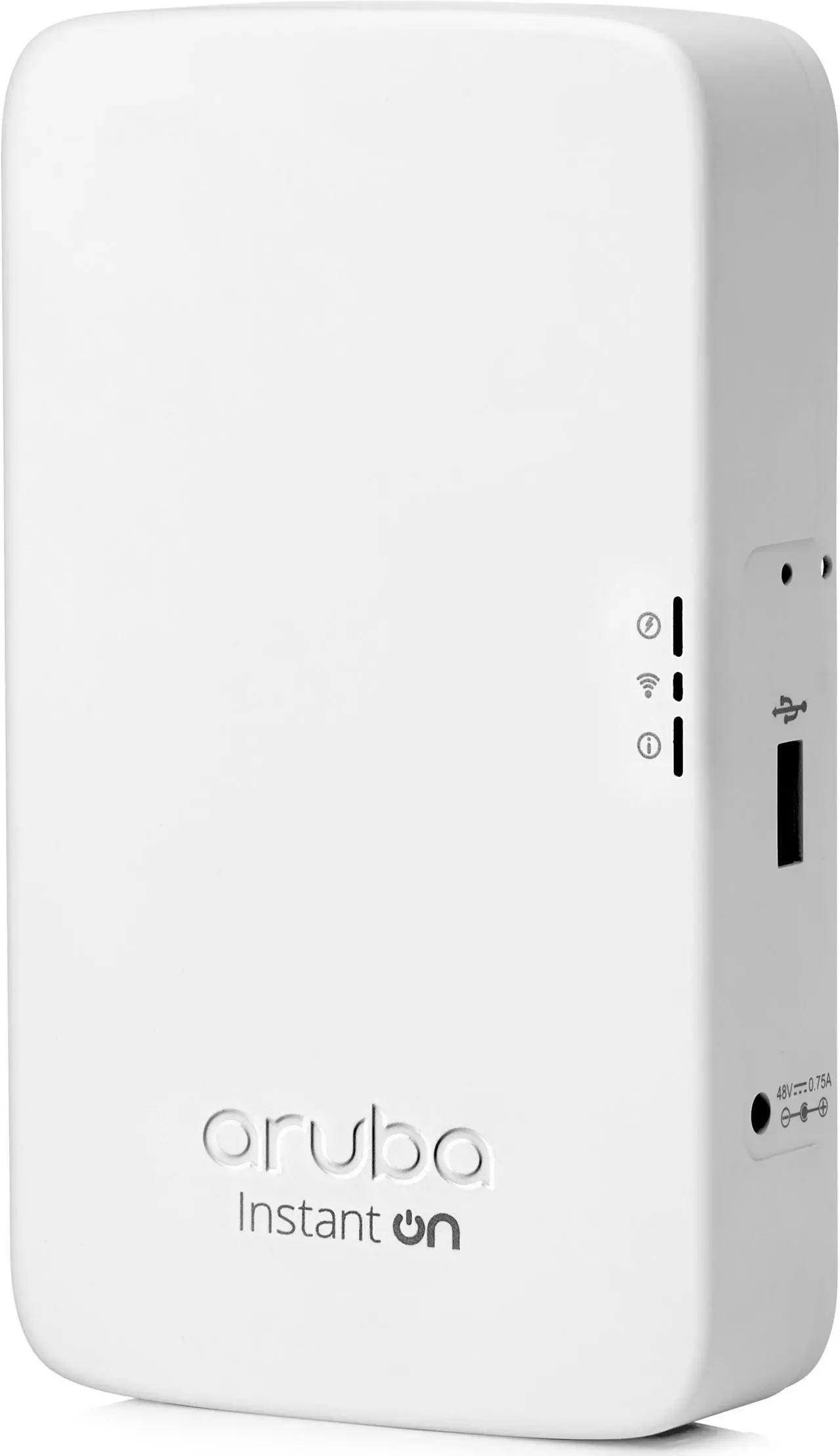

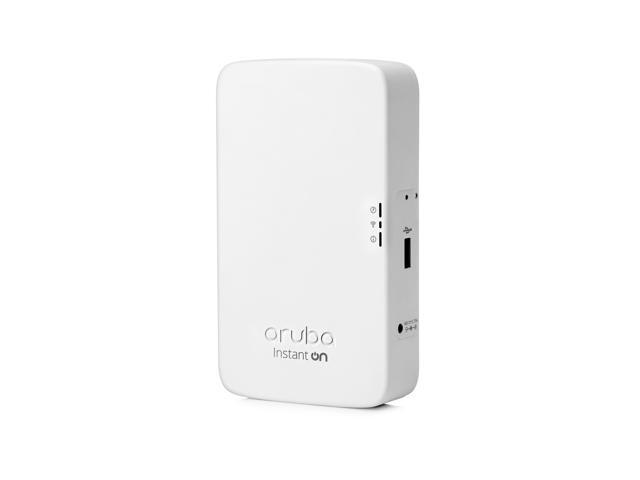

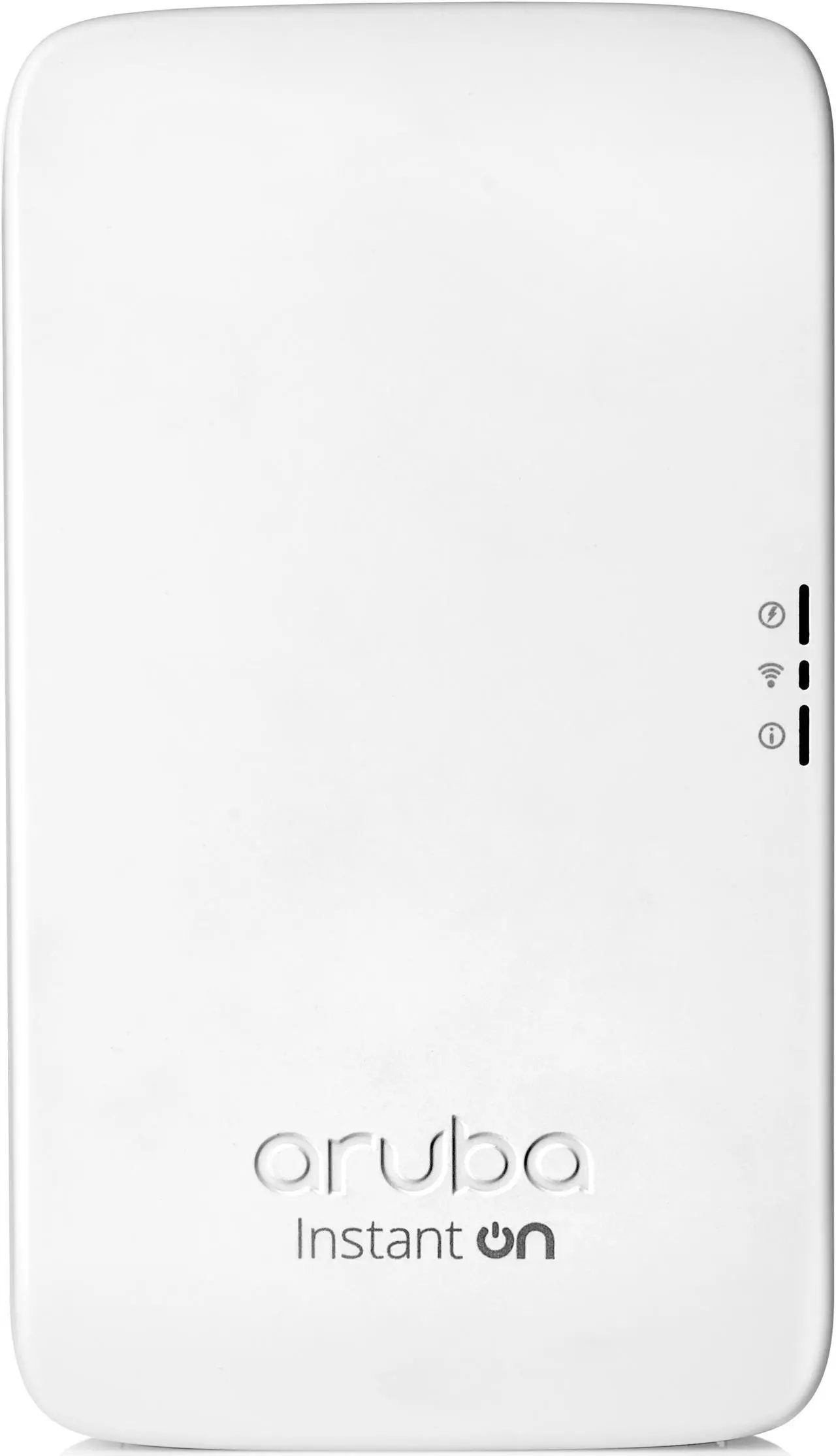

HPE Networking Instant On AP11D Desk/Wall Access Points include an easy to use web GUI and templates – so access points are simple to deploy and are up and running in minutes.
802.11ac Wave 2 features include 2x2:2SS and up to 80 MHz channel bandwidth.
Maximum concurrent data rates of 867Mbps in the 5Ghz band and 300Mbps in the 2.4Ghz band to support high-bandwidth activities such as video, voice, and conferencing solutions.
Aruba Instant On AP11D Desk/Wall Access Points allow any change to the primary AP configuration is automatically pushed to every AP in the same cluster.
A secondary AP automatically takes over if the primary AP experiences an outage for always-on Wi-Fi.
+
+
Overview
Specs
Reviews (3)

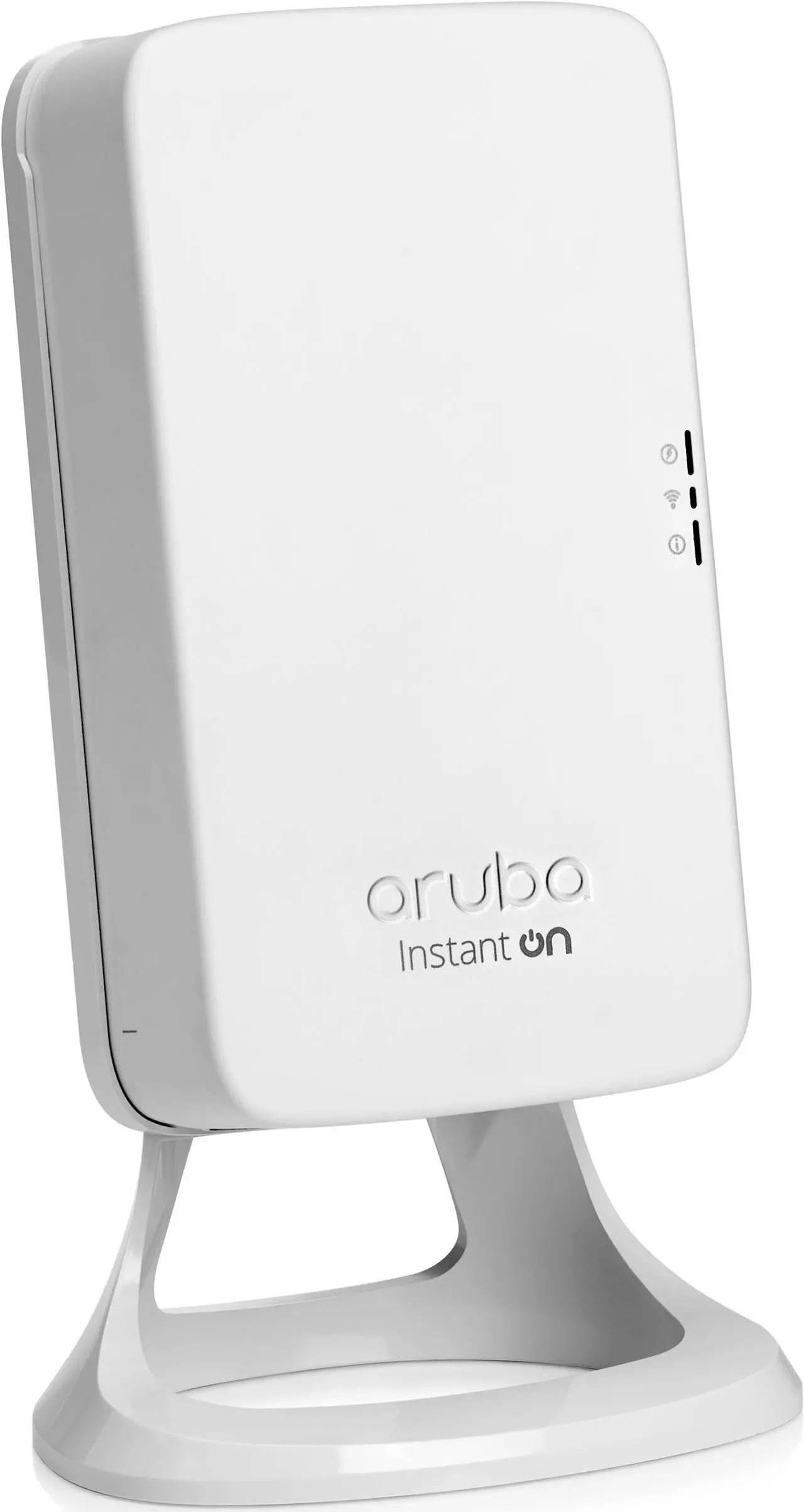

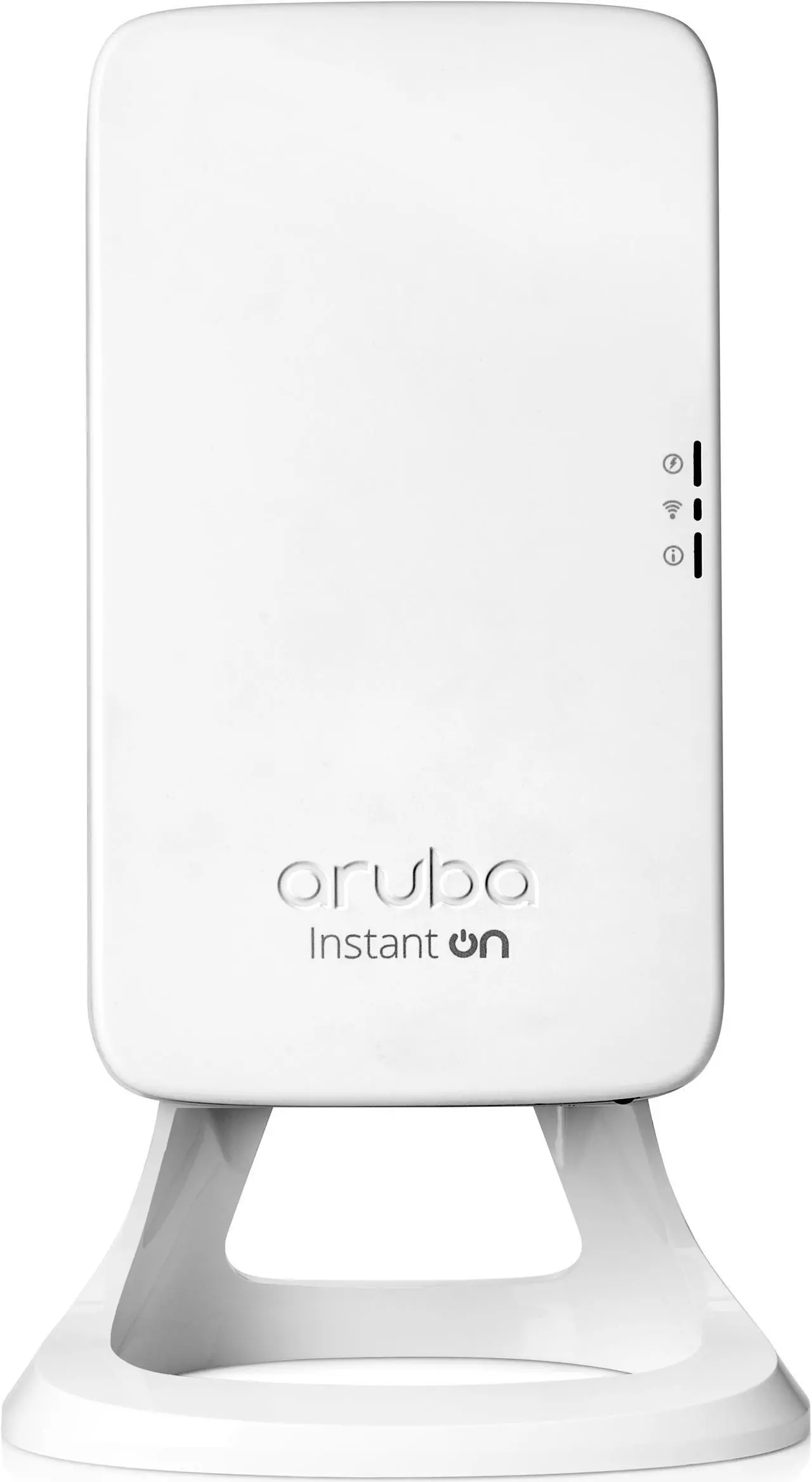

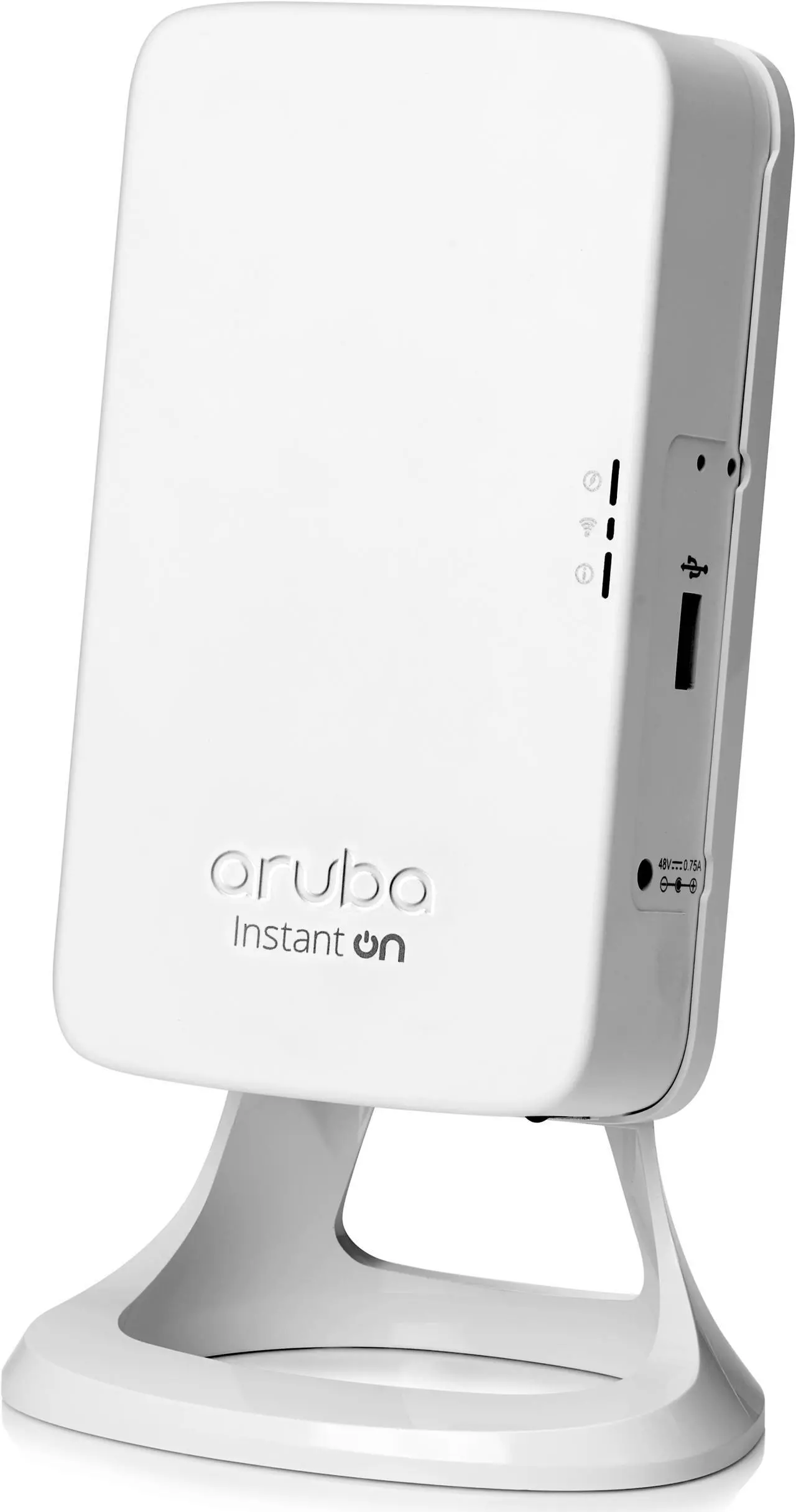

Desktop and wall-mounted options are designed to deliver seamless Wi-Fi connectivity suited for boutique hotels specialized medical offices and in-office collaboration spaces.
Learn more about the HPE Networking Instant On R2X15A
Model
Brand
HPE Networking Instant On
Series
HPE Networking Instant On Access Points
Model
R2X15A
Details
Standards
IEEE 802.11ac, 802.11n
Frequency Band
Dual Radio for simultaneous dual-band operation 5 GHz 802.11ac 2x2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5) 2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
Antenna
Integrated directional antennas with maximum individual antenna gain of 4.3dBi in 2.4GHz and 6.2dBi in 5GHz.
LAN Ports
(1) uplink Gigabit Ethernet port (E0), with POE-in support (802.3at/802.3af) (3) downlink Gigabit Ethernet ports (E1-E3), with POE-out on E3 (802.3af)
Power Supply

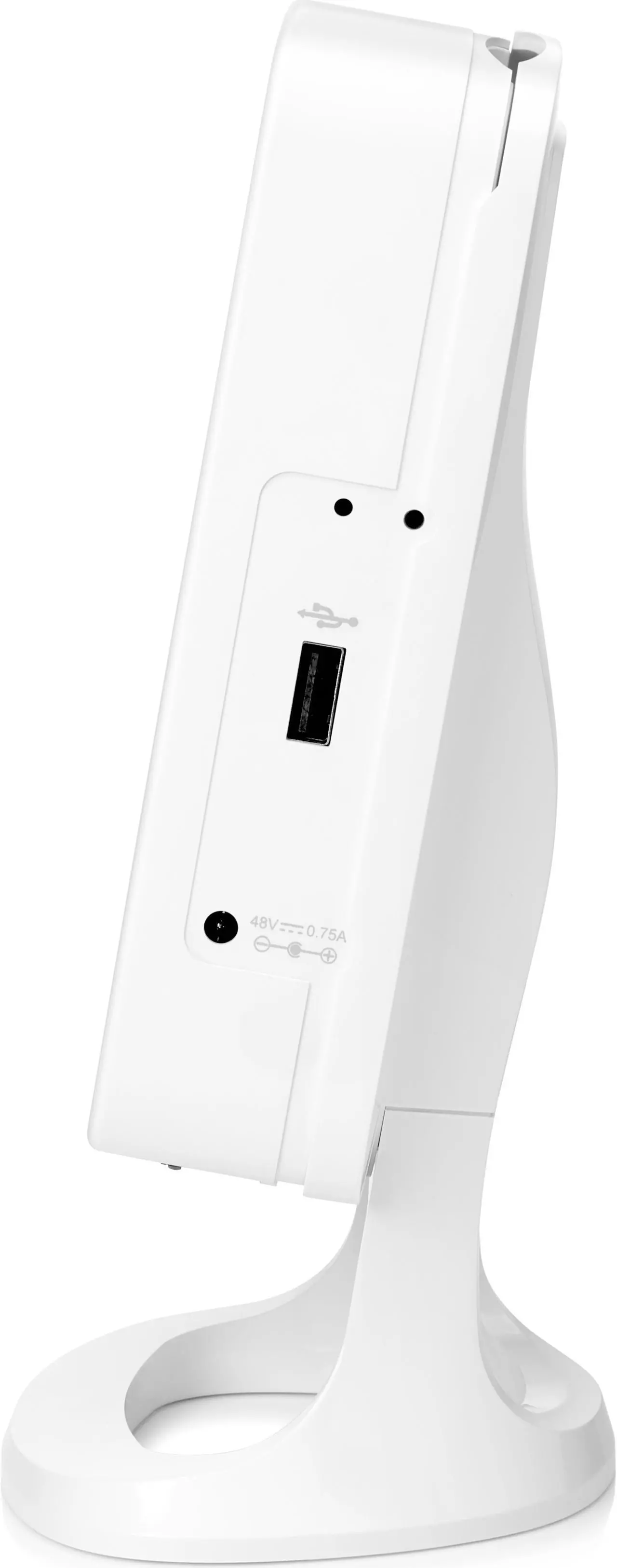

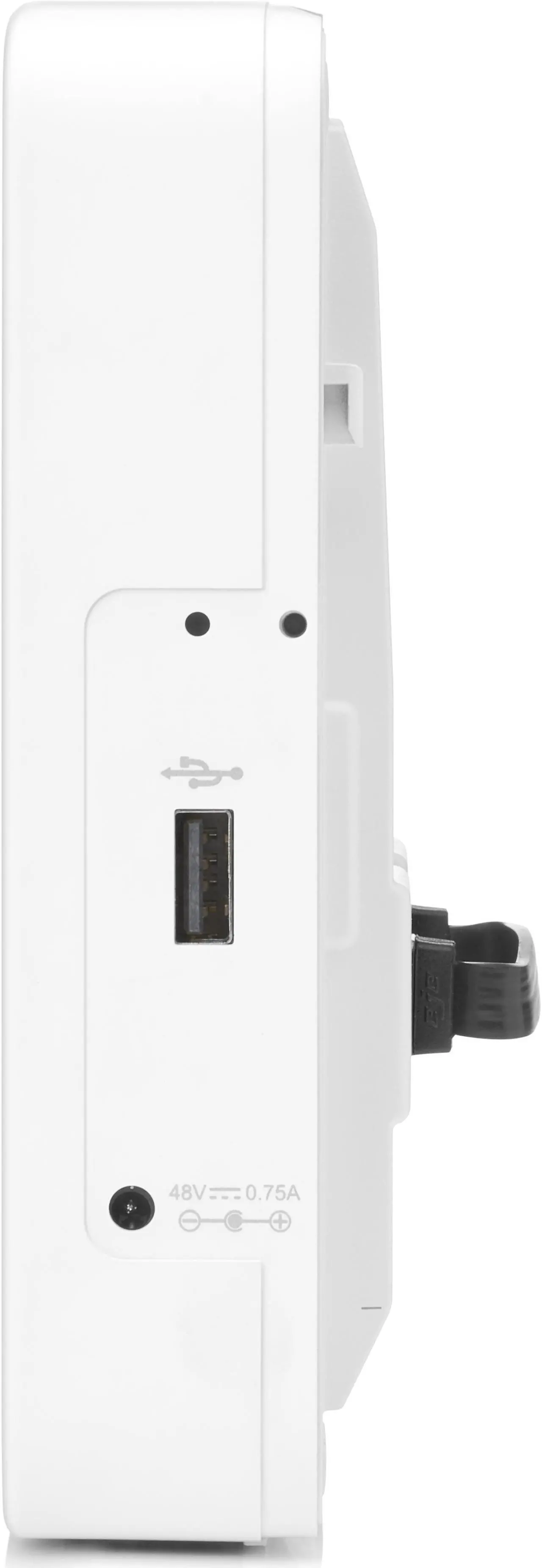

Power over Ethernet (POE) on E0: 802.3af (class 3) or 802.3at (class 4). When using 802.3af, POE-out on E3 is disabled DC power (48V): no restrictions Power sources are sold separately.
Dimensions & Weight
Dimensions
5.9 x 3.4 x 1.6 in
Weight
0.7 lb
Features
Features
UL 2043 plenum rating EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)
Additional Information
Date First Available
November 18, 2022
