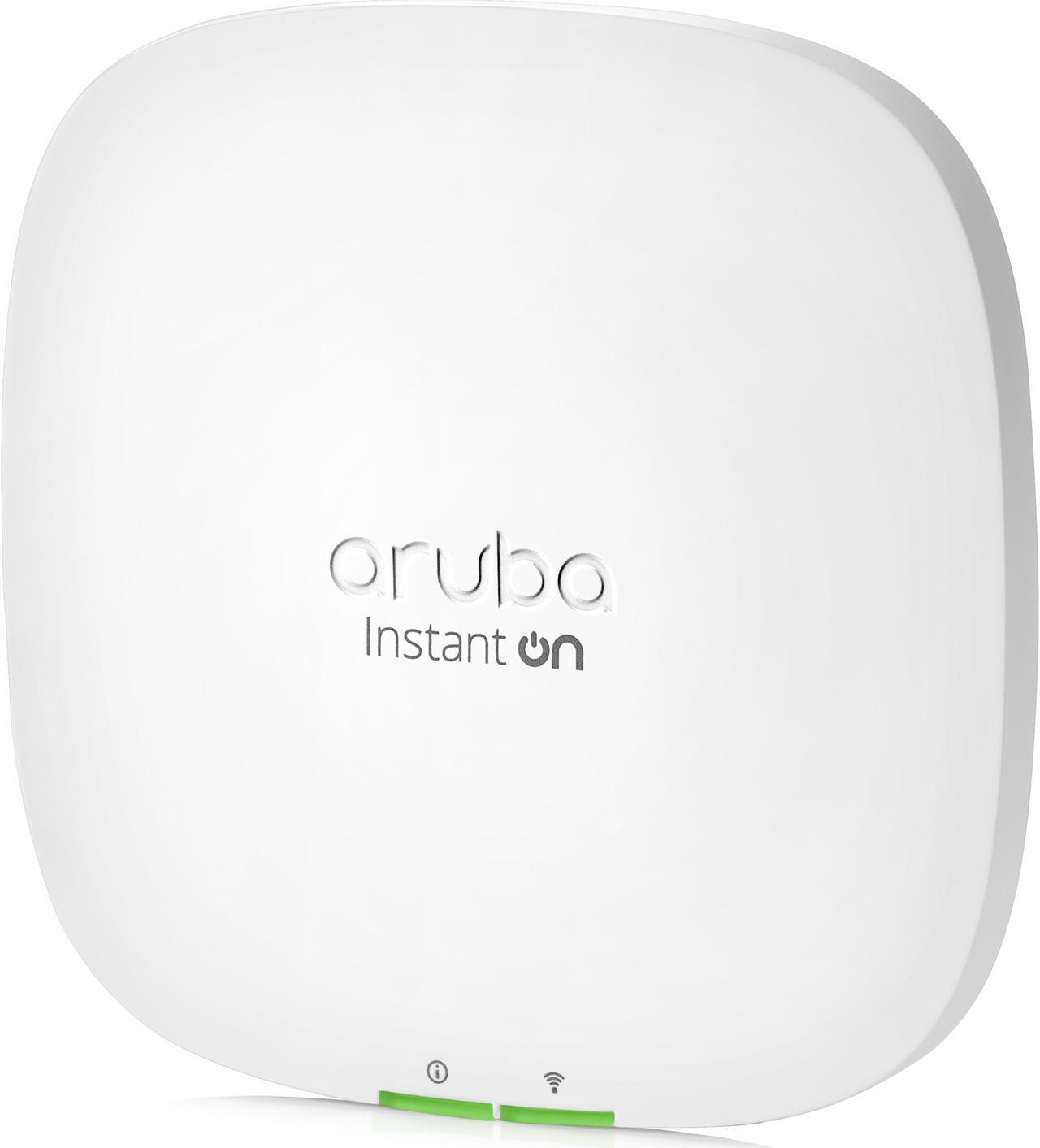

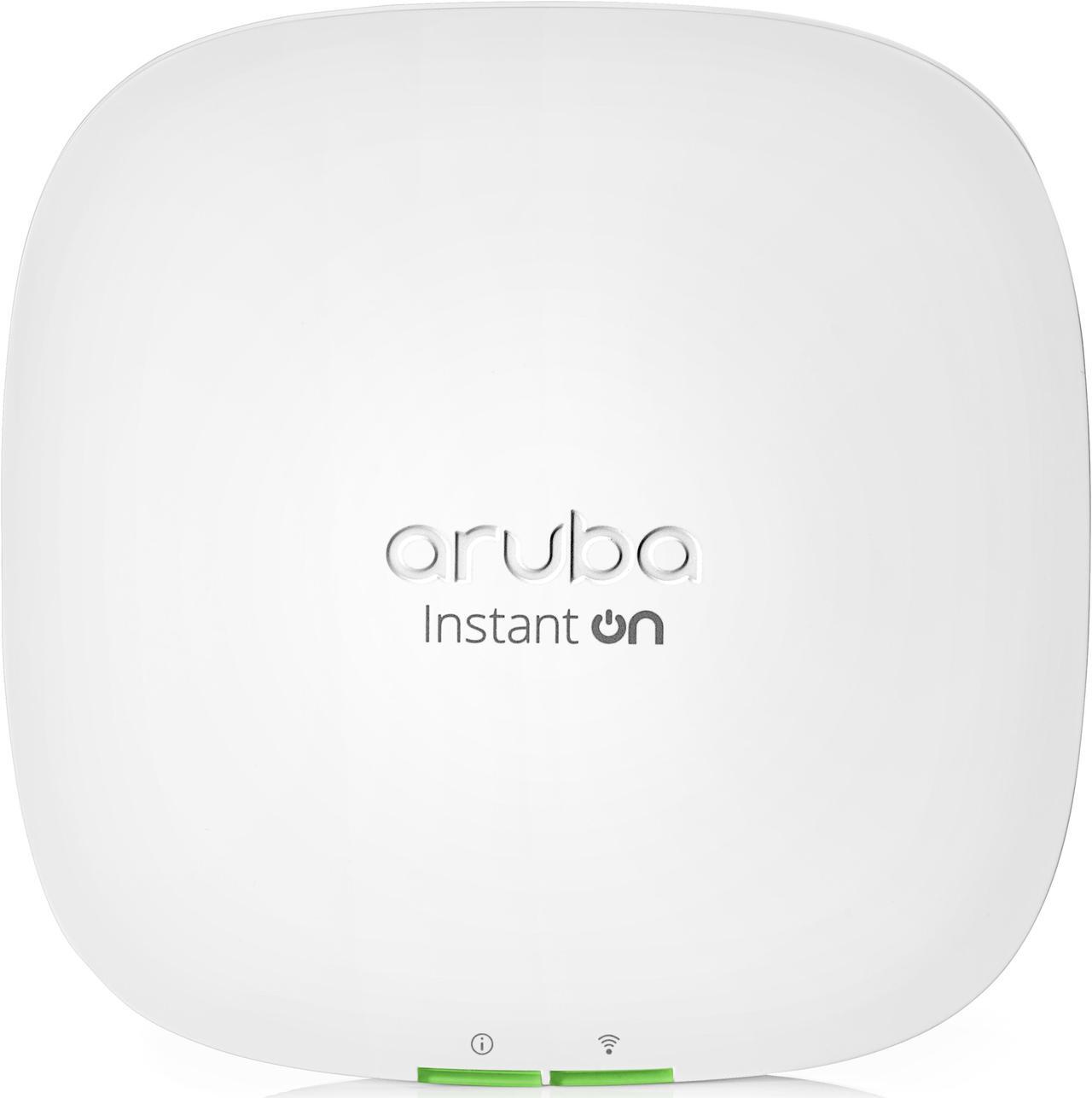

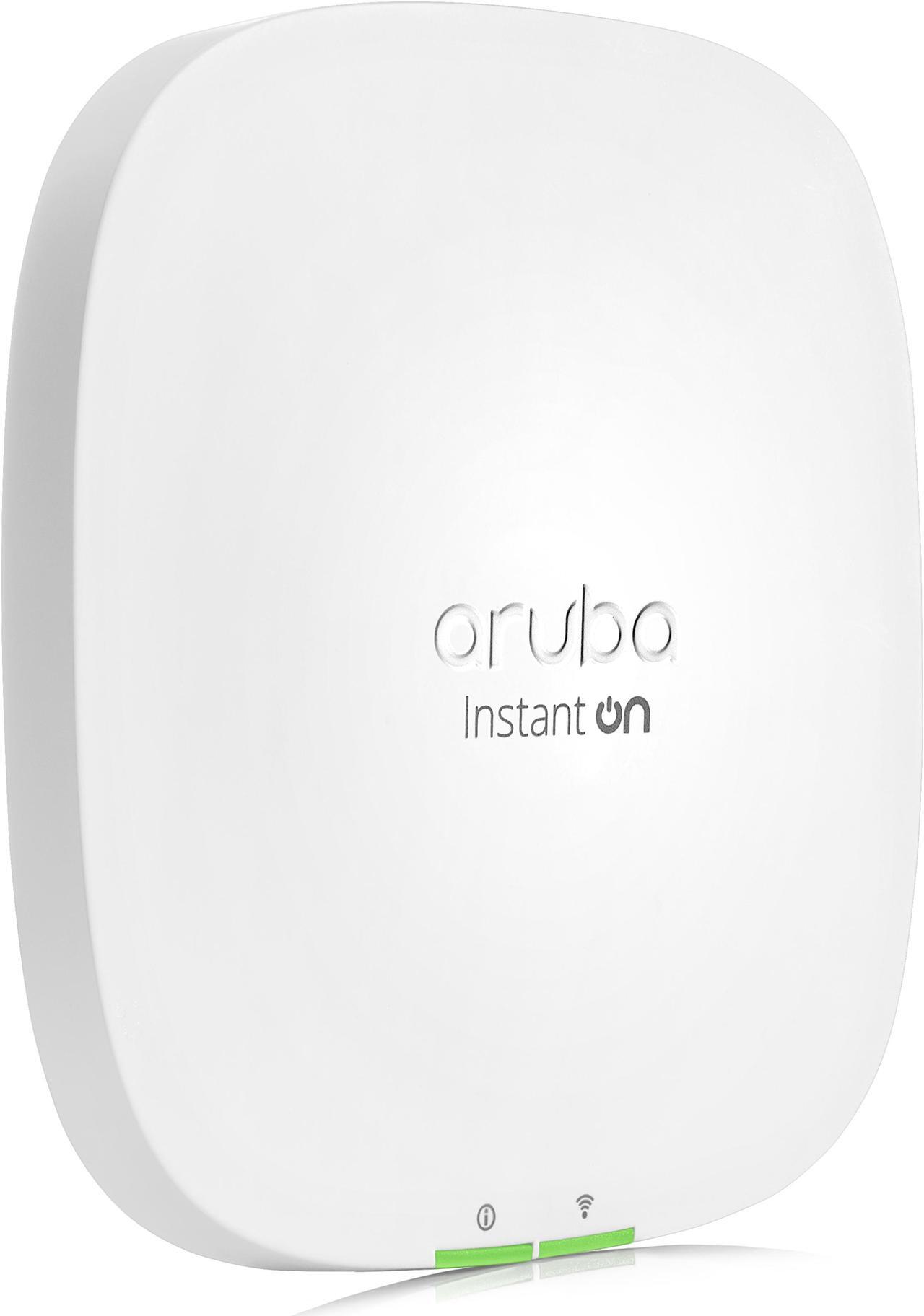

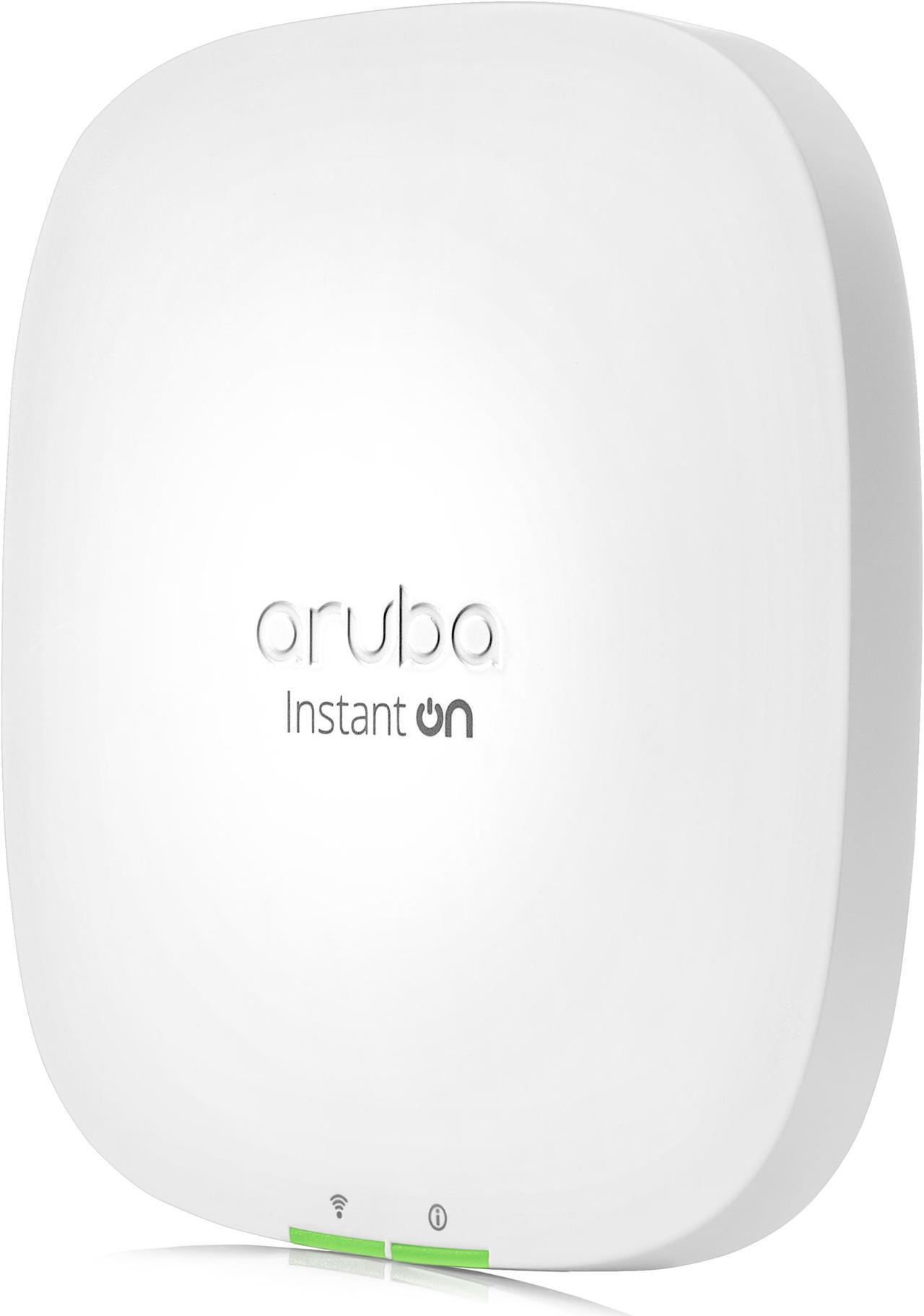

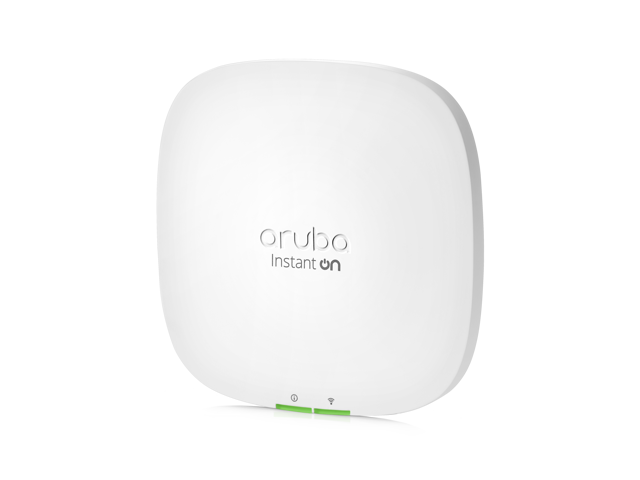

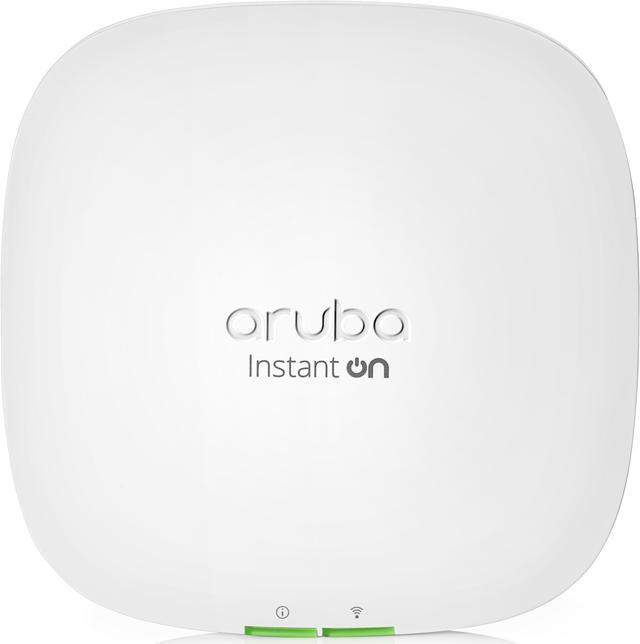

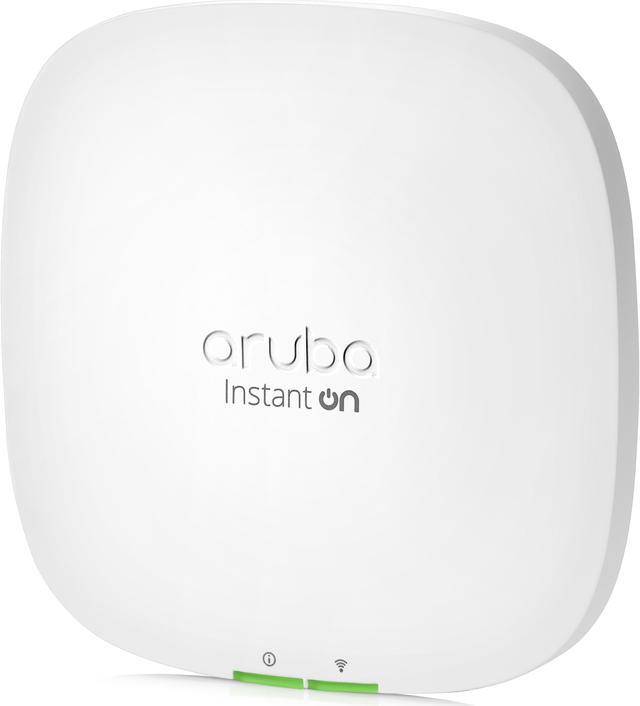

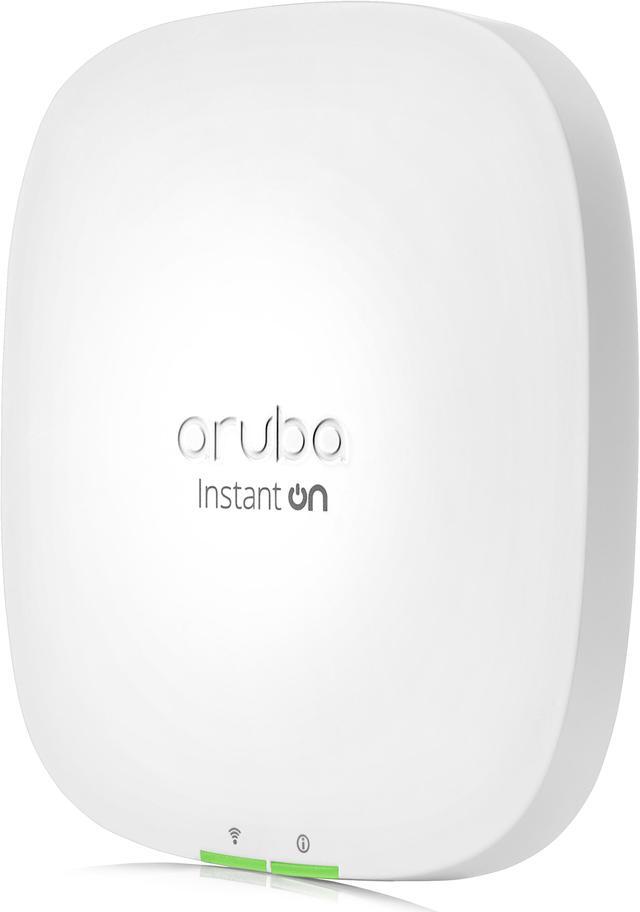

Aruba Instant On AP22 Indoor Access Points include an easy-to-use web GUI and templates – access points are simple to deploy and are up and running in minutes.
Aruba Instant On AP22 Indoor Access Points support the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and bi-directional Multi-User MIMO (MU-MIMO).
Aruba Instant On AP22 Indoor Access Points support features Target Wake Time (TWT) that help establish a schedule when clients need to communicate with an AP.
+
+
Overview
Specs
Reviews (3)
Learn more about the HPE Networking Instant On R4W01A
Dual Radio for simultaneous dual-band operation 5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) 2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
Antenna
Integrated down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).

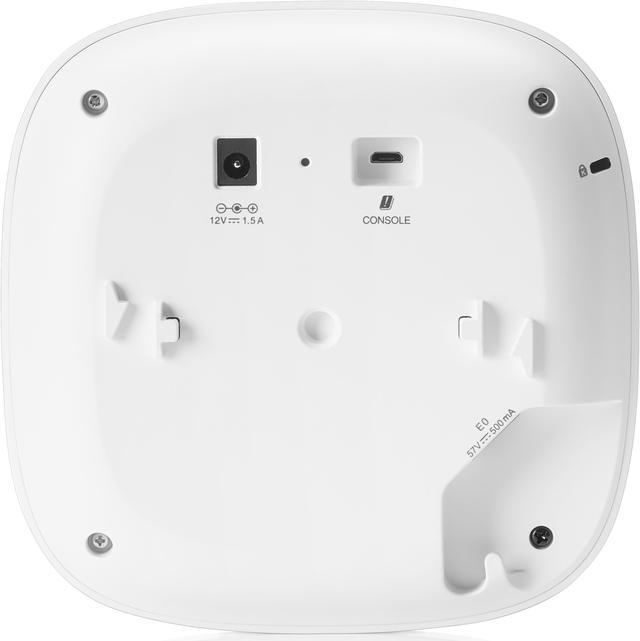

LAN Ports

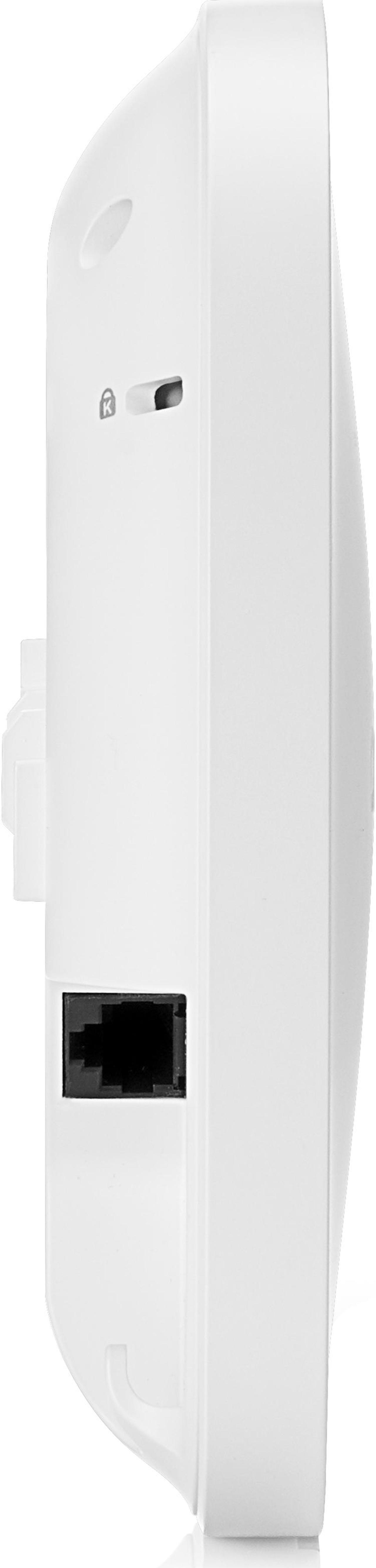

(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
Power Supply

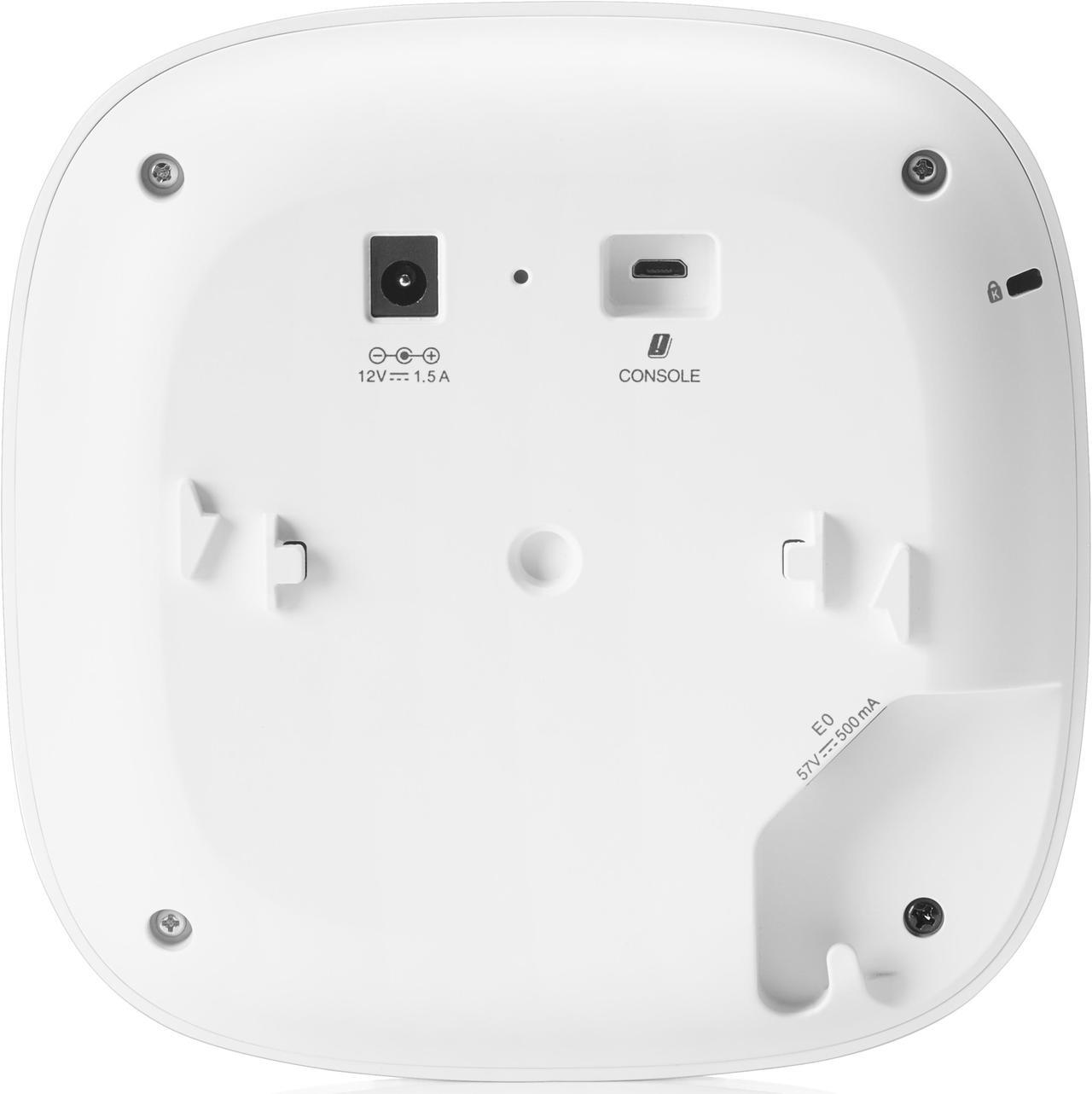

Power over Ethernet (POE): 802.3af (class 3) DC power (12V) Note: Power sources are sold separately
Dimensions & Weight
Dimensions
1.5 x 6.3 x 6.3 in
Weight
1.1 lb
Features
Features
EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Additional Information
Date First Available
April 27, 2022
