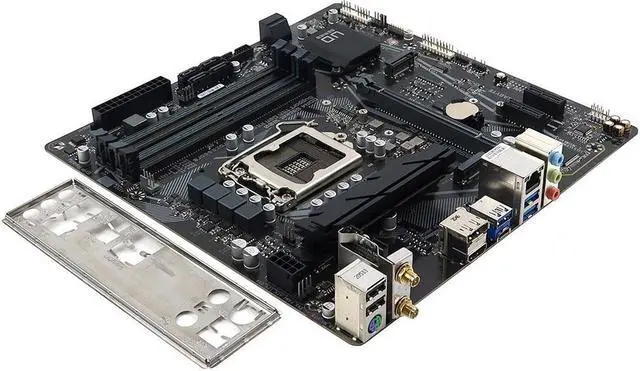

B560M DS3H AC Gigabyte Intel B560 Socket LGA1200 DDR4 Sata Micro ATX Motherboard Intel LGA1200 Motherboard

Model: B560M DS3H AC
Chipset: Intel B560
Socket: LGA1200
Compatible/Supported CPU: 11th Gen Intel Core i9 / i7 / i5, 10th Gen Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 4600MHz(O.C.)/4500MHz(O.C.)/4400MHz(O.C.)/4300MHz(O.C.)/4266MHz(O.C.)/4133MHz(O.C.)/4000MHz(O.C.)/3866MHz(O.C.)/3800MHz(O.C.)/3733MHz(O.C.)/3666MHz(O.C.)/ 3600MHz(O.C.)/3466MHz(O.C.)/3400MHz(O.C.)/3333MHz(O.C.)/3300MHz(O.C.)/3200MHz/3000MHz/2933MHz/2666MHz/2400MHz/2133MHz
Storage Interface: SATA 6Gb/s, NVMe
Bluetooth Standard: Bluetooth 4.2
Wireless Lan Support: 802.11a/b/g/n/ac, 2.4/5 GHz Dual-Band
Network/Communications: Realtek GbE LAN chip (1000/100 Mbit), AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE)
Audio: Realtek Audio CODEC
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x CPU fan header, 3x system fan headers, 1x addressable LED strip header, 1x RGB LED strip header, 6x SATA 6Gb/s connectors, 2x M.2 Socket 3 connectors, 1x front panel header, 1x front panel audio header, 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers, 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1x Clear CMOS jumper, 1x Q-Flash Plus button
Input/Output Ports: 2x USB 2.0/1.1 ports, 1x PS/2 keyboard/mouse port, 2x SMA antenna connectors (1T1R), 1x DisplayPort, 1x HDMI port, 3x USB 3.2 Gen 1 ports, 1x USB Type-C port, with USB 3.2 Gen 1 support, 1x RJ-45 port, 3x Audio jacks
Expansion Slots: 1x PCI Express 4.0 x16 slot, running at x16, 2x PCI Express 3.0 x1 slots, 2x M.2 connector Socket 3 M key, 6x SATA 6Gb/s
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10/11 64-bit
Features: I/O Shield P/N: A2102 G192-02

Please note, this motherboard comes with I/O Shield only! No fan bracket, fan backplate, cables or any other accessories!

• Grade A, Like New Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
