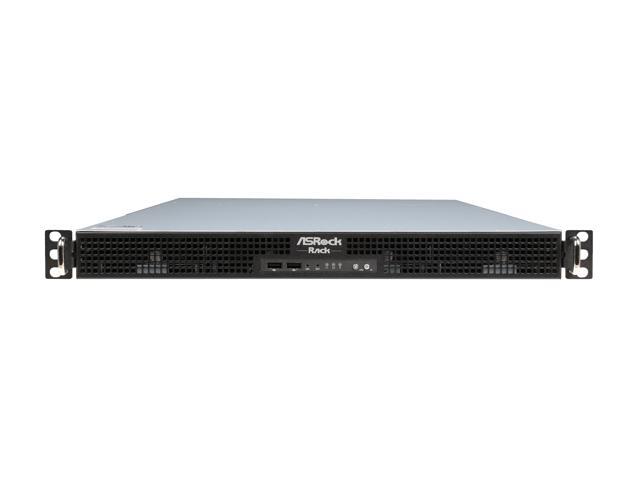

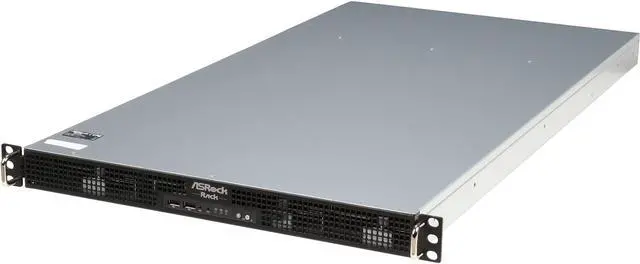

ASRock 1U12LX-14S 1U Rackmount Server System LGA 1150 Intel C224 DDR3 1600/1333
- LGA 1150
- Intel Xeon processor E3-1200 v3 series & Haswell i3
- 4 x 240Pin Memory Slots
- Output Watts : 550W Efficiency: Platinum
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the ASRock Rack 1U12LX-14S
| Brand | ASRock |
|---|---|
| Model | 1U12LX-14S |
| Form Factor | 1U Rackmount |
| CPU Type | Intel Xeon processor E3-1200 v3 series & Haswell i3 |
|---|---|
| CPU Socket | LGA 1150 |
| North Bridge | Intel C224 |
|---|
| Memory Slots | 4 x 240Pin |
|---|---|
| Memory Type Supported | DDR3 1600/1333 |
| ECC Supported | Yes |
| Serial ATA | 4 x SATA3 6.0 Gb/s (from mini SAS connector), 2 x SATA2 3.0 Gb/s |
|---|---|
| SATA RAID | RAID 0/1/5/10 |
| SAS | LSI 2308: 8 x SAS2 6Gbps |
| GPU/VPU | Aspeed AST2300 |
|---|---|
| Video Memory | 16MB |
| PCI Express | PCIe 3.0 x 16 - 1 slot (x8) |
|---|
| First LAN | 2 x Intel i210 |
|---|---|
| Max. LAN Speed | 1 Gigabit |
| Hot-Swap Bays | 12 Bay 3.5''/2.5’’ SATA3/SAS2 HDD Hot-Swap Bay |
|---|

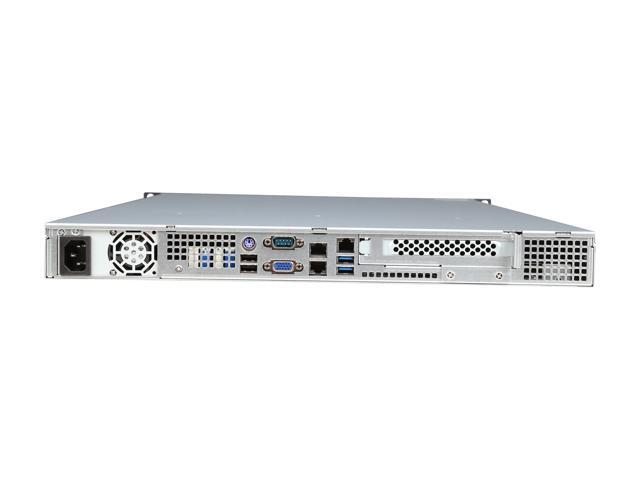

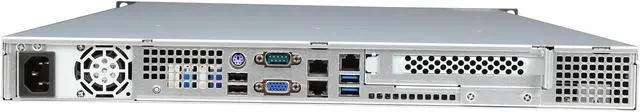

| COM | 1 |
|---|---|
| PS/2 | 1 |
| VGA | 1 |
| Rear USB | USB 2.0 Port - 2 USB 3.0 Port - 2 |
| RJ45 | 2 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Max. Power | Output Watts : 550W Efficiency: Platinum |
|---|

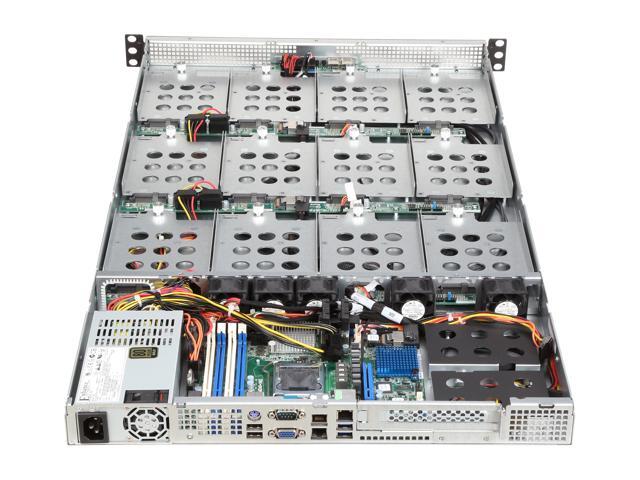

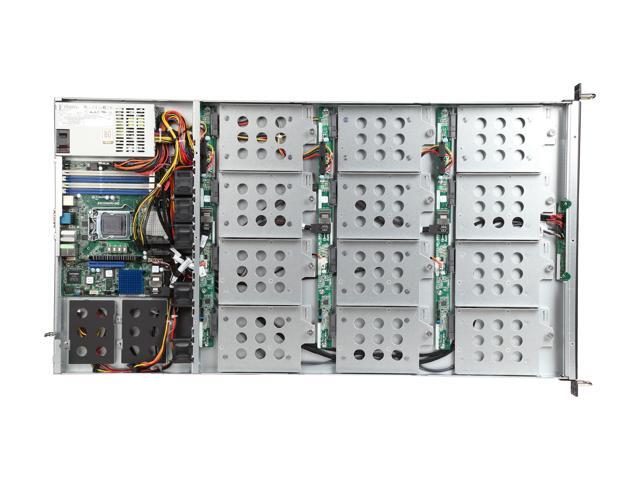

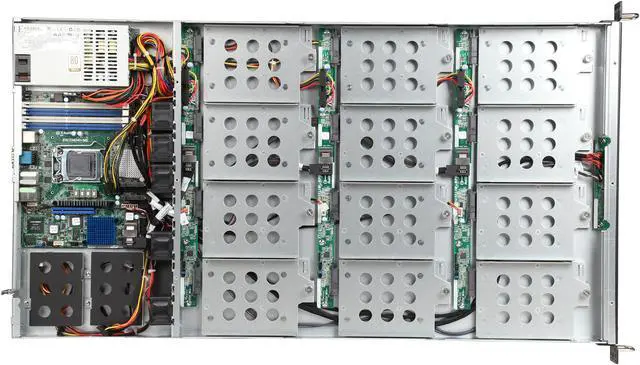

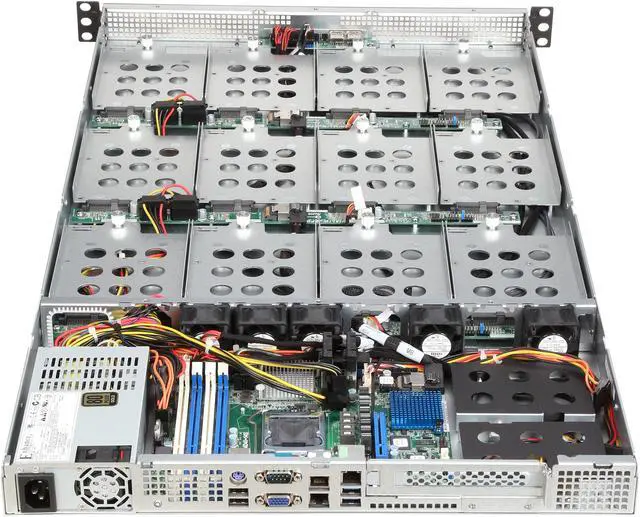

| Features | 1U Chassis support 12x3.5’’/2.5’’ SATA3/SAS2 HDD Hot-Swap Bay +2 x 2.5’’ HDD Bay with 550W Redundant PSU Single socket H3 (LGA 1150) supports Intel Xeon processor E3-1200 v3 series & Haswell i3, Pentium and Celeron processors 4 x DIMM DDR3 1600/1333 ECC, max. 32GB 1 x PCIe 3.0 x8 4 x SATA3 from min SAS 8087 by Intel C224 support RAID 0,1,5,10 8 x SAS2 from 2 x mini SAS 8087 connector by LSI 2308 2 x Intel i210, support Dual GLAN ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN |
|---|
| First Listed on Newegg | May 01, 2015 |
|---|
