What are the connectivity options available on the ASRock Industrial 4x4 BOX-5600U?

The ASRock Industrial 4x4 BOX-5600U features 3 x USB 3.2 Gen2 ports, 2 x USB 2.0 ports, an HDMI 2.0a port, 3 x DisplayPort 1.2a ports, and two RJ45 LAN ports for connectivity.

What type of memory does the ASRock Industrial 4x4 BOX-5600U support, and what is the maximum memory capacity?

The ASRock Industrial 4x4 BOX-5600U supports DDR4 3200 MHz memory with a maximum capacity of 64GB. It has 2 x 260-pin SO-DIMM slots.

Dear John, ASRock Industrial Support team appreciate inquiry. According to 4X4-5600U specification, it uses AMD Ryzen 7 5600U Processor. For AMD Ryzen 7 platform, we suggest to install Linux with kernel 5.4.0 or later version. Since Linux is an open source OS, please verify with the Linux OS which meet the kernel version and check if it could meet your requirement. If you have any further questions, please feel free to contact us at [Technical Support] of ASRock Industrial official website. We will assist you shortly. ASRock Industrial Support

$431^.99

Limit 20 per customer.

Price alert

Add to wish list(Found on 3 wish lists)

Sold by Newegg

Shipped by Newegg

Main image of ASRock Industrial 4x4 BOX-5600U Fanned Embedded BOX PC AMD Ryzen 5000U-Series 5600U AMD Radeon Graphics Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C) TPM 2.0 onboard IC

Alt view image 2 of 4 - ASRock Industrial 4x4 BOX-5600U Fanned Embedded BOX PC AMD Ryzen 5000U-Series 5600U AMD Radeon Graphics Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C) TPM 2.0 onboard IC

Alt view image 3 of 4 - ASRock Industrial 4x4 BOX-5600U Fanned Embedded BOX PC AMD Ryzen 5000U-Series 5600U AMD Radeon Graphics Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C) TPM 2.0 onboard IC

Alt view image 4 of 4 - ASRock Industrial 4x4 BOX-5600U Fanned Embedded BOX PC AMD Ryzen 5000U-Series 5600U AMD Radeon Graphics Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C) TPM 2.0 onboard IC

Customer images

Shop All ASRock Industrial Products

ASRock Industrial 4x4 BOX-5600U Fanned Embedded BOX PC AMD Ryzen 5000U-Series 5600U AMD Radeon Graphics Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C) TPM 2.0 onboard IC

(68)(3) Write a Review

Options: 4X4 BOX-5600U

4X4 Box-7735U/D5
4X4 BOX-5800U
4X4 BOX-5600U

AMD Ryzen™ 5000U-Series 5600U

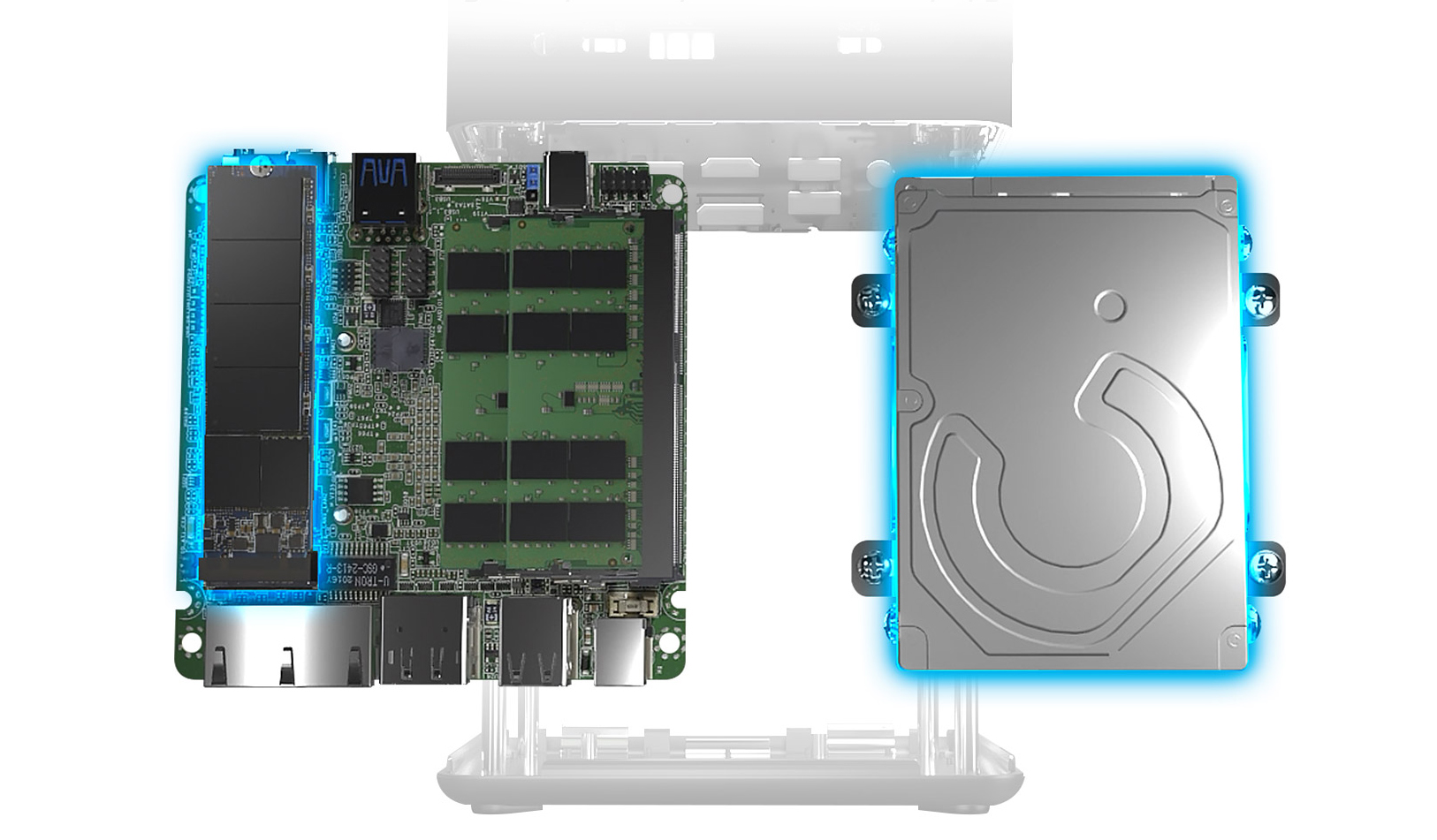

2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E(WiFi-6E), 1 x SATA3
1 x Realtek 1 Gigabit LAN (support DASH), 1 x Realtek 2.5 Gigabit LAN

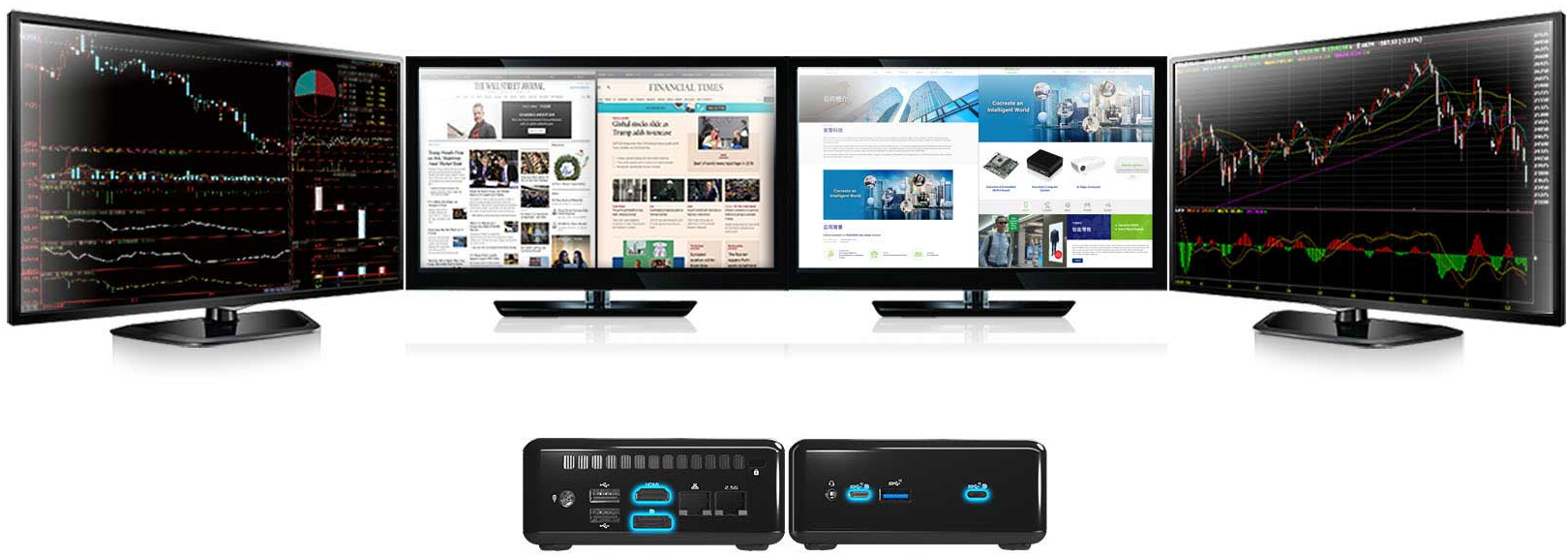

Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C)
TPM 2.0 onboard IC
19V/90W Power Adapter

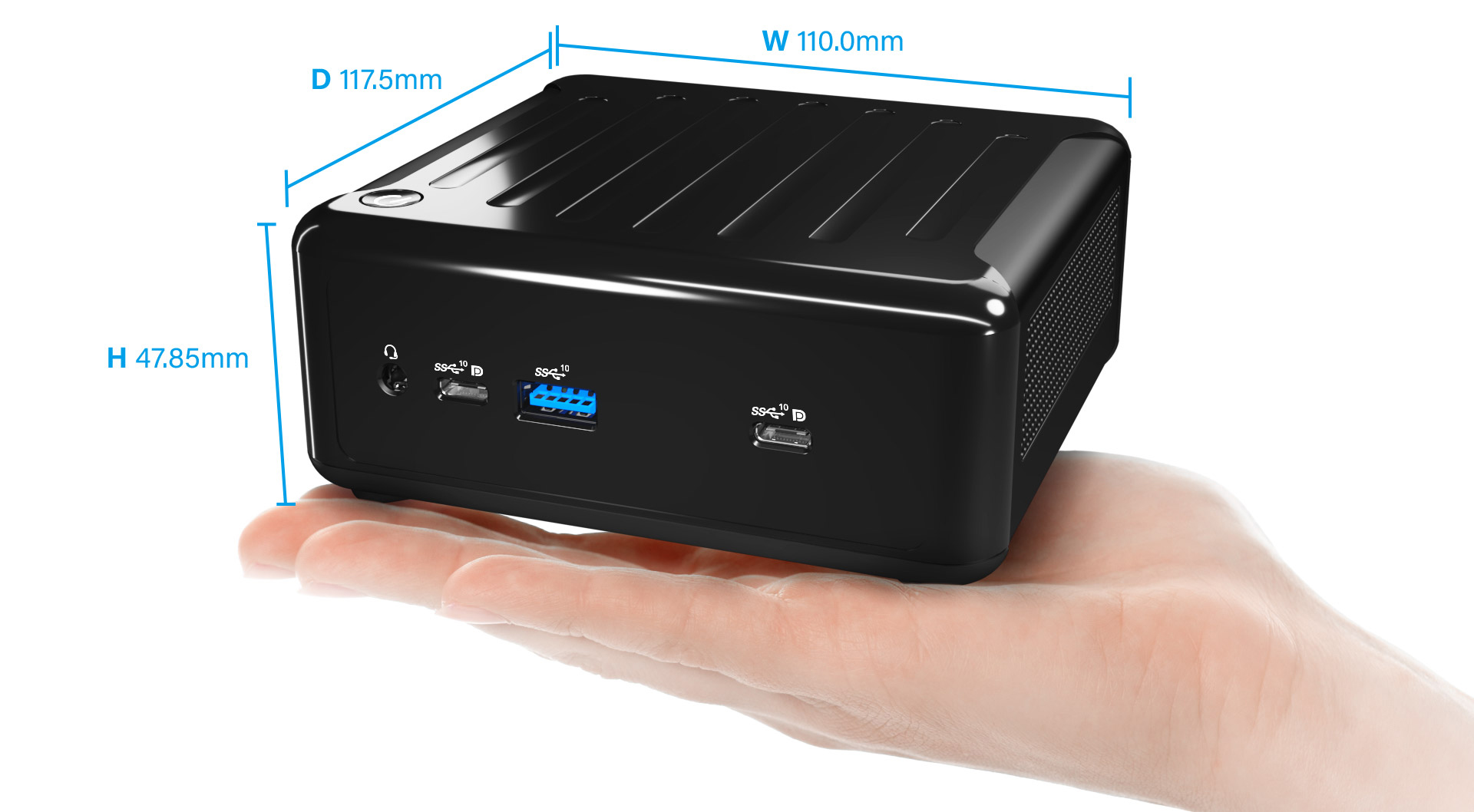

110.0 x 117.5 x 47.85mm, Fanned Barebone

Overview

Specs

Reviews (68)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Best Seller Ranking	#95 in Mini-PC Barebone

General
Brand	ASRock Industrial
Model	4x4 BOX-5600U

CPU Supported
CPU Type	AMD Ryzen 5 5600U, 6 Cores, Max Speed up to 4.2 GHz

Chipset
North Bridge	SoC

Memory Supported
Memory installed	No Memory
Memory slot	2 x 260Pin SO-DIMM
Memory Type Supported	DDR4 3200
Max Memory Supported	64GB
Dual Channel Memory Supported	Yes

Storage
Hard Drive Installed	No Hard Drive
Serial ATA	1 x SATA 6.0Gb/s
M.2	1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD * M.2 Key M 2280(Supported by bracket).

Graphics
Integrated Graphics	AMD Radeon Graphics

Audio
Onboard Audio	Realtek ALC233

Communications

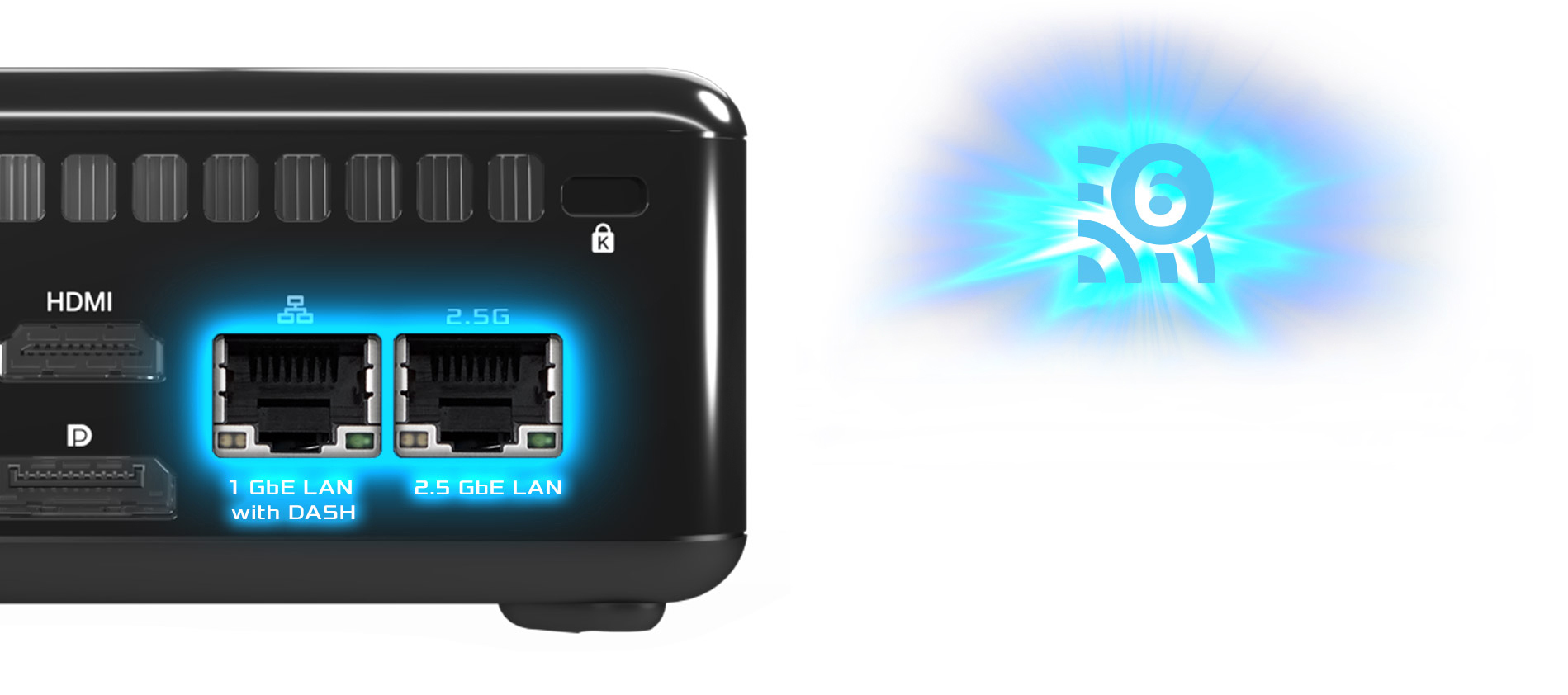

LAN	LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek R8111FPV with 10/100/1000 Mbps, support DASH function
Max LAN Speed	10/100/1000/2500Mbps + 10/100/1000Mbps
Wireless LAN	Wi-Fi 6E 802.11ax
Bluetooth	Bluetooth 5.2

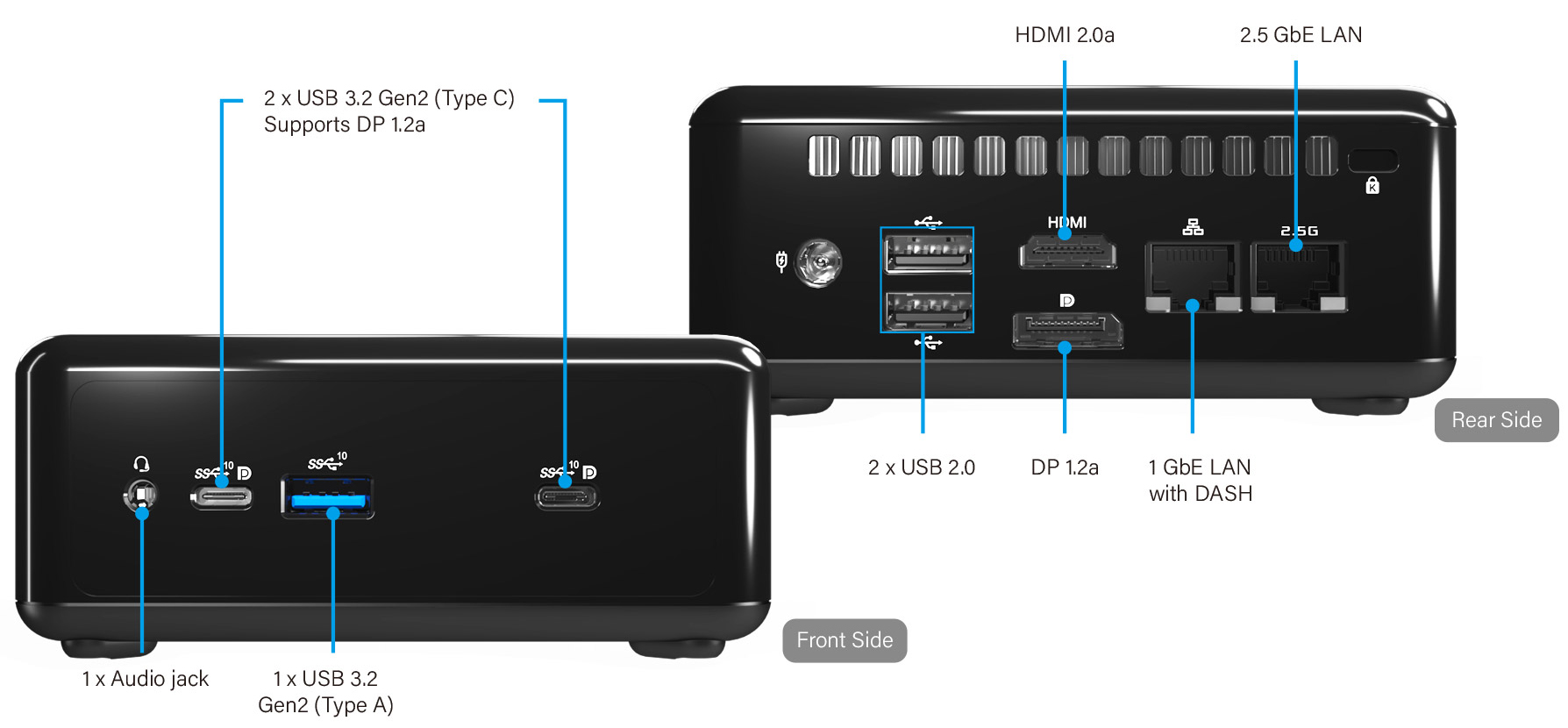

Front Panel Ports
Front USB	1 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type C, Supports DP 1.2a display output)
Front Audio Ports	1 (headphone & microphone jack)

Back Panel Ports
HDMI	1 x HDMI 2.0a
DisplayPort	1 x DP 1.2a
Rear USB	2 x USB 2.0
RJ45	2
Other Rear Ports	1 x DC Jack

Power Supply
Power Supply	1 x 19V/90W Power Adapter

Physical SPEC
Dimensions	1.88" x 4.63" x 4.33"
Weight	2.20 lbs.

Features
Features	AMD Ryzen 5000U-Series 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz 3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E(WiFi-6E), 1 x SATA3 1 x Realtek 1 Gigabit LAN (support DASH), 1 x Realtek 2.5 Gigabit LAN Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C) TPM 2.0 onboard IC 19V/90W Power Adapter 110.0 x 117.5 x 47.85mm, Fanned Barebone

Packaging
Packaging	Accessories: 1 x 19V/90W Power Adapter 1 x Screw Package 1 x VESA mounting bracket 1 x Bracket for M.2 2280 support

Additional Information
First Listed on Newegg	May 31, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
