Question 1

Where do I find a compatible case for this ASRock A520M-ITX/AC?

Accepted Answer

When looking for a case, make sure that it has support for ITX motherboards. On Newegg just select your motherboard type on the side as ITX and you should be good.

Question 2

will a AMD Ryzen 7 5700G work out the box or do i have to update bios?

Accepted Answer

wanted to ask the same thing and I see you got NO answers.  that's not a good sign.  But I checked their page asrock dot come /mb/AMD/A520M-ITXac/ and it says "Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors*"  so... probably?!

Question 3

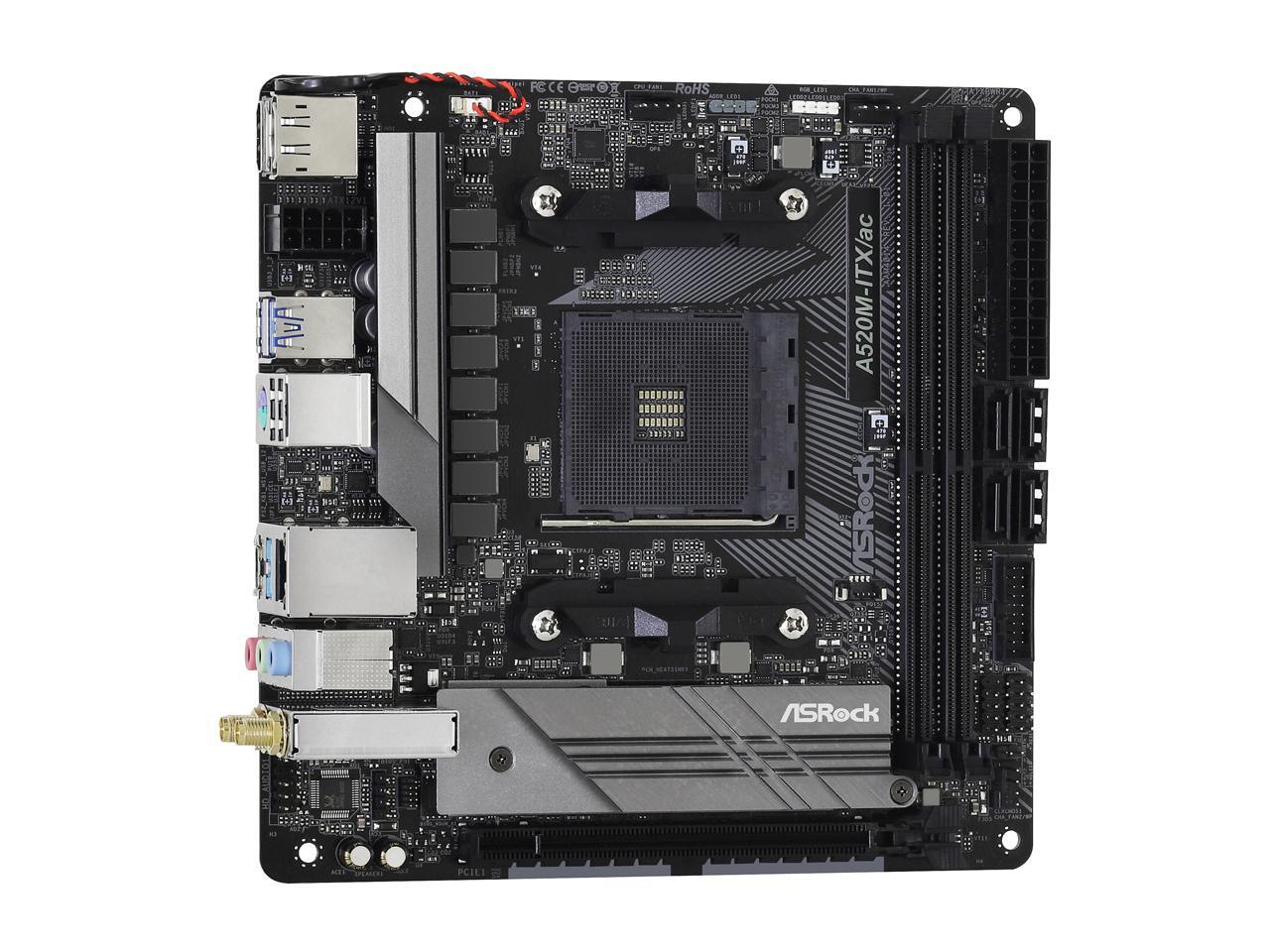

Does this board have one or two M.2 connectors? Seems like there is one that is occupied by the WLAN module - will I be able to attach an NVMe SSD in addition to the WLAN module without buying extra hardware?

Accepted Answer

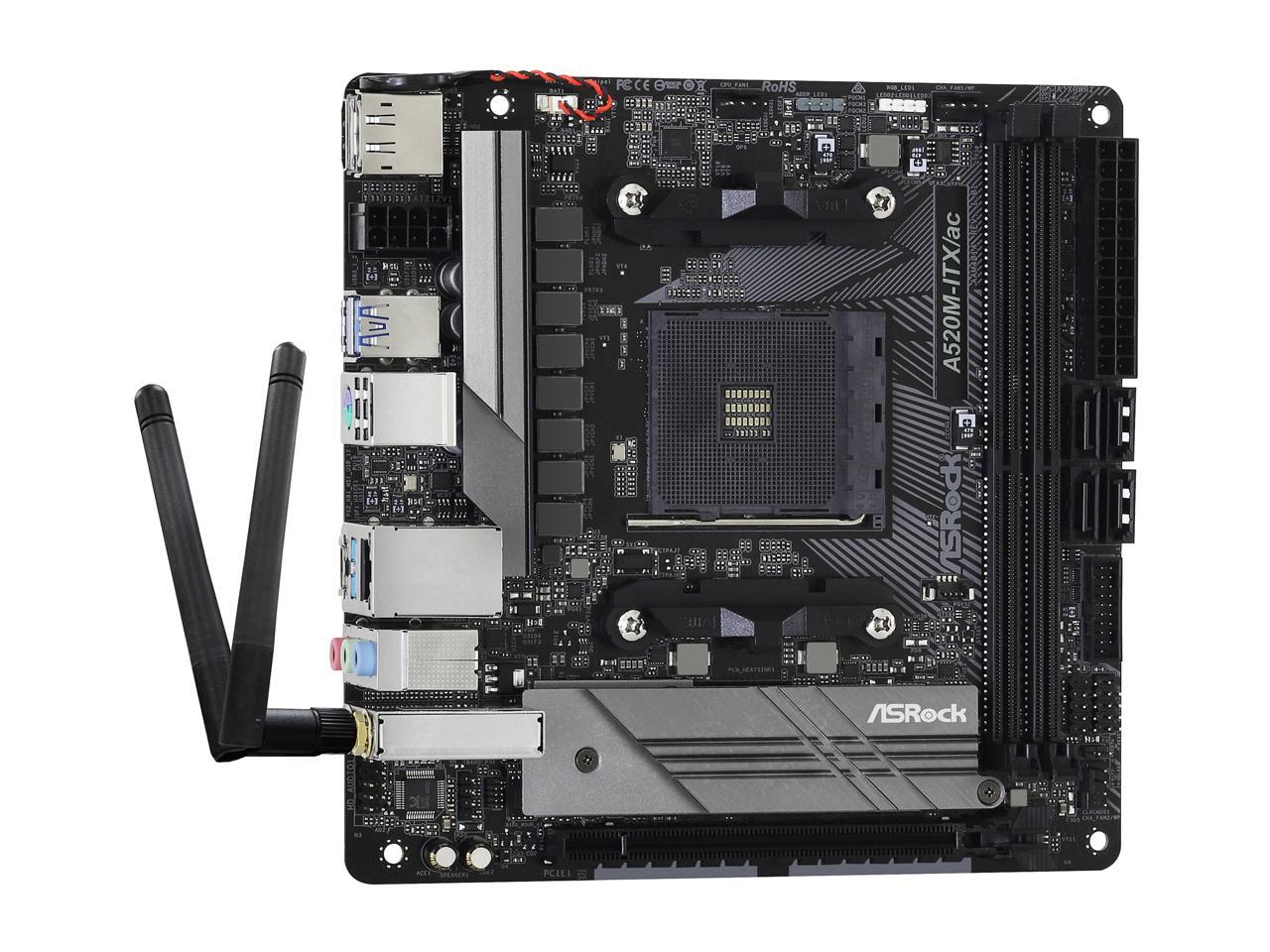

This board has one Ultra M.2 Socket (M2_1) that supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s). Additionally, there is one Vertical M.2 Socket (Key E) occupied by the bundled WiFi-802.11ac module on the rear I/O. You will be able to attach an NVMe SSD in the Ultra M.2 Socket without needing extra hardware.

Question 4

Does this board support a 4700G not the Pro?

Accepted Answer

Yes, this board supports 3rd Gen AMD AM4 Ryzen and future AMD Ryzen Processors (3000 and 4000 Series Processors), which includes the 4700G.

Question 5

For the onboard graphics, will I be able to use two 8GB sticks of ram and it share that memory for GPU?

Accepted Answer

Yes, the onboard graphics can share memory with the system memory, and it supports up to 16GB of shared memory. To achieve the maximum shared memory of 16GB, you will need to install 32GB of system memory.

Question 6

What power supplies is this compatible with? The spec says "ErP/EuP required" but it's not clear what that means.  I have a 10-year old mini-ITX case with 150W power supply (24 pin + 4-pin 12V).  As long as the power is sufficient, should it work?

Accepted Answer

The ASRock A520M-ITX/AC motherboard is compatible with a standard ATX power supply configuration that includes a 24-pin ATX power connector and an 8-pin 12V power connector. Your 10-year old mini-ITX case with a 150W power supply (24 pin + 4-pin 12V) may not provide sufficient power or the appropriate 8-pin 12V connector required by this motherboard. Additionally, the motherboard supports ErP/EuP ready power supplies, which means it complies with energy-saving standards that reduce power consumption in standby mode. Therefore, using a more modern power supply that meets these specifications is recommended for optimal performance and compatibility.

Question 7

How many fan headers does this motherboard have? I can count three though I want to make sure I am not missing any.

Accepted Answer

Per specs 1 CPU and 2 Water Pump/Chassis headers so 3 is correct.
