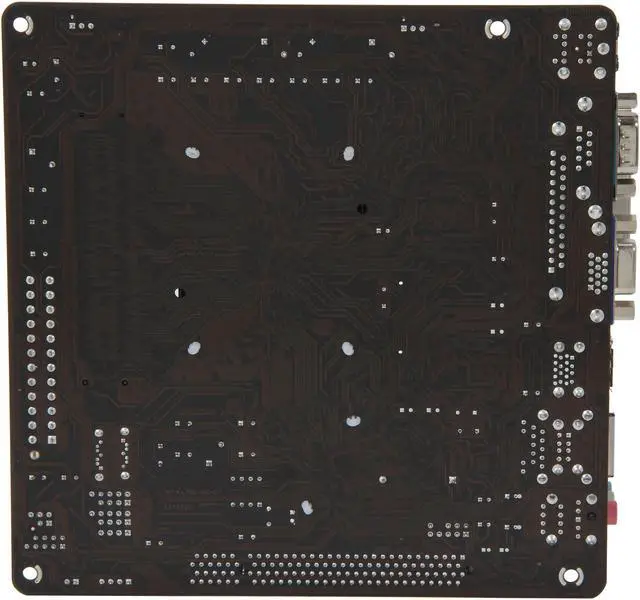

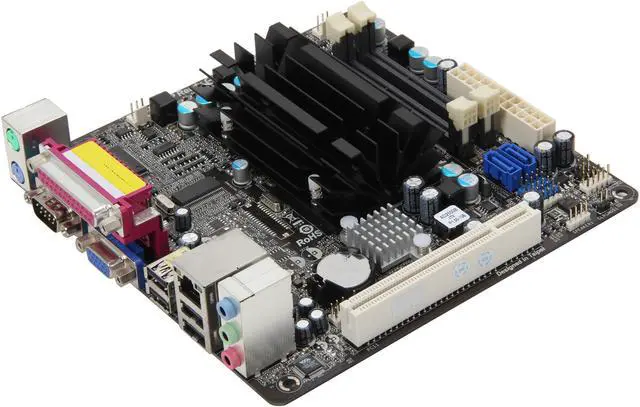

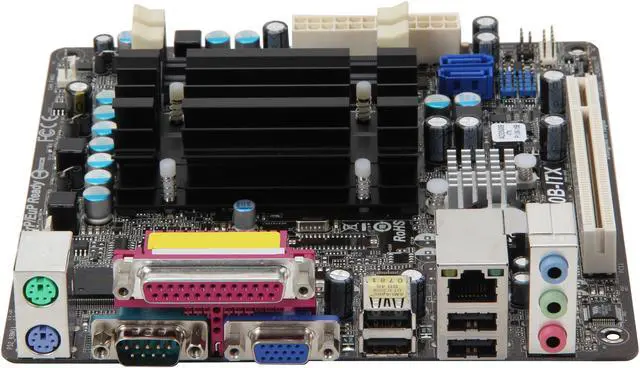

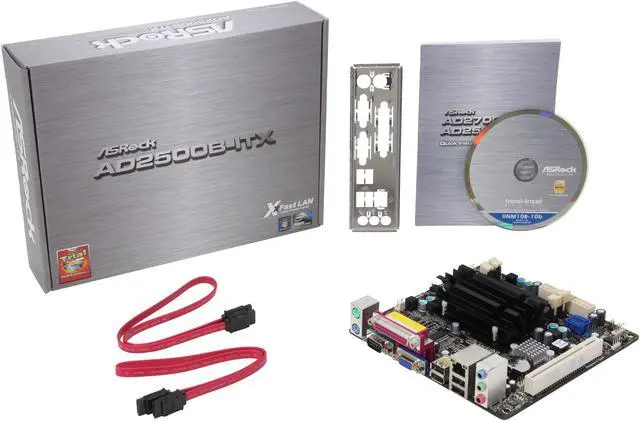

ASRock AD2500B-ITX Intel Atom D2500 (1.86GHz, dual core) Intel NM10 Mini ITX Motherboard / CPU Combo
- Intel Atom
- DDR3 1066/800
- Integrated PowerVR SGX 545 Graphics
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock AD2500B-ITX
| Brand | ASRock |
|---|---|
| Model | AD2500B-ITX |
| Combo Type | Motherboard / CPU Combo |
| CPU | Intel Atom D2500 (1.86GHz, dual core) |
|---|---|
| With Cooler | Yes |
| CPU Type | Intel Atom |
|---|
| North Bridge | Intel NM10 |
|---|
| Number of Memory Slots | 2x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3 1066/800 |
| Maximum Memory Supported | 4GB |
| PCI Slots | 1 x PCI Slot |
|---|
| SATA | 2 x SATA 3.0Gb/s |
|---|
| Onboard Video Chipset | Integrated PowerVR SGX 545 Graphics |
|---|
| Audio Chipset | VIA VT1705 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8105E |
|---|---|
| Max LAN Speed | 100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x IR header 1 x CIR header CPU/Chassis FAN connector 24 pin ATX power connector Front panel audio connector |
| Features | Intel Dual-Core Atom Processor D2500 Supports DDR3 1066 memory, 2 SO-DIMM slots Built-in Intel PowerVR SGX545, DirectX 9.0, Pixel Shader 3.0 5.1 CH HD Audio (VIA VT1705 Audio Codec) Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies Supports Graphical UEFI Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite Due to lack of Intel 64-bit VGA driver support, this motherboard does not support 64-bit OS |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | May 11, 2012 |
|---|
