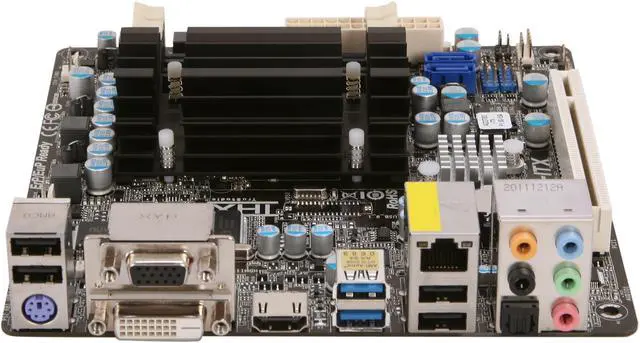

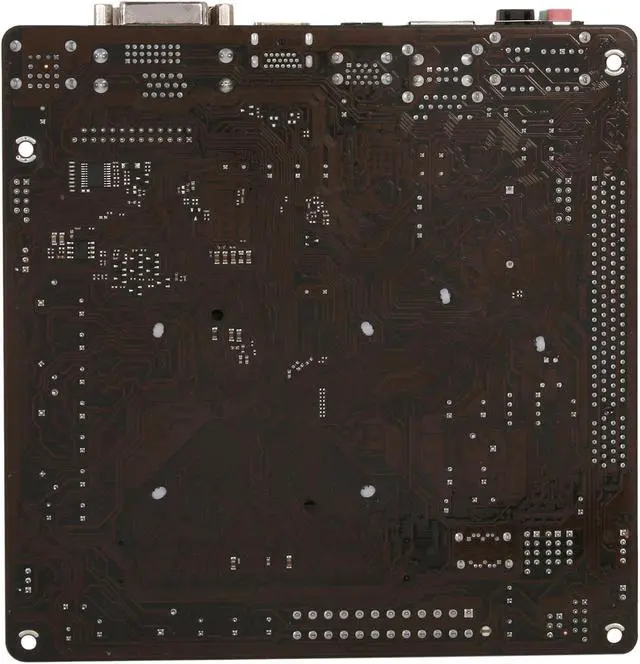

ASRock AD2700-ITX Intel Atom D2700 (2.13GHz, dual core) Intel NM10 Mini ITX Motherboard / CPU Combo
- Intel Atom
- DDR3 1066/800
- Integrated PowerVR SGX 545 Graphics
Learn more about the ASRock AD2700-ITX
| Brand | ASRock |
|---|---|
| Model | AD2700-ITX |
| Combo Type | Motherboard / CPU Combo |
| CPU | Intel Atom D2700 (2.13GHz, dual core) |
|---|---|
| With Cooler | Yes |
| CPU Type | Intel Atom |
|---|---|
| Supported CPU Technologies | Hyper-Threading Technology |
| North Bridge | Intel NM10 |
|---|
| Number of Memory Slots | 2x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3 1066/800 |
| Maximum Memory Supported | 4GB |
| PCI Slots | 1 x PCI Slot |
|---|
| SATA | 2 x SATA 3.0Gb/s |
|---|
| Onboard Video Chipset | Integrated PowerVR SGX 545 Graphics |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 |
|---|---|
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| USB 3.0 | 2 x USB 3.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x IR header 1 x CIR header 1 x Print Port header 1 x COM port header CPU/Chassis FAN connector 24 pin ATX power connector Front panel audio connector |

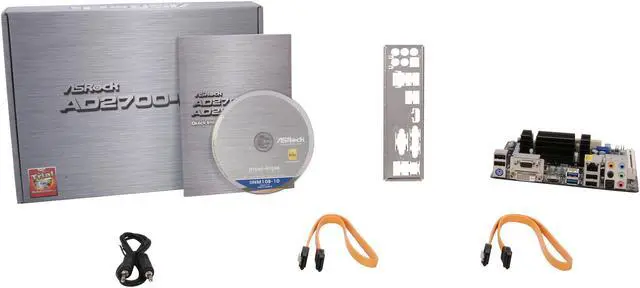

| Features | Intel Dual-Core Atom Processor D2700 Supports DDR3 1066 memory, 2 SO-DIMM slots, Max capacity up to 4GB Built-in Intel PowerVR SGX545, DirectX 9.0, Pixel Shader 3.0 Multi VGA Output : D-Sub, DVI-D and HDMI 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Supports THX TruStudio Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports PCIE Gigabit LAN 2 x USB 3.0 Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies Supports On/Off Play, Graphical UEFI Free Bundle : 1 x 3.5mm audio Cable, CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite Due to lack of Intel 64-bit VGA driver support, this motherboard does not support 64-bit OS |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | April 19, 2012 |
|---|
