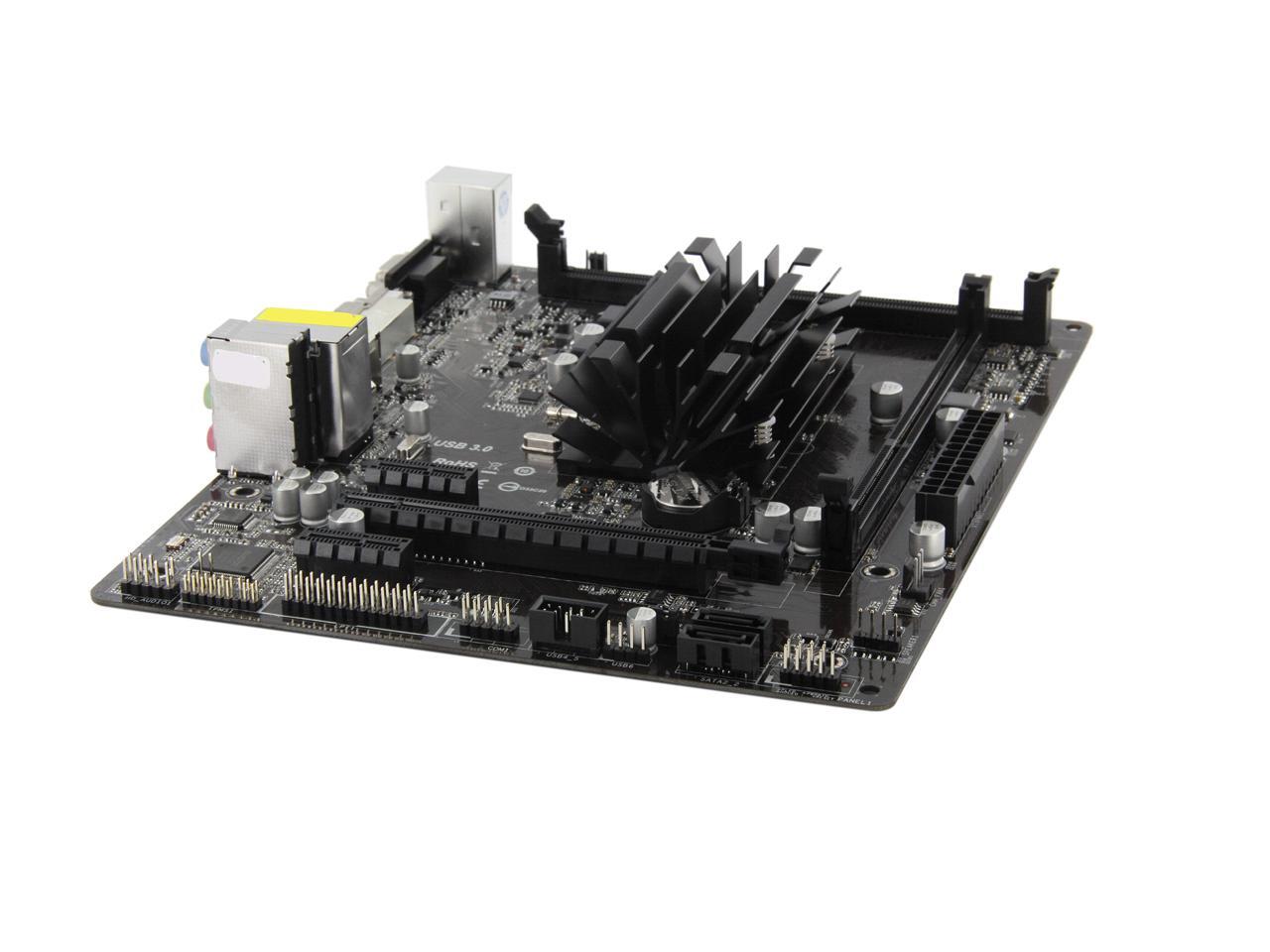

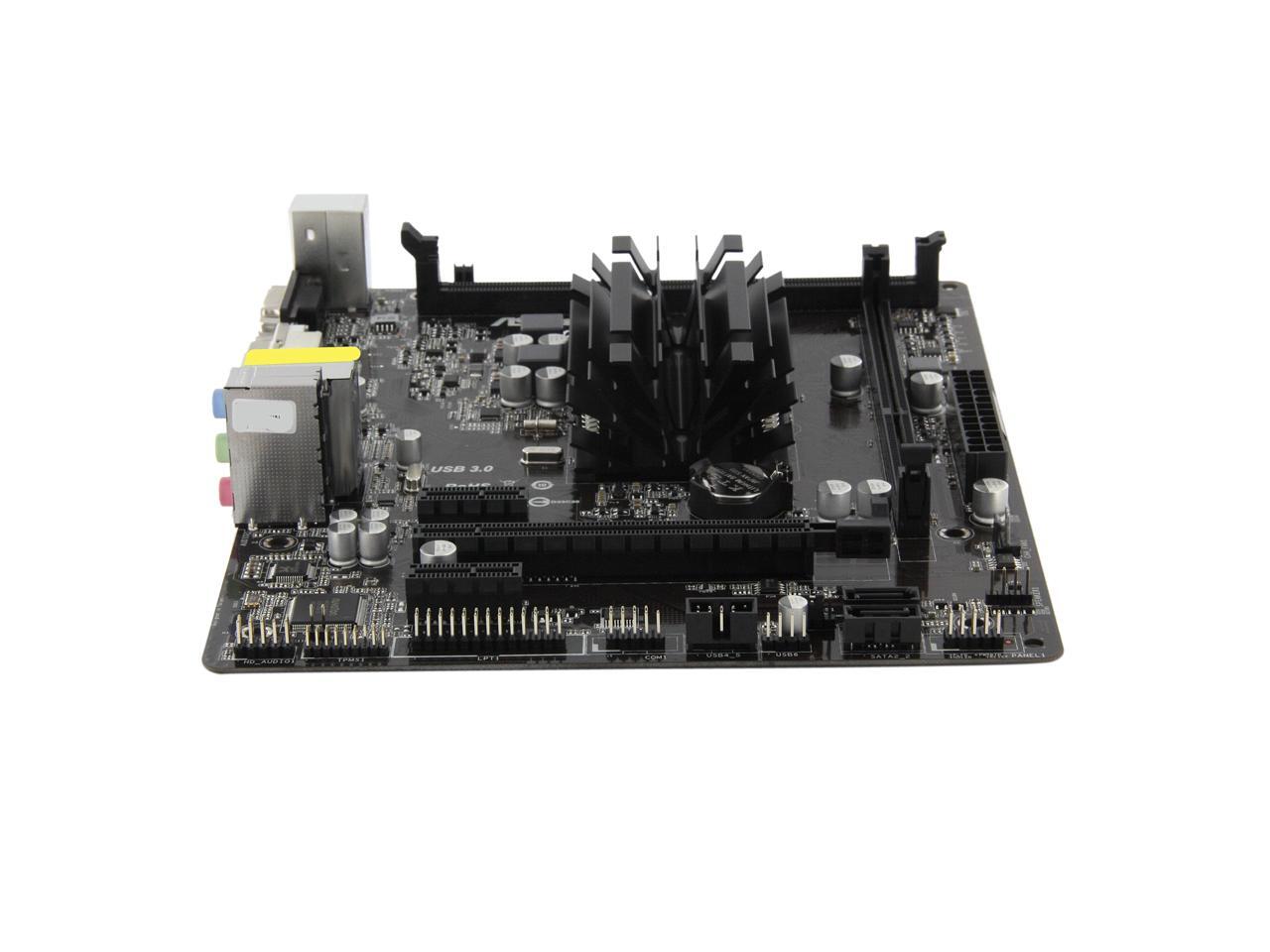

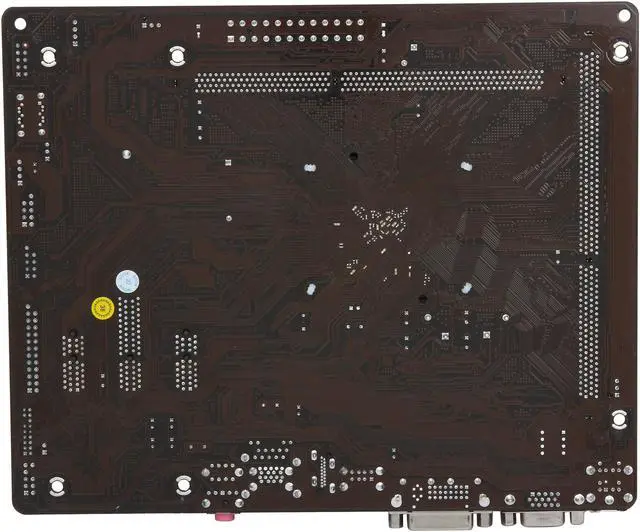

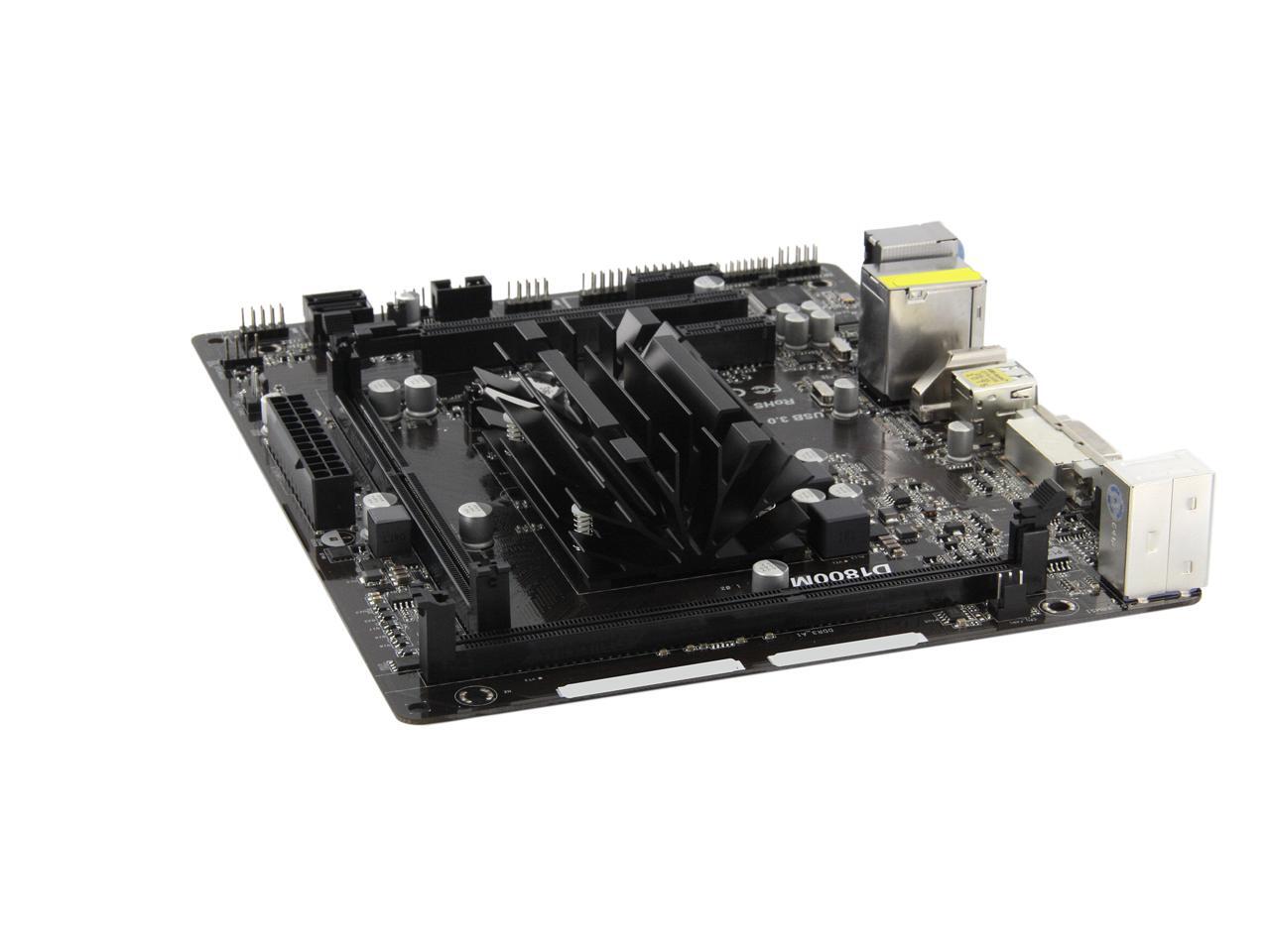

    ASRock D1800M Intel Dual-Core Celeron Processor J1800 Micro ATX Motherboard / CPU / VGA Combo

    • Intel Dual-Core Celeron Processor J1800
    • DDR3 1333/1066
    • 2 x SATA 3.0Gb/s
    +
    +
    Specs
    Reviews (10)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Learn more about the ASRock D1800M

    Model
    Brand ASRock
    Model D1800M
    Combo Type Motherboard / CPU / VGA Combo
    Bundle
    CPU Intel Dual-Core Celeron Processor J1800
    With Cooler Yes
    Supported CPU
    CPU Type Celeron
    Memory
    Number of Memory Slots 2x240pin
    Memory Standard DDR3 1333/1066
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express x16 1 x PCI Express 2.0 x16 (x1 mode)
    PCI Express x1 2 x PCI Express 2.0 x1
    Storage Devices
    SATA 2 x SATA 3.0Gb/s
    Onboard Video
    Onboard Video Chipset Intel HD Graphics
    Onboard Audio
    Audio Chipset Realtek ALC662
    Audio Channels 5.1 Channels
    Onboard LAN
    LAN Chipset Realtek RTL8111GR
    LAN Speed 10/100/1000Mbps
    Rear Panel Ports
    PS/2 1 x PS/2 Mouse
    1 x PS/2 Keyboard
    Video Ports 1 x D-Sub
    1 x DVI-D
    HDMI 1 x HDMI
    USB 1.1/2.0 3 x USB 2.0
    USB 3.0 1 x USB 3.0
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 3 x USB 2.0
    Other Connectors 1 x Print Port Header
    1 x COM Port Header
    1 x TPM Header
    1 x Chassis Intrusion Header
    1 x CPU Fan Connector (3-pin)
    1 x Chassis Fan Connector (3-pin)
    1 x 24 pin ATX Power Connector
    1 x Front Panel Audio Connector
    Features
    Features Intel Dual-Core Celeron Processor J1800

    Long DIMM, Std. & Low Voltage Memory


    All Solid Capacitor design

    Built-in Intel 7th generation (Gen 7) graphics, DirectX 11.0, Pixel Shader 5.0

    1 x Printer Port Header, 1 x COM Port Header

    1 x USB 3.0, 6 x USB 2.0 (3 Front, 3 Rear), 2 x SATA2

    Supports ASRock Full Spike Protection, A-Tuning, XFast LAN, XFast RAM, USB Key
    Physical Spec
    Form Factor Micro ATX
    Package Contents
    Package Contents ASRock D1800M Motherboard
    Quick Installation Guide
    Support CD
    I/O Shield
    2 x SATA Data Cables
    Additional Information
    Date First Available June 11, 2025
