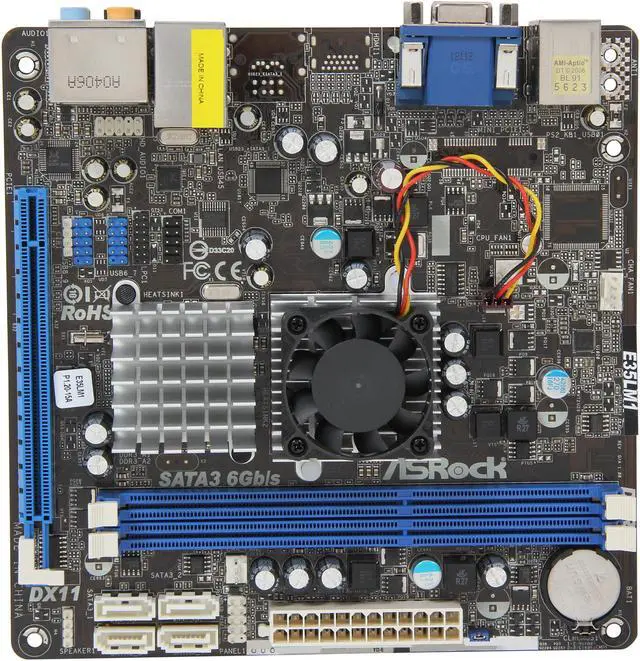

ASRock E35LM1 AMD E-240 APU AMD A50M Mini ITX Motherboard / CPU Combo

OUT OF STOCK.
  • AMD E-240 APU
  • DDR3 1333(OC)/1066/800
  • AMD Radeon HD 6310 graphics
Specs
Reviews

Learn more about the ASRock E35LM1

Model
Brand ASRock
Model E35LM1
Combo Type Motherboard / CPU Combo
Bundle
CPU AMD E-240 APU
With Cooler Yes
Supported CPU
CPU Type AMD E-240 APU
Chipsets
North Bridge AMD A50M
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 1333(OC)/1066/800
Maximum Memory Supported 8GB
Expansion Slots
PCI Express x16 1 x PCI Express 2.0 x16 slot (blue @ x4 mode)
Storage Devices
SATA 4 x SATA 6.0Gb/s
Onboard Video
Onboard Video Chipset AMD Radeon HD 6310 graphics
Onboard Audio
Audio Chipset Realtek ALC887
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 10/100/1000Mbps

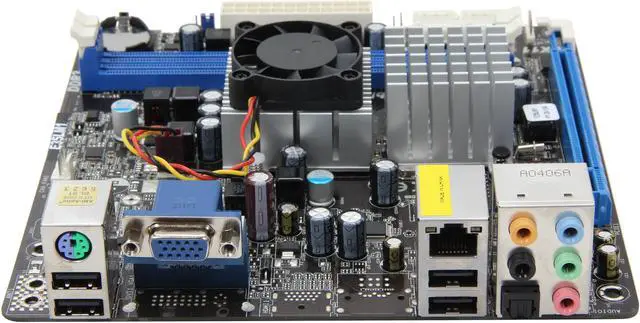

Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Other Connectors 1 x CIR header
1 x COM port header
CPU/Chassis FAN connector
24 pin ATX power connector
Front panel audio connector
Features
Features AMD Zacate E-240 APU

Supports DDR3 1066, 2 DIMM slots, Max. capacity up to 8GB

Integrated AMD Radeon HD 6310 graphics, DX11 class iGPU, Pixel Shader 5.0

1 x PCI Express 2.0 x16 slot (@ x4)

4 x SATA3 connectors

7.1 CH HD Audio (Realtek ALC887 Audio Codec), Supports THX TruStudio

Supports ASRock XFast RAM, XFast LAN, XFast USB, OMG, Internet Flash, UEFI System Browser

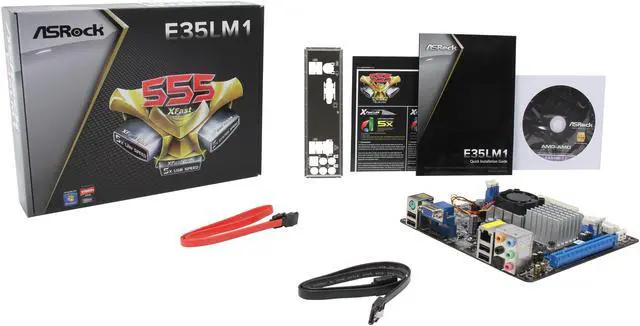

Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Additional Information
Date First Available July 06, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
