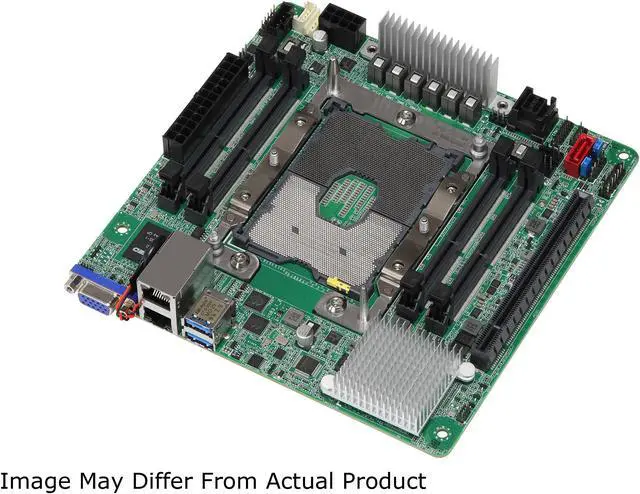

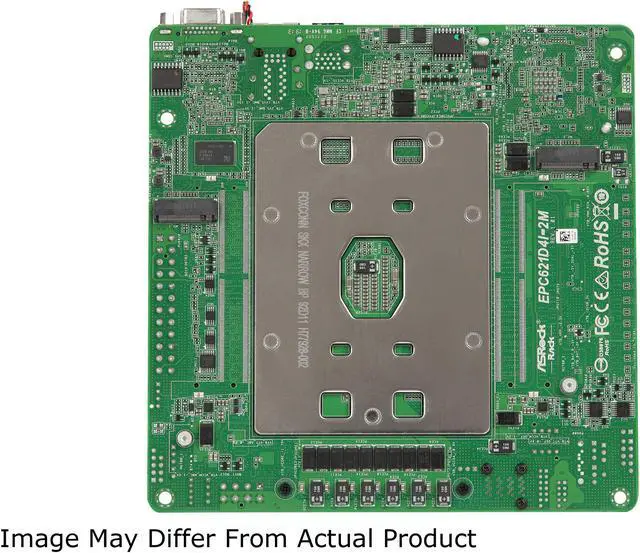

AsRock Rack EPC621D4I-2M Mini-ITX Server Motherboard LGA3647 Intel C621 with 2 x M.2
- Mini-ITX 6.7" x 6.7"
- Support Intel Xeon Scalable Processors / 2nd Gen. Intel Xeon Scalable Processors
- Support 4 x DDR4 SO-DIMM slots, Four Channel, DDR4 2666 / 2400 / 2133 ECC SO R DIMM, ECC SO DIMM, non-ECC SO DIMM, 4 x Dimm slots
- Support 7 x SATA3 (included 1 x SATA DOM and 2 x M.2 on bottom)
- Support 1 x PCIe 3.0 x16
- Support 2 x GLAN by Intel integrated MAC X722 + Marvell 88E1514
Learn more about the ASRock Rack EPC621D4I-2M
| Brand | AsRock Rack |
|---|---|
| Model | EPC621D4I-2M |
| CPU Socket Type | LGA 3647 |
|---|---|
| CPU Type | Supports Intel Xeon Scalable Processors |
| North Bridge | Intel C621 |
|---|
| Number of DDR4 Slots | 4 x 260-pin |
|---|---|
| DDR4 Standard | Support DDR4 2933 / 2666 / 2400 / 2133 SO-DIMM, SO-RDIMM, SO-UDIMM, SO-ECCDIMM |
| Maximum Memory Supported | Support up to 64GB DDR4 SO-DIMM, SO-RDIMM, SO-UDIMM, SO-ECCDIMM |
| Channel Supported | Quad Channel |
| PCI Express 3.0 x16 | PCIE3: Gen3 x16 link (from CPU1) |
|---|
| SATA | Intel C621: 7 x SATA3 6Gb/s (4 from mini-SAS HD, 1 x SATA DOM 6Gb/s and 2 x M.2 on bottom) |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| Number of LAN | 2 x 1 GbE RJ45 via Intel integrated MAC X722 + Marvell Alaska 88E1514 |
|---|---|
| LAN Speed | 10/100/1000Mbps |

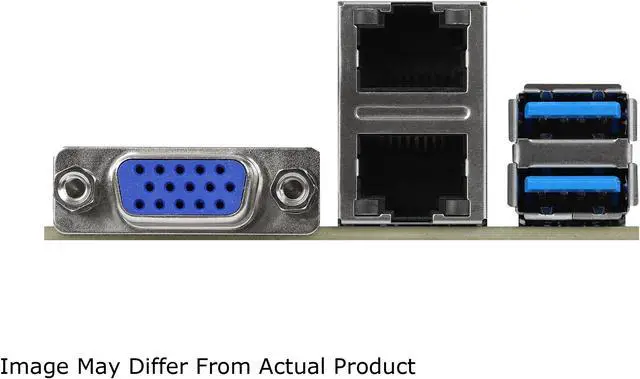

| Video Ports | 1 x D-Sub |
|---|---|
| RJ45 | 2 x RJ45 Gigabit Ethernet LAN port LAN Ports with LED (ACT / LINK LED and SPEED LED) |
| USB 3.1 | 2 x USB 3.1 |
| Features | Supports single Intel Xeon Scalable Processors / 2nd Gen. Intel Xeon Scalable Processors Supports 4 x Channel, DDR4 2666 / 2400 / 2133 ECC SO R DIMM, ECC SO DIMM, non-ECC SO DIMM, 4 x Dimm slots Intel C621: 7 x SATA3 Supports dual GLAN by Intel integrated MAC X722 + Marvell 88E1514 Supports 1 x PCIe 3.0 x16 2 x USB 3.0 ports |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | September 09, 2019 |
|---|
