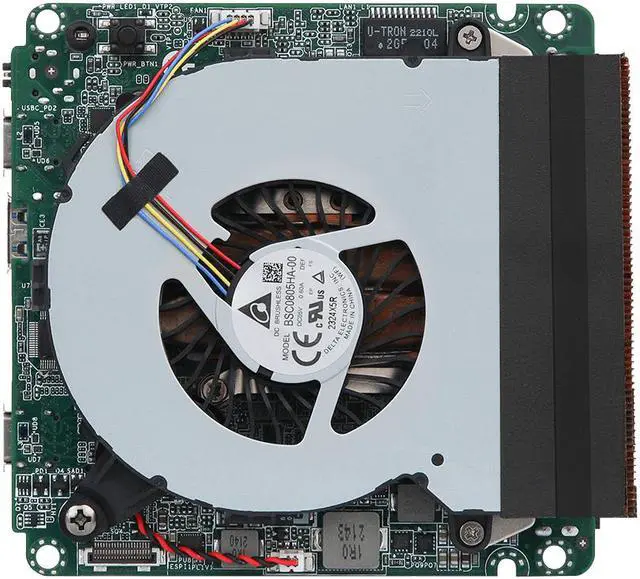

ASRock Industrial 4X4-7735U/D5 AMD Ryzen 7 7735U SoC Motherboard / CPU Combo
- AMD Ryzen™ 7 7735U
- 2 x 262-pin SO-DIMM up to 64GB DDR5 4800 MHz

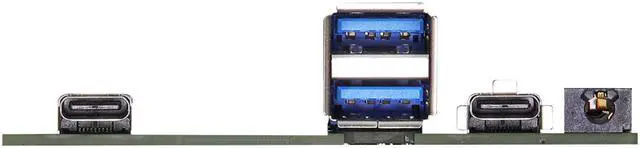

- 2 x USB4, 2 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
- 1 x Realtek 1 Gigabit LAN (support DASH), 1 x Realtek 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.1, 3 x DP 1.4a (2 from Type C)
- TPM 2.0 onboard IC
- 12V~19V DC-In
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Industrial 4X4-7735U/D5
| Brand | ASRock Industrial |
|---|---|
| Model | 4X4-7735U/D5 |
| Combo Type | Motherboard / CPU Combo |
| CPU | AMD Ryzen 7 7735U |
|---|
| CPU Socket Type | SoC |
|---|---|
| CPU Type | AMD Ryzen |
| Number of Memory Slots | 2x262pin |
|---|---|
| Memory Standard | DDR5 4800 |
| Maximum Memory Supported | 64GB (32 GB per DIMM) |
| Channel Supported | Dual Channel |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless |
|---|
| SATA | 1 x SATA 6.0Gb/s |
|---|
| Audio Chipset | Realtek ALC233, High De?nition Audio. |
|---|
| LAN Chipset | Realtek 8125BG |
|---|---|
| LAN Speed | 2.5Gbps |
| Second LAN Chipset | Realtek 8111EPV |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2.5Gbps + 1Gbps |

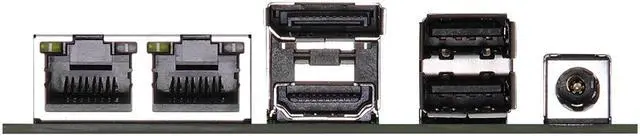

| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 2 x LAN (RJ45) / 2 x USB 2.0/1.1 |
|---|
| Onboard USB | 2 x USB 2.0 (1 x 2.00mm pitch header) |
|---|---|
| Other Connectors | 1 x COM (RS-232/422/485) TPM 2.0 onboard IC |
| Dimensions (W x L) | 4.09" x 4.02" |
|---|
| First Listed on Newegg | June 15, 2023 |
|---|
