ASRock Industrial 4x4 BOX-7735U Black Fanned Embedded BOX PC
- AMD Ryzen 7000U-Series 7735U
- 2 x 262-pin SO-DIMM up to 64GB DDR5 4800 MHz
- 2 x USB4, 1 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module), 1 x SATA3
- 1 x Realtek 1 Gigabit LAN (support DASH), 1 x Realtek 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.1, 3 x DP 1.4a (2 from Type C)
- TPM 2.0 onboard IC
- 19V/120W Power Adapter
- 110.0 x 117.5 x 47.85mm, Fanned Barebone
+
+
Specs
Reviews (67)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Industrial 4x4 BOX-7735U
| Brand | ASRock Industrial |
|---|---|
| Model | 4x4 BOX-7735U |
| Color | Black |
| CPU Type | AMD Ryzen 7 7735U, 8Cores, Max Speed up to 4.75GHz |
|---|
| Memory installed | No Memory |
|---|---|
| Memory slot | 2 x 262Pin SO-DIMM |
| Memory Type Supported | DDR5 4800 |
| Max Memory Supported | 64 GB (32 GB per DIMM) |
| Dual Channel Memory Supported | Yes |
| Serial ATA | 1 x SATA 6.0Gb/s |
|---|---|
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD *M.2 Key M 2280(Supported by bracket) |
| Intergrated Graphics | AMD Radeon Graphics |
|---|
| Onboard Audio | Realtek ALC233 |
|---|
| LAN | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek RTL8111FPV with 10/100/1000 Mbps,support DASH function |
|---|---|
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | 1 x Wi-Fi 6E 802.11ax (M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless) * WiFi throughput speed depends on actual environment and equipment |
| Bluetooth | Bluetooth 5.2 |

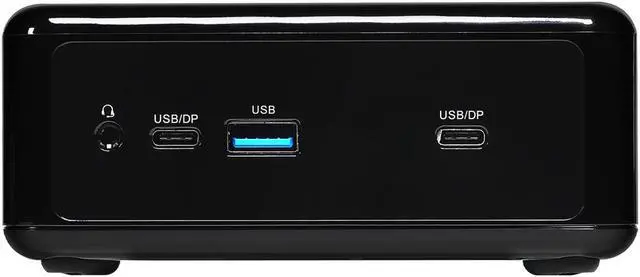

| Front USB | 1 x USB 3.2 Gen2 (Type A) 2 x USB 4 (Type C, Supports DP 1.4a display output) |
|---|---|
| Front Audio Ports | 1 (headphone & microphone jack) |
| HDMI | 1 x HDMI 2.1 |
|---|---|
| DisplayPort | 1 x DisplayPort 1.4a |

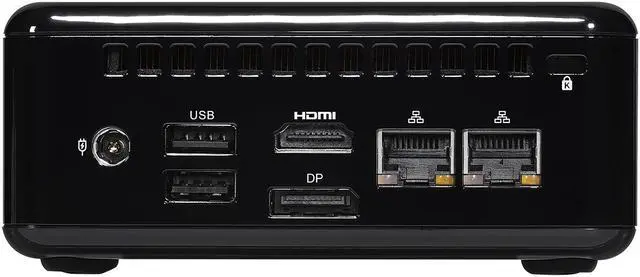

| Rear USB | 2 x USB 2.0 |
| RJ45 | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| Other Rear Ports | 1 x DC Jack |
| Input | 12V~19V DC-In Jack |
|---|
| Dimensions | 1.88" x 4.33" x 4.63" |
|---|---|
| Weight | 2.20 lbs. |
| Packaging | 1 x 19V/120W Power Adapter 1 x Screw Package 1 x VESA mounting bracket |
|---|
| Date First Available | April 13, 2023 |
|---|
