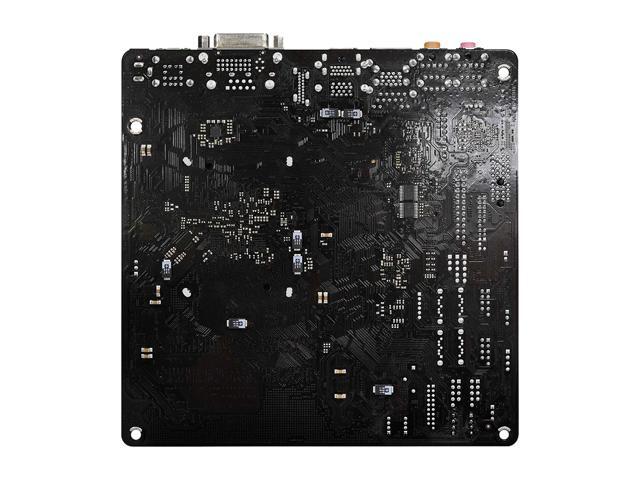

ASRock J3160DC-ITX Mini ITX Motherboard / CPU Combo

OUT OF STOCK.
  • DDR3/DDR3L 1600/1066
  • Integrated Intel HD Graphics 400: 12 EUs inside (Up to 700MHz) DirectX 11.1, Pixel Shader 5.0 Three graphics output options: DVI-D, HDMI and DisplayPort 1.1a Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports DisplayPort 1.1a with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8 Supports HDCP with DVI-D, HDMI and DisplayPort 1.1a Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.1a Ports
Specs
Reviews

Learn more about the ASRock J3160DC-ITX

Model
Brand ASRock
Model J3160DC-ITX
Combo Type Motherboard / CPU Combo
Bundle
Motherboard Intel Quad-Core Processor J3160 (up to 2.24 GHz)
Memory
Number of Memory Slots 2×204pin SO-DIMM
Memory Standard DDR3/DDR3L 1600/1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x1 1 x PCI Express 2.0 x1 Slot
Mini Card Slots 1 x Half-size Mini-PCI Express Slot*
*Due to the power limitation and PCIe bandwidth (x1) VGA cards are not supported.
Storage Devices
SATA 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
Onboard Video
Onboard Video Chipset Integrated Intel HD Graphics 400: 12 EUs inside (Up to 700MHz)
DirectX 11.1, Pixel Shader 5.0
Three graphics output options: DVI-D, HDMI and DisplayPort 1.1a
Supports Triple Monitor
Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports DisplayPort 1.1a with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz
Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8
Supports HDCP with DVI-D, HDMI and DisplayPort 1.1a Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.1a Ports
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek 8111GR
Second LAN Speed 10/100/1000Mbps
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))*
*USB3_3_4 is shared with USB_5_6.
Other Connectors 1 x Print Port Header
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion Header
1 x CPU Fan Connector (3-pin)
1 x Chassis Fan Connector (3-pin)
2 x SATA Power Connectors
1 x Front Panel Audio Connector
1 x SPDIF Out Connector
Features
Features Unique Feature
ASRock Super Alloy
- High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop

BIOS
- 64MB AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 5.0 compliant wake up events
- Supports jumperfree
- SMBIOS 2.7 support

Software
- ASRock Power Gear
- ASRock Disk Health Report
- ASRock USB Key
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Fast Boot (Fast Boot, Restart to UEFI)*
*These utilities can be downloaded from ASRock Live Update & APP Shop.

UEFI
- ASRock Power Gear
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS
- Microsoft Windows 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*
- Linux: Ubuntu 14.04.3 LTS / Ubuntu 15.04 / Ubuntu 15.10 / Fedora 23 / Zorin OS 10 / Arch Linux 2015.10.01 / clonezilla-live-20150915-wily-amd64 / Android-x86-4.4-r3
*To install Windows 7 64-bit OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows 10 driver, please visit ASRock's website for details.

Certifications
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Package Contents
Package Contents Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x SATA Power Cables
- 1 x WiFi Module Screw
- 1 x 65W DC-in 19V 3.42A Power Adapter
Additional Information
Date First Available June 23, 2016
