$139.00
Ships from Hong Kong.
Meet Your Seller

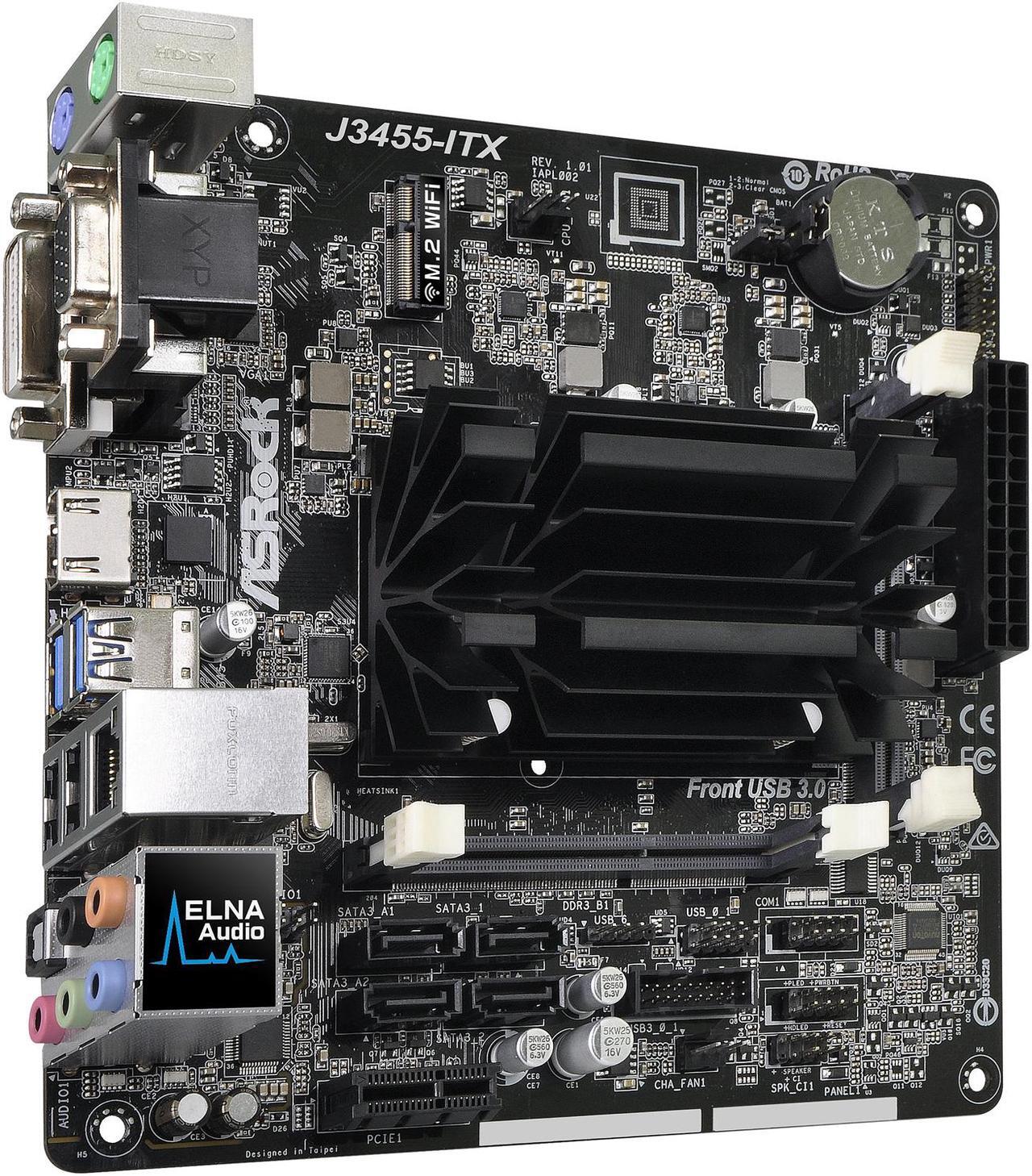

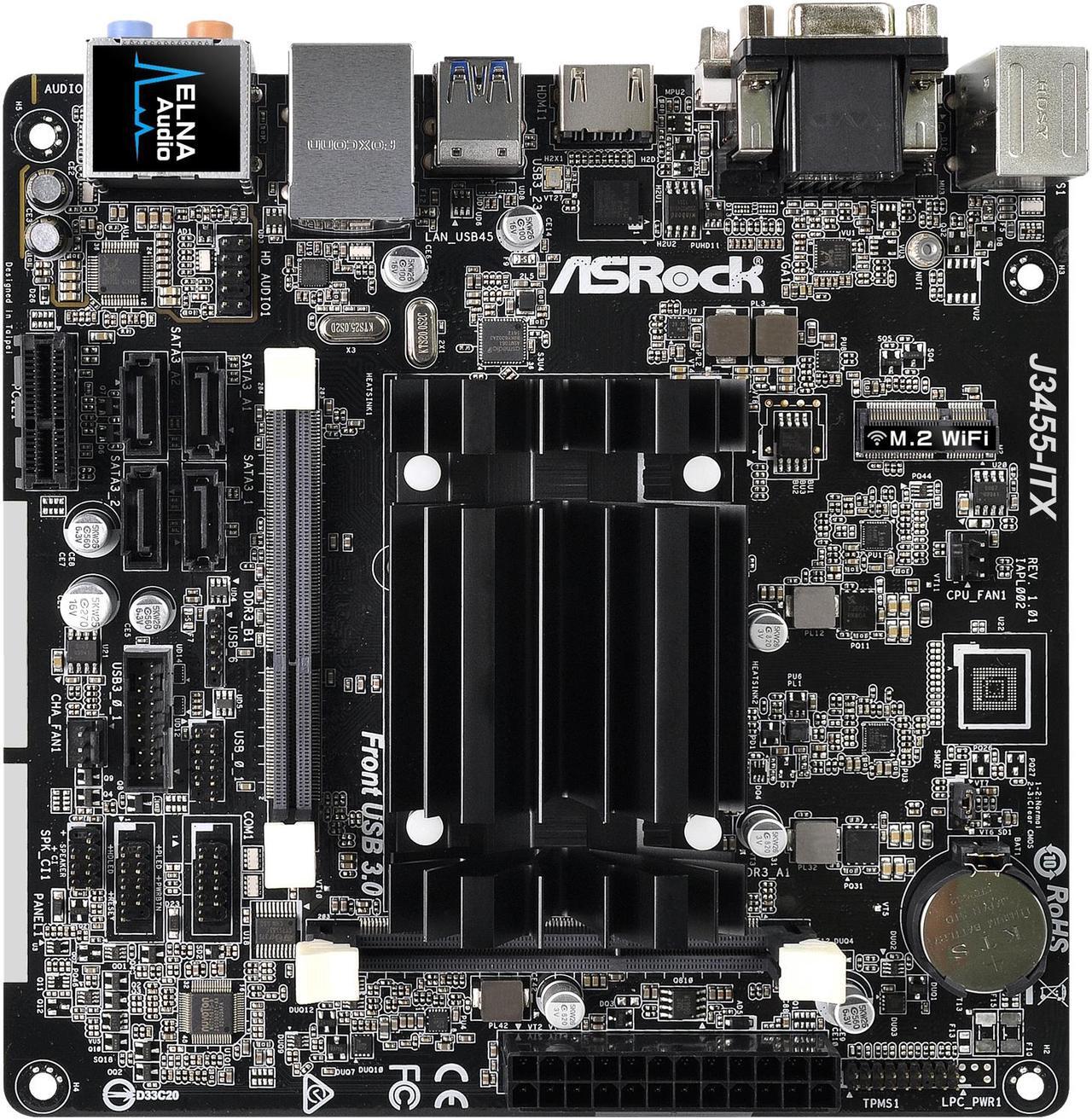

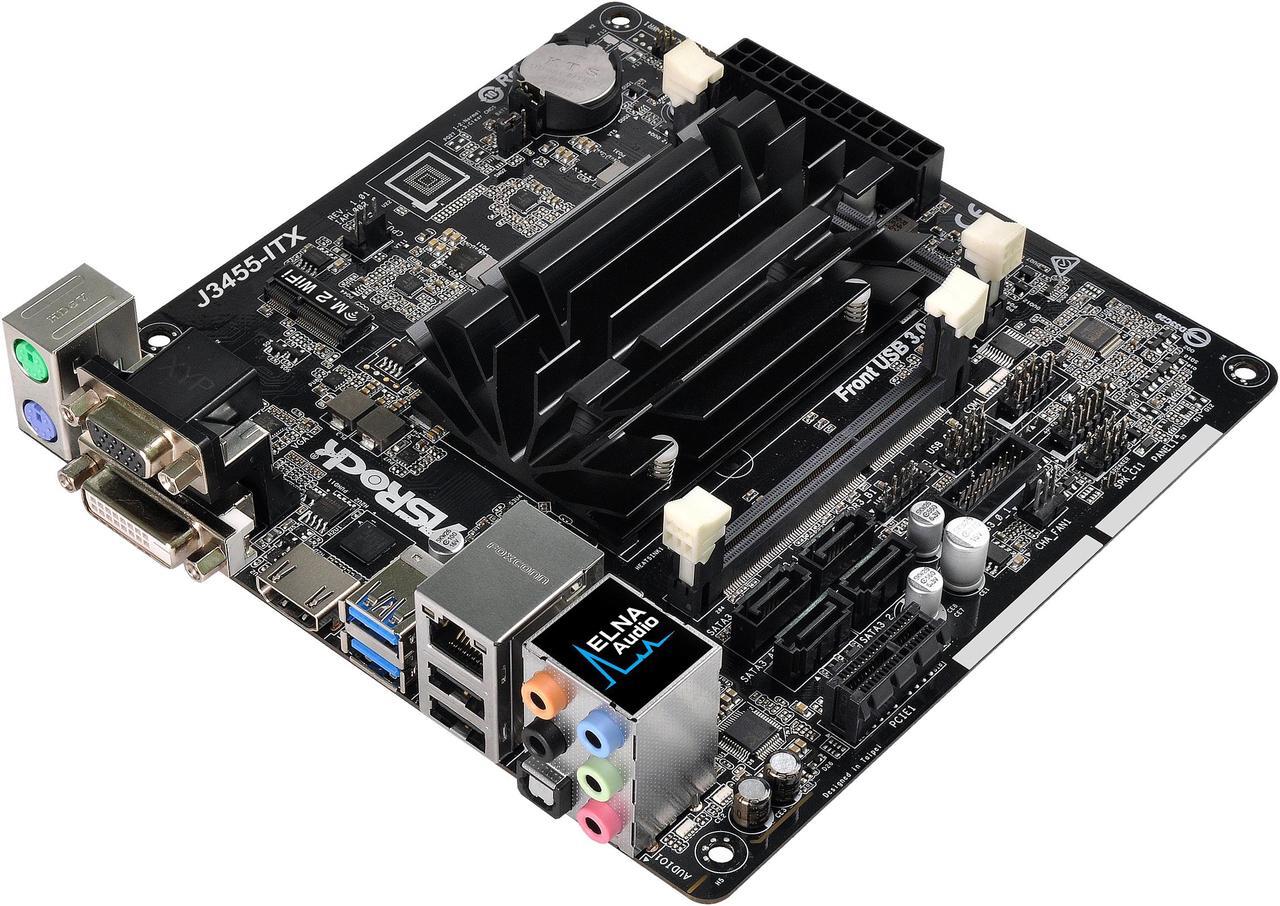

ASRock J3455-ITX Intel Quad-Core Processor J3455 (up to 2.3GHz) Mini ITX Motherboard / CPU Combo
- DDR3/DDR3L 1866/1600/1333
- Integrated Intel HD Graphics 500: 12 EUs inside (Up to 750MHz)
- DirectX 12, Pixel Shader 5.0
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DVI-D with max. resolution up to 1920 x 1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048 x 1536 @ 60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
+
+
Specs
Reviews (21)
Learn more about the ASRock J3455-ITX
| Best Seller Ranking | #2 in Embedded Solutions |
|---|
| Brand | ASRock |
|---|---|
| Model | J3455-ITX |
| Combo Type | Motherboard / CPU Combo |
| CPU | Intel Quad-Core Processor J3455 (up to 2.3GHz) |
|---|
| Number of Memory Slots | 2x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3/DDR3L 1866/1600/1333 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express x1 | 1 x PCI Express 2.0 x1 Slot |
|---|---|
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
| SATA | 2 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug 2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug |
|---|
| Onboard Video Chipset | Integrated Intel HD Graphics 500: 12 EUs inside (Up to 750MHz) DirectX 12, Pixel Shader 5.0 Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DVI-D with max. resolution up to 1920 x 1200 @ 60Hz Supports D-Sub with max. resolution up to 2048 x 1536 @ 60Hz Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9 Supports HDCP with DVI-D and HDMI Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111GR |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| PS/2 | 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port |
|---|---|

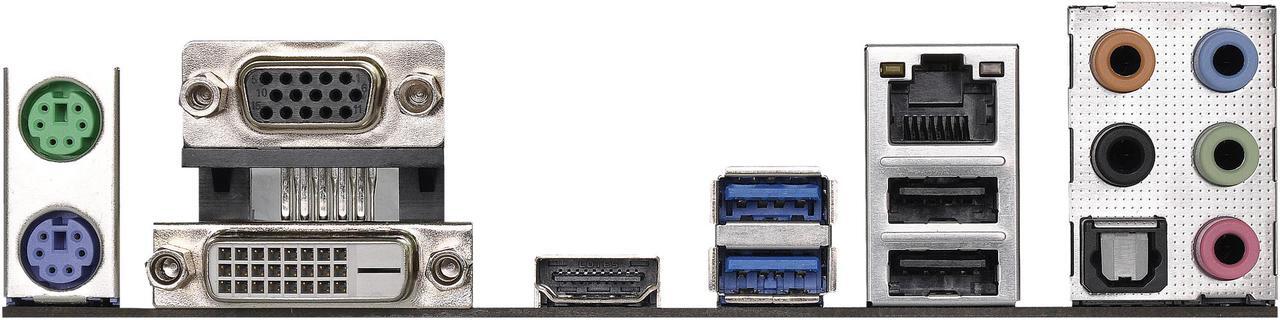

| Video Ports | 1 x D-Sub Port 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB 3.0 | 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| S/PDIF Out | 1 x Optical |
| Audio Ports | HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))* *USB3_0_1 is shared with USB_0_1. |
|---|---|
| Other Connectors | 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (3-pin) 1 x Chassis Fan Connector (3-pin) 1 x 24 pin ATX Power Connector 1 x Front Panel Audio Connector |
| Features | Unique Feature ASRock Super Alloy - High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop BIOS - 64MB AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 5.0 compliant wake up events - Supports jumperfree - SMBIOS 3.0 support Software - ASRock Power Gear - ASRock XFast LAN* *These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock Power Gear - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore OS - Microsoft Windows 10 64-bit* - Linux: Ubuntu 16.10 / Fedora 25 *For the updated Windows 10 driver, please visit ASRock's website for details. Certifications - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |

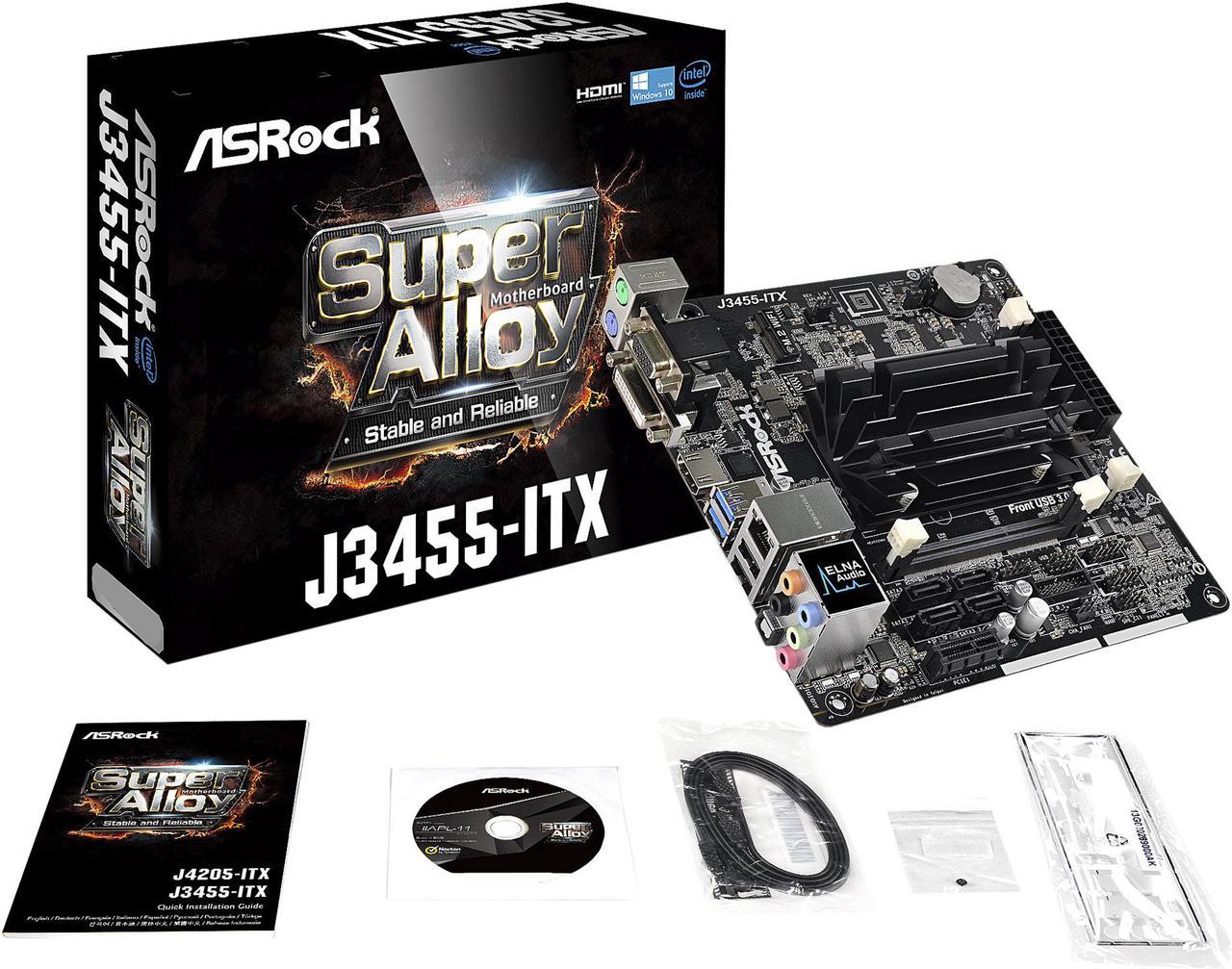

| Package Contents | Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
|---|
| Date First Available | November 04, 2024 |
|---|
