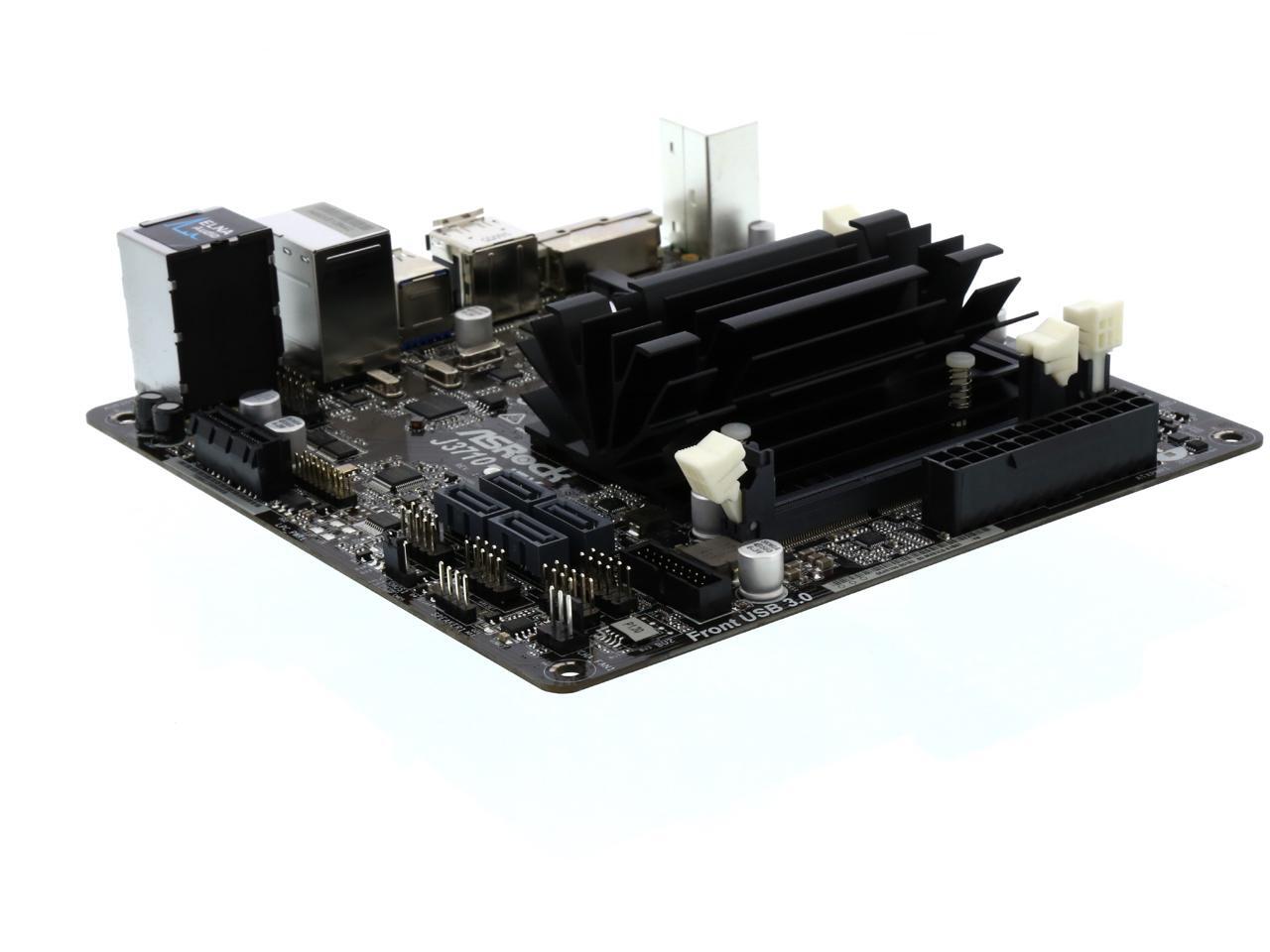

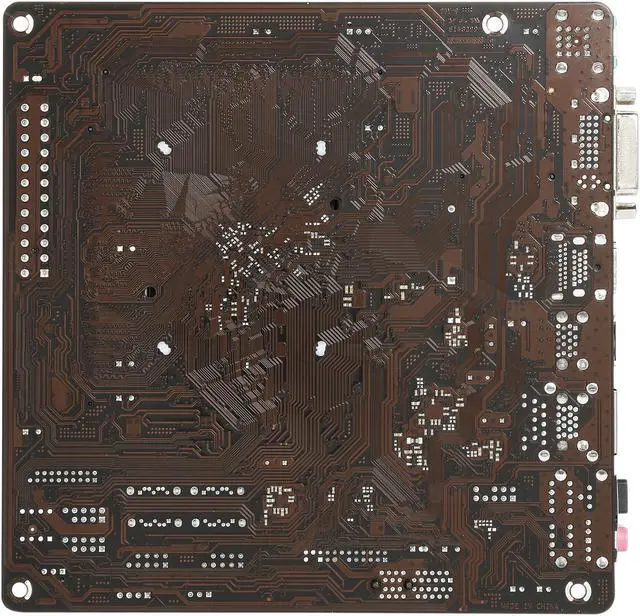

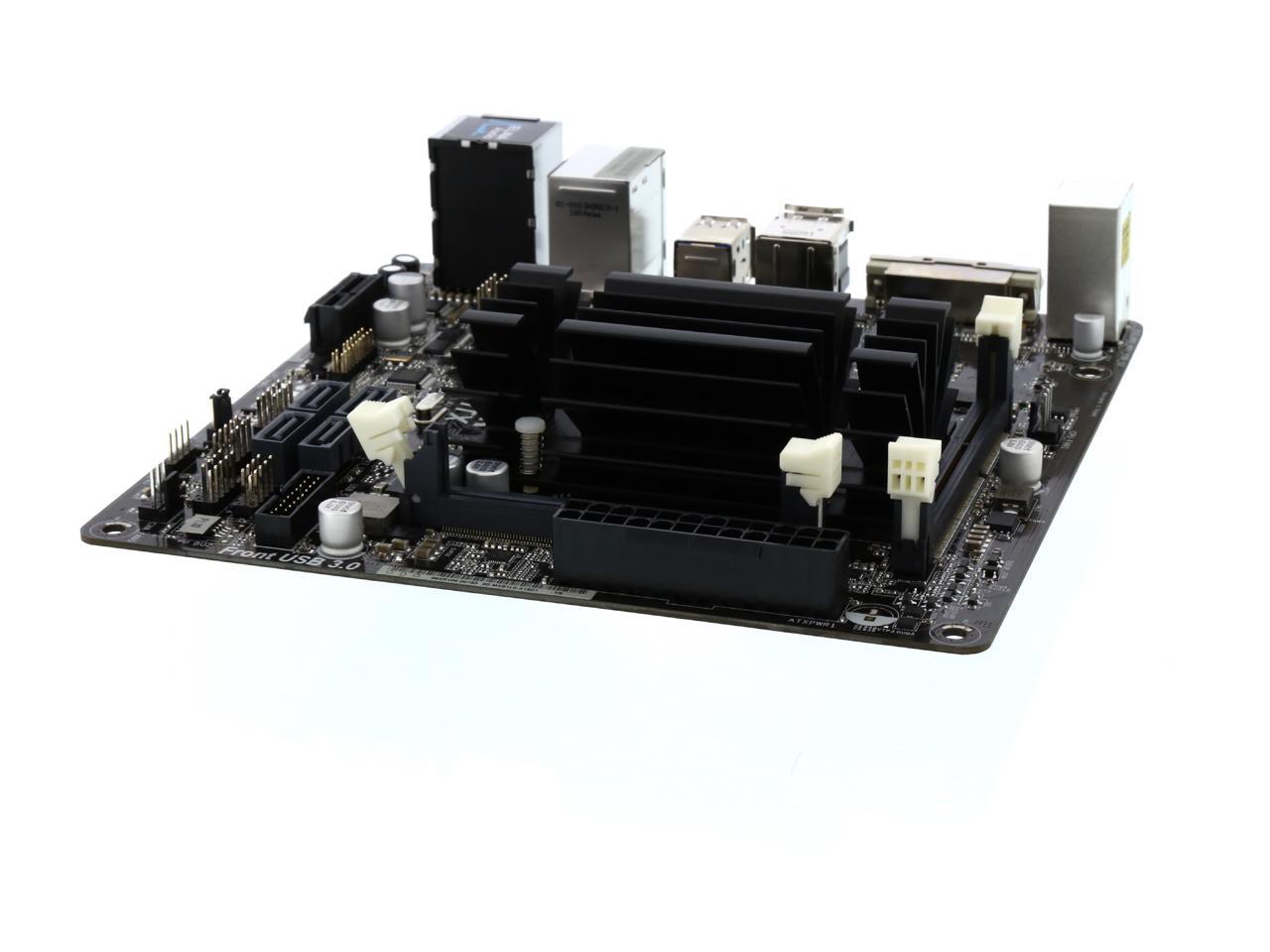

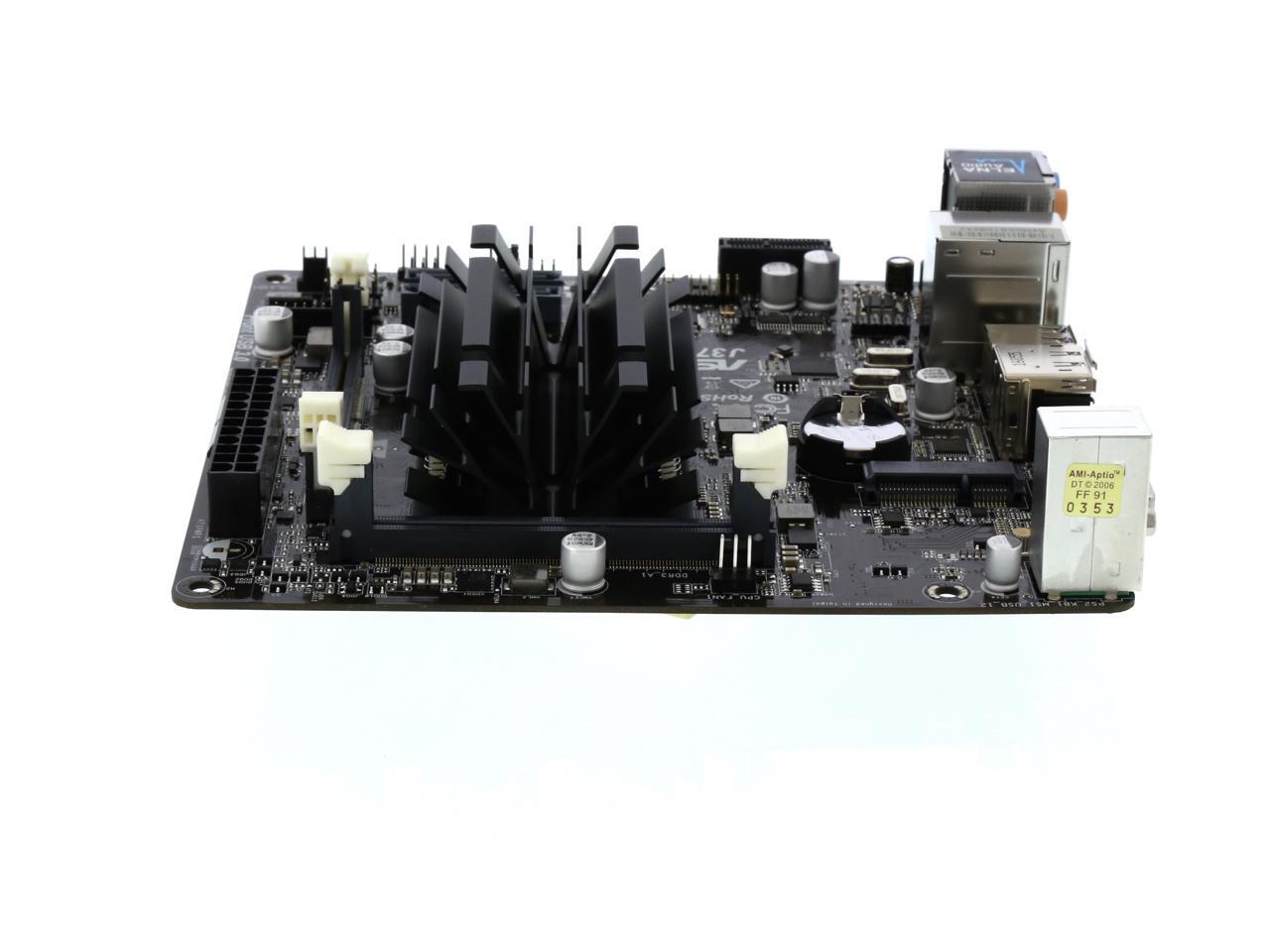

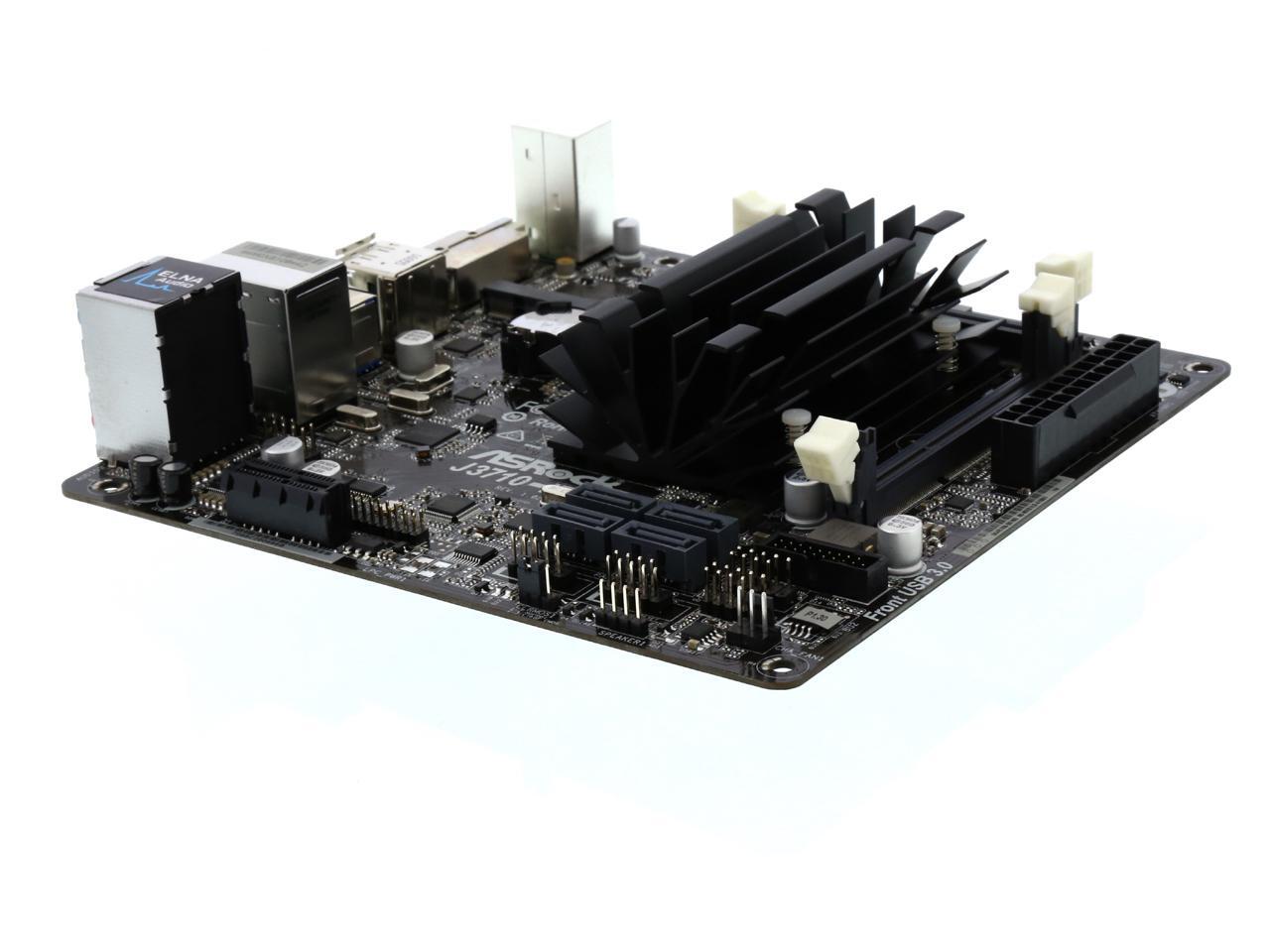

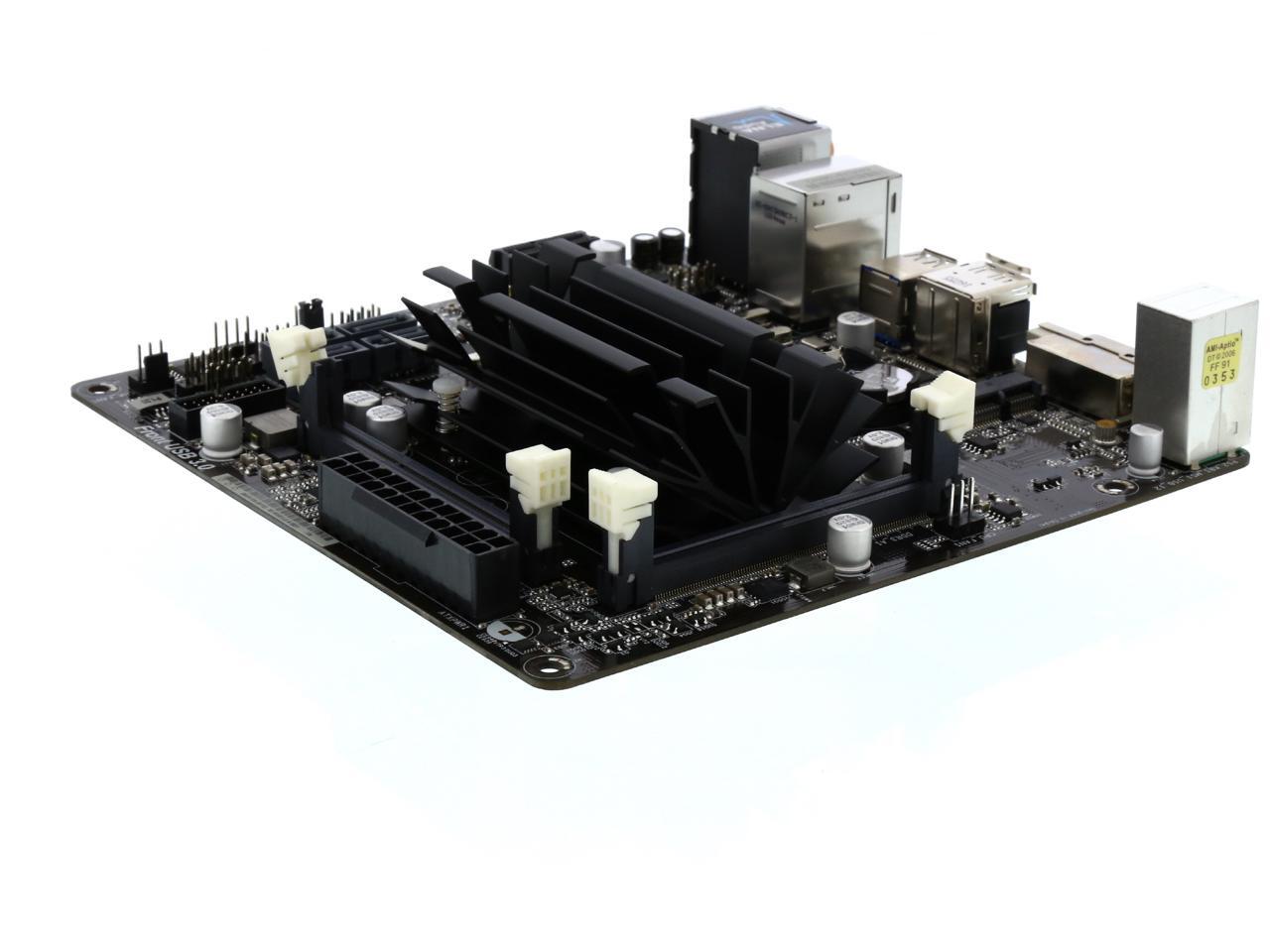

ASRock J3710-ITX Intel Quad-Core Pentium Processor J3710 (up to 2.64 GHz) Mini ITX Motherboard / CPU Combo
- DDR3/DDR3L 1600/1066
- Integrated Intel HD Graphics 405: 16 EUs inside (Up to 740MHz)
- DirectX 11.1, Pixel Shader 5.0
- Three graphics output options: DVI-D, HDMI and DisplayPort 1.1a
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports DisplayPort 1.1a with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8
- Supports HDCP with DVI-D, HDMI and DisplayPort 1.1a Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.1a Ports
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock J3710-ITX
| Brand | ASRock |
|---|---|
| Model | J3710-ITX |
| Combo Type | Motherboard / CPU Combo |
| CPU | Intel Quad-Core Pentium Processor J3710 (up to 2.64 GHz) |
|---|
| Number of Memory Slots | 2x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3/DDR3L 1600/1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express x1 | 1 x PCI Express 2.0 x1 Slot |
|---|---|
| Mini Card Slots | 1 x Half-size Mini-PCI Express Slot |
| SATA | 2 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug 2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug |
|---|
| Onboard Video Chipset | Integrated Intel HD Graphics 405: 16 EUs inside (Up to 740MHz) DirectX 11.1, Pixel Shader 5.0 Three graphics output options: DVI-D, HDMI and DisplayPort 1.1a Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports DisplayPort 1.1a with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8 Supports HDCP with DVI-D, HDMI and DisplayPort 1.1a Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.1a Ports |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111-GR |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|

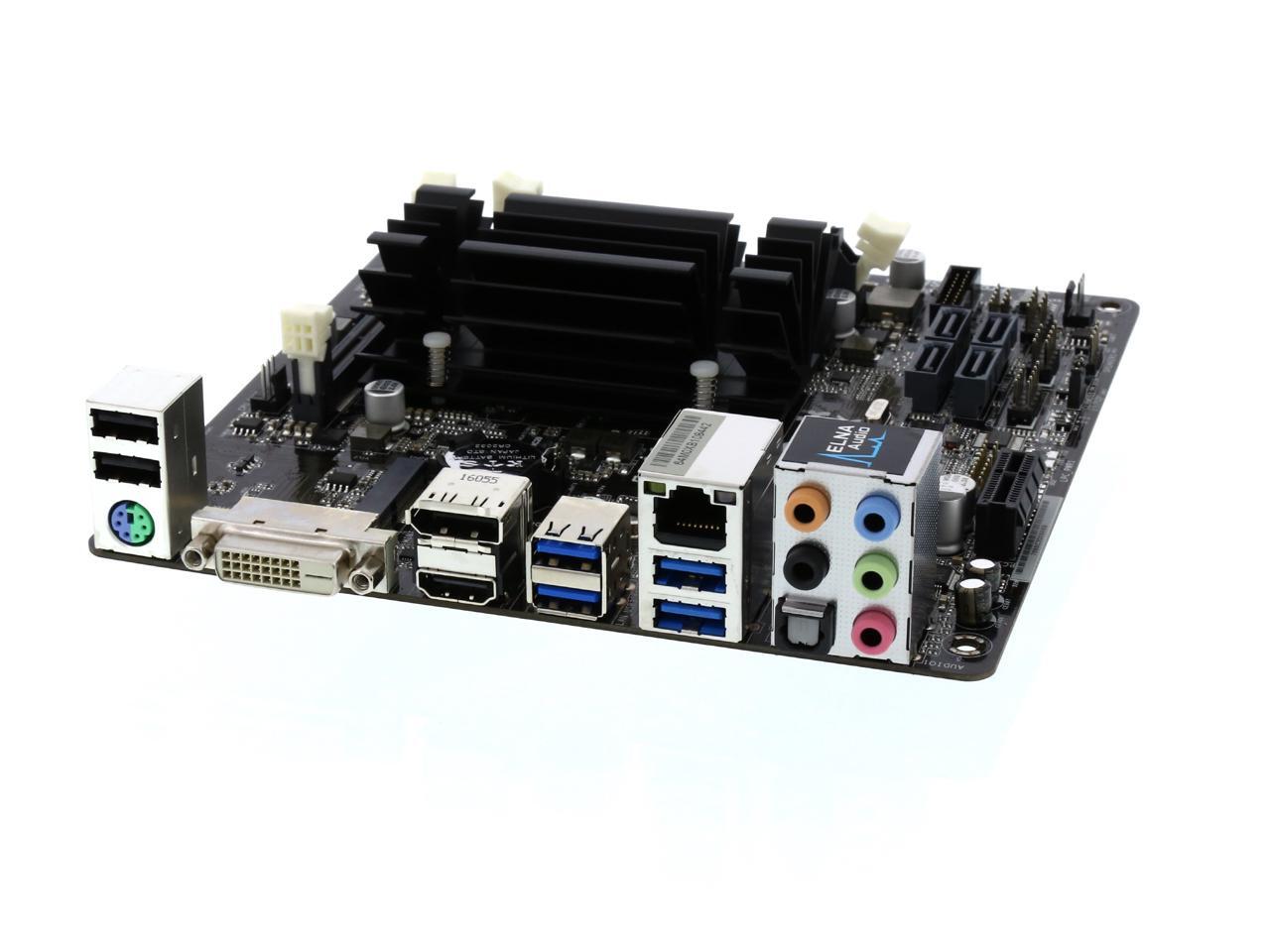

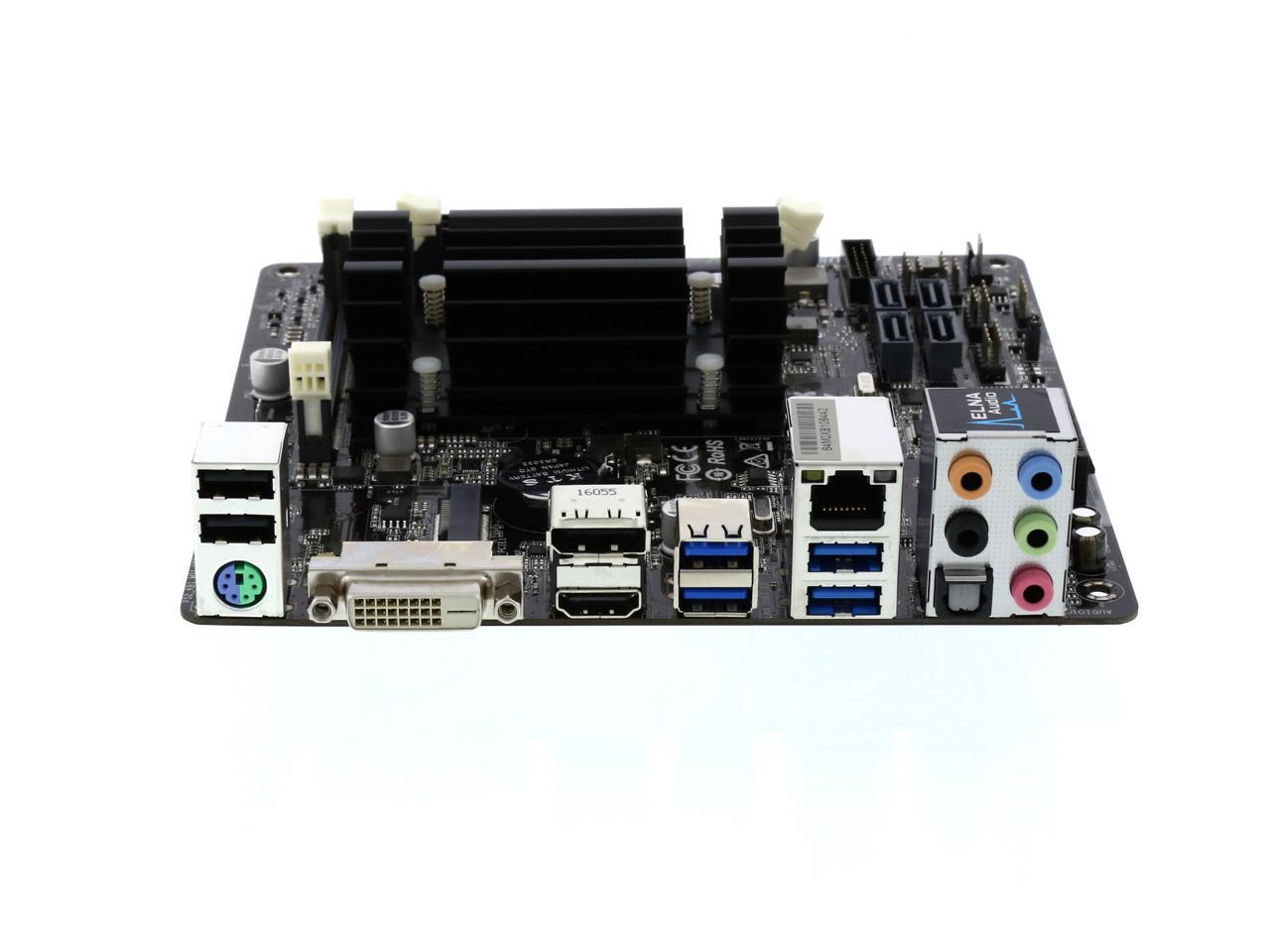

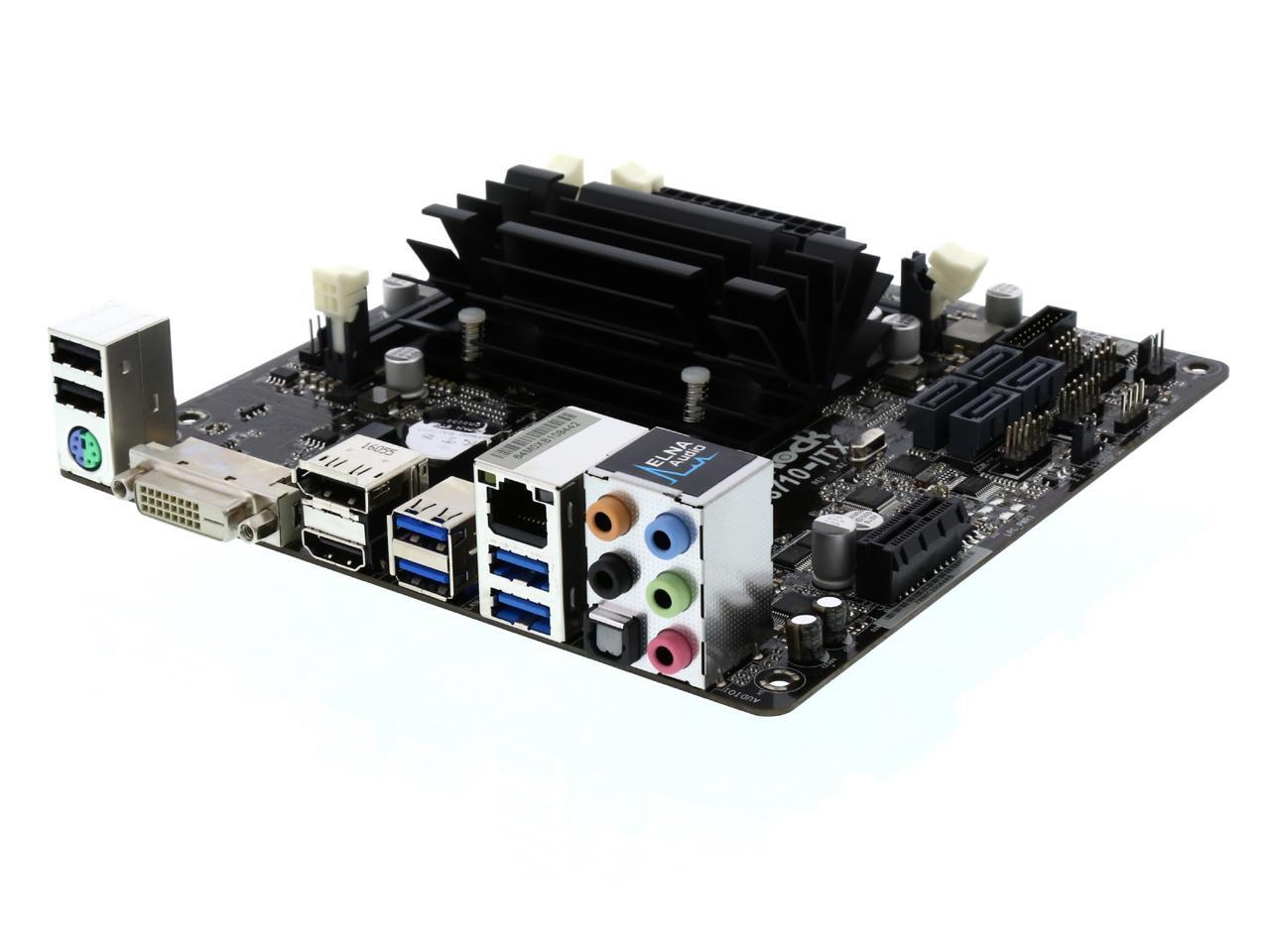

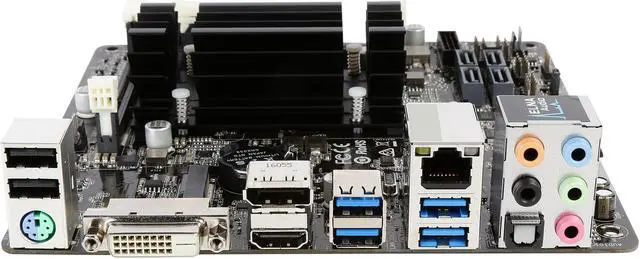

| Video Ports | 1 x DVI-D Port 1 x DisplayPort 1.1a |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB 3.0 | 4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection)) |
| S/PDIF Out | 1 x Optical |
| Audio Ports | HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))* * USB3_3_4 is shared with USB_5_6. |
|---|---|
| Other Connectors | 1 x COM Port Header 1 x TPM Header 1 x CPU Fan Connector (3-pin) 1 x Chassis Fan Connector (3-pin) 1 x 24-pin ATX Power Connector 1 x Front Panel Audio Connector |
| Features | Unique Feature ASRock Super Alloy - High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop BIOS - 64MB AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 5.0 compliant wake up events - Supports jumperfree - SMBIOS 2.7 support Software - ASRock Power Gear - ASRock Disk Health Report - ASRock USB Key - ASRock XFast LAN - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI)* * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock Power Gear - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore OS - Microsoft Windows 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* - Linux: Ubuntu 14.04.3 LTS / Ubuntu 15.04 / Ubuntu 15.10 / Fedora 23 / Zorin OS 10 / Arch Linux 2015.10.01 / clonezilla-live-20150915-wily-amd64 / Android-x86-4.4-r3 * To install Windows 7 64-bit OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows 10 driver, please visit ASRock's website for details. Certifications - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |

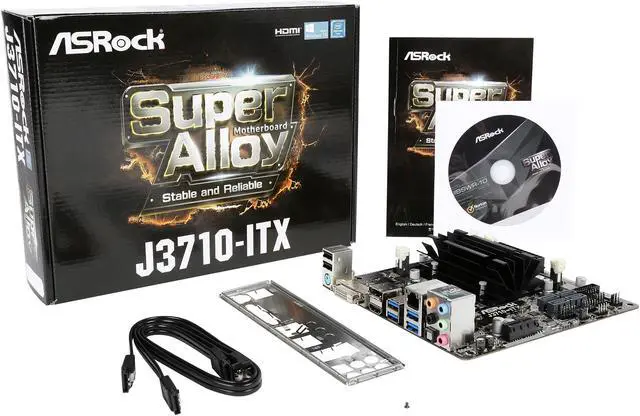

| Package Contents | Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x WiFi Module Screw |
|---|
| Date First Available | June 27, 2016 |
|---|
