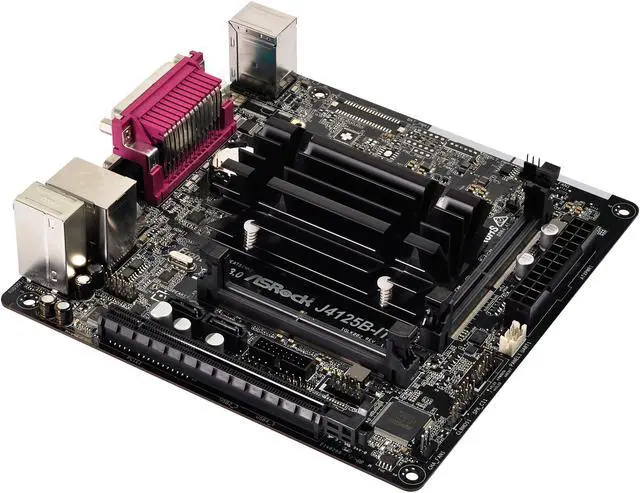

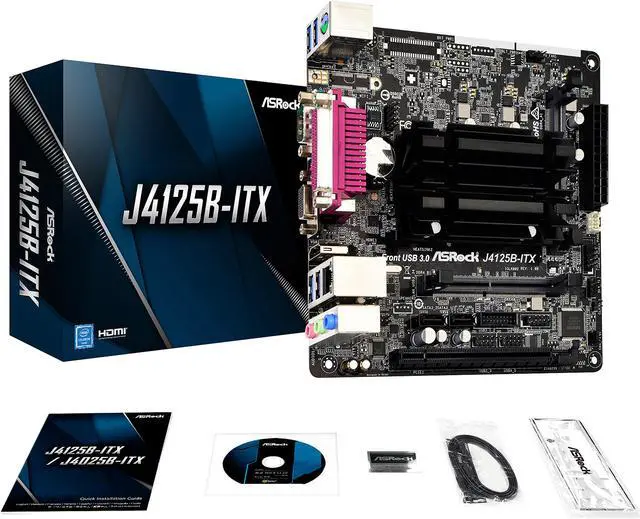

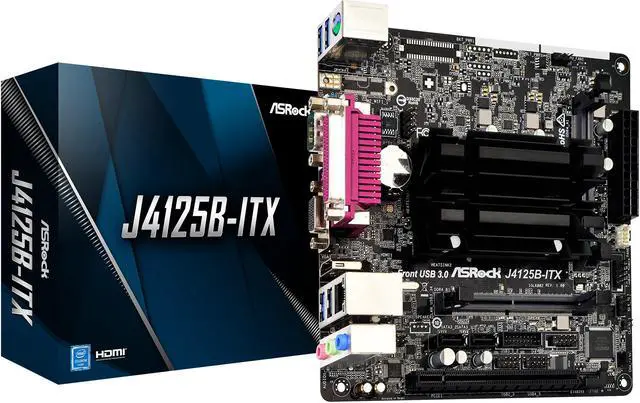

ASRock J4125B-ITX Intel Celeron Quad-Core Processor J4125 (up to 2.7 GHz) Mini ITX Motherboard / CPU / VGA Combo
- DDR4 2400/ 2133
- Integrated Intel UHD Graphics 600: 12 EUs inside (Up to 750MHz)
- DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2
- HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit
- HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit
- Dual graphics output: support D-Sub and HDMI ports by independent display controllers
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with HDMI Port
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port
Specs
Reviews (2)
Learn more about the ASRock J4125B-ITX
| Brand | ASRock |
|---|---|
| Model | J4125B-ITX |
| Combo Type | Motherboard / CPU / VGA Combo |
| CPU | Intel Celeron Quad-Core Processor J4125 (up to 2.7 GHz) |
|---|
| Number of Memory Slots | 2×260pin * 2GB DRAM per module is not supported. |
|---|---|
| Memory Standard | DDR4 2400/ 2133 |
| Maximum Memory Supported | 8GB ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode) |
|---|
| SATA | 2 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug |
|---|
| Onboard Video Chipset | Integrated Intel UHD Graphics 600: 12 EUs inside (Up to 750MHz) DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2 HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit Dual graphics output: support D-Sub and HDMI ports by independent display controllers Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP 2.2 with HDMI Port Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port |
|---|
| Audio Chipset | Realtek ALC887 * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| PS/2 | 1 x PS/2 Mouse/Keyboard Port |
|---|---|
| COM | 1 x Serial Port: COM1 |
| LPT | 1 x Parallel Port (ECP/EPP Support) |
| Video Ports | 1 x D-Sub Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 1.1/2.0 | 1 x USB 2.0 Port (Supports ESD Protection) |
| USB 3.0 | 3 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)* 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) * USB3_1_2 is shared with USB2_3. |
|---|---|
| Other Connectors | 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (3-pin) 1 x Chassis Fan Connector (3-pin) 1 x 24-pin ATX Power Connector 1 x Front Panel Audio Connector |
| Features | Unique Feature: ASRock Super Alloy - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 128 MB AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 5.0 compliant wake up events - Supports jumperfree - SMBIOS 3.0 support Software and UEFI: Software - ASRock XFast LAN UEFI - ASRock Instant Flash * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor: - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore OS: - Microsoft Windows 10 64-bit * Supports UEFI mode only Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Package Contents | Accessories: Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables |
|---|
| First Listed on Newegg | February 09, 2021 |
|---|
