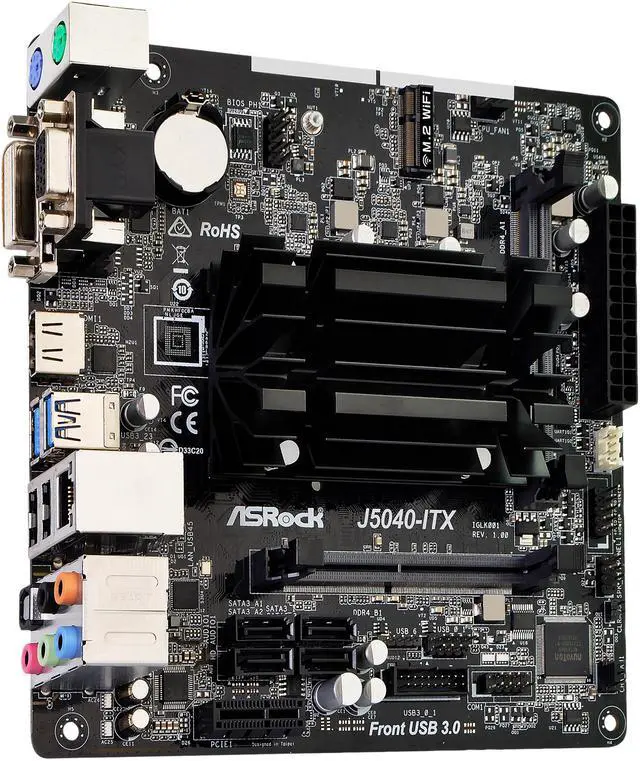

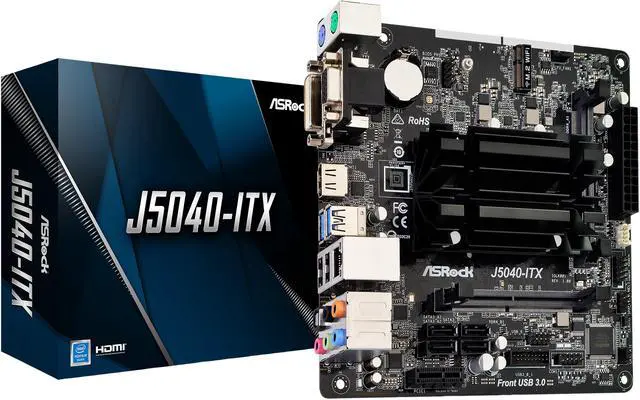

ASRock J5040-ITX Intel Quad-Core Pentium Silver Processor J5040 (up to 3.2 GHz) Mini ITX Motherboard / CPU Combo

OUT OF STOCK.
  • Supports DDR4 2400 / 2133 non-ECC, un-buffered memory
  • Integrated Intel UHD Graphics 605: 18 EUs inside (Up to 800MHz)
  • DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2
  • HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit
  • HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit
  • Three graphics output options: D-Sub, DVI-D and HDMI
  • Supports Triple Monitor
  • Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  • Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
  • Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
  • Supports HDCP 2.2 with DVI-D and HDMI Ports
  • Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Specs
Reviews

Learn more about the ASRock J5040-ITX

Model
Brand ASRock
Model J5040-ITX
Combo Type Motherboard / CPU Combo
Bundle
CPU Intel Quad-Core Pentium Silver Processor J5040 (up to 3.2 GHz)
Memory
Number of Memory Slots 2×260pin
Memory Standard Supports DDR4 2400 / 2133 non-ECC, un-buffered memory
Maximum Memory Supported 8GB
* 2GB DRAM per module is not supported.
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported Dual Channel
Expansion Slots
PCI Express x1 1 x PCI Express 2.0 x1 Slot
Other Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
Storage Devices
SATA 2 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug
2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
Onboard Video
Onboard Video Chipset Integrated Intel UHD Graphics 605: 18 EUs inside (Up to 800MHz)
DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2
HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit
HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP 2.2 with DVI-D and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8111H
LAN Speed 10/100/1000Mbps

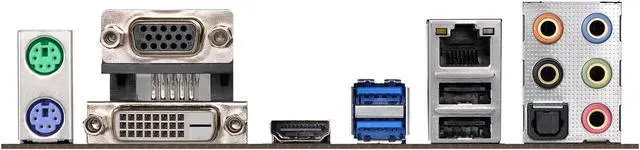

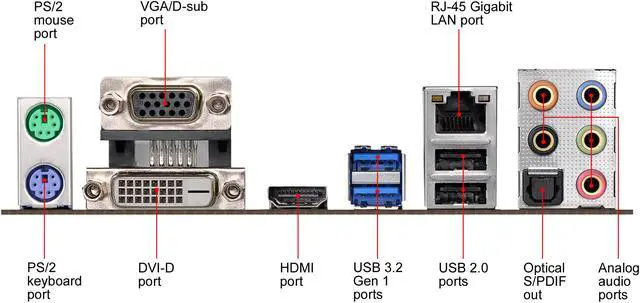

Rear Panel Ports
PS/2 1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
Video Ports 1 x D-Sub Port
1 x DVI-D Port
HDMI 1 x HDMI
RJ45 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 1.1/2.0 2 x USB 2.0 Ports (Supports ESD Protection)
USB 3.0 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
S/PDIF Out 1 x Optical
Audio Ports HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*
* USB3_0_1 is shared with USB_0_1.
Other Connectors 1 x COM Port Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (3-pin)
1 x Chassis Fan Connector (3-pin)
1 x 24-pin ATX Power Connector
1 x Front Panel Audio Connector
Features
Features Unique Feature:
ASRock Super Alloy
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

BIOS:
- 128MB AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 5.0 compliant wake up events
- Supports jumperfree
- SMBIOS 3.0 support

Software and UEFI:
Software
- ASRock XFast LAN
UEFI
- ASRock Instant Flash
- ASRock Internet Flash
* These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD:
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor:
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS:
- Microsoft Windows 10 64-bit

Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Physical Spec
Form Factor Mini ITX

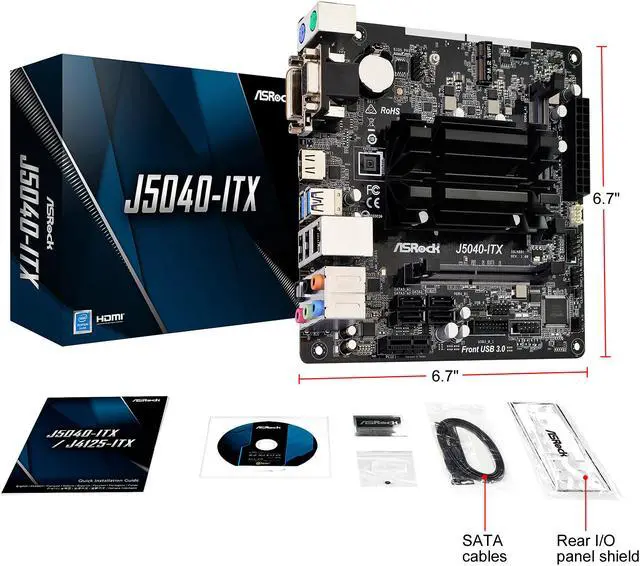

Dimensions (W x L) 6.7" x 6.7"

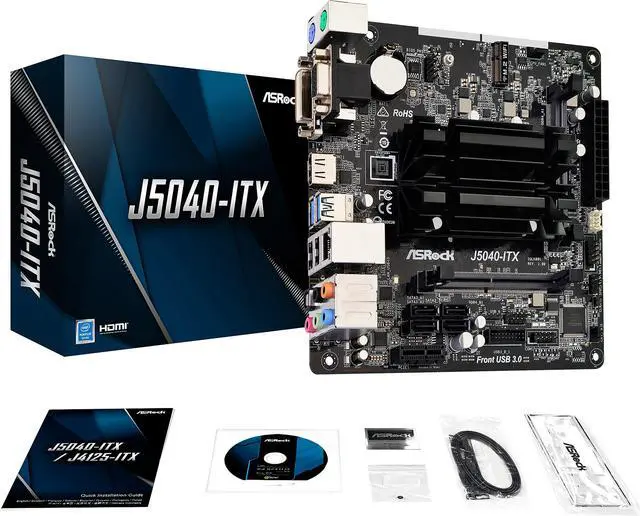

Package Contents
Package Contents Accessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
Additional Information
Date First Available October 13, 2020

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy
