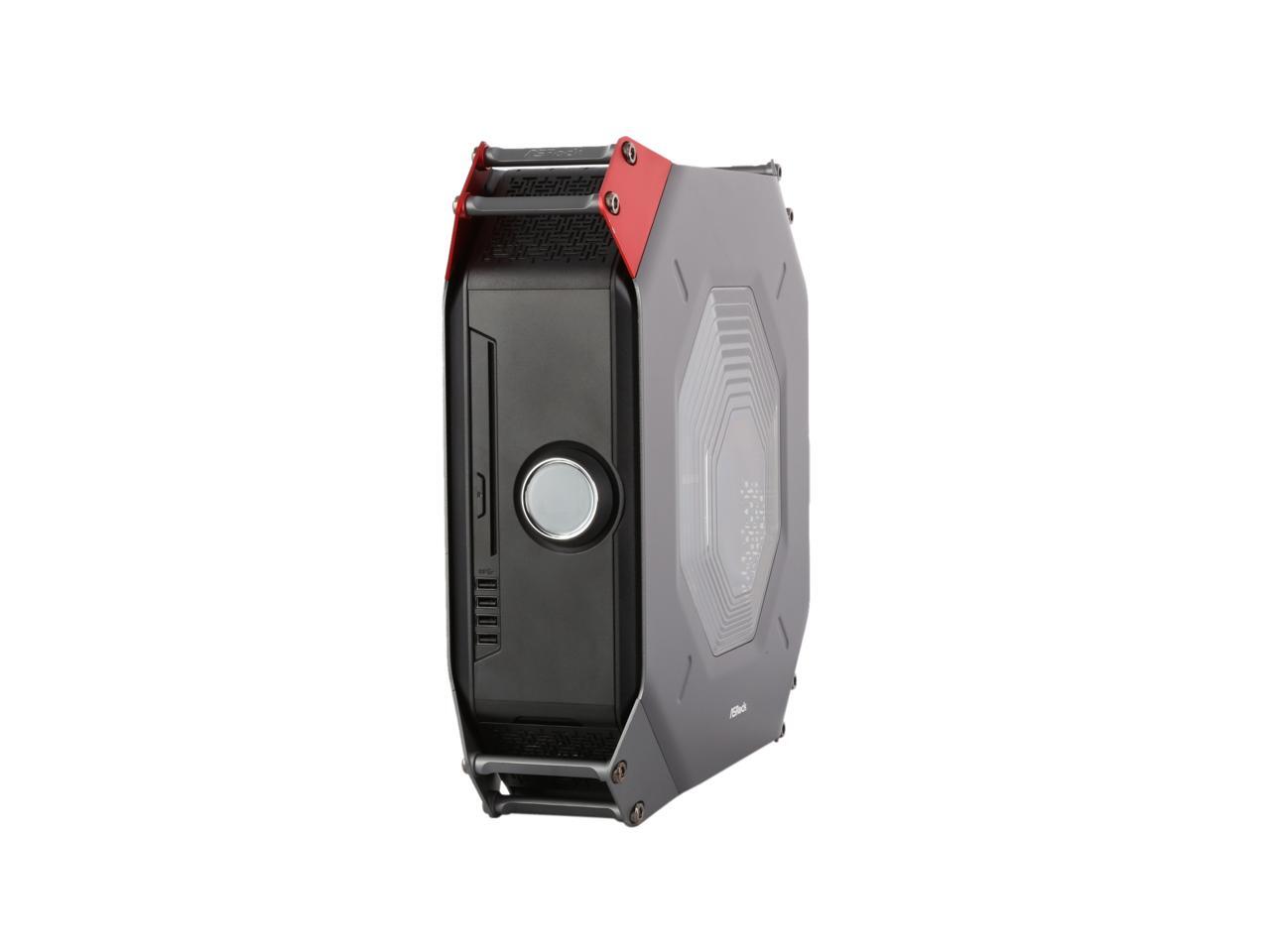

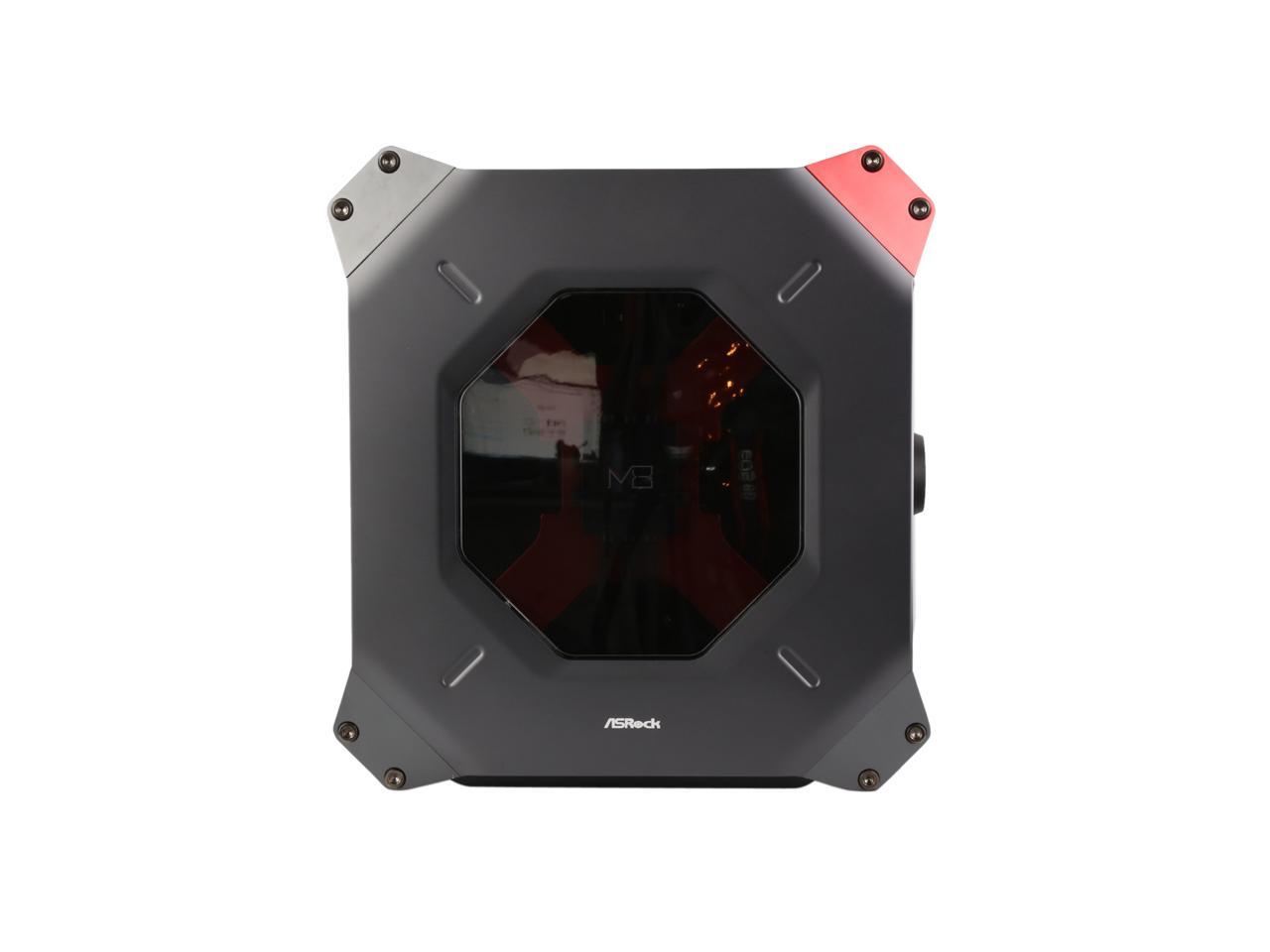

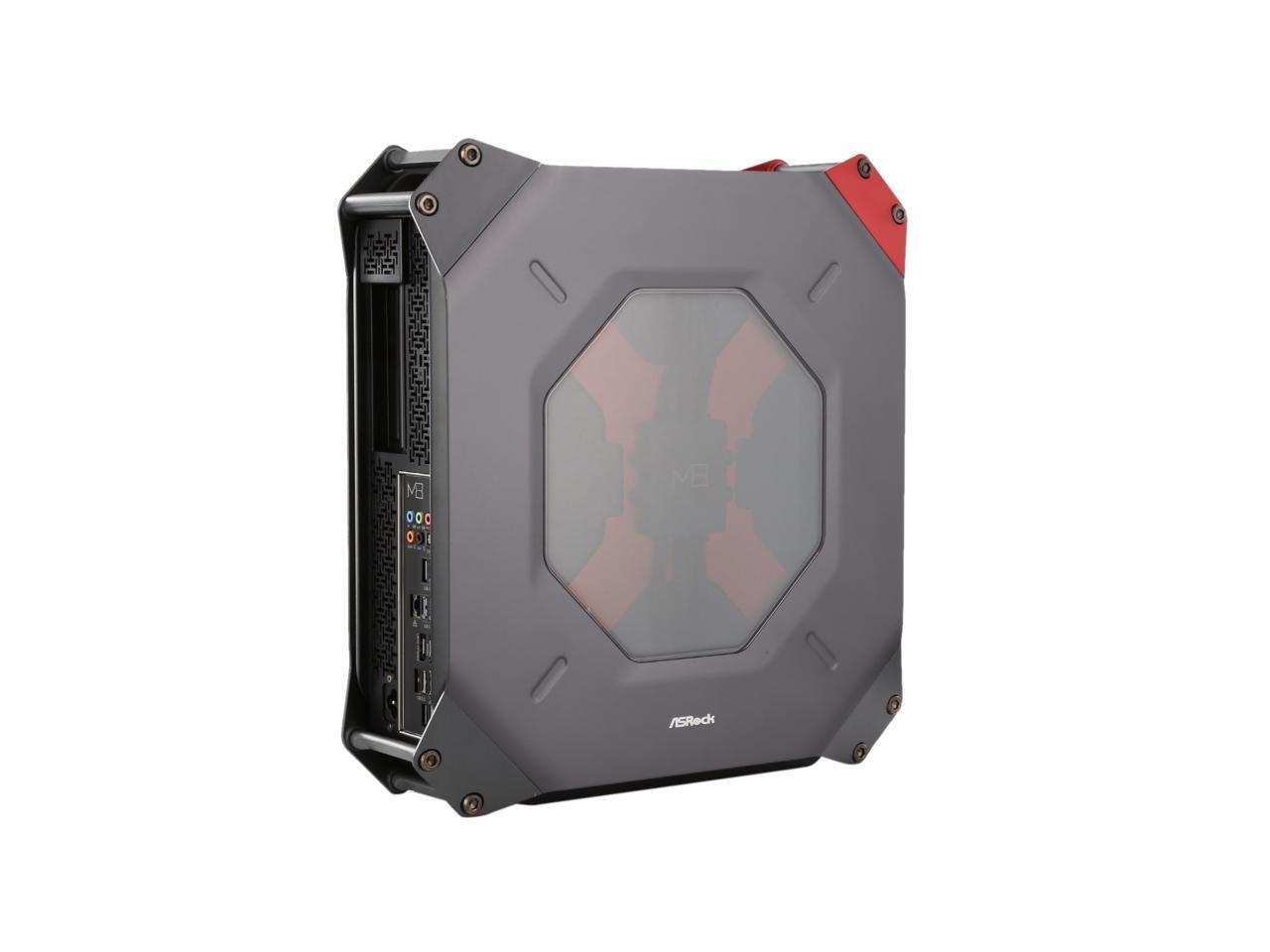

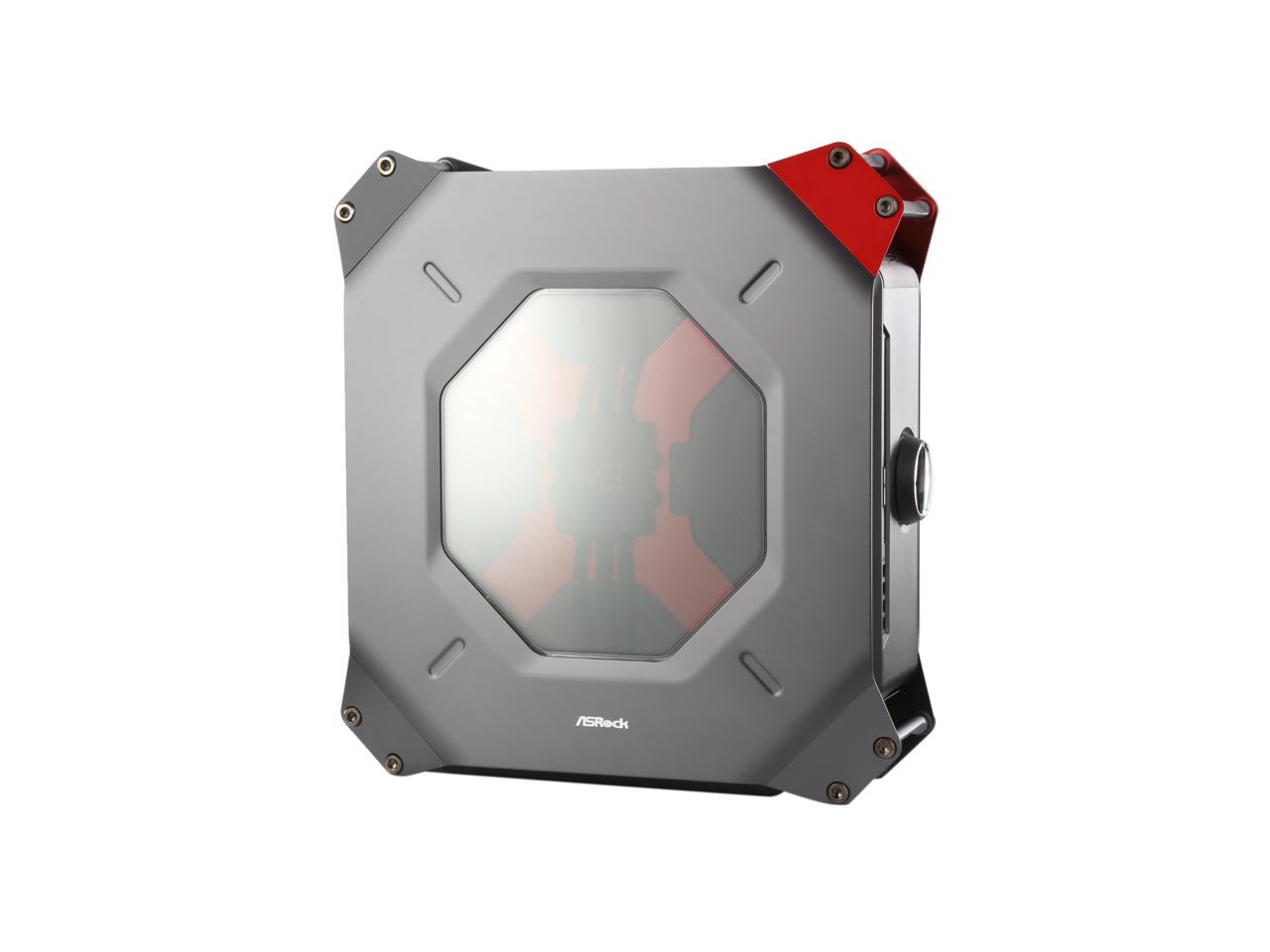

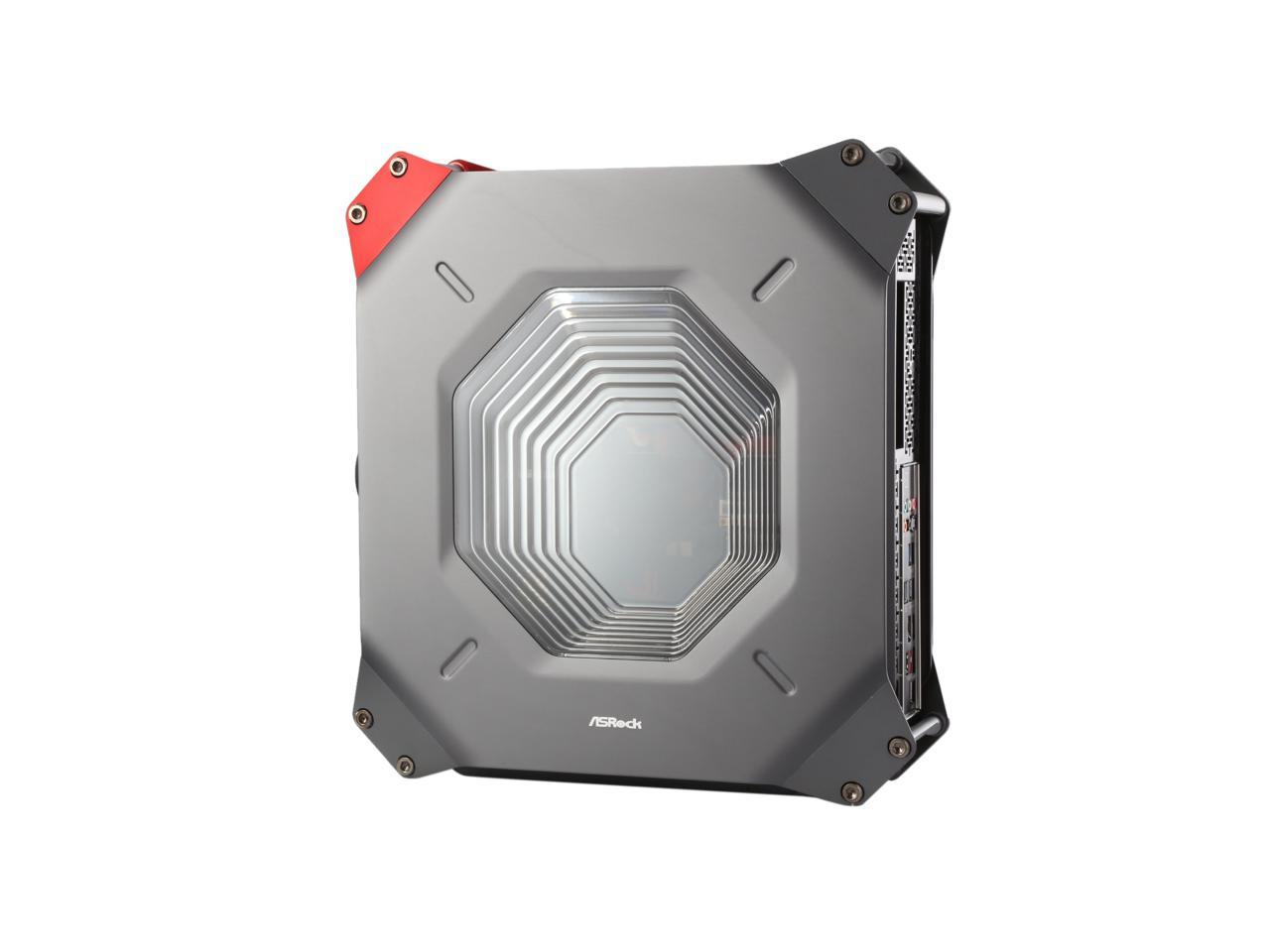

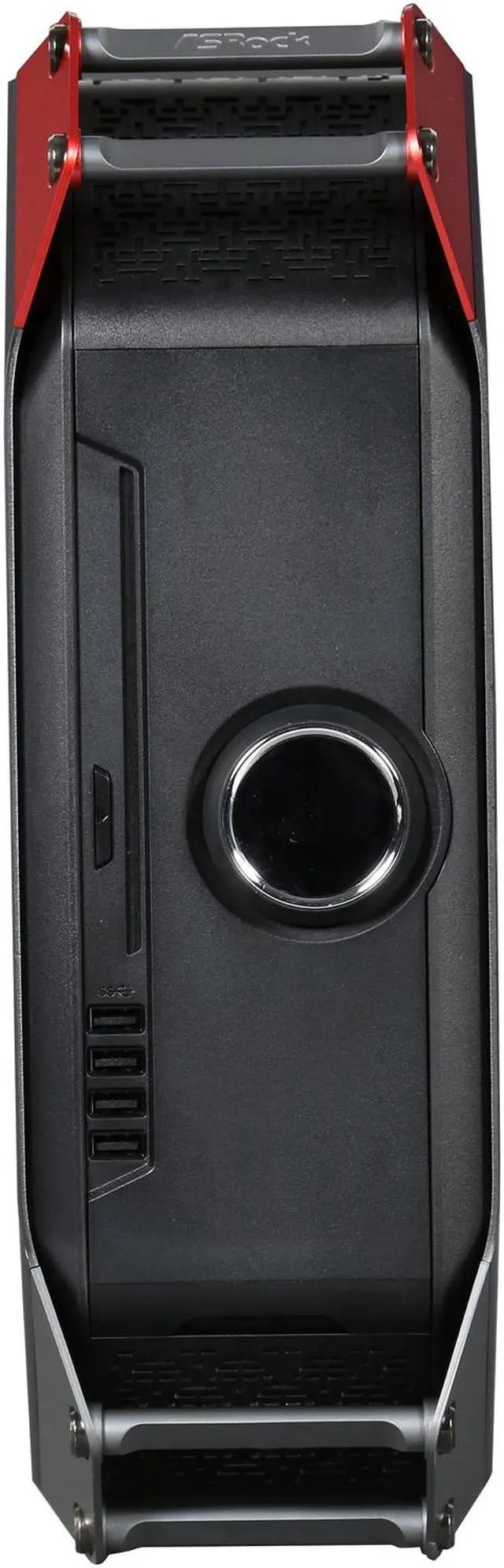

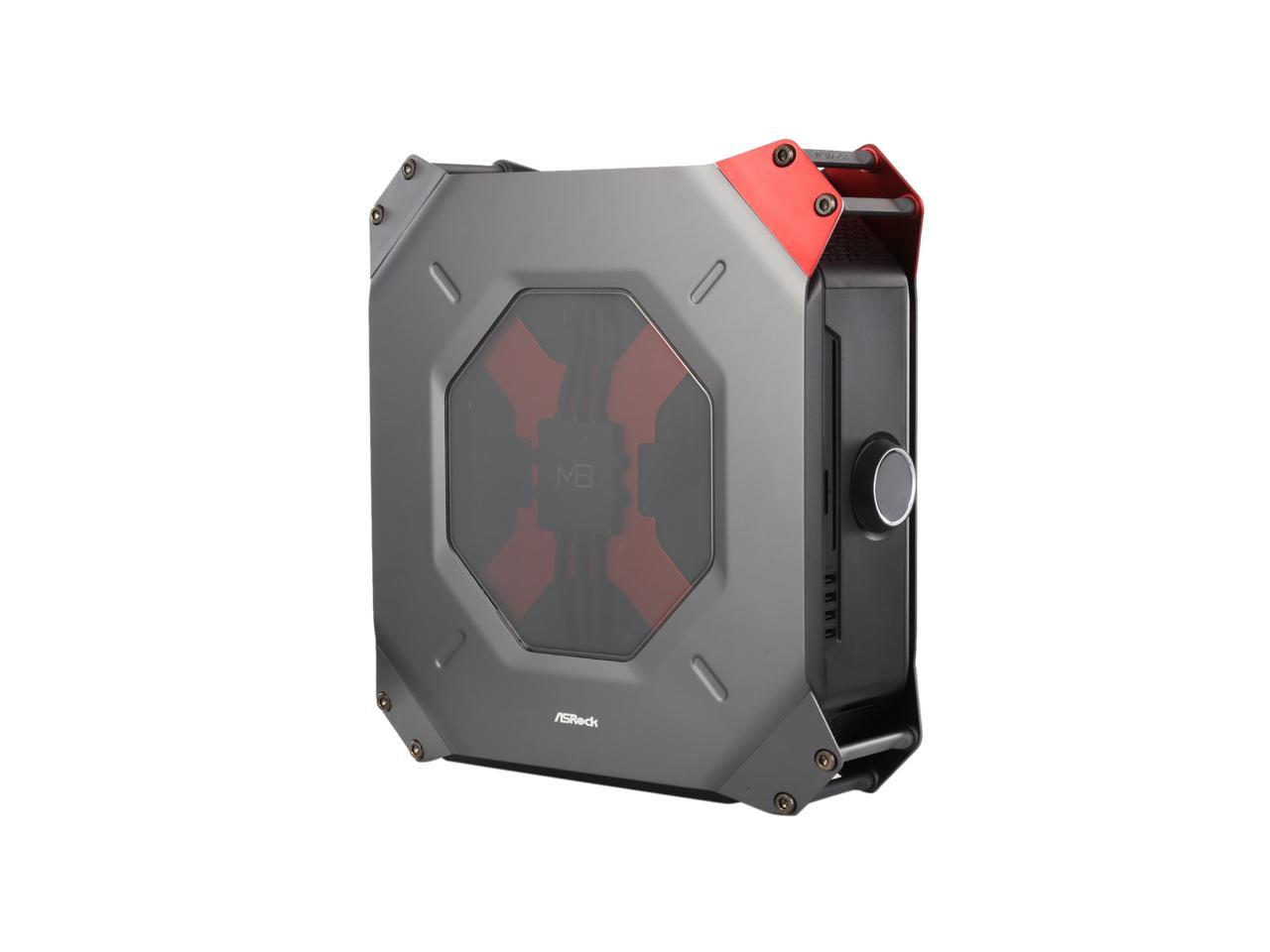

ASRock M8-Z97 Intel Socket LGA1150 Intel Z97 Supports 1 x Dual-slot Graphics Card *Support the latest NVIDIA GTX 9xx series and AMD R9 2xx series graphics card, please refer to VGA support list. **Max. Supported VGA Dimension: 295mm x 138mm

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 5th Generation Intel Core i7/i5/i3/Pentium/Celeron Intel Socket LGA1150
  • Intel Z97
  • 2 x 204Pin SO-DIMM DDR3 1600/1333/1066

  • Specs
  • Warranty & Returns
  • Reviews

Learn more about the ASRock M8-Z97

General

|
Brand
ASRock
Model
M8-Z97
Color
Storm Black

CPU Supported

|
CPU Type
5th Generation Intel Core i7/i5/i3/Pentium/Celeron
CPU Socket
Intel Socket LGA1150

Chipset

|
North Bridge
Intel Z97

Memory Supported

|
Memory installed
No Memory
Memory slot
2 x 204Pin SO-DIMM
Memory Type Supported
DDR3 1600/1333/1066
Max Memory Supported
16GB

Graphics

|
Discrete Graphic Card
Supports 1 x Dual-slot Graphics Card
*Support the latest NVIDIA GTX 9xx series and AMD R9 2xx series graphics card, please refer to VGA support list.
**Max. Supported VGA Dimension: 295mm x 138mm x 43.5mm.

Communications

|
Wireless LAN
2T2R WiFi 802.11 ac
Bluetooth
BT v4.0
Max LAN Speed
10/100/1000Mbps

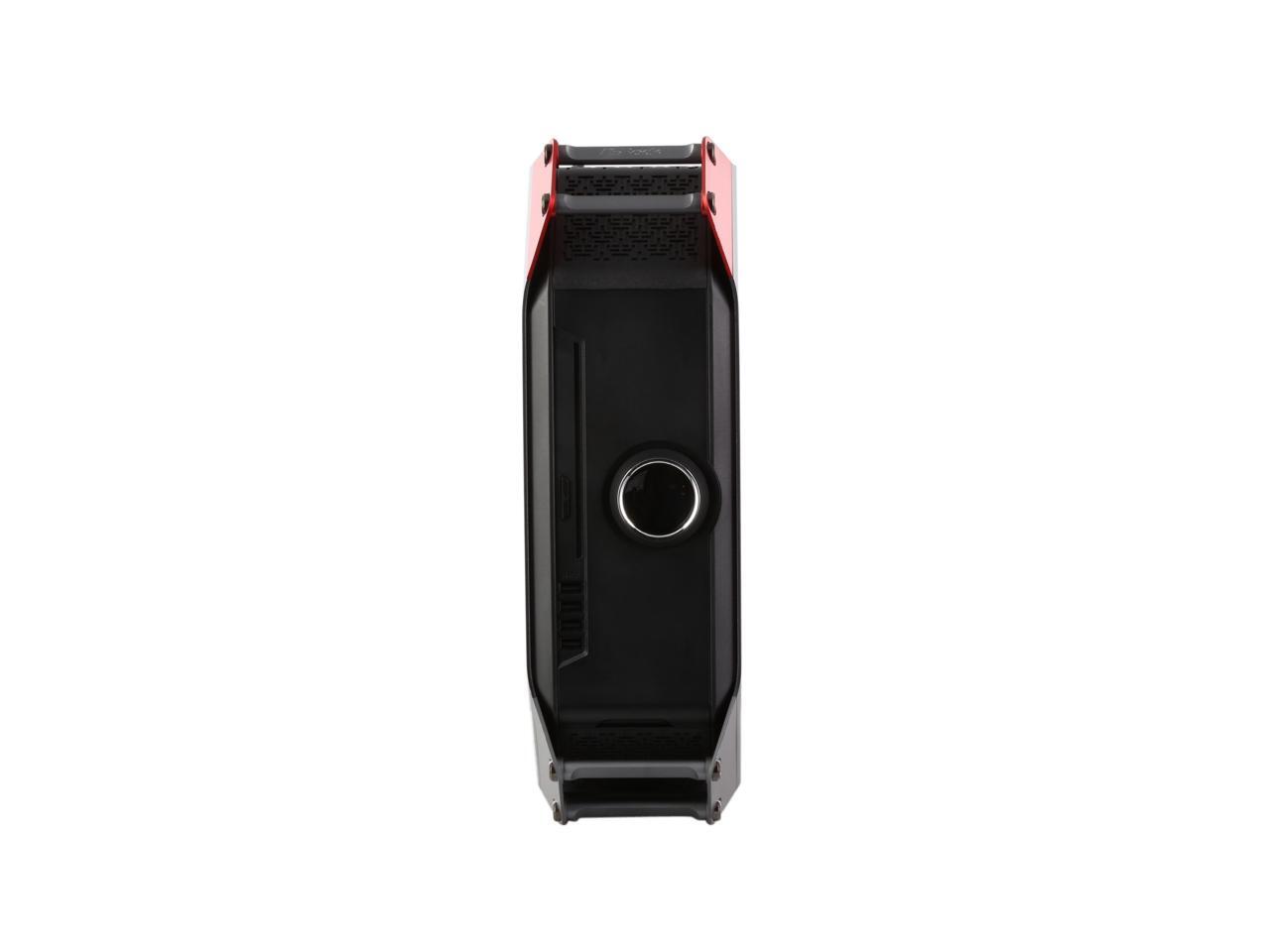

Front Panel Ports

|
Front USB
4 x USB 3.0
Front Audio Ports
1 x MIC
1 x Headphone
Card Reader
4-in-1 Card reader (SD3.0 / MMC / MS / MS PRO)

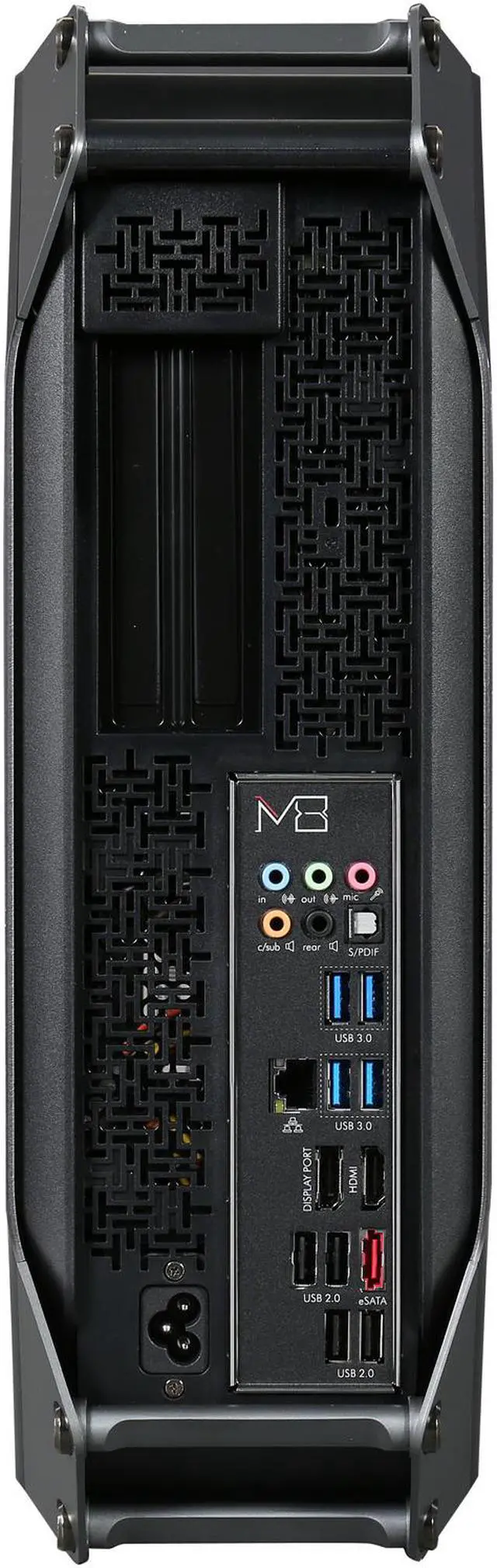

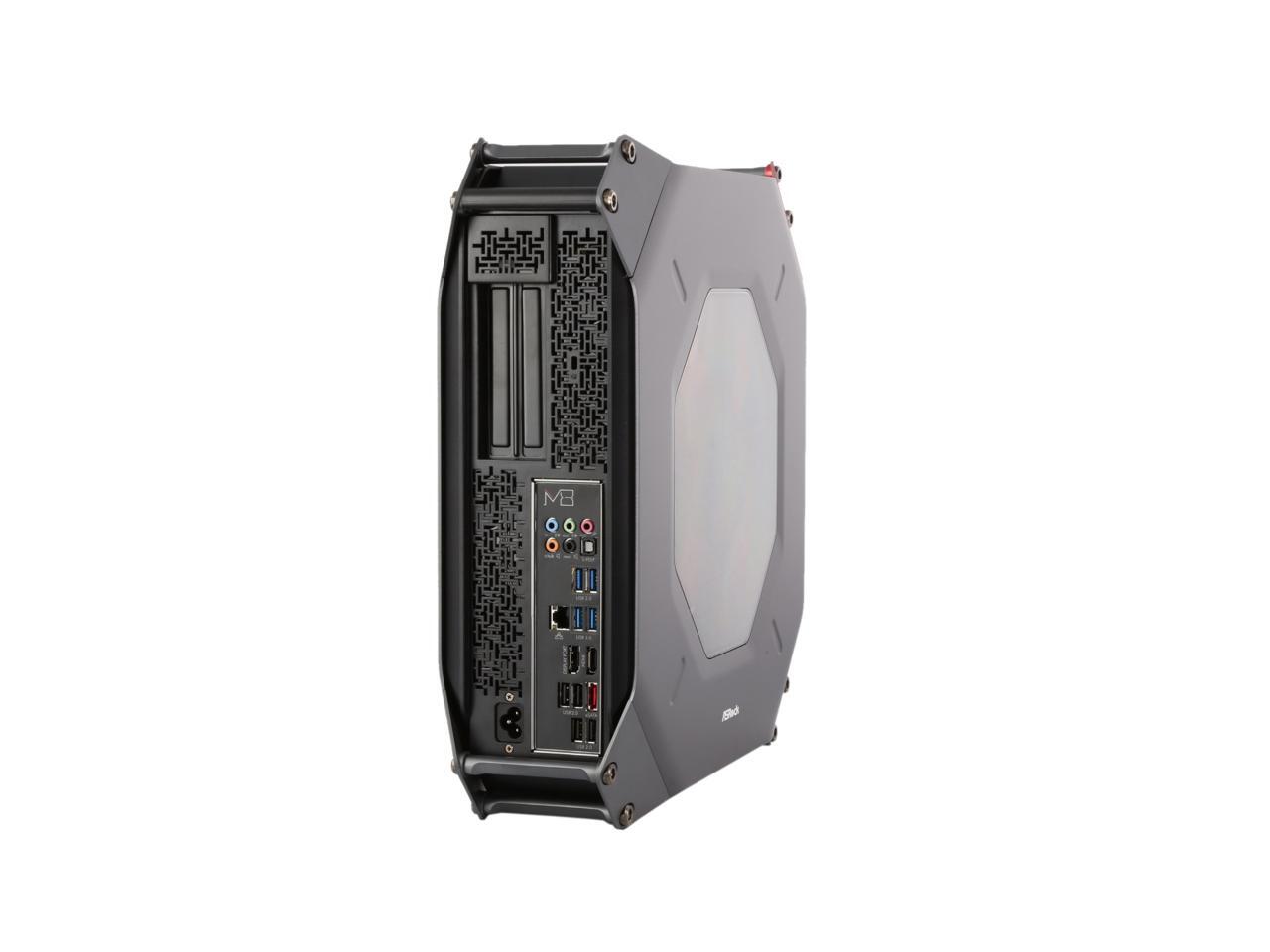

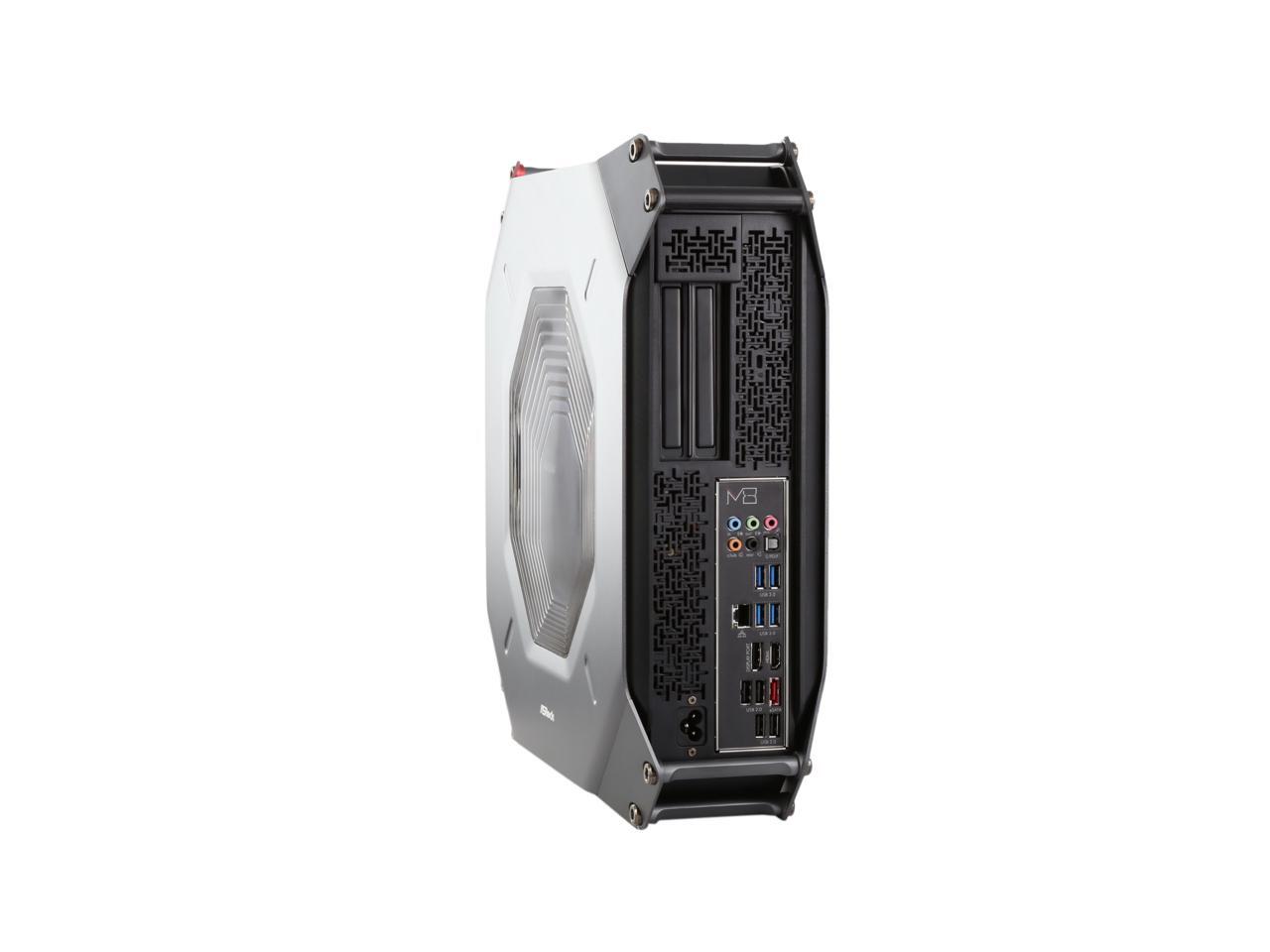

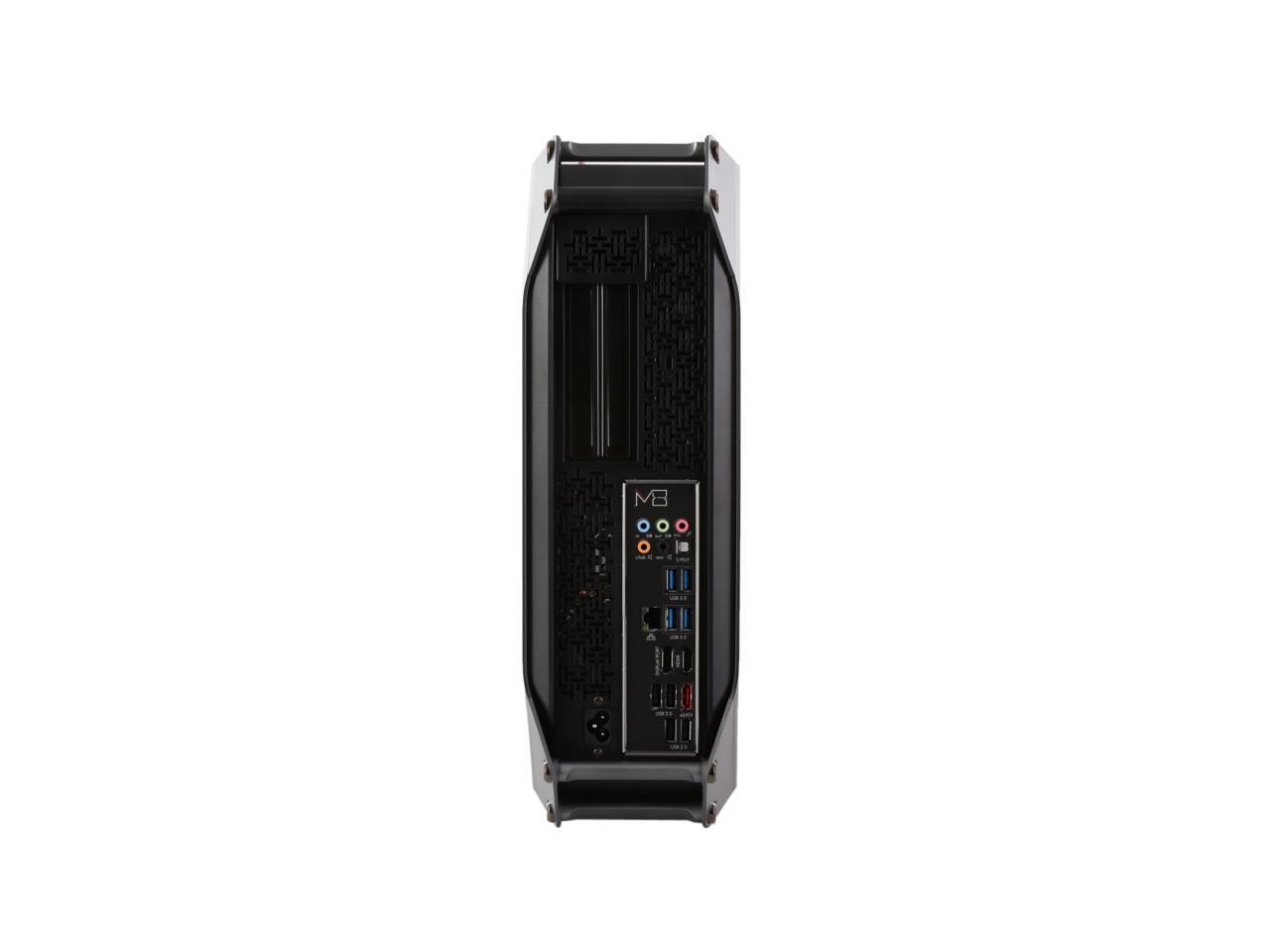

Back Panel Ports

|
HDMI
1 x HDMI
Rear USB
4 x USB 3.0
4 x USB 2.0
Rear e-SATA Ports
1 x eSATA2
Rear S/PDIF Out
Yes
Rear Audio Ports
5 jacks
Other Rear Ports
1 x 7.1 HD audio with Creative Sound Core3D
1 x Intel Gigabit LAN
1 x DP

Power Supply

|
Power Supply
SFX PSU 600W

Physical SPEC

|
Dimensions
4.48" x 14.65" x 15.75"
Material
Steel Body / Aluminum + Plastic

Features

|
Features

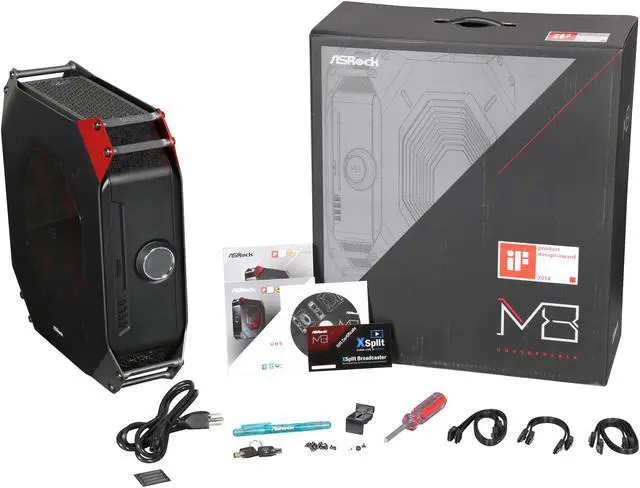

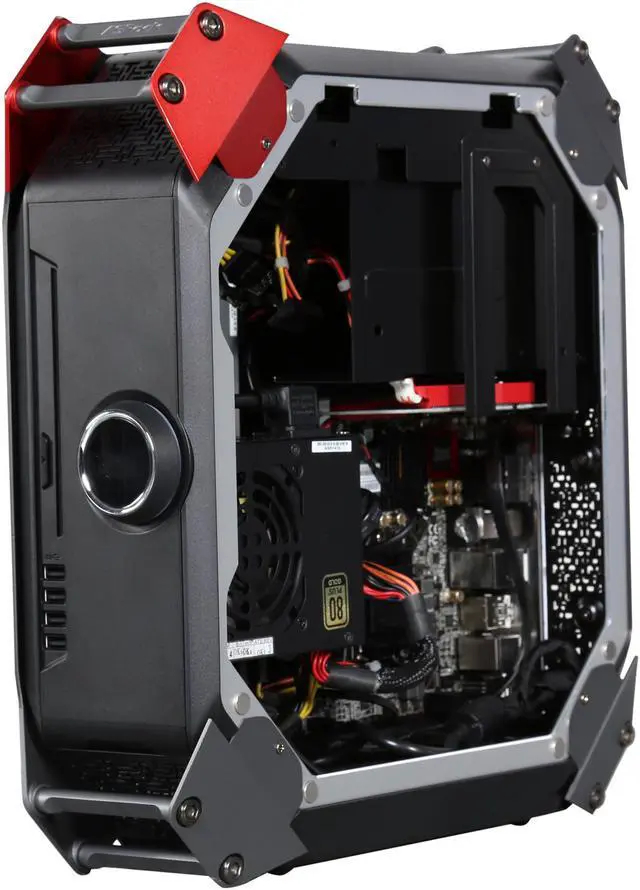

M8 is sold as a barebone system, which only includes a chassis, power supply, mini-ITX motherboard, fans, slot-in DVD-RW and SD 3.0

Intel Z97 Motherboard Inside

Supports 5th, New 4th and 4th Gen Intel Core Processors

A-Command with G-sensor integrated

Creative SoundCore 3D 7.1 CH HD Audio with Nichicon Fine Gold Audio Caps

2T2R WiFi 802.11ac + Bluetooth 4.0

SFX 600W 80 Plus Gold Power Supply

XSplit 3 Months Premium License

ASRock Cloud, ASRock Key Master

Additional Information

|
Date First Available
February 03, 2015
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: less than 1 day
Verified Owner
1/ 5
First time 12/10/2015 5:31:42 PM

Pros: No one can deny that this is a beautiful looking mini itx case, possibly the best looking one out there. It is made out of good sturdy outside materials, I believe it is aluminum and you can feel that it is solid. The design on the inside works great if you want to build a pc that packs a punch.

Cons: Sadly I decided to ignore the reviews on this and went ahead and purchased the case. I took all the time to get all the parts in and had everything set up nice then when to power on and it started and stopped. I have built many pc's and this is usually fixable but suprisingly with the second click it started up fine. Mid installation of windows 10 it died and seemed like it was doing whatever it wanted with turning on and off then working but not displaying any image. After troubleshooting for hours I cam to the conclusion that it was a bad motherboard. A bad motherboard! I was so disappointed in asrock on this one. I am usually a die hard MSI fan but I had no choice with this case. The motherboard was DOA and now after spending almost $2000 on this build I had to RMA the case and by the time the new one arrives hopefully working, It will be 3 weeks from the time of my original purchase. I am extremely upset with asrock and newegg.com about this one. My first part DOA officially goes to ASROCK.

0 out of 4 people found this review helpful. Did you?
Manufacturer Response:
Dear Alexander,

We sincerely apologize for any inconvenience this may have caused you.
Please trouble shoot the mainboard whether the issue is resolved.
• Turn the power off.
• Clear the CMOS.
• Check the mainboard’s CPU contact pins are normal (should be pointing same way and pattern).
• Reseat the CPU and heatsink fan if socket pins are normal.
• Test with single memory module.
• Test with onboard video.
• Connect the monitor.
• Turn on the power to check if its post.

If you have any technical support inquiry, please contact us at http://www.ASRock.com/Support/tsd.asp
We will assist you shortly.

Thank you

ASRock Support
Tech Support Email: http://www.ASRock.com/Support/tsd.asp
