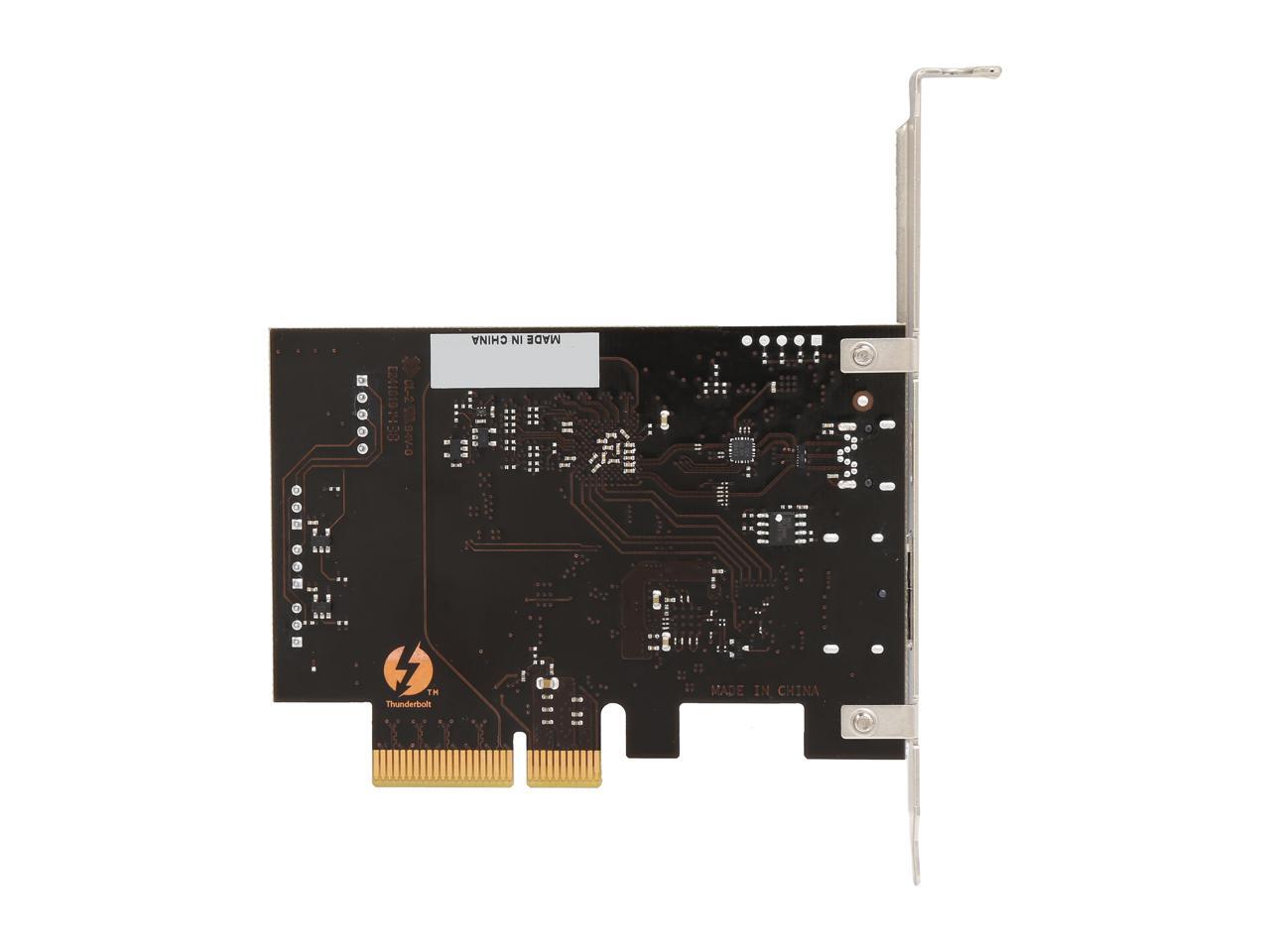

ASRock Add-On Card Model Thunderbolt 2 AIC

(5) Write a Review
Check more best sellers of "Add-On Cards"
Check more lowest price of "Add-On Cards"
Check more deals of "Add-On Cards"
OUT OF STOCK.
memory-finder
  • - Supports 20Gbps bi-directional bandwidth per channel with Thunderbolt™ 2 port Data Transfer Rate
Specs
Reviews

Learn more about the ASRock Thunderbolt 2 AIC

Model
Brand ASRock
Model Thunderbolt 2 AIC
Details

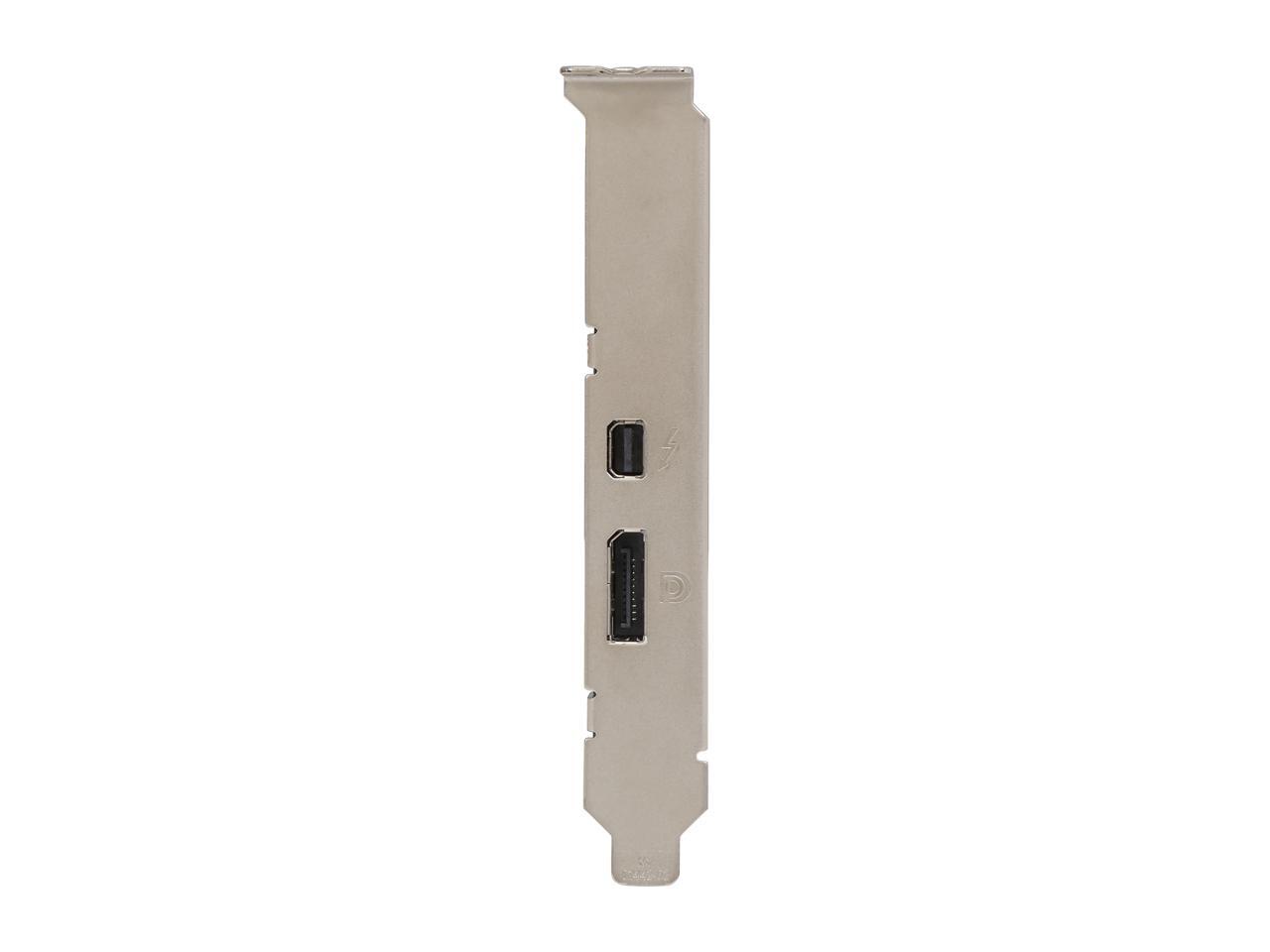

External Ports - 1 x Thunderbolt™ 2 Port (with up to 20Gbps bandwidth)
* Supports daisy-chaining of up to six Thunderbolt™ devices
- 1 x DisplayPort 1.2 IN Port
- 1 x TBT Header
Data Transfer Rate - Supports 20Gbps bi-directional bandwidth per channel with Thunderbolt™ 2 port
Operating Systems Supported - Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Specifications Chipset: Intel® DSL5320 Thunderbolt™ 2 Controller

Interface : PCI Express 2.0 x4 interface

Graphics:
- Supports Thunderbolt™ interface with max. resolution of 4K x 2K (4096 x 2160) @ 24Hz / 4K x 2K (3840 x 2160) @ 60Hz
- DisplayPort 1.2 Multi-Stream Transport compliant; supports daisy-chaining of multiple DisplayPort 1.2 monitors
Features
Features The Thunderbolt™ 2 AIC may be connected to the 5-pin Thunderbolt™ AIC header on your motherboard for Thunderbolt™ 2 technology. The mini DisplayPort supports up to six daisy chained Thunderbolt™ devices with data transfer rates at 20Gbps.

? Up to 20 Gbps : The fastest connection to your PC
? Bi-directional data transfer with PCI Express and DisplayPort
? Daisy Chain : Up to 6 Thunderbolt™ devices
? Large, high-resolution displays (Supports 4K)
Dimensions & Weight
Dimensions 3.80" x 4.70"
Packaging
Package Contents - Quick Installation Guide, Support CD
- 1 x TBT Header Cable
- 1 x DisplayPort Cable
Additional Information
Date First Available January 15, 2015
