What is the Thunderbolt NVM Firmware version ? To display this, connect a Thunderbolt device and right-click on the Thunderbolt taskbar icon and select About.

Hello, Mine is reading 'NVM Firmware version: 41.00'

Will the displayport use the garphics card or the motherboard?

It connects to the TB3 (Thunderbolt 3) header on your motherboard. Because TB3 is tech owned by Intel, very few AMD MBs have the header...do your homework to make sure. You also connect a DP (mini display port) in from your GPU, to then transmit out an up-to 8k picture by the TB3 ports on the back. Hope this helps.

Will this work with AMD boards, more specifically a B450?

I'm successfully using it on an AMD ASRock X570 Taichi board. If your board has the thunderbolt connectors on it then there's a good chance it will work as the drivers are pretty generic Intel ones, but i'd check your motherboard support docs for what they say to be sure as I previously used a Gigabyte Titan Ridge on my ASRock X570 and while it worked there was a quirk with the computer not going to sleep if I left a thunderbolt device on, this resolved when I used the ASRock TB card.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 15 wish lists)

Sold by Newegg

Shipped by Newegg

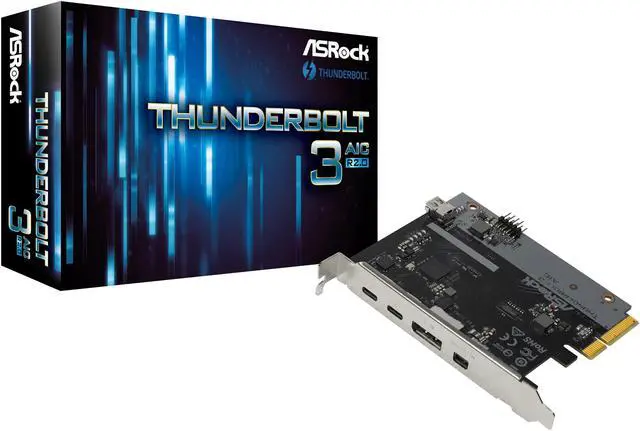

Main image of ASRock Thunderbolt 3 AIC R2.0

Alt view image 2 of 5 - ASRock Thunderbolt 3 AIC R2.0

Alt view image 3 of 5 - ASRock Thunderbolt 3 AIC R2.0

Alt view image 4 of 5 - ASRock Thunderbolt 3 AIC R2.0

Alt view image 5 of 5 - ASRock Thunderbolt 3 AIC R2.0

Shop All ASRock Products

ASRock Thunderbolt 3 AIC R2.0

(8) Write a Review

Delivers breathtaking 40 Gb/s data transfer speeds!
Single-cable connection for connecting a 5K@60Hz or two 4K@60Hz displays
Supports USB PD 2.0 charging up to 12V@3A (36W)
Connecting to any dock, device or display which includes PCIe, USB, DisplayPort protocols

Specs

Reviews (8)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock THUNERBOLT 3 AIC R2.0

Model
Brand	ASRock
Model	THUNERBOLT 3 AIC R2.0

Details
Type	PCI Express to Thunderbolt
Thunderbolt 3	Yes

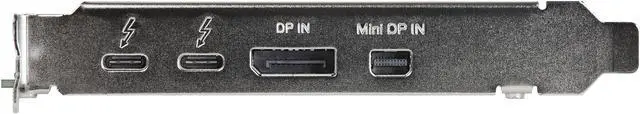

External Ports	2 x Thunderbolt 3 1 x DisplayPort 1 x Mini DisplayPort
Internal Ports	1 x Mini DisplayPort 1 x PCI Express 3.0 x4
Standard	Thunderbolt 3
Data Transfer Rate	Up to 40Gbps
Operating Systems Supported	Microsoft Windows 10 64-bit
Specifications	Dimensions: 3.3-in x 4.1-in Chipset: Intel JHL6540 Thunderbolt 3 Controller External Connectors - 2 x Thunderbolt 3 Type-C Ports (with up to 40Gbps bandwidth) * Supports daisy-chaining of up to six Thunderbolt devices - 1 x DisplayPort IN Port - 2 x Mini DisplayPort IN Ports * Please note that these two ports can only be used one at a time. * The internal Mini DisplayPort IN Port is compatible with the ASRock graphics card with the internal Mini DisplayPort OUT Port. - 1 x TBT Header Graphics: - Supports ThunderboltTM 3 interface with max. resolution of 4K x 2K (4096x2160) @ 60Hz for dual displays over a single cable connection - Supports up to two streams (eight lanes) of DisplayPort video bandwidth; supports daisy-chaining of multiple DisplayPort monitors

Features
Features	Delivers breathtaking 40 Gb/s data transfer speeds! Single-cable connection for connecting a 5K@60Hz or two 4K@60Hz displays Supports USB PD 2.0 charging up to 12V@3A (36W) Connecting to any dock, device or display which includes PCIe, USB, DisplayPort protocols

Packaging
Package Contents	Accessories: - Quick Installation Guide, Support CD - 1 x TBT Header Cable - 1 x DisplayPort Cable - 1 x Mini DisplayPort to Mini DisplayPort Cable - 1 x Mini DisplayPort to DisplayPort Adapter Cable

Additional Information
Date First Available	September 18, 2019
