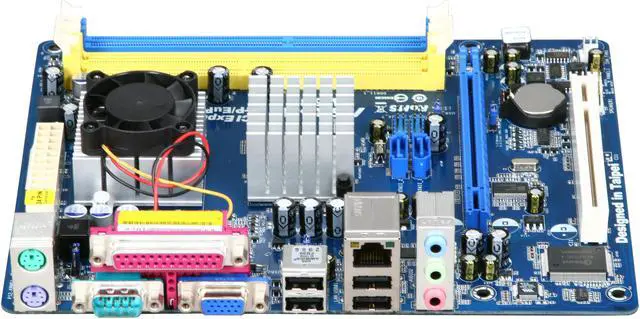

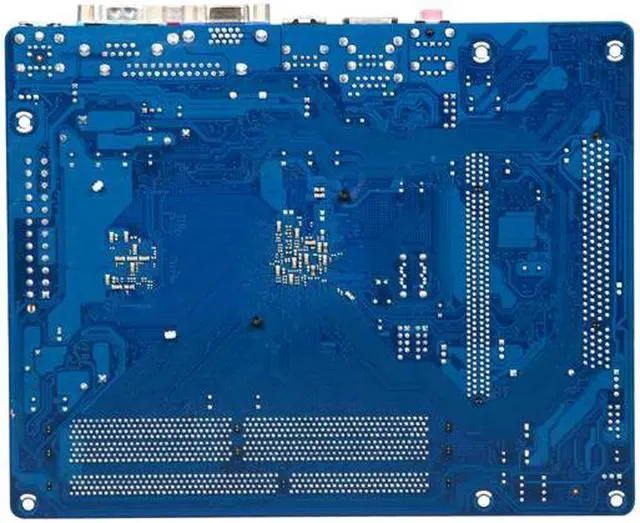

ASRock PV530 VIA [email protected] GHz VIA NanoBGA2 VIA VX900 Micro ATX Motherboard / CPU Combo
- VIA PV530
- DDR3 800 / DDR2 800
- VIA Chrome9 HD DX9 Graphics
Specs
Reviews (20)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock PV530
| Brand | ASRock |
|---|---|
| Model | PV530 |
| Combo Type | Motherboard / CPU Combo |
| CPU | VIA [email protected] GHz |
|---|---|
| With Cooler | Yes |
| CPU Socket Type | VIA NanoBGA2 |
|---|---|
| CPU Type | VIA PV530 |
| FSB | 800 MHz |
| Supported CPU Technologies | Supports Untied Overclocking Technology |
| North Bridge | VIA VX900 |
|---|
| Number of Memory Slots | 1 x 240pin DDR3 DIMM slot 2 x 240pin DDR2 DIMM slots |
|---|---|
| Memory Standard | DDR3 800 / DDR2 800 |
| Maximum Memory Supported | 4GB(DDR2) / 4GB(DDR3) (DDR3 and DDR2 are supported separately) |
| PCI Express x16 | 1 x PCI Express 2.0 x16 slot (blue @ x8 mode) |
|---|---|
| PCI Slots | 1 x PCI Slot |
| SATA | 2 x SATA 3.0Gb/s |
|---|
| Onboard Video Chipset | VIA Chrome9 HD DX9 Graphics |
|---|
| Audio Chipset | VIA VT1705 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Atheros PCIEx1 LAN AR8132L |
|---|---|
| LAN Speed | 10/100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Features | Solid Capacitor for CPU power Integrated VIA Chrome9 HD DX9 Graphics, DirectX 9.0, Max. shared memory 512MB Supports ASRock Instant Boos, Instant Flash, OC Tuner, OC DNA ErP/EuP Ready |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 8.5" x 6.7" |
| First Listed on Newegg | September 09, 2010 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-909-590-8308
- Support Email: [email protected]
- Support Website
- View other products from ASRock
