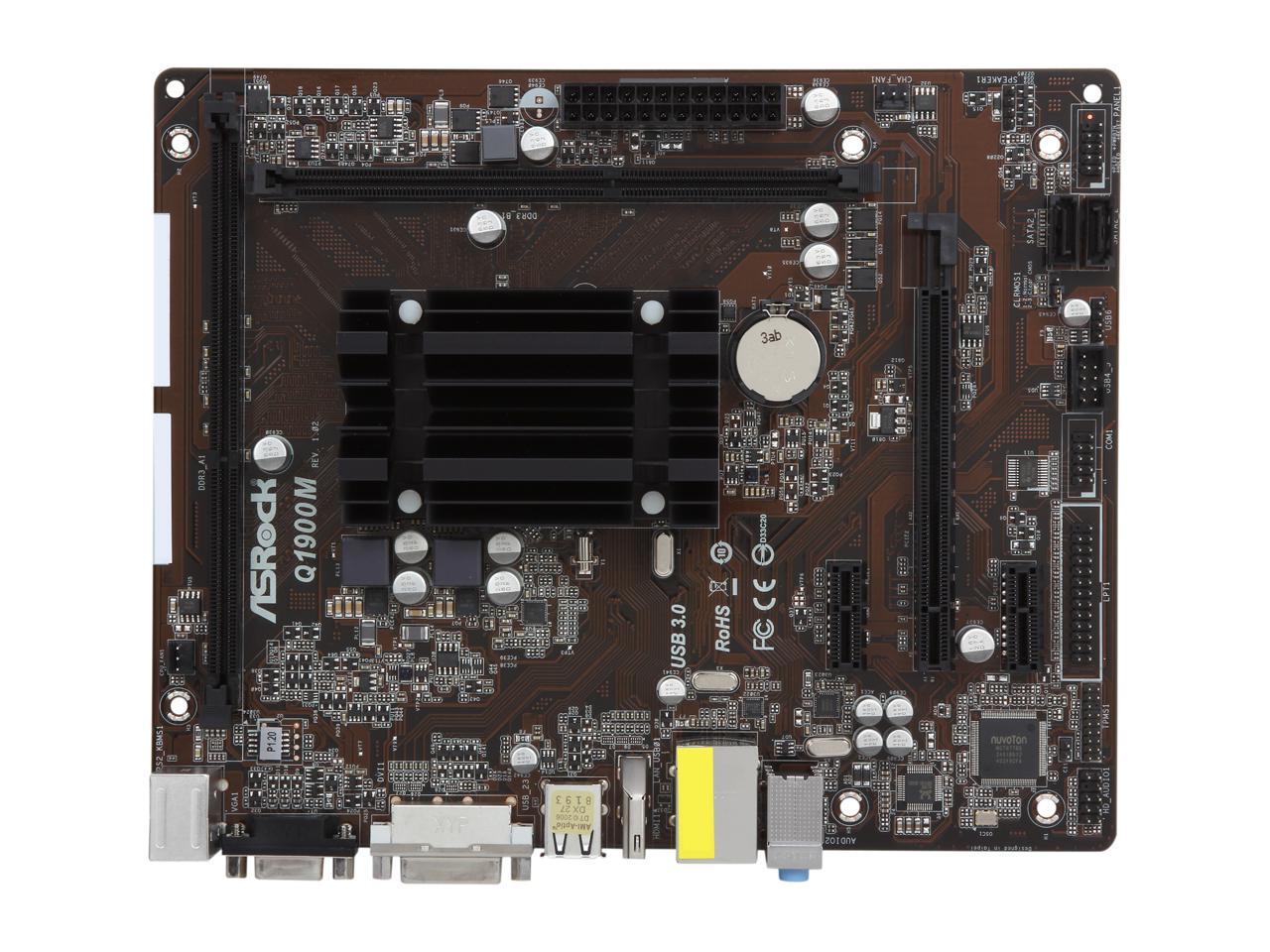

ASRock Q1900M Intel Quad-Core Celeron Processor J1900 Micro ATX Motherboard / CPU / VGA Combo

(43) Write a Review
See more "motherboard cpu combo"
Check more best sellers of "Embedded Solutions"
Check more lowest price of "Embedded Solutions"
OUT OF STOCK.
  • Intel Quad-Core Celeron Processor J1900
  • DDR3 1333/1066
  • 2 x SATA 3.0Gb/s
Specs
Reviews

Learn more about the ASRock Q1900M

Model
Brand ASRock
Model Q1900M
Combo Type Motherboard / CPU / VGA Combo
Bundle
CPU Intel Quad-Core Celeron Processor J1900
Supported CPU
CPU Type Celeron
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3/DDR3L 1333/ 1066
* If only one DIMM module is installed, please install it into DDR3_A1.
Maximum Memory Supported 16GB
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode)
PCI Express x1 2 x PCI Express 2.0 x1
Storage Devices
SATA 2 x SATA 3.0Gb/s
Onboard Video
Onboard Video Chipset Intel HD Graphics
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 5.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8111GR
LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1 x PS/2 Mouse
1 x PS/2 Keyboard
Video Ports 1 x D-Sub
1 x DVI-D
HDMI 1 x HDMI
RJ45 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 1.1/2.0 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
USB 3.0 1 x USB 3.1 Gen1 Port (Supports ESD Protection (ASRock Full Spike Protection))
Audio Ports HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Other Connectors 1 x Print Port Header
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion Header
1 x CPU Fan Connector (3-pin)
1 x Chassis Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x Front Panel Audio Connector
Features
Features Intel Quad-Core Processor J1900 + Micro ATX Motherboard

All Solid Capacitor design

Supports DDR3/DDR3L 1333 Long DIMM

1 PCIe 2.0 x16, 2 PCIe 2.0 x1

Graphics Output Options: D-Sub, DVI-D, HDMI

Built-in Intel 7th generation (Gen 7) graphics, DirectX 11.0, Pixel Shader 5.0

1 Print Port Header, 1 COM Port Header

1 USB 3.1 Gen1, 6 USB 2.0 (3 Front, 3 Rear), 2 SATA2

Realtek Gigabit LAN

5.1 CH HD Audio (Realtek ALC662 Audio Codec)

Supports ASRock Full Spike Protection, A-Tuning, XFast LAN, XFast RAM, USB Key
Physical Spec
Form Factor Micro ATX
Package Contents
Package Contents ASRock Q1900M Motherboard
Quick Installation Guide
Support CD
I/O Shield
2 x SATA Data Cables
Additional Information
Date First Available April 22, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
