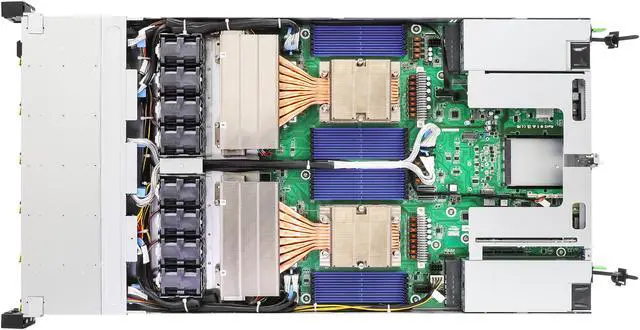

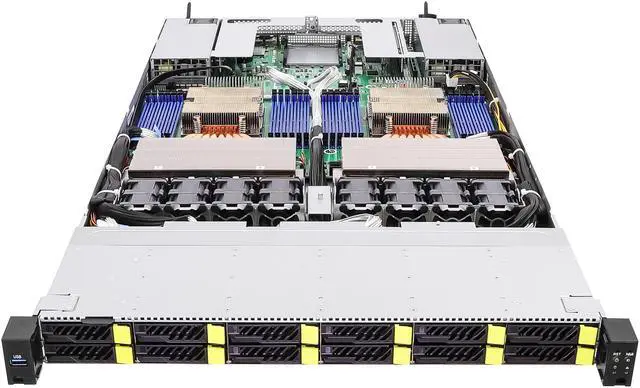

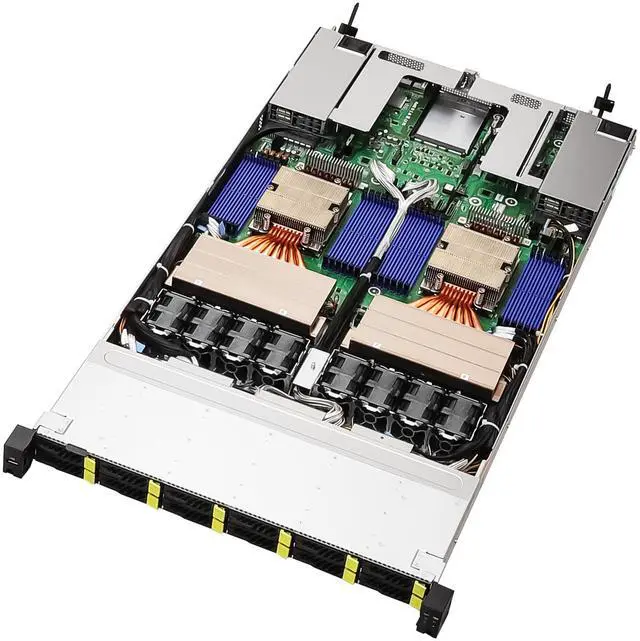

    ASRock Rack Server Barebone 1U12E-TURIN2/EVAC 1U Dual Socket SP5 (LGA 6096), supports AMD EPYC 9005/9004 (with AMD 3D V-Cache 12 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays

    Be the first to review this product...
    • 1U Rackmount with 1+1, 80-PLUS Platinum, 2000W CRPS
    • Dual Socket SP5 (LGA 6096), supports AMD EPYC 9005/9004 (with AMD 3D V-Cache Technology)
    • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
    • 12 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
    • 2 FHHL PCIe5.0 x16
    • Supports 2 M.2 (PCIe3.0 x4)
    • 1 OCP NIC 3.0 (PCIe5.0 x16)
    • 2 RJ45 (1GbE) by Intel i350
    • Remote Management (IPMI)
    Please note that this product is non-returnable and non-refundable.
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ASRock Rack 1U12E-TURIN2/EVAC

    General
    Brand ASRock Rack
    Model 1U12E-TURIN2/EVAC
    Form Factor 1U Rackmount
    Workload General Purpose Server
    CPU Supported
    CPU Type AMD EPYC 9005 & 9004 Series
    CPU Socket Socket SP5
    Installed CPU No CPU Installed
    Max Processors 2
    CPU Features Thermal Design Power Up to 360W*
    *360W is conditionally supported
    Memory Supported
    Memory Slots 24 x 288Pin
    Installed Memory Size No Memory Installed
    Max Memory Supported 12TB
    Memory Type Supported DDR5 6400
    Registered Yes
    Storage Supported
    Installed HDD No Storage Installed
    M.2 1 M-key (PCIe3.0 x4), supports 2280/2260/2242/2230 form factor [CPU0]
    1 M-key (PCIe3.0 x4), supports 2280/2242 form factor [CPU1]
    Graphics
    GPU/VPU Aspeed AST2600
    Expansion Slots
    PCI Express Rear: 2 FHHL PCIe5.0 x16 [CPU0][CPU1]
    Communications
    First LAN Intel I350
    Max. LAN Speed 1 Gigabit
    Expansion Bays
    Hot-Swap Bays 12 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
    Panel Ports
    Buttons Power button w/ LED, ID button w/ LED, System reset
    LEDs HDD Activity, LAN 1/2, System fault
    Front USB 2 x USB 3.2 Gen 1
    COM 1
    VGA 1
    Rear USB 2 x USB 3.2 Gen 1
    RJ45 2
    Power Supply
    Max. Power 1+1 CRPS 1000W @100-127Vac input / 2000W @200-240Vac input
    System
    BIOS Features AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
    ASRock Rack Instant Flash, ACPI 6.4 and abouve compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
    Cooling
    Fans Fan Tachometer
    CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
    Fan Multi-Speed Control
    Environment
    Hardware Monitor CPU, MB, Card side Temperature Sensing
    Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
    Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
