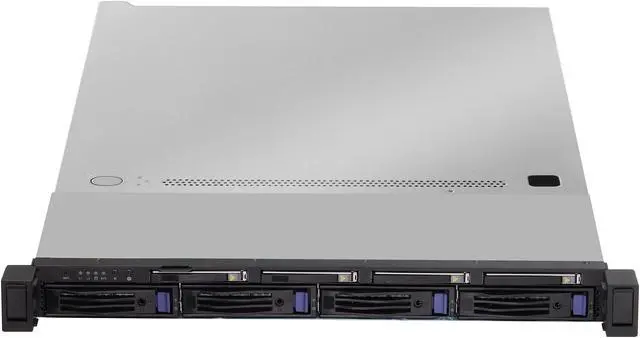

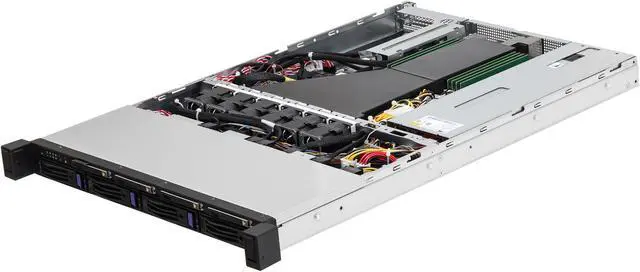

Asrock Rack 1U4L4E-ICX/2T 1U Rackmount General Purpose Server Barebone 4 bays NVMe and 4 bays SATA 3rd Gen Intel Xeon Scalable processors C621A
- 1U Rackmount with 1+1 Platinum 750W Slim PSU
- Support single Socket P+ (LGA 4189), supports 3rd Gen Intel Xeon Scalable Processors
- Support 4 x Hot-swap 2.5" NVMe (PCIe3.0 x4)/SATA drive bays, 4 Hot-swap 3.5" SATA drive bays
- Support 8 x DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel Optane Persistent Memory
- Support 1 x FHHL PCIe4.0 x16
- Support 1 x M.2 (PCIe3.0 x4 or SATA 6Gb/s)
- Support 2 x RJ45 (10GbE) by Intel X710-AT2 + 1 x dedicated IPMI
- Data Center Server & SMB and Database Processing & Storage
+
+
Learn more about the ASRock Rack 1U4L4E-ICX/2T
| Best Seller Ranking | #10 in Server Barebones |
|---|
| Brand | ASRock Rack |
|---|---|
| Model | 1U4L4E-ICX/2T |
| Form Factor | 1U Rackmount |
| Workload | General Purpose Server |
| CPU Type | Supports 3rd Gen Intel Xeon Scalable processors |
|---|---|
| CPU Socket | LGA 4189 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| North Bridge | Intel C621A |
|---|
| Memory Slots | 8 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel Optane Persistent Memory 200 series |
| Installed HDD | No Storage Installed |
|---|
| GPU/VPU | Aspeed AST2500 |
|---|---|
| Video Memory | 16MB |
| PCI Express | 1 FHHL PCIe4.0 x16 via RB1UX16_G4 |
|---|
| First LAN | Intel X710-AT2 |
|---|---|
| Max. LAN Speed | 10 Gigabit |
| Hot-Swap Bays | 4 Hot-swap 2.5" NVMe (PCIe3.0 x4)/SATA drive bays, 4 Hot-swap 3.5" SATA drive bays |
|---|
| VGA | 1 |
|---|---|
| Rear USB | 2 x USB 3.2 Gen 1 Type-A |
| RJ45 | 2 x RJ45 (10GbE), 1 dedicated IPMI |
| Max. Power | 1+1 Platinum 750W Slim PSU |
|---|
| Temperature | Operation temperature: 10°C ~ 35°C Non operation temperature: -40°C ~ 70°C |
|---|---|
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
| Dimensions | 26.63" x 17.24" x 1.71" |
|---|
| First Listed on Newegg | June 15, 2022 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 909-590-8308
- Support Website
- View other products from ASRock Rack
LOADING...
LOADING...
The ASRock Rack 1U4L4E-ICX/2T is a 1U server barebone for data centers and SMBs building a general-purpose or database server, with support for a 3rd Gen Intel Xeon Scalable CPU, eight memory slots, and eight hot-swap drive bays; CPU, memory, and storage are not included.
Recommended For
- Data-center and storage teams that want a 1U hybrid-storage host, with hot-swap NVMe bays for fast storage and separate 3.5-inch SATA bays for capacity-oriented drives.
- Cloud or enterprise server operators building a single-socket Xeon Scalable host for rack deployment, where 10GbE networking and out-of-band IPMI management fit their infrastructure.
- Server administrators who need to service drives without removing the system from operation and value redundant power supplies for rack-based deployments.
- Database and storage teams whose planned build benefits from a single Xeon Scalable processor, server-class DDR4 memory, and a mix of hot-swap drive types.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | General-purpose 1U rack server barebone for data-center, SMB, and database processing or storage workloads, with support for 3rd Gen Intel Xeon Scalable processors and hot-swap NVMe/SATA storage |
| Processor And Platform | Supports one 3rd Gen Intel Xeon Scalable processor on an LGA 4189 socket; no CPU installed. Intel C621A chipset |
| Memory Configuration | Eight 288-pin DIMM slots supporting DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel Optane Persistent Memory 200 series; no memory installed |
| Storage And Expansion | Four hot-swap 2.5-inch NVMe (PCIe 3.0 x4)/SATA bays and four hot-swap 3.5-inch SATA bays; one M.2 slot supports PCIe 3.0 x4 or SATA 6 Gb/s |
| PCIe Expansion | One full-height, half-length PCIe 4.0 x16 slot via RB1UX16_G4 |
| Networking And Management | Intel X710-AT2 provides two 10GbE RJ45 ports, plus one dedicated IPMI port |
| Graphics And Display | Aspeed AST2500 graphics with 16 MB video memory and one VGA output |
| USB Connectivity | Two rear USB 3.2 Gen 1 Type-A ports |
| Power Supply | 1+1 Platinum 750W slim PSU |
| Chassis And Physical Specifications | 1U rackmount chassis measuring 26.63 × 17.24 × 1.71 inches; black; listed item weight 49.6 pounds |
| Operating Environment | Operating temperature: 10°C to 35°C; non-operating temperature: −40°C to 70°C; non-operating humidity: 20% to 90%, non-condensing |
| Model Identifiers | ASRock Rack 1U4L4E-ICX/2T |
