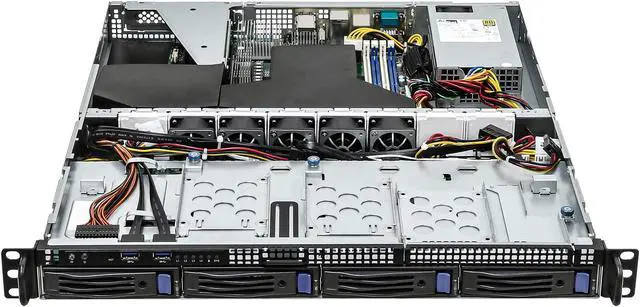

Asrock Rack 1U4LW-X570/2L2T 1U Rackmount Server Barebone AMD AM4 Ryzen PGA1331 X570 4x3.5 HDD 400W PSU Dual 10G
- 1U Rackmount with 400W PSU, 100-240V, 50-60Hz
- Support AMD Ryzen 5000 Series Desktop Processors
- Support 4 x DIMM slots, DDR4 288-pin ECC and non-ECC UDIMM, up to 32GB per DIMM
- Support 4 x Hot-swap 3.5" HDD/SSD bays + 3 x fixed 2.5" HDD/SSD bays
- Support 1 x PCIe 4.0 x16 full height half length card (by Riser card)
- Support 2 x RJ45 10GbE RJ45 by Intel X710-AT2+ 2 x RJ45 1GbE by Intel? i210 + 1 x Dedicated IPMI LAN
- General-purpose Server
+
+
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Rack 1U4LW-X570/2L2T
| Best Seller Ranking | #44 in Server Barebones |
|---|
| Brand | ASRock Rack |
|---|---|
| Model | 1U4LW-X570/2L2T |
| Form Factor | 1U Rackmount |
| CPU Type | AMD Ryzen 5000 Series Desktop Processors AMD Ryzen 4000 G-Series Desktop Processors with Radeon Graphics AMD Ryzen PRO 4000 and 3000 Series Desktop Processors AMD Ryzen 3rd Gen Desktop Processors AMD Ryzen 3000 Series Processors with Radeon Graphics |
|---|---|
| CPU Socket | AM4 |
| North Bridge | AMD X570 |
|---|
| Memory Slots | 4 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | Up to DDR4 3200 MHz* * AMD Ryzen 3000 Series Processors with Radeon Graphics support up to 2666 MHz |
| Installed HDD | No Storage Installed |
|---|
| GPU/VPU | Aspeed AST2500 |
|---|---|
| Video Memory | 16MB DDR4 |
| PCI Express | Supports 1 FHHL (PCIe4.0 x16)* via RB1UX16_G4 *Supports PCIe3.0 x8 when using AMD Ryzen 3000 Series Processors with Radeon Graphics |
|---|
| First LAN | Intel X710-AT2 |
|---|---|
| Second LAN | Intel I210 |
| Max. LAN Speed | 10 Gigabit + 1 Gigabit |
| Hot-Swap Bays | 4 x Hot-swap 3.5" HDD/SSD (SATA 6Gb/s) bays |
|---|
| COM | 1 |
|---|---|
| VGA | 1 |
| Rear USB | 2 x USB 3.2 Gen 2 |
| RJ45 | 2 x RJ45(10GbE) by Intel X710-AT2 2 x RJ45(1GbE) by Intel i210 |
| Max. Power | 400W, 80-Plus Gold, 100-240V, 50-60Hz |
|---|
| Features | 1U Rackmount with 450W RPSU supports AMD Ryzen 5000 Series Desktop Processors 4 DDR4 ECC/ non-ECC UDIMM, up to 32GB each 4 Hot-swap 3.5'' HDD/SSD bays, 3 fixed 2.5" HDD/SSD bays 1 FHHL PCIe 4.0 x16 On-board dual 10GbE RJ45 and dual 1GbE RJ45 Remote management (IPMI) |
|---|
| Dimensions | 1.75" x 21.00" x 19.00" |
|---|
| First Listed on Newegg | February 05, 2021 |
|---|
