Learn more about the ASRock Rack 1U4LW-X570
GeneralBrand | ASRock Rack |
---|
Model | 1U4LW-X570 |
---|
Form Factor | 1U Rackmount |
---|
CPU SupportedCPU Type | Supports: AMD Ryzen 5000 and 3000 Series Desktop Processors AMD Ryzen 4000 and 3000 G-Series Desktop Processors with Radeon Graphics AMD Ryzen PRO 5000, 4000 and 3000 Series Desktop Processors |
---|
CPU Socket | AM4 |
---|
Installed CPU | No CPU Installed |
---|
ChipsetNorth Bridge | AMD X570 |
---|
Memory SupportedMemory Slots | 4 x 288Pin |
---|
Installed Memory Size | No Memory Installed |
---|
Memory Type Supported | Up to 3200 MHz* * AMD Ryzen 3000 G-Series Desktop Processors with Radeon Graphics support up to 2666 MHz |
---|
Storage SupportedInstalled HDD | No Storage Installed |
---|
M.2 | 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [X570] *Supports PCIe3.0 when using AMD Ryzen 4000 and 3000 G-Series Desktop Processors with Radeon Graphics |
---|
GraphicsGPU/VPU | Aspeed AST2500 |
---|
Expansion SlotsPCI Express | Supports 1 FHHL PCIe4.0 x16* via RB1UX16_G4 *Supports PCIe3.0 x8 when using AMD Ryzen 3000 G-Series Desktop Processors with Radeon Graphics *Supports PCIe3.0 x16 when using AMD Ryzen 4000 G-Series Desktop Processors with Radeon Graphics |
---|
CommunicationsFirst LAN | Intel I210 |
---|
Max. LAN Speed | 10/100/1000Mbps |
---|
Expansion Bays2.5" Bays | 3 fixed 2.5" HDD/SSD (SATA 6Gb/s) bays |
---|
5.25" Bays | 1 Slim ODD (BTO) |
---|
Hot-Swap Bays | 4 Hot-swap 3.5" HDD/SSD (SATA 6Gb/s) bays |
---|

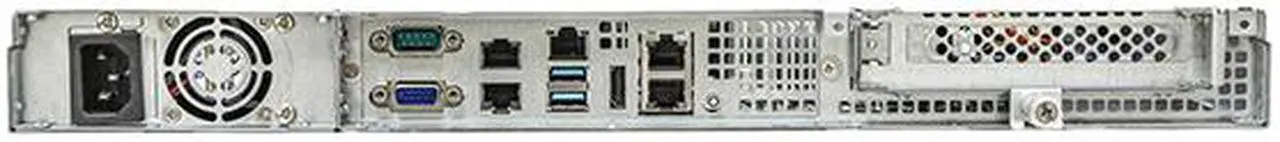

Panel PortsFront USB | 2 x USB 3.2 Gen1 Type-A |
---|
COM | 1 |
---|
VGA | 1 |
---|
Rear USB | 2 x USB 3.2 Gen 2 Type-A |
---|
RJ45 | 2 RJ45(1GbE) by Intel i210 1 dedicated IPMI |
---|
Power SupplyMax. Power | 400W Single PSU, 80-Plus Gold, 100-240V, 50-60Hz |
---|
EnvironmentTemperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
---|
Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
---|

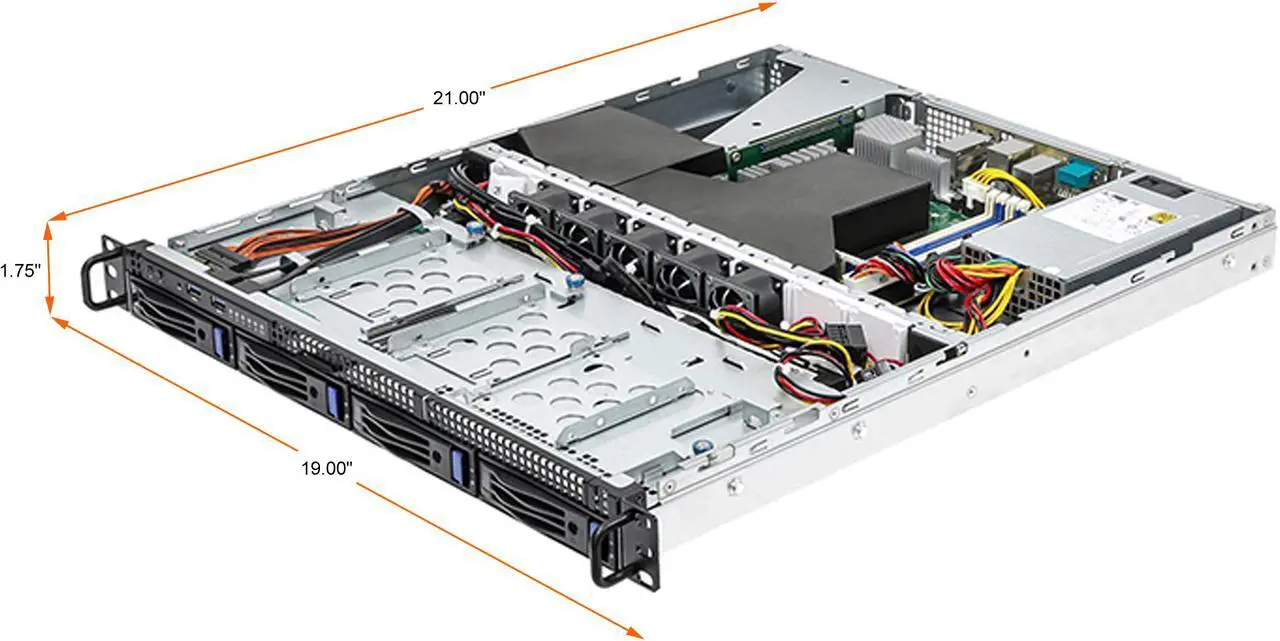

Dimensions & WeightDimensions | 1.75" x 21.00" x 19.00" |
---|
Additional InformationDate First Available | April 07, 2022 |
---|
