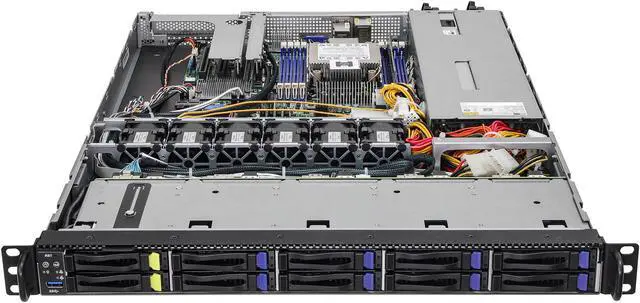

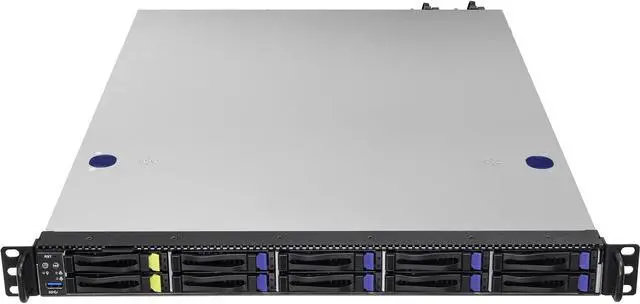

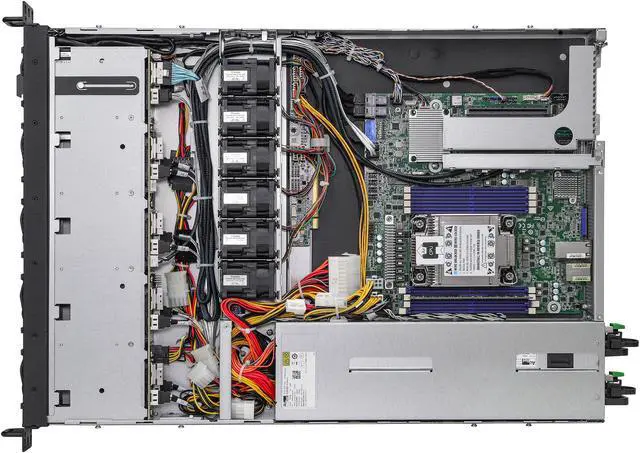

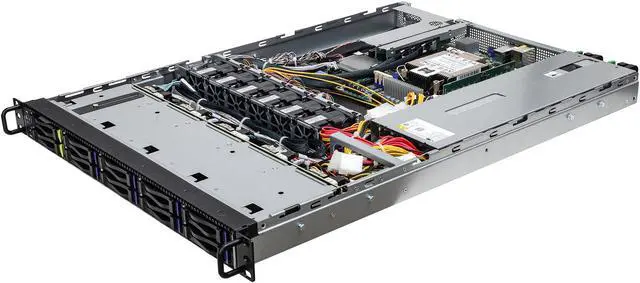

The ASRock Rack 1U8S2E-ICX/2T is a 1U barebone server for data-center and enterprise deployments that need 3rd Gen Intel Xeon Scalable processing, dual 10GbE, and hot-swap storage; CPU, memory, and drives are not included.
Recommended For
- IT teams building a compact hybrid-storage server that needs eight hot-swap SATA bays plus two hot-swap NVMe/SATA bays in a 1U chassis.
- Enterprise or edge administrators who want a rack-mounted server with dual 10GbE ports and dedicated IPMI for remote management.
- Server builders deploying a single compatible 3rd Gen Intel Xeon Scalable processor with DDR4 ECC memory for enterprise compute or virtualization workloads.
- Organizations that need redundant power supplies in a space-constrained rack deployment and can provision the CPU, memory, and drives separately.
Spec Summary
| Attribute | Value |
|---|
| Best For | General-purpose 1U rack server deployments using a 3rd Gen Intel Xeon Scalable processor, with support for multiple hot-swap drive bays and DDR4 memory |
|---|
| Processor And Platform | Supports one 3rd Gen Intel Xeon Scalable processor on an LGA 4189 socket with an Intel C621A chipset |
|---|
| Memory Configuration | Eight 288-pin DIMM slots; supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS and Intel Optane Persistent Memory 200 series, with per-DIMM capacities up to 64GB for RDIMM, 256GB for RDIMM-3DS, 128GB for LRDIMM and 256GB for LRDIMM-3DS; maximum frequency 3200MHz |
|---|
| Storage And Expansion | Two hot-swap 2.5-inch NVMe/SATA bays and eight hot-swap 2.5-inch SATA bays; supports 2.5-inch drives |
|---|
| PCIe Expansion | One rear FHHL PCIe 4.0 x16 slot via RB1UX16_G4 |
|---|
| Networking And Management | Two 10GbE RJ45 ports via Intel X710-AT2, plus a dedicated IPMI port for remote management |
|---|
| Graphics And Display | Aspeed AST2500 with 16MB DDR4 video memory and one VGA port |
|---|
| USB Connectivity | Two rear USB 3.2 Gen 1 ports |
|---|
| Power And Cooling | 750W 1+1 redundant power supply, rated for 100–240V at 50–60Hz; air cooling |
|---|
| Barebone Configuration | No CPU, memory or storage installed; compatible with servers |
|---|

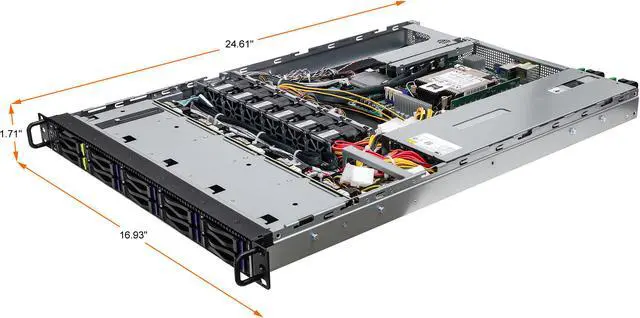

| Physical Design | 1U rackmount chassis measuring 1.71 × 24.61 × 16.93 inches; aluminum enclosure in black |
|---|
| Operating Environment | Operating temperature: 10°C to 35°C; non-operating temperature: -40°C to 70°C; non-operating humidity: 20% to 90%, non-condensing |
|---|
| Model Identifiers | ASRock Rack 1U8S2E-ICX/2T |
|---|
