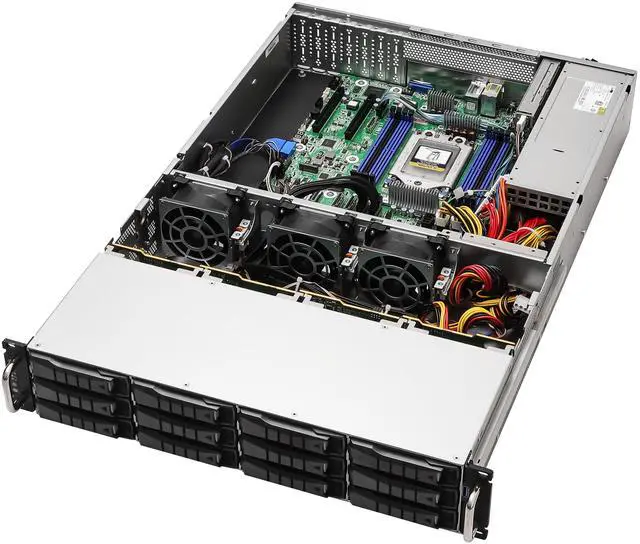

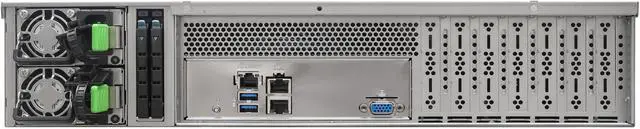

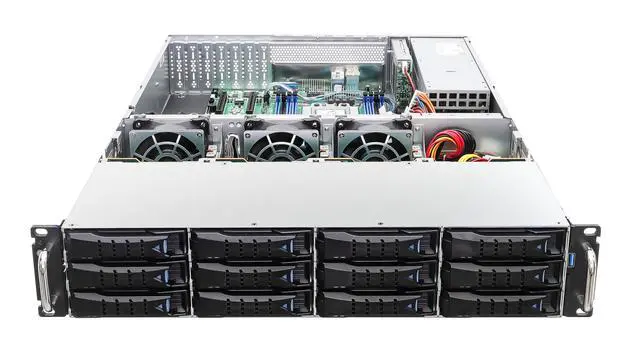

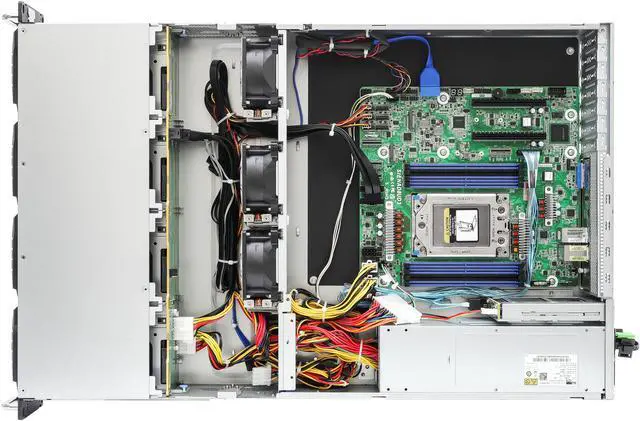

ASRock Rack Server Barebone 2U12L2S-SIENA 2U Single Socket SP6 (LGA 4844), supports AMD EPYC 8004 series processors 12 Hot-swap 3.5" SATA drive
- 2U Rackmount with 1+1, 80-PLUS Platinum/Titanium, 800W CRPS
- Single Socket SP6 (LGA 4844), supports AMD EPYC 8004 series processors
- 8 DIMM slots (2DPC/1DPC), supports DDR5 RDIMM
- 12 Hot-swap 3.5" SATA drive bays
- 2 Hot-swap 2.5" SATA drive bays, supports 7mm height
- 2 HHHL PCIe5.0 x16
- 2 M.2 (PCIe5.0 x4)
- 2 RJ45 (1GbE) by Intel i210
- Remote management (IPMI)
+
+
Learn more about the ASRock Rack 2U12L2S-SIENA
| Brand | ASRock Rack |
|---|---|
| Model | 2U12L2S-SIENA |
| Form Factor | 2U Rackmount |
| Workload | General Purpose Server |
| CPU Type | AMD EPYC 8004 Series |
|---|---|
| CPU Socket | Socket SP6 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| Memory Slots | 8 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 96GB |
| Memory Type Supported | DDR5 4800 |
| Installed HDD | No Storage Installed |
|---|
| GPU/VPU | Aspeed AST2600 |
|---|
| PCI Express | 2 HHHL PCIe5.0 x16 |
|---|
| VGA | 1 |
|---|---|
| Rear USB | 2 x USB 3.2 Gen 1 Type-A |
| RJ45 | 2 |
| Max. Power | 1+1 CRPS 800W 80-PLUS Platinum/Titanium |
|---|
| BIOS Features | AMI UEFI BIOS; 256 Mb SPI Flash ROM ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
|---|
| Fans | Fan Tachometer Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
|---|
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
|---|---|
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
| Dimensions | 3.5" x 26.7" x 16.9" |
|---|
| First Listed on Newegg | September 08, 2025 |
|---|
