Asrock Rack 2U24E2S-ROME 2U Rackmount Storage Server Barebone 24 NVMe bays and 2 bays SATA/SAS AMD EPYC 7003 (with AMD 3D V-Cache Technology)/7002 series processors

2U Rackmount with 1+1 1200W Redundant PSU
Support single Socket SP3 (LGA4094), supports AMD EPYC 7003 (with AMD 3D V-Cache Technology)/7002 series processors
Support 16 x DIMM slots (2DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS
Support 1 x low-profile PCIe4.0 x8

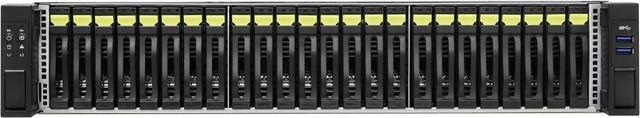

Support 24 x Hot-swap 2.5" NVMe drive bays
Support 2 x Hot-swap 2.5" SATA/SAS drive bays
Support 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
Support 2 x RJ45 (1GbE) by Intel i350-AM2 + 1 x dedicated IPMI
Support 1 x OCP NIC 3.0 (PCIe4.0 x16)

This item is covered under the Manufacturer Only Return Policy.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock Rack 2U24E2S-ROME


Best Seller Ranking	#46 in Server Barebones

CPU Supported
CPU Type	Supports AMD EPYC 7003 (with AMD 3D V-Cache Technology)/7002 Series Processors A BIOS update is required to support AMD EPYC 7003 series processors with AMD 3D V-Cache Technology
CPU Socket	Socket SP3
Installed CPU	No CPU Installed
Max Processors	1

Storage Supported
Installed HDD	No Storage Installed
M.2	2 M.2 (PCIe4.0 x4/SATA) supports 22110/2280 form factor

Graphics
GPU/VPU	Aspeed AST2500
Video Memory	256MB DDR4

Expansion Slots
PCI Express	1 low-profile PCIe4.0 x8

Communications
First LAN	Intel i350-AM2
Max. LAN Speed	1 Gigabit

Expansion Bays
Hot-Swap Bays	Front Side Drive Bay: 24 Hot-swap 2.5" drive bays, Supports 24 NVMe (PCIe x4) drives Front Side Backplane: one 24-port NVMe/SAS/SATA passive backplane Rear Side: 2 Hot-swap 2.5" drive bays, supports 2 SAS/SATA Drives with optional HBA/RAID adapter card Rear Side Bakplane: one 2-port SAS/SATA passive backplane

Panel Ports
Front USB	2 x USB 3.2 Gen1
COM	1
VGA	1
Rear USB	2 x USB 3.2 Gen1
RJ45	2 RJ45 (1GbE) by Intel i350-AM2 1 dedicated IPMI LAN

Power Supply
Max. Power	Type: 1+1 CRPS Output Watts: 1200W Efficiency: 80-PLUS Platinum AC Input: Lowline: 100-127V, Highline: 200-240V

Environment
Temperature	Operation temperature: 10°C ~ 35°C Non operation temperature: -40°C ~ 70°C
Humidity	Non operation humidity: 20% ~ 90% ( Non condensing)

Dimensions & Weight
Dimensions	25.98" x 17.24" x 3.44"

Additional Information
First Listed on Newegg	September 12, 2022
