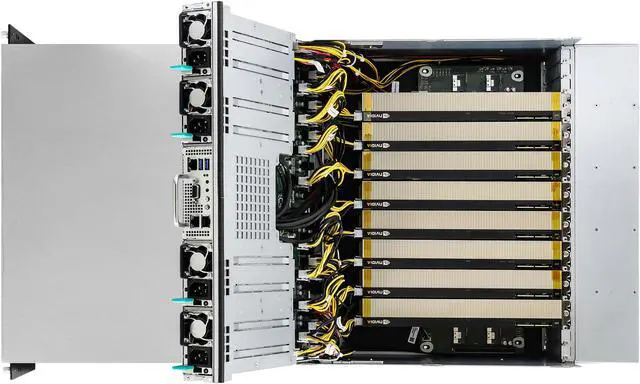

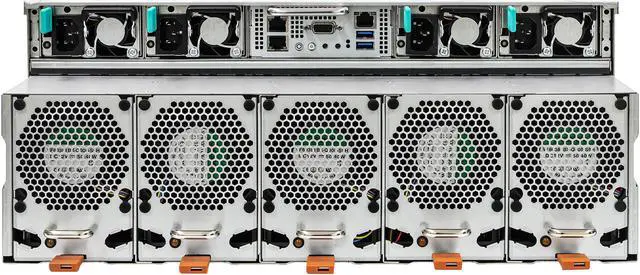

ASRock Rack 4U8G-ICX2/2T 4U Rackmount Server Barebone 1+1 Socket P+ (LGA 4189) DDR4 3200
- 4U Rackmount with 3+1 Redundant 1600W CRPS
- Dual Socket (LGA 4189), support 3rd Gen Intel® Xeon® Scalable Processors
- 16+16 DIMM slots, support DDR4 RDIMM/ LRDIMM/ NVDIMM
- 12 hot-swap 3.5" drive bays
- Supports up to 8 dual-slot PCIe4.0 x16
- Front side 1 FHHL PCIe3.0 x4 and OCP NIC 3.0, optional OCP2.0 mezzanine cards support
- On-board dual 10GbE RJ45 by Intel® X710-AT2
+
+
Learn more about the ASRock Rack 4U8G-ICX2/2T
| Brand | ASRock Rack |
|---|---|
| Model | 4U8G-ICX2/2T |
| Form Factor | 4U Rackmount |
| CPU Type | Intel Xeon |
|---|---|
| CPU Socket | 1+1 Socket P+ (LGA 4189) |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |
| Memory Slots | 32 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | DDR4 3200 |
| Installed HDD | No Storage Installed |
|---|---|
| Serial ATA | 6 x SATA 600 |
| M.2 | 1 M-key (PCIe3.0 x4/SATA) supports 22110/2280 form factor, 1 optional M-key (PCIe3.0 x4/SATA) supports 22110/2280 form factor |
| GPU/VPU | Aspeed AST2500 |
|---|---|
| Video Memory | 4 GB DDR4 |
| PCI Express | PCIe x 16, Rear: 8 FHFL dual-slot PCIe4.0 x16 via 4UXG_SWB PCIe x 4, Front: 1 FHHL PCIe3.0 x4 via 4UXG_SL2P, 1 OCP3.0 PCIe3.0 x4 via 4UXG_SL2OCP3 |
|---|
| First LAN | Intel X710-AT2 |
|---|---|
| Max. LAN Speed | 10 Gigabit |
| Hot-Swap Bays | 12 x Hot-swap 3.5" drive bays Supports 2 SATA drives; additional 4-8 SATA drives possible by cable reconfiguration Supports 8 SAS/SATA drives by additional PCIe 8-port RAID/HBA card |
|---|
| Front USB | 4 x USB 3.2 Gen 1 |
|---|---|
| VGA | 1 |
| RJ45 | 2 |
| Max. Power | 1600W, 3+1 CRPS, 80-PLUS Platinum |
|---|
| Features | 4U Rackmount with 3+1 Redundant 1600W CRPS Dual Socket (LGA 4189), support Dual 3rd Gen Intel Xeon Scalable Processors 16+16 DIMM slots, support DDR4 RDIMM/ LRDIMM/ NVDIMM 12 hot-swap 3.5" drive bays Supports up to 8 dual-slot PCIe4.0 x16 Front side 1 FHHL PCIe3.0 x4 and OCP NIC 3.0, optional OCP2.0 mezzanine cards support On-board dual 10GbE RJ45 by Intel X710-AT2 |
|---|
| Dimensions | 17.24" x 33.27" x 6.95" |
|---|
| First Listed on Newegg | January 24, 2022 |
|---|
