$359.00
Meet Your Seller

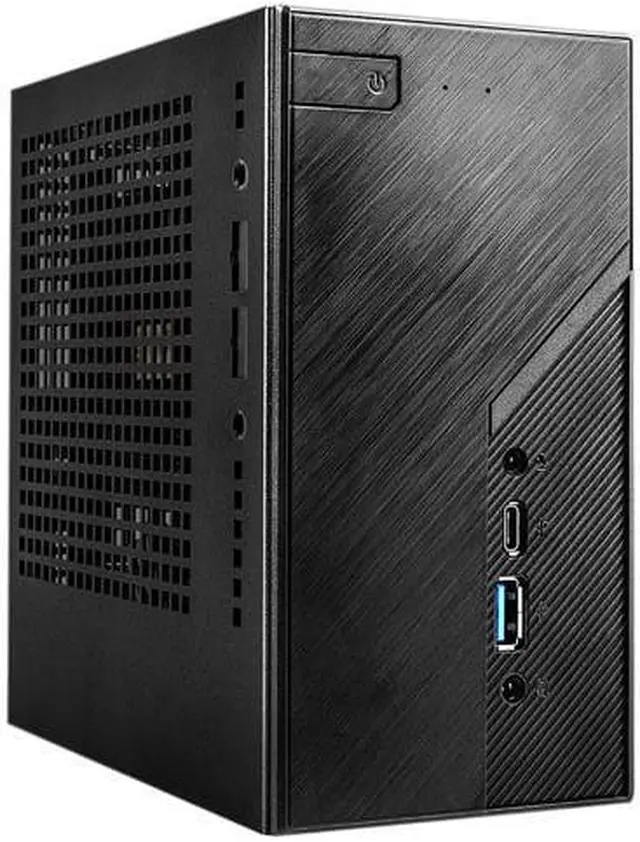

ASRock DESKMINI H470W LGA1200/ DDR4/ WiFi/ USB3.2/ Mini PC Barebone System
- Mfr Part Number: DESKMINI H470W
- No CPU, No Memory, No HDD, No ODD, No OS
- CPU: Supports Intel 10th Gen LGA1200 Processors (Max. TDP 65W)
- Cooler: Supports Intel CPU Cooler (Max. Height 46mm)
- Chipset: Intel H470
- Memory: Supports 2 x SO-DIMM DDR4-2933MHz, Max. 64GB (non-ECC)
- Graphics:
- HDMI(4K@30Hz)
- DisplayPort1.4
- DisplayPort 1.4 (with USB Type-C Alt Mode)
- D-Sub
- Audio: 1 x Head Phone with MIC Jack, 1 x MIC-In (Realtek ALC233)
- Front USB: 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen2 Type-A
- Rear USB: 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A
- Storage:
- 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
- 1 x Ultra M.2 Socket, support type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- LAN: Gigabit LAN (Intel I219V)
- WLAN: 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Connectors: 1 x USB 2.0 Header 1 x Front Panel Header 2 x 4-Pin fan connectors (CPU, SYS) 1 x DC-In Jack (Supports 19V Power Adapters) 1 x Internal Speaker Header (4-Pin) 1 x Chassis Intrusion Header (2-Pin) 1 x Audio Header (4-Pin)
Accessory: 2 x SATA Data with Power Cable 1 x 120W/19V adapter 1 x Screws Pack 1 x Intel AC-3168
Wi-Fi Kit Dimensions: 155.0 x 155.0 x 80.0 mm ( 1.92L )
Accessory: 2 x SATA Data with Power Cable 1 x 120W/19V adapter 1 x Screws Pack 1 x Intel AC-3168
Wi-Fi Kit Dimensions: 155.0 x 155.0 x 80.0 mm ( 1.92L )
