Learn more about the ASRock Rack RM23712-C622LM/22E
General| Brand | ASRock Rack |
|---|
| Model | RM23712-C622LM/22E |
|---|
| Form Factor | 2U Rackmount |
|---|
| Workload | General Purpose Server |
|---|
CPU Supported| CPU Type | Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors |
|---|
| CPU Socket | LGA 3647 |
|---|
| Installed CPU | No CPU Installed |
|---|
| Max Processors | 2 |
|---|
Chipset| North Bridge | Intel C622 |
|---|
Memory Supported| Memory Slots | 24 x 288Pin |
|---|
| Installed Memory Size | No Memory Installed |
|---|
| Memory Type Supported | DDR4 2933 |
|---|
| Channel Supported | 6 Channel |
|---|
Storage Supported| Installed HDD | No Storage Installed |
|---|
Expansion Slots| PCI Express | SLOT2: PCIe3.0 x16 [CPU1]
SLOT1: PCIe3.0 x16 [CPU0] |
|---|

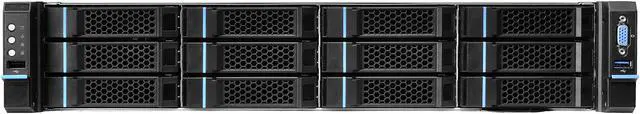

Expansion Bays| Hot-Swap Bays | Front Side Drive Bay: 12 Hot-swap 3.5" drive bays*
Front Side Backplane: 12-port 12Gbps* passive backplane * SAS drive is only supported with additional RAID/HBA cards
Rear Side: 4 Hot-swap 2.5" drive bays
Rear Side Bakplane: 2-port 12Gbps* and 2-port PCIe3.0 backplane * SAS drive is only supported with additional RAID/HBA cards |
|---|
Panel Ports| Front USB | 1 x USB 2.0
1 x USB 3.0 |
|---|
| VGA | 1 |
|---|
Power Supply| Max. Power | 2 (1+1), Redundant CPRS PSU, 1200W, Platinum |
|---|

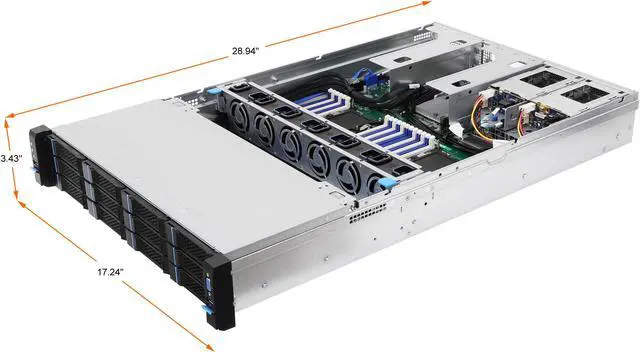

Dimensions & Weight| Dimensions | 3.43" x 17.24" x 28.94" |
|---|
Additional Information| First Listed on Newegg | April 22, 2022 |
|---|
