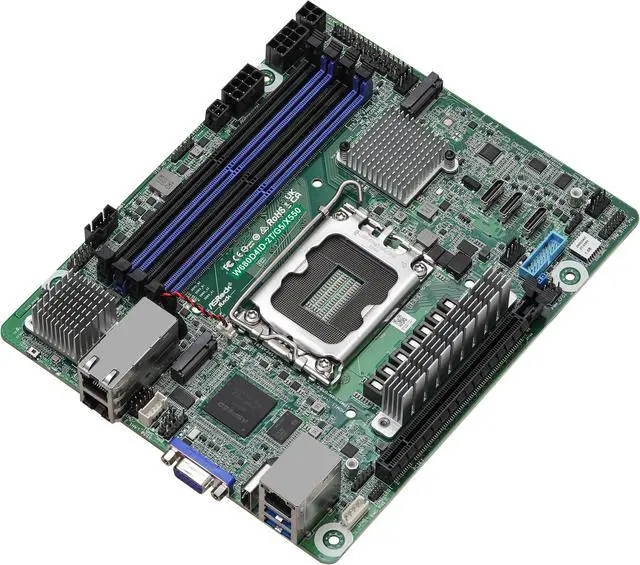

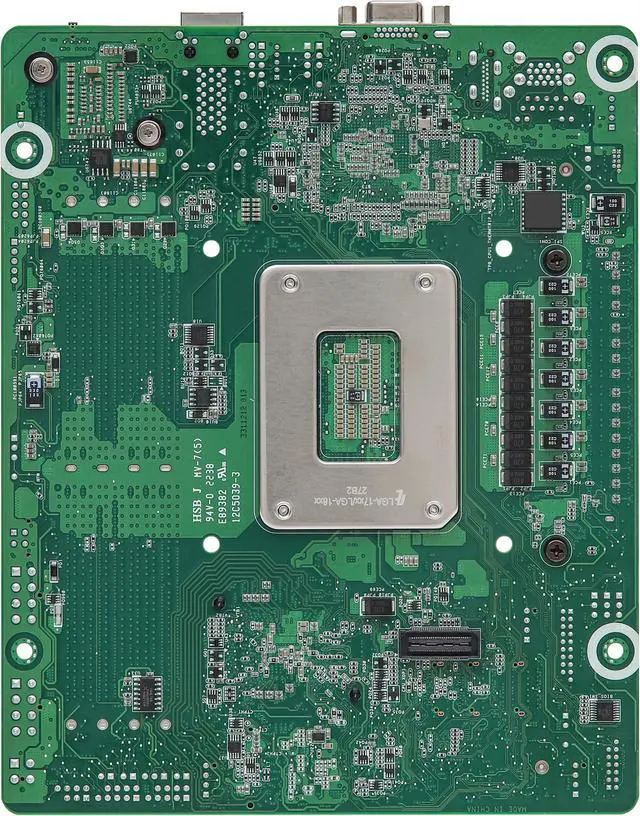

AsRock Rack W680D4ID-2T/G5/X550 Deep Mini-ITX Server Motherboard Single Socket 12th & 13th Gen Intel® Core™ series processors (LGA 1700) W680 Dual 10G Lan PCIe 5.0
- Deep mini-ITX (6.7" x 8.2")
- Support 12th & 13th Gen Intel® Core™ series processors (LGA 1700) W680 chipset
- Support 4 DIMM slots (2DPC), DDR5 ECC/non-ECC UDIMM Memory
- Support 1 PCIe5.0 x16
- Support 1 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s), 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)
- Support 2 M.2 (PCIe4.0 x4)
- Support 8 SATA 6Gb/s
- Support 2 RJ45 (10GbE) by Intel X710-AT2
- Remote management (IPMI)
+
+
Learn more about the ASRock Rack W680D4ID-2T/G5/X550
| Best Seller Ranking | #92 in Server Motherboards |
|---|
| Brand | AsRock Rack |
|---|---|
| Model | W680D4ID-2T/G5/X550 |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | 12th Gen Intel Core i3 / 12th Gen Intel Core i5 / 12th Gen Intel Core i7 / 12th Gen Intel Core i9 / 13th Gen Intel Core i3 / 13th Gen Intel Core i5 / 13th Gen Intel Core i7 / 13th Gen Intel Core i9 / 14th Gen Intel Core i3 / 14th Gen Intel Core i5 / 14th Gen Intel Core i7 / 14th Gen Intel Core i9 / Intel Celeron / Intel Pentium |
| North Bridge | Intel W680 |
|---|
| Memory Slots | 4 x DDR5 288-pin |
|---|---|
| Memory Standard | DDR5 4400 |
| Maximum Memory Supported | 192GB |
| ECC Supported | Yes |
| PCI Express 5.0 x16 | SLOT7: PCIe5.0 x16 [CPU] |
|---|---|
| Other Slots | 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH] 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH] 1 OCuLink (PCIe4.0 x4) [PCH] |
| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| M.2 | 1 M-key (PCIe4.0 x4); support 2280 form factor [CPU] 1 M-key (PCIe4.0 x4); support 2280 form factor [PCH] |
| Onboard Video Chipset | Aspeed AST2600 |
|---|
| LAN Chipset | Intel X550 |
|---|---|
| LAN Speed | 10Gbps |
| Max LAN Speed | 2 x 10Gbps |

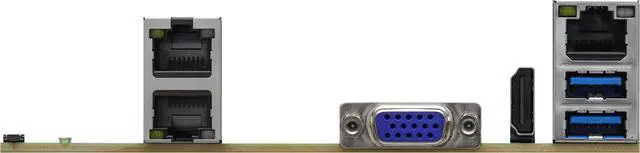

| Back I/O Ports | 1 x D-Sub / 1 x HDMI / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A |
|---|
| Onboard USB | USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1) |
|---|---|
| Other Connectors | Power Connector: 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in Other Power Connectors: 1 (4-pin) for HDD power when using 12V DC-in power source Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED COM Header: 1 Speaker Header: 1 Fan Header: 3 (4-pin) Thermal Sensor Header: 1 TPM Header: 1 (13-pin, SPI) SGPIO Header: 1 SMBus header: 1 PMBus header: 1 IPMB Header: 1 Clear CMOS: 1 (2-pin) NMI Header: 1 |
| BIOS Feature | AMI 256Mb SPI Flash ROM Plug and Play(PnP), ACPI 6.4 and above compliance wake up events, SMBIOS 3.6.0 and above, ASRock Rack instant flash |
|---|
| Form Factor | Deep mini-ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 8.2" |
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
LOADING...
LOADING...
The ASRock Rack W680D4ID-2T/G5/X550 is a Deep mini-ITX server motherboard for compatible LGA 1700 Intel Core systems, with dual 10GbE, IPMI remote management, ECC-capable DDR5, and extensive storage connectivity. It suits compact servers and workstations that need remote administration and fast networking.
Recommended For
- Home-lab builders running Proxmox, TrueNAS, or containers in a compact server who want ECC UDIMM support, IPMI remote management, and built-in 10GbE.
- NAS builders fitting a multi-drive ZFS or backup server into a compact enclosure, with SATA and OCuLink connections for storage expansion.
- Small-server builders who need fast wired networking for a NAS, virtualization host, or lab connected to a 10GbE network.
- Workstation or server builders who want a deep mini-ITX footprint but still need four DDR5 UDIMM slots and one PCIe x16 slot for an add-in card.
Real-World Use Scenarios
- Building a compact NAS for a home or small office? Use the SATA and OCuLink connections for a multi-drive pool and the dual 10GbE ports for fast transfers to compatible networked devices; the exact drive count depends on how the OCuLink ports are configured.
- Setting up a small Proxmox homelab? Pair a supported Intel Core processor and memory with this board to build a compact host for virtual machines and containers, with IPMI available for remote management.
- Creating a compact server for important files or services? ECC UDIMM support gives builders the option to use error-correcting memory, while the board’s storage connections leave room for a multi-drive setup.
- Running a server in a case or location without a monitor and keyboard? Use IPMI to access remote management functions, which can make routine administration easier without being physically at the system.
- Building a compact server that also needs a discrete GPU or other expansion card? The PCIe x16 slot provides an option to add a compatible card, though fit, cooling, and power depend on the case and the selected components.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Compact server builds using supported Intel processors, ECC-capable DDR5 memory, dual 10GbE networking, and flexible PCIe and storage expansion |
| Processor And Platform | LGA 1700 socket with Intel W680 chipset; supports the listed 12th, 13th, and 14th Gen Intel Core processors, plus Intel Celeron and Pentium |
| Memory Configuration | Four 288-pin DDR5 slots, supporting up to 192GB and DDR5 4400 memory; ECC supported |
| Expansion And Storage | One CPU-connected PCIe 5.0 x16 slot; two PCIe 4.0 x4 M.2 slots supporting 2280 drives; eight SATA 6Gb/s ports; three OCuLink connections, including two that can each operate as PCIe x4 or four SATA ports |
| Networking And External I/O | Intel X550 LAN with two 10Gbps RJ45 ports; rear I/O includes D-Sub, HDMI, two USB 3.2 Gen 1 Type-A ports, and the two LAN ports |
| Video And Firmware | Onboard Aspeed AST2600 video chipset; AMI 256Mb SPI Flash ROM with Plug and Play, ACPI 6.4-and-above wake events, SMBIOS 3.6.0-and-above, and ASRock Rack Instant Flash |
| Power And Cooling | ATX PSU signal connector with 24-pin adapter cable, two 8-pin ATX 12V connectors supporting 12V DC-in, and a 4-pin HDD power connector for 12V DC-in use; three 4-pin fan headers and one thermal sensor header |
| Internal Headers And Controls | USB 3.2 Gen 1 header for two USB ports; auxiliary panel and system panel headers for chassis, fault, activity, power, and reset signals; COM, speaker, TPM, SGPIO, SMBus, PMBus, IPMB, NMI, and clear-CMOS headers |
| Form Factor And Dimensions | Deep mini-ITX board measuring 6.7 x 8.2 inches |
| Model Identifiers | ASRock Rack W680D4ID-2T/G5/X550 |
