ASRock VISION HT 321B Intel HM77 1 x HDMI Barebone

OUT OF STOCK.
  • Intel Core i5-3210M Mobile Ivy Bridge Processor
  • Intel HM77
  • 2 x 204Pin SO-DIMM DDR3 1600/1333
  • Intel HD Graphics 4000
Specs
Reviews

Learn more about the ASRock VISION HT 321B

General
Brand ASRock
Model VISION HT 321B
CPU Supported
CPU Type Intel Core i5-3210M Mobile Ivy Bridge Processor
Chipset
North Bridge Intel HM77
Memory Supported
Memory slot 2 x 204Pin SO-DIMM
Memory Type Supported DDR3 1600/1333
Max Memory Supported 16GB
Graphics
Onboard Video Intel HD Graphics 4000
Audio
Channel 8-CH
Communications
First LAN 10/100/1000 LAN
Wireless LAN 802.11a/b/g/n
Bluetooth Bluetooth 4.0/3.0 HS class II

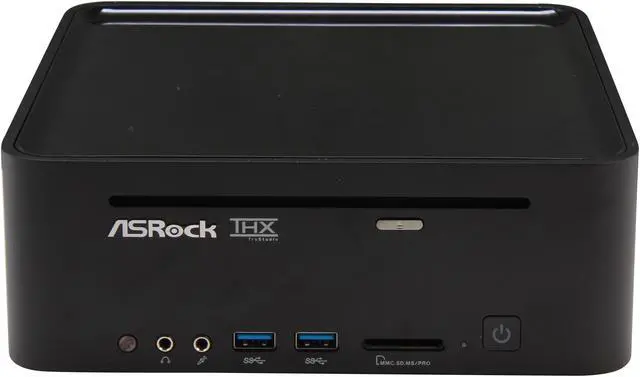

Front Panel Ports
Front USB 2 x USB 3.0
Front Audio Ports 2 jacks
Card Reader 4-in-1 Card reader (SD3.0/MMC/MS/MS PRO)

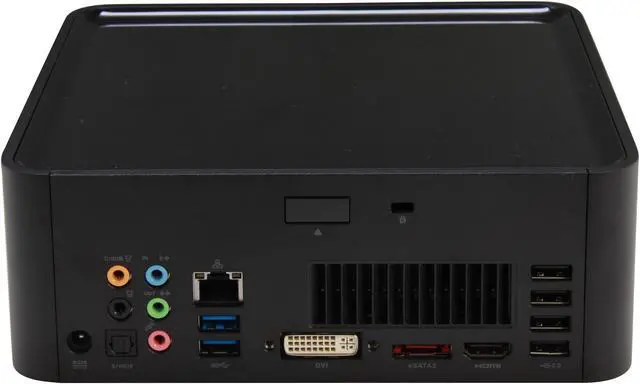

Back Panel Ports
DVI 1 x DVI
HDMI 1 x HDMI
Rear USB 4 x USB 2.0
2 x USB 3.0
Rear e-SATA Ports 1
RJ45 1
Rear S/PDIF Out Yes
Rear Audio Ports 5 jacks
Power Supply
Power Supply 90W/19V Adapter
Physical SPEC
Dimensions 7.87" x 7.87" x 2.76"
Features
Remote Control Yes
Features 4GB DDR3-1600MHz (2x2GB)
750GB, Supports second 2.5" SATA HDD
BD Combo
Supports mSATA SSD

Intel Mobile Ivy Bridge Processor

Intel Mobile HM77 Express chipset

Multi VGA Output options : HDMI, DVI-I and D-Sub by the bundled DVI to D-Sub adapter

HDMI audio pass through (Dolby TrueHD & DTS-HD Master Audio)

Supports Blu-ray disc S3D content via HDMI 1.4a

7.1 CH HD Audio with THX TruStudio

4 x USB3.0 , 4-in-1 Card reader (SD3.0/MMC/MS/MS PRO)

2T2R 802.11 a/b/g/n (5GHz/2.4GHz Dual-Band access)

Bluetooth 4.0/3.0 HS class II

Supports ASRock XFast RAM, XFast LAN, XFast USB, Dehumidifier, UEFI System Browser, OMG, Internet Flash

Supports Intel Smart Connect, Intel Rapid Start

Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite
Additional Information
Date First Available July 20, 2012
